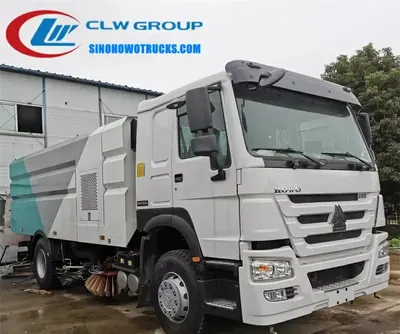

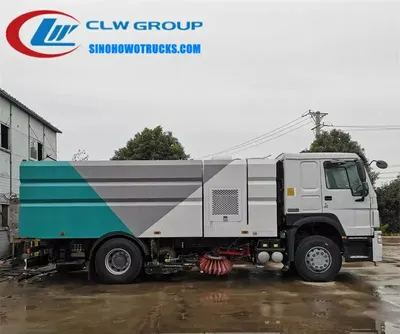

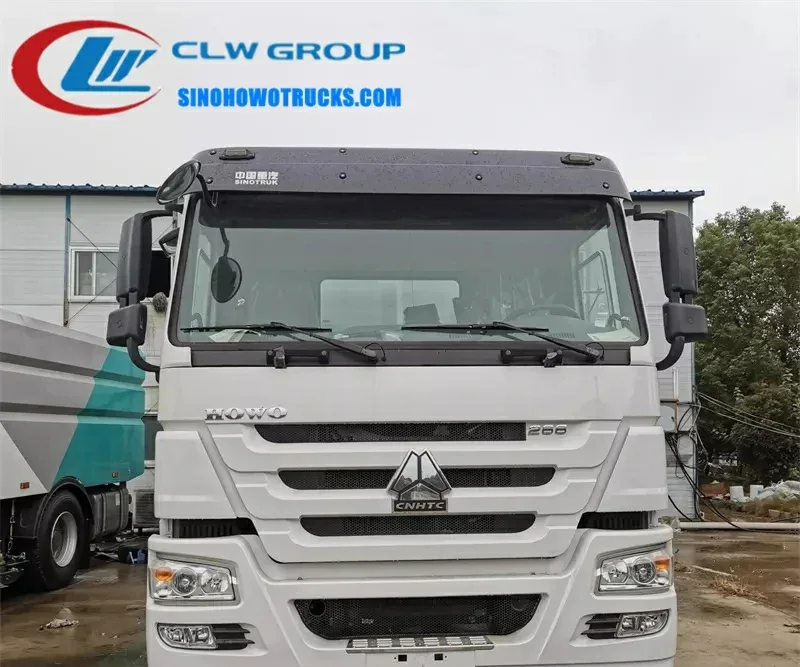

The Sinotruk HOWO 16 ton truck mounted sweeping machine is a 16 m³ road cleaning vehicle built on a 4x2 HOWO chassis with a 290 HP diesel engine and 10 speed manual gearbox. It is designed for municipal sanitation departments and public works contractors that need to clean city streets, roads, and open areas of dust, leaves, mud, sand, gravel, and small debris. The unit combines vacuum sweeping, high-pressure water jetting, and automatic dustbin emptying to maintain clean urban surfaces without requiring multiple vehicles. It operates at speeds from 3 to 20 km/h and can clean up to 70,000 m² per hour with a 3.5 m wash sweep width.
| Chassis | Sinotruk HOWO 4x2 left hand drive |
|---|---|
| Engine | 290 HP diesel |
| Gearbox | 10 speed manual |
| Overall Size | 8600 x 2490 x 3000 mm |
| Total Tank Capacity | 16 m³ |
| Water Tank Capacity | 9 m³ |
| Dustbin Capacity | 7 m³ |
| Road Wash Width | 3.5 m |
| Wash Sweep Speed | 3 to 20 km/h |
| Rated Cleaning Water Flow | 122 L/min |
| Maximum Cleaning Capacity | 70000 m²/h |
| Vehicle Model | XDR5180SL |
| GVW | 18000 kg |
| Rated Payload | 4670 kg |
| Curb Weight | 11200 kg |
| Approach Angle | 13° |
| Departure Angle | 20° |
| Wheelbase | 5000 mm |
| Maximum Grade Ability | ≥30% (Transition mode), >15% (Operating mode, full load) |
| Minimum Turning Radius | 8 m |
| Front Track | 1250 mm |
| Rear Track | 2350 mm |
| Front Overhang | 1825 mm |
| Rear Overhang | 1800 mm |
| Tyre Size | 295/80R22.5 |
| Number of Tyres | 6 + 1 spare |
| Number of Axles | 2 units |
| Axle Load | 5600 / 10400 kg |
| Max Speed | 95 km/h |
| Driver’s Cab | Flat head, single row (optional high top two bedroom cab) |
| Seats | 3 units |
| Steering | 4x2 right hand drive |
| Transmission | 6 speed with 1 overdrive |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 8 ton truck mounted sweeper with 6 m³ capacity | Lower capacity means more frequent refills but better maneuverability in narrow urban streets |
|---|---|
| Water tanker with a broom attachment | Simpler and cheaper but lacks vacuum suction and automatic dustbin emptying |
| Truck with separate vacuum and washing units | Higher initial cost and more maintenance but better specialization for large-scale operations |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.
Yes. The standard is stainless steel. Carbon steel is available on request but may require additional corrosion protection.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. Send us your list of brushes, nozzles, hoses, and other accessories and we will layout the equipment accordingly.
Send us your destination port and we will quote price, lead time and freight.
