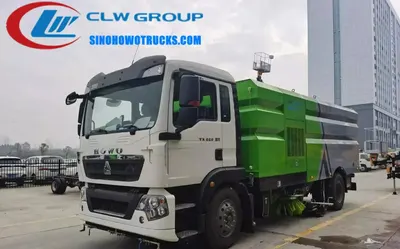

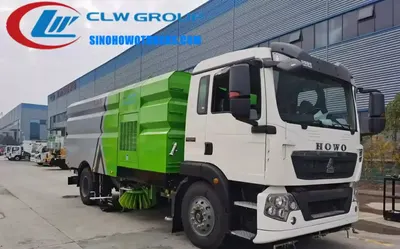

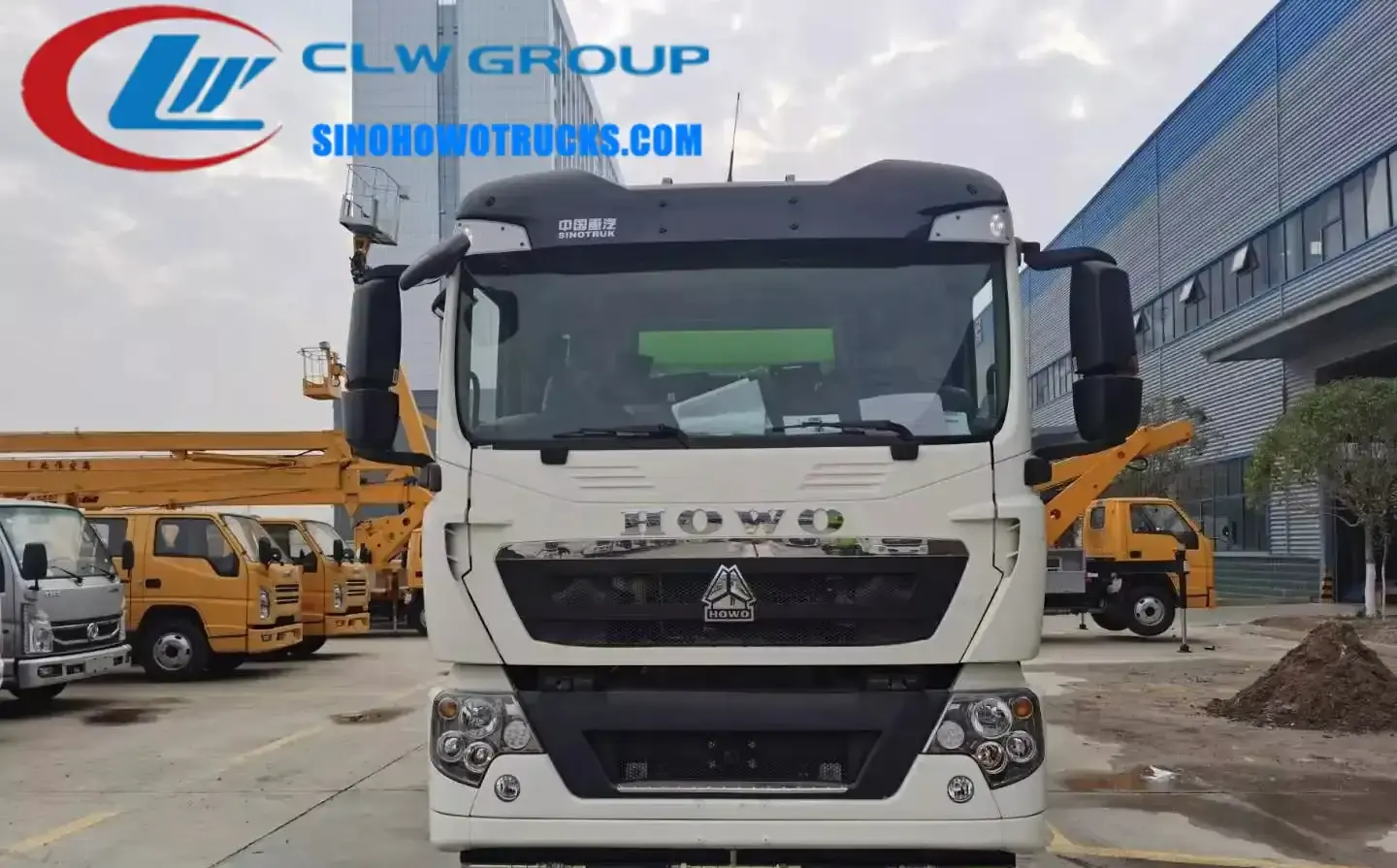

The Sinotruk HOWO 16cbm truck mounted road sweeper is a 18000 kg GVW vehicle built on a 4x2 left hand drive chassis for municipal road cleaning in urban and rural areas. It combines high-pressure washing, vacuum sweeping, and automatic dustbin emptying to clean roads, sidewalks, and public spaces of dust, leaves, mud, sand, gravel, and small debris. Designed for continuous operation in dusty and wet conditions, it is used by city sanitation departments and contractors that need a self-contained, high-capacity cleaning solution without relying on external water sources or manual labor.
| Chassis | Sinotruk HOWO 4x2 left hand drive |
|---|---|
| Engine | 240 HP diesel |
| Gearbox | 10 speed manual |
| Overall Size | 8600 x 2490 x 3000 mm |
| Total Tank Capacity | 16 m3 |
| Water Tank Capacity | 9 m3 |
| Dustbin Capacity | 7 m3 |
| Road Wash Width | 3.5 m |
| Wash Sweep Speed | 3 to 20 km/h |
| Rated Cleaning Flow | 122 L/min |
| Maximum Cleaning Capacity | 70000 m²/h |
| GVW | 18000 kg |
| Curb Weight | 11200 kg |
| Payload | 4670 kg |
| Wheelbase | 5000 mm |
| Approach Angle | 13° |
| Departure Angle | 20° |
| Maximum Grade Ability | ≥30% (Transition mode), >15% (Operating mode, full load, 16 tons) |
| Minimum Turning Radius | 8 m |
| Front Track | 1250 mm |
| Rear Track | 2350 mm |
| Front Overhang | 1825 mm |
| Rear Overhang | 1800 mm |
| Tyre Size | 295/80R22.5 |
| Number of Tyres | 6 + 1 (spare) |
| Axles | 2 units |
| Axle Load | 5600 / 10400 kg |
| Max Speed | 95 km/h |
| Cab Type | Flat head, single row (optional high top two bedroom) |
| Seats | 3 units |
| Steering | 4x2 left hand drive |
| Transmission | 6 speed with 1 overdrive |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 6cbm road sweeper with 3cbm water tank | Lower capacity and more frequent refills but better for narrow urban streets |
|---|---|
| Truck with only vacuum system | No high-pressure wash function, less effective on mud and sticky debris |
| Truck with manual dustbin emptying | Higher labor cost and longer downtime, no self-cleaning capability |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment list.
Yes. The standard dustbin is stainless steel and carbon steel is available. Let us know your operating environment and we will confirm the best material.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. Send us your list of required nozzles, brooms, lifters, or other accessories and we will configure the truck accordingly.
Send us your destination port and we will quote price, lead time and freight.
