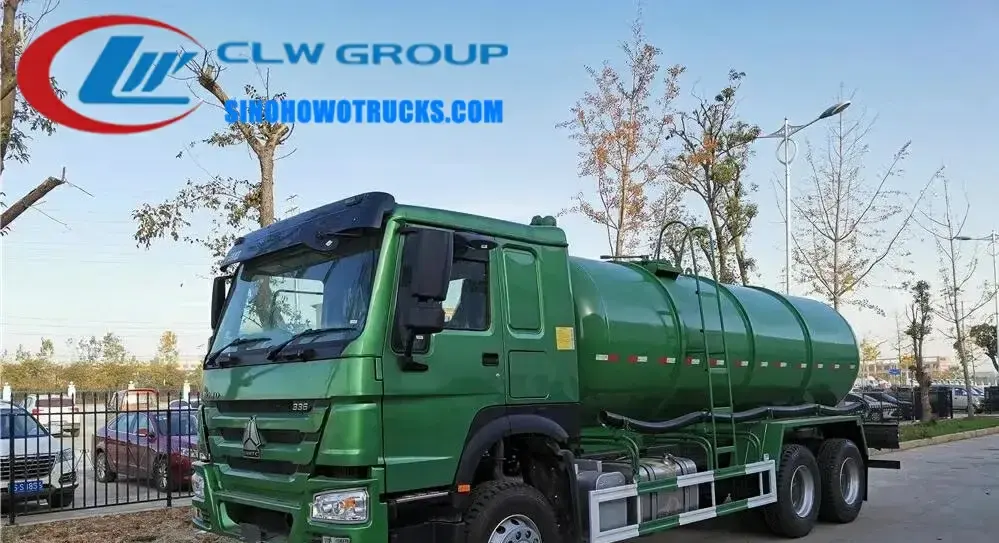

SINOTRUK Howo 18CBM sewage cleaning tanker in service with tailgate fully open and suction hose deployed

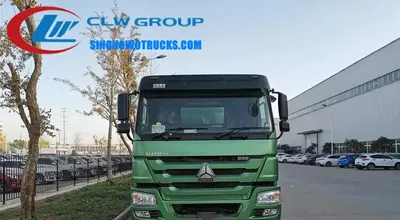

Side view of the HOWO sewage vacuum truck showing hydraulic lift and control panel

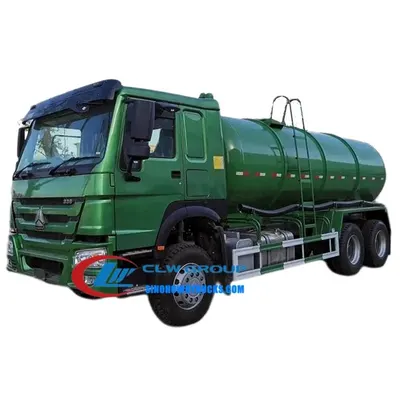

Rear view of the HOWO 18CBM vacuum pump truck with fully opened tailgate and discharge pipe

SINOTRUK Howo 18CBM sewage cleaning tanker Uganda

Name: SINOTRUK Howo 18CBM sewage cleaning tanker Uganda
Brand: Sinotruk HOWO

The SINOTRUK Howo 18CBM sewage cleaning tanker is a 15 cubic meter vacuum truck built on a HOWO chassis for municipal sanitation departments and waste contractors in regions with limited sewer infrastructure. It is designed to suction sludge, mud, and debris from manholes, water wells, and sediment pits, then transport and discharge the load at treatment sites. The truck operates in urban and rural environments where gravity-fed systems are absent or overloaded, and where rapid response is needed to prevent public health risks. It is used by local authorities and contractors in Africa, Southeast Asia, and emerging markets with high demand for low-cost, durable sanitation solutions.

Request A Quote Email Specification

Key Benefits

15 cubic meter tank capacity with 6-8 mm thick carbon steel or stainless steel body for long service life
Italian imported vacuum pump provides suction up to 9 metres vertical depth and 80 metres horizontal reach
Fills in under 10 minutes and empties in a single 8-minute cycle using hydraulic lift and air blowdown
Dual pump system (single or double Veyron) allows operation in high-volume or high-viscosity conditions
Manual, pneumatic, and hydraulic operation modes enable control from cab or side for safe working
16/18 degree approach and departure angles allow operation on unpaved and uneven terrain
266 HP turbocharged diesel engine with 500,000 km no-overhaul performance on the HOWO chassis
Tailgate fully opens for full access and gravity-assisted discharge, reducing residual load
15 years of spare parts and technical support available for long-term operation
Custom tank size from 3,000L to 30,000L and free logo and colour customization

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing countries
Private waste collection and disposal contractors operating in low infrastructure areas
Construction and quarry fleet owners managing on-site sludge and sediment
Water and drainage utilities with decentralized pumping and cleaning needs
Government procurement agencies equipping local authorities with sanitation vehicles
Contractors supplying sanitation services to industrial parks and free zones

Operating Problems

Problems It Solves

Lack of sewer infrastructure that prevents regular waste removal from manholes and pits
Slow or incomplete emptying of septic tanks due to weak suction or poor pump design
High maintenance costs from pumps and tanks that fail after short use
Inability to operate on unpaved or uneven roads due to poor ground clearance or weak chassis
Long delivery times for imported sanitation trucks with limited local support
Lack of spare parts and technical service after the warranty period ends

Where It Works

Application Scenarios

Municipal sanitation departments in Uganda and other African countries with limited sewer networks
Rural water and waste contractors operating in areas without central treatment plants
Construction sites and quarry operations that generate sludge and sediment in pits
Emergency response teams clearing blocked manholes after heavy rains or flooding
Industrial zones with on-site waste pits requiring regular vacuum cleaning
Remote villages and informal settlements where septic tanks overflow frequently

Engineering

Technical Features

15 cubic meter tank body with carbon steel Q345 or stainless steel 304 construction
Italian imported vacuum pump with high suction power and reliability
Veyron single or double pump system for variable flow and pressure control
Suction speed: fills tank in under 10 minutes at maximum capacity
Blowdown speed: complete discharge in 8 minutes using hydraulic lift and air blowdown
Suction depth: up to 9 metres vertical, 80 metres horizontal reach
Dual operation modes: manual + pneumatic + hydraulic control from cab or side
Leak-proof system with rubber strip, hydraulic lock, and manual lock on tank doors
Tailgate fully opens for full access and gravity-assisted discharge
Hydraulic gauge and sight liquid window for real-time monitoring of tank level
8 metre suction hose with quick-connect fittings for rapid deployment
295/80R22.5 tyres with one spare for off-road and long-distance travel
266 HP WD615 turbocharged diesel engine with water cooling and intercooling
HW13710CL 10-speed manual transmission with high torque delivery
Dual circuit compressed air brakes with spring energy parking brake on rear wheels
ZF8098 steering system for precise handling at low and high speeds
HOWO76 cab with ergonomic layout and durable interior for long shifts

Specifications

Technical Data


Chassis	SINOTRUK HOWO
Tank Capacity	15 M3
Tank Material	Carbon steel Q345 or stainless steel 304
Vacuum Pump	Imported from Italy
Suction Depth	Up to 9 metres
Suction Distance	Up to 80 metres
Fill Time	Under 10 minutes
Blowdown Time	Single 8 minutes
Engine	WD615, 266 HP, turbocharged, intercooled, diesel
Transmission	HW13710CL 10-speed manual
Max Speed	90 km/h
Curb Weight	16580 kg
Overall Size	9800 x 2496 x 3633 mm
Wheelbase	2022, 2041, 1830/1830 mm
Approach Angle	16°
Departure Angle	18°
Overhang Front	1500 mm
Overhang Rear	2625, 2600 mm
Brake System	Dual circuit compressed air, spring energy parking on rear wheels
Steering System	ZF8098
Front Axle	HF7 Drum
Rear Axle	ST16
Tyres	295/80R22.5, 11 pcs with one spare
Battery	2 x 12V / 165Ah
Alternator	28V / 1500 kW
Starter	7.5 kW / 24V
Cab	HOWO76
Power Take Off	HW70
Emission Standard	EURO2
Fuel Tank Capacity	300 L
Production Time	20 days
Lead Time	7 to 30 days after deposit
Shipping Port	China main port
Payment	T/T 30% deposit, 70% before delivery

Build Materials

Materials

Carbon steel Q345 tank body with 6-8 mm thickness, heads 8 mm, partitions 5 mm
Stainless steel 304 available for corrosive or food-grade waste applications
Aluminium alloy or steel for pump housing and piping components
Rubber sealing strips for tank doors and joints
Steel frame and substructure for chassis integration
295/80R22.5 tyres with high load capacity and off-road tread

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is confirmed against tank drawing
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge
Tank is pressure tested and leak tested before leaving the welding shop
Vacuum pump and PTO are installed and aligned to the driveline
Piping, suction hose, and blowdown system are fitted and tested
Cab and body are assembled with hydraulic and pneumatic control lines
Leak-proof seals and locks are installed on all doors and joints
Body is shot blasted, primed, and finished in customer colour with logo
Final system test includes suction, fill, blowdown, and control operation
Photos and videos of the completed truck are sent before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure and leak tests conducted in-house with documented results
Vacuum pump performance verified at full suction and blowdown cycles
All welds inspected for continuity and strength using non-destructive methods
Photos and videos of the finished truck sent to buyer before balance payment
Compliance with GB39.5 general specification for sewage cleaning vehicles

Build to Order

Customization Options

Tank capacity from 3,000L to 30,000L available to match site needs
Tank material can be changed from carbon steel Q345 to stainless steel 304
Tank colour and logo applied free of charge to match local fleet identity
Suction hose length and fittings adjusted to site access requirements
Operation control layout can be modified for cab or side access preference
Pump system configured as single or double Veyron based on flow demand
Production to customer technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 sewage truck with 10 M3 tank	Lower capacity but better turning radius in tight urban streets
Used imported vacuum truck	Higher initial cost but lower long-term maintenance and parts cost
Self-built vacuum truck from local chassis	Lower upfront cost but lacks factory testing and warranty support

Operating Notes

Use Guide

Confirm tank capacity and material based on waste type and storage duration before ordering
Use only the designated suction hose and fittings to avoid blockage or damage
Do not exceed 9 metres vertical suction depth to prevent pump overload
Keep the air breather valve clear during suction to maintain vacuum efficiency
Engage hydraulic lift before air blowdown to ensure full tank discharge
Drain all residual water after use in freezing conditions to prevent freezing damage
Free operator training available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this sewage cleaning tanker?

Generally 7 to 30 days after the advance payment is received. The exact time depends on chassis availability and customization level.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard is Q345 carbon steel. Stainless steel 304 is available upon request for corrosive or hygiene-sensitive waste.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts on some products are guaranteed for two years. We provide 15 years of spare parts and technical support.

Can the tank size be changed?

Yes. Tank capacity can be customized from 3,000L to 30,000L based on your site requirements and operational needs.

Is the truck available in right hand drive?

Yes. The chassis can be ordered in left or right hand drive to match local traffic regulations. Confirm at order stage as it cannot be changed later.
