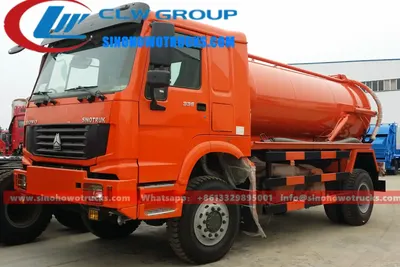

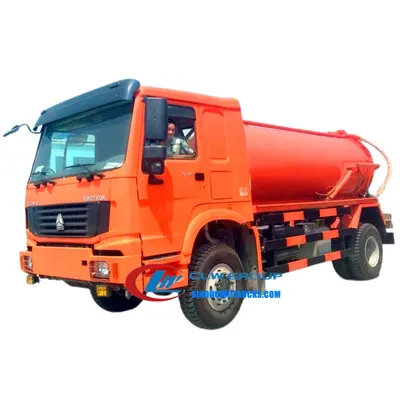

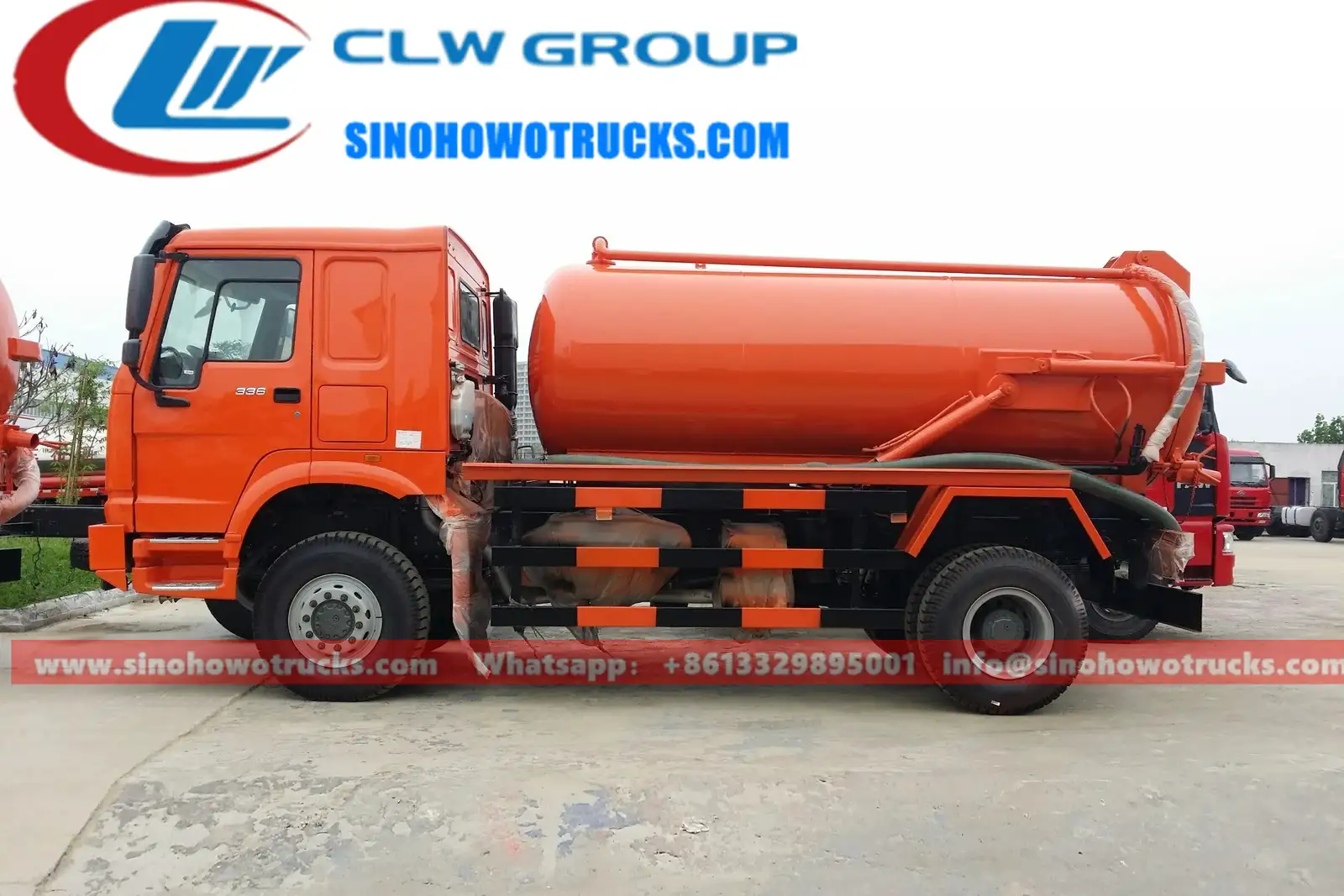

The 4×4 Sinotruk HOWO 10000L sewage vacuum tanker is a custom-built waste collection vehicle designed for municipal sanitation departments and private contractors operating in remote or unpaved areas. It is built on a ZZ1167M46 chassis with a 290 HP diesel engine and 10-speed manual gearbox, capable of extracting liquid and solid waste from septic tanks, cesspits, and blocked drains. The truck features a high-efficiency vacuum pump with a maximum suction lift of over 6 metres and a full tanking cycle in under 5 minutes, making it suitable for frequent service in urban and rural environments where access is limited and infrastructure is poor.
| Chassis Model | ZZ1167M46 |
|---|---|
| Vehicle Model | 4×4 Sinotruk HOWO sewage vacuum tanker Cameroon |
| Overall Dimensions | 8480 x 2500 x 3250 mm |
| Factual Cubage | 8000 L |
| GVW | Appro×16000 kg |
| Rated Loading Capacity | Appro×8000 kg |
| Mass in Working Order | Appro×10000 kg |
| Body Internal Dimensions | 8000 L tank capacity |
| Wheelbase | 4600 mm |
| Front/Rear Track Base | 1180 / 1670 mm |
| Approach/Departure Angle | 25° / 14° |
| Engine | D10.31-40, 290 HP, 9726 ml, supercharged diesel |
| Transmission | 6-speed with overdrive |
| Traction System | 4×2 |
| Max Speed | 90 km/h |
| Tire Specification | 11.00R20 |
| Electric System | 24V |
| Operation Control System | Electric-hydraulic |
| Allowable Passengers in Cab | 3 |
| Vacuum Pump Speed | 1400 r/min (rated), >800 r/min (min) |
| Max Suction Lift | >6 m |
| Vacuum Level | >500 mmHg |
| Suction Time | <5 min for full tank |
| Horizontal Suction Range | 40–60 m |
| Vertical Suction Depth | ≤8 m |
| Control Method | Electric + manual |
| Operating Position | Cab + front of tank |
| Production Time | 20 days |
| Delivery Time | Based on shipping mode chosen |
| 2×4 sewage tanker with 6000 L tank | Lower cost and better turning radius but insufficient capacity for high-volume urban routes |
|---|---|
| Standard water tanker with added vacuum pump | Less efficient suction and no dedicated waste handling system, higher risk of clogging |
| Used imported vacuum truck | Higher long-term maintenance cost and delayed spare parts delivery, no custom fit for local terrain |
Production time is 20 days after the advance payment is received. Delivery time depends on the shipping method chosen.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match local traffic regulations. Confirm this at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Free spare parts for 12 months. Original parts are supplied. DHL delivers globally within 7 days. Technical support is available for 15 years.
Yes. Send us your site layout and waste type, and we will adjust the pump, pipe network, and access points accordingly.
Send us your destination port and we will quote price, lead time and freight.
