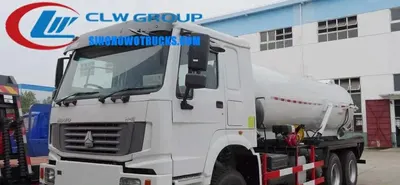

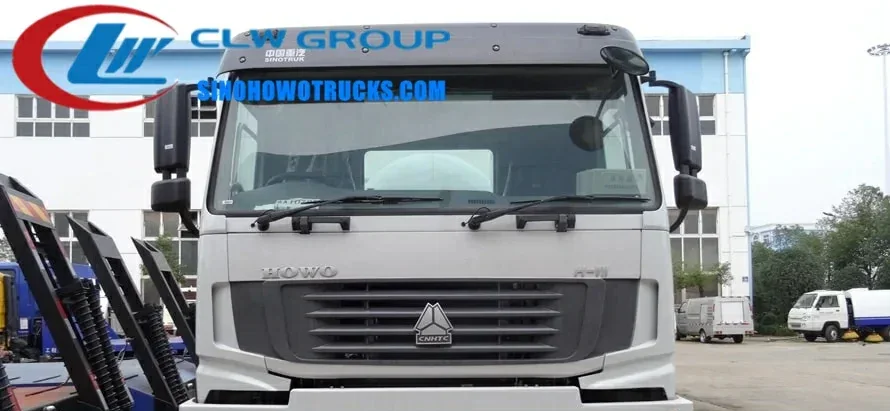

The 6X6 Sinotruk HOWO sewage disposal truck is a 18000 to 20000 litre vacuum suction vehicle built on a 6x6 left hand drive chassis for operation in challenging terrain and urban environments. It is designed for municipal sanitation departments and waste contractors that must access deep manholes, water wells, and sediment pits in remote or unpaved areas. The SK-30 vacuum pump generates a maximum vacuum of 11 MPa and can lift material from depths of 9 metres, allowing a single unit to clear blocked sewers and sludge pits without relying on external pumping infrastructure.
| Chassis | 6x6 Sinotruk HOWO left hand drive |
|---|---|
| Model | CLW5253GXWT3 |
| Cab | HW76 Flat-top single row cab with power steering, A/C, electronic flameout |
| Engine | WD615.69, 9726 ml, turbocharged, direct injection, water-cooled, diesel |
| Max Power | 336 HP at 2200 rpm |
| Max Torque | 1350 N.m at 1100–1600 rpm |
| Gearbox | 10-speed manual |
| Front Axle | 7T |
| Rear Axles | 13T+13T |
| Overall Dimensions | 9420 x 2500 x 3455 mm |
| GVW | 25000 kg |
| Dry Weight | 13575 kg |
| Wheelbase | 4625+1350 mm |
| Front/Rear Track | 2022/1830 mm |
| Front/Rear Overhang | 1500/2380 mm |
| Approach/Departure Angle | 16/14 degrees |
| Tire Size | 295/80R22.5 (10+1) |
| Max Speed | 90 km/h |
| Tank Volume | 18m³ or 20m³ |
| Tank Material | 5mm Q235 carbon steel |
| Suction Height | ≥9 metres |
| Suction Time | 250 seconds |
| Max Vacuum | ≥11 MPa |
| Lifting Time | ≤45 seconds |
| Cover Opening Angle | ≥75 degrees |
| Cover Opening Time | ≤25 seconds |
| Suction Pipe | 3 m length, 100 mm diameter |
| Hose Racks | Fitted on both sides, holds at least seven hoses each |
| Vacuum Pump | SK-30 |
| Pump Motor Power | Not specified |
| Braking System | Compressed air service brake, spring energy parking brake, engine exhaust brake |
| Electrical System | 24V |
| Production Time | 20 days |
| Lead Time | 7 to 30 days after advance payment |
| Shipping | Ro-ro, bulk ship or container from China main port |
| 4x4 vacuum truck with 10000L tank | Lower cost and better turning radius but cannot handle deep suction or soft terrain |
|---|---|
| Standard sewage tanker with fixed pump | Less suction power and no vacuum system, requiring external pumps for deep access |
| Used imported vacuum truck | Higher long-term cost due to limited spare parts and no local technical support |
Generally 7 to 30 days after the advance payment is received. The exact time depends on chassis availability and the equipment list.
Yes. The standard tank is 5mm Q235 carbon steel. Stainless steel is available on request. Provide water quality and storage duration for material confirmation.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.
By Ro-ro, bulk ship, or container from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. We provide 15 years of spare parts and technical support.
Yes. Send us your hose inventory list and we will adjust the rack layout to fit your equipment.
Send us your destination port and we will quote price, lead time and freight.
