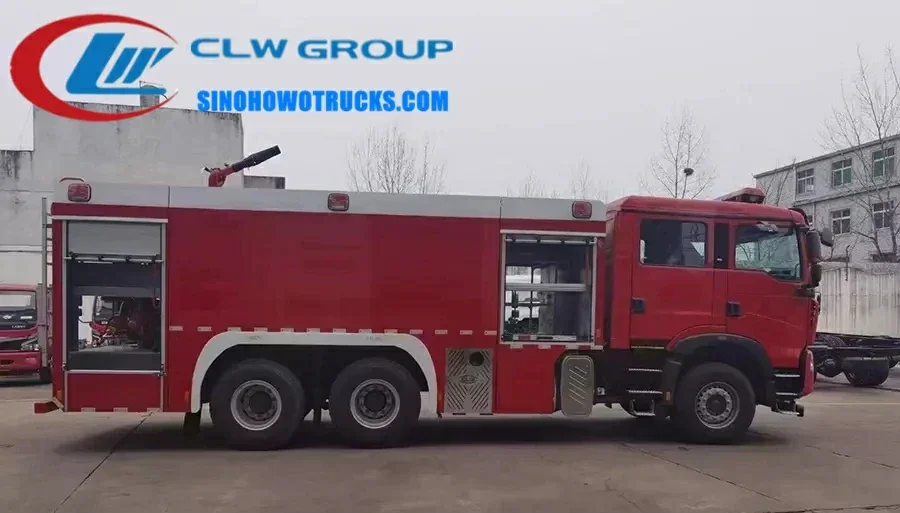

SINOTRUK HOWO T5G 12 ton heavy rescue fire truck in fire service red with dual water and foam tanks and roof-mounted fire monitor

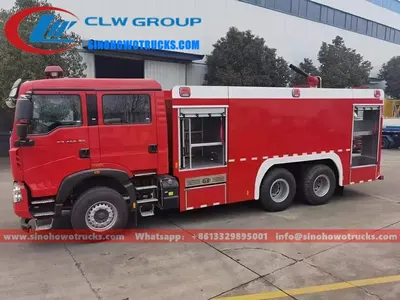

Side view of the HOWO T5G fire truck showing roller shutter lockers and hose storage compartments

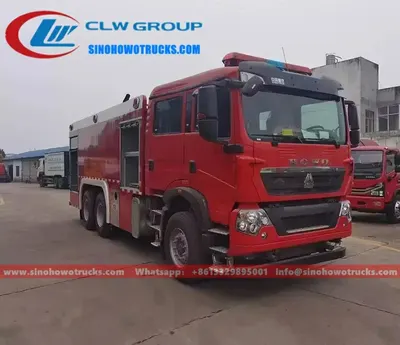

Rear view of the HOWO T5G fire truck with fire pump room and control panel

HOWO T5G 12 ton heavy rescue fire truck zambia

Name: HOWO T5G 12 ton heavy rescue fire truck zambia
Brand: Sinotruk HOWO

The SINOTRUK HOWO T5G 12 ton heavy rescue fire truck is a 6x4 fire fighting vehicle built on a durable HOWO T5G chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for fire brigades and industrial safety teams that need to respond to large fires in remote or infrastructure-limited areas. The truck carries 9000 kg of water and 3200 kg of foam in a dual tank system, with a fire pump delivering 90 litres per second at 1.0 MPa and a manual monitor throwing water over 75 metres and foam over 70 metres. It is used in rural, industrial, and urban settings where rapid, sustained fire suppression is required without reliance on hydrants.

Request A Quote Email Specification

Key Benefits

9000 kg water tank and 3200 kg foam tank allow extended attack on large fires without refill
American Hill RSD fire pump delivers 90 l/s at 1.0 MPa for high-volume water supply
American Elk manual fire monitor throws water over 75 m and foam over 70 m from a safe distance
6x4 HOWO T5G chassis handles rough terrain, unpaved roads, and steep grades up to 30%
Dual tank system supports both water and foam operations for flammable liquid fires
100 percent custom-built to match local fire service equipment and operational needs

Buyer Profile

Who It Is for

National and city fire services procuring heavy rescue units for rural or industrial coverage
Industrial safety departments in mining, oil, and chemical facilities requiring foam-capable response
Port and logistics operators managing fire risk in storage and transport hubs
Government procurement agencies upgrading fire protection in remote or underserved areas
Contractors supplying turnkey fire protection to industrial estates and special economic zones

Operating Problems

Problems It Solves

Lack of hydrant infrastructure in rural or remote areas forces reliance on water shuttles
Small water tank trucks run dry before a large fire is under control
Single-purpose water trucks cannot handle flammable liquid fires without foam
Imported trucks with long lead times and unavailable spare parts delay repairs
Inadequate pump flow and monitor range limit effective fire suppression from a safe distance
Standard fire trucks lack the dual tank capacity and heavy-duty chassis for off-road operation

Where It Works

Application Scenarios

Rural fire brigades operating in areas with no hydrant access and long response distances
Industrial parks and chemical plants requiring foam-capable first response vehicles
Mining and quarry sites where fires spread quickly through dry vegetation and equipment
Port terminals and storage yards with high fire load and limited water supply
Urban fire departments supplementing their fleet with heavy-duty rescue trucks for large incidents
Government agencies equipping new fire stations in developing regions with reliable, low-maintenance trucks

Engineering

Technical Features

American Hill RSD fire pump rated at 90 l/s at 1.0 MPa and 1900 rpm
Pump draws power from the engine via a reliable PTO system with no overhaul required for 500,000 km
American Elk manual fire monitor with 360-degree rotation and adjustable pitch for precise targeting
Water and foam tanks mounted on a reinforced subframe with internal baffles to reduce surge
Dual tank system with separate inlets, outlets, and level indicators for both water and foam
Hose storage lockers with roller shutters and sealing strips to protect equipment from dust and moisture
Left or right hand drive chassis to match local traffic regulations
10 speed manual gearbox with high torque for climbing grades up to 30% and low-speed maneuvering

Specifications

Technical Data


Chassis	SINOTRUK HOWO T5G 12 ton, 6x4
Engine	371 HP diesel, 327 kW at 1900 rpm
Gearbox	10 shift manual
Overall Size	10100 x 2540 x 3620 mm
Full Load Quality	28100 kg
Water Tank Capacity	9000 kg
Foam Tank Capacity	3200 kg
Fire Pump Model	American Hill RSD
Pump Flow	≥90 l/s at 1.0 MPa
Pump Pressure	≥1.0 MPa
Fire Monitor Model	American Elk Manual
Monitor Flow	≥80 l/s
Monitor Pressure	≤1.2 MPa
Water Range	≥75 m
Foam Range	≥70 m
Minimum Turning Diameter	≤22 m
Max Speed	≥95 km/h
Max Grade	≥30%
Wheelbase	4600 + 1400 mm
Cab Colour	Red, tank colour and logo free of charge
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel tanks available on request for corrosive or high-purity water
Aluminium alloy roller shutter lockers with sealing strips and one lock set per door
HOWO T5G 6x4 heavy-duty chassis with Sinotruk engine and gearbox
American Hill RSD fire pump and American Elk manual fire monitor for proven performance

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank layout drawing
Tank shells are cut, rolled, and welded with internal clapboards to reduce liquid surge
Tanks are pressure tested and leak tested before moving to the assembly line
Fire pump, piping, and sandwich PTO are installed and aligned to the driveline
Carriage subframe is assembled with lockers, monitor platform, and hose storage units
Body is shot blasted, primed, and painted in fire service red with customer logo applied
Pump flow, monitor range, and priming time are tested on the factory apron before shipment

Testing

Quality Control

Vehicle built to GB7965 performance requirements for fire fighting vehicles
Tanks comply with GB39.5 general specification for fire fighting vehicles
Every truck undergoes 100 percent testing before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house pressure and non-destructive testing available for pressure vessel projects

Build to Order

Customization Options

Water and foam tank capacities adjusted to the buyer's operational requirements
Tank material changed from carbon steel to stainless steel upon request
Left or right hand drive chassis to match local traffic regulations
Tank colour and brigade logo applied free of charge
Fire fighting equipment package built to the buyer's inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 water tender with 6000 kg tank	Lower water capacity means more frequent refills but better maneuverability in tight urban areas
Foam and dry powder tender	Better on flammable liquid fires but cannot sustain a high-volume water attack on solid fuel fires
Water tanker with fire pump added	Cheaper per litre carried but lacks integrated fire fighting layout and equipment storage

Operating Notes

Use Guide

Confirm chassis drive configuration and hand of drive against local regulations before placing the order
Fill water and foam tanks only through designated inlets and keep air breather valves clear
Prime the pump at no more than 7 metres suction lift and expect full draft within 50 seconds
Engage the sandwich PTO before moving if pump and roll operation is required
Drain all water and foam lines after use in freezing conditions to prevent damage
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, branches, nozzles, and breathing apparatus and the lockers will be laid out to suit it.
