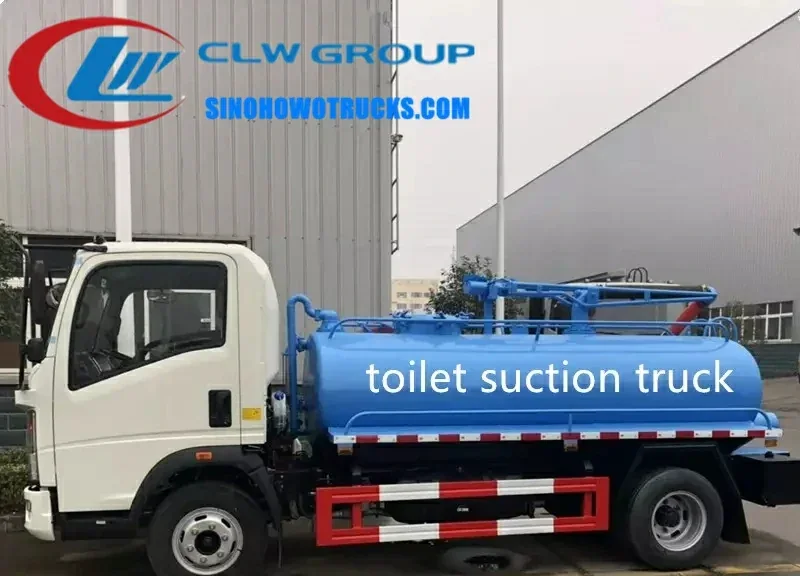

Sinotruk HOWO mini 5000L fecal suction truck in white with front-mounted suction pipe and vacuum pump

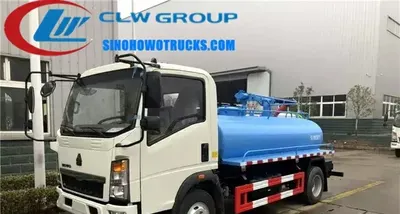

Side view of the HOWO septic pump truck showing the 4000L tank and roller shutter access door

Front of the HOWO toilet vacuum truck with control panel and suction hose connection

HOWO mini 5000L fecal suction truck Congo

Name: HOWO mini 5000L fecal suction truck Congo
Brand: Sinotruk HOWO

The Sinotruk HOWO mini 5000L fecal suction truck is a 4x2 compact waste collection vehicle built on a CHINA XICHAI POWER 85hp diesel chassis, designed for municipal sanitation departments and waste contractors in regions with limited access to centralized sewage systems. It collects and transports liquid sludge, fecal matter, mud, and small solid debris such as stones and bricks from septic tanks, pit latrines, and blocked drains. The truck operates in urban and rural areas where road conditions are uneven and access is tight, and is used for routine cleaning, emergency unclogging, and temporary waste transfer during infrastructure upgrades.

Request A Quote Email Specification

Key Benefits

4000 litre carbon steel tank with 4mm thickness holds a full load of sludge and solids without deformation
Suction depth of 8 metres allows access to deep septic tanks and underground pits
Full tank filled in under 5 minutes with a single pumping cycle, reducing downtime
Suction pipe with 5m reach and horizontal range up to 60 metres enables operation from a safe distance
Dual control system (electric and manual) ensures operation continuity if power fails
Left or right hand drive chassis available to match local traffic rules
Free spare parts for 12 months and 15 years of technical support ensure long-term reliability

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing regions
Private waste collection contractors operating in low infrastructure areas
Health and hygiene NGOs managing sanitation in refugee camps and rural communities
Construction companies requiring temporary waste handling during site development
Water and sanitation service providers in countries with fragmented sewer networks
Local government agencies procuring low-cost, high-efficiency waste transporters

Operating Problems

Problems It Solves

Lack of permanent sewer infrastructure that prevents regular septic tank emptying
Slow manual cleaning methods that expose workers to hazardous waste and high risk
Small capacity trucks that require multiple trips and increase fuel and labour costs
Inadequate suction depth that fails to reach deep or collapsed septic tanks
High maintenance costs and long repair times due to unavailability of spare parts
Imported trucks with incompatible control systems and local service support

Where It Works

Application Scenarios

Municipal sanitation teams cleaning pit latrines in remote villages with no sewer access
Emergency response to blocked septic tanks in low-income housing areas
Temporary waste collection during construction or road works in urban centres
Rural health clinics and schools with on-site septic systems needing regular emptying
Port and industrial site maintenance crews managing waste from temporary facilities
Disaster relief operations after floods or earthquakes where sewage systems are damaged

Engineering

Technical Features

4000 litre carbon steel septic tank with welded internal stiffeners to resist deformation
PTO-driven vacuum pump with suction depth of 8 metres and full tank fill in ≤5 minutes
Suction pipe 5m long with quick connect fitting and anti-clogging design
Oil water separator and overflow valve prevent pump damage and environmental spill
Looking window and self-flow exit allow visual monitoring and safe discharge
Hand washing device installed for hygiene compliance after operation
Dual control system with switches in cab and front of tank for safe operation
4x2 drive configuration with 7.00R16 tyres for stable handling on unpaved roads

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left or right hand drive
Engine	CHINA XICHAI POWER 4DW93-84, 85hp, diesel, 2540ml, Euro 3
Transmission	5 forward, 1 reverse, manual
Overall Size	5900 x 2200 x 2600 mm
Tank Capacity	4000 L
Suction Depth	≥8 m
Fill Time	≤5 min per full tank
Horizontal Suction Range	40–60 m
Max Speed	90 km/h
Gross Vehicle Weight	Appro × 7360 kg
Net Weight	Appro × 3605 kg
Payload	Appro × 3615 kg
Wheelbase	3360 mm
Control Method	Electric + manual
Operating Position	Cab and front of tank
Production Time	20 days
Lead Time	20 days after deposit
Shipping Port	China main port

Build Materials

Materials

Aluminium alloy fittings for valves and pipe connections
Rubber seals on manhole and discharge flanges for leak prevention
Stainless steel suction pipe and filter screen to resist corrosion
PVC and rubber hoses for internal fluid transfer and vacuum lines

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank layout drawing
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge
Tank is pressure tested and inspected for leaks before moving to assembly
PTO, vacuum pump, oil water separator, and suction pipe are installed and aligned
Control panel and switches are mounted in cab and at front of tank
Carriage and access doors are assembled with sealing strips and locking mechanisms
Body is shot blasted, primed, and painted in standard white or custom colour
Final system test includes vacuum draw, suction depth, and full tank fill time

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure tested to 0.2 MPa and inspected for leaks
Vacuum pump performance verified at 8m suction depth and 5-minute fill time
Photos and videos of the finished truck sent to buyer before balance payment
All components meet GB7965 and GB39.5 standards for waste transport vehicles
In-house testing available for pressure vessel and non-destructive inspection

Build to Order

Customization Options

Tank capacity from 3,000L to 30,000L available to match local demand
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis to match local traffic regulations
Custom tank colour and logo applied free of charge
Suction pipe length and fittings adjusted to site access conditions
Additional equipment such as extra hoses, nozzles, or cleaning tools can be added

Comparison

How It Compares With the Alternatives

6x4 septic truck with 8000L tank	Higher capacity but less maneuverable in narrow urban alleys and requires more fuel
Used imported truck	Lower initial cost but higher long-term maintenance and parts delay due to supply chain issues
Small 2000L vacuum truck	Cheaper to buy but requires double the trips and increases labour and fuel costs

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Inspect suction pipe and filter before each use to prevent clogging
Do not exceed 8 metres suction depth to avoid pump damage
Use oil water separator to prevent contamination of vacuum system
Drain and clean the tank after each use to prevent residue buildup
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this fecal suction truck?

Production takes 20 days after the advance payment is received. Delivery time depends on shipping method chosen.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before the balance is paid.

Do you supply left or right hand drive?

Yes. The chassis is ordered as left or right hand drive to match your local traffic regulations. Confirm at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts are covered for two years. We provide 15 years of technical support and free spare parts for 12 months.

Can the suction pipe be longer than 5m?

Yes. The standard pipe is 5m. We can extend it to 8m or 10m based on your site access requirements.
