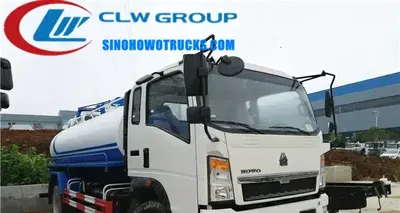

Side view of the HOWO toilet cleaning truck showing the 10000 L carbon steel tank and access doors

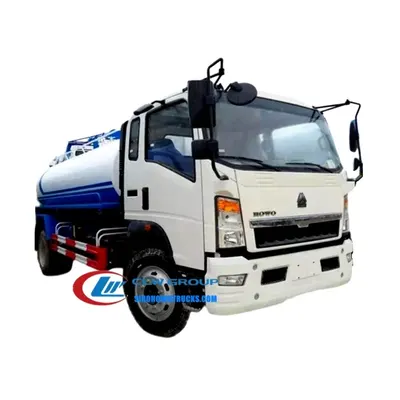

Front of the HOWO septic truck with control panel and vacuum pump mounting

HOWO 10000liters toilet cleaning truck Central Africa

Name: HOWO 10000liters toilet cleaning truck Central Africa
Brand: Sinotruk HOWO

The Sinotruk HOWO 10000 litre septic pump truck is a 4x2 vacuum tanker built on a HOWO chassis for municipal sanitation and waste collection in urban and rural areas of Central Africa. It is designed for frequent operation in unpaved and low-traffic environments where sewer infrastructure is absent or underdeveloped. The truck collects liquid waste, sludge, and small solid debris from septic tanks, pit latrines, and blocked drains using a high-capacity vacuum system. It is used by city sanitation departments, waste contractors, and public works teams that require a reliable, low-maintenance vehicle to maintain hygiene and prevent disease spread in areas without central sewer systems.

Request A Quote Email Specification

Key Benefits

10000 litre tank capacity allows for extended service routes without frequent return to disposal sites
Jurop PN58D vacuum pump delivers 5800 L/min air flow and fills the tank in 8-9 minutes
Suction depth of 6 metres handles deep septic tanks and blocked underground lines
Dual control system (electric and manual) ensures operation continuity during electrical failure
160 HP diesel engine provides reliable performance with no overhaul required for 500,000 km
Cab includes air conditioning, two seats, and one bed for extended field operations
Left or right hand drive chassis available to match local traffic regulations
Custom tank colour and logo applied free of charge for fleet branding

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing regions
Waste collection and disposal contractors operating in low-infrastructure areas
Government agencies managing public health and hygiene in rural and peri-urban zones
Contractors supplying sanitation services to mining, construction, and industrial sites
Non-governmental organisations implementing sanitation projects in remote communities
Local transport fleets managing septic and waste collection under public tender

Operating Problems

Problems It Solves

Lack of sewer infrastructure forces reliance on manual or inefficient waste removal
Short tank capacity requires frequent return trips to disposal sites, reducing daily output
Low suction depth limits access to deep or blocked septic tanks and underground lines
Inadequate vacuum power leads to incomplete or slow pumping cycles
Poor engine reliability increases downtime and maintenance costs over long service life
No local spare parts or technical support leads to extended repair times after breakdown

Where It Works

Application Scenarios

Municipal sanitation teams operating in remote villages with no sewer access in Central Africa
Waste contractors servicing pit latrines and septic tanks in low-density urban areas
Public works departments responding to blocked drains and overflowing septic systems
Emergency clean-up after flooding or natural disasters where sanitation infrastructure is damaged
Contractors supporting mining or construction camps with temporary sanitation needs
Rural health clinics and schools requiring regular septic tank maintenance

Engineering

Technical Features

Jurop PN58D vacuum pump with 5800 L/min maximum air flow and 6 m suction depth
Single full tank pumping completed in under 5 minutes, sewage efficiency under 4 minutes
Horizontal suction range of 40 to 60 metres allows access from road edges to septic tanks
Vertical suction up to 8 metres handles deep underground lines and buried tanks
6-speed manual gearbox with WLY6T46 transmission for smooth shifting under load
Hydraulic steering with power assistance improves control on uneven terrain
Dual circuit compressed air brakes with spring energy parking brake for safety
Engine exhaust brake as auxiliary braking for downhill operation in hilly areas
Air-conditioned 1880 King Cab with two seats and one bed for crew comfort
Electric and manual control system with operating positions in cab and front of tank

Specifications

Technical Data


Model	HOWO 10000liters toilet cleaning truck Central Africa
Chassis	4x2 Sinotruk HOWO left or right hand drive
Engine	160 HP diesel, 4-cylinder in-line, turbocharged, intercooled, 4-stroke direct injection
Transmission	WLY6T46, 6 forward speeds, 1 reverse
Tank Capacity	10000 L
Tank Material	Carbon steel
Vacuum Pump	Jurop PN58D
Max Air Flow	5800 L/min
Time to Suction Full Tank	8-9 minutes
Suction Depth	6 m
Overall Dimension	6600 x 2300 x 2800 mm
Wheelbase	3360 mm
Max Speed	75 km/h
Fuel Tank Capacity	100 L diesel
Tire Size	7.00R16
Front Axle Load	2400 kg
Control Method	Electric + manual
Operating Position	Cab + front of tank
Production Time	20 days
Lead Time	30 days after advance payment
Shipping Port	China main port

Build Materials

Materials

Carbon steel tank with welded internal baffles to reduce surge during transit
Aluminium alloy panels on carriage for corrosion resistance and lightweight construction
Steel frame and chassis with Sinotruk engine and gearbox for durability
Rubber sealing strips on front access doors to prevent dust and moisture ingress
High-strength steel suspension components for long-term performance on rough roads

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against tank drawing
Tank shell is cut, rolled, and welded with internal clapboards to control liquid surge
Tank is pressure tested and leak tested before leaving the welding shop
Vacuum pump and pipework are installed and aligned with the driveline
Control panel and electrical system are wired and tested in the cab and front of tank
Carriage panels, access doors, and mounting brackets are assembled onto the subframe
Body is shot blasted, primed, and finished in the customer’s specified colour
Full system test conducted on the factory apron: vacuum, suction, pumping, and brake performance
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Vacuum pump and suction system tested under full load and maximum depth
Pressure and leak tests performed on the tank to ensure no structural defects
Non-destructive testing available for pressure vessel projects upon request
Photos and videos of the completed truck sent to the buyer before final payment
All components comply with GB standards for sanitation and waste transport vehicles

Build to Order

Customization Options

Tank capacity from 3,000 L to 30,000 L available to match local demand
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge to support fleet branding
Control system can be modified for remote or automated operation if required
Production according to customer technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 septic truck with 6000 L tank	Higher payload and longer range but harder to manoeuvre in narrow urban streets
Used vacuum truck from Europe	Lower upfront cost but limited spare parts availability and no local technical support
Standard water tanker with added vacuum pump	Cheaper to build but lacks proper tank baffling and safety controls for waste transport

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the tank only through the manhole or pump inlet; keep air breather valve clear
Prime the vacuum system before suction and expect full tank in 8-9 minutes
Do not exceed 6 metres suction depth to avoid pump damage or air lock
Drain and flush the system after each use to prevent clogging and odour build-up
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this septic truck?

Generally 30 days after the advance payment is received. Production time is 20 days, but final delivery depends on shipping mode and chassis availability.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard tank is carbon steel. Stainless steel is available on request. Please specify water quality and storage duration for material confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support, including overseas engineer visits and training.

Can the control system be upgraded to remote operation?

Yes. The standard system is electric and manual. Remote or automated control can be added based on your technical requirements.
