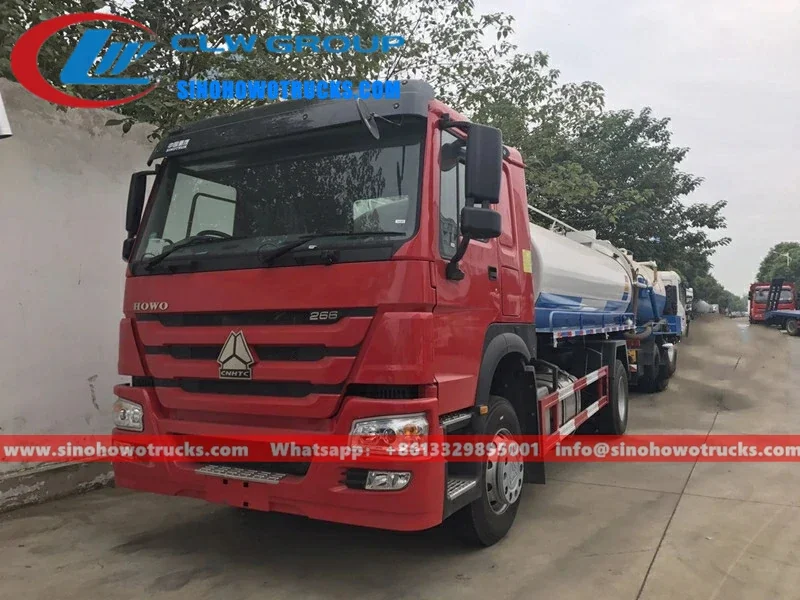

Sinotruk HOWO 12000 litre septic truck in service colour with front-mounted vacuum pump and suction pipe

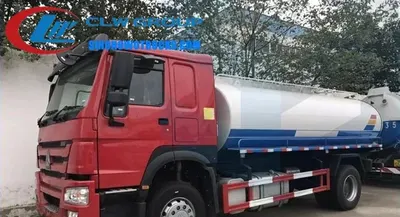

Side view of the HOWO septic truck showing the 6mm carbon steel tank and roller shutter access door

Front of tank with dual control panel, suction pipe, and discharge valve

Sinotruk Howo 12000liters septic truck for sale Malawi

Name: Sinotruk Howo 12000liters septic truck for sale Malawi
Brand: Sinotruk HOWO

The Sinotruk HOWO 12000 litre septic truck is a 4x2 vacuum tanker built on a HOWO chassis for municipal sanitation departments and waste contractors that need to collect and transport human waste, sludge, and small solid debris from septic tanks, pit latrines, and blocked drains. It is designed for operation in urban and rural areas with unpaved access roads and limited infrastructure. The double vacuum pump delivers a suction rate of 68 litres per second with a maximum vacuum of 15 Kpa, enabling full tank extraction in under five minutes. The 10 cubic metre cylindrical tank is constructed from 6mm high quality carbon steel and features internal baffles to reduce liquid surge during transit.

Request A Quote Email Specification

Key Benefits

12000 litre capacity allows for long service routes without frequent unloading
Double vacuum pump extracts full tank in under 5 minutes with suction up to 8 metres vertical
6mm thick carbon steel tank resists deformation and corrosion under repeated loading
10-speed manual gearbox and 266 HP engine provide strong performance on rough terrain
Suction pipe extends to 60 metres horizontally and 8 metres vertically for access to deep pits
Dual control system allows operation from cab or front of tank for better visibility during loading
Internal anti-rust coating and oil-water separator reduce maintenance and contamination risk

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing countries
Private waste collection and sanitation service providers
Construction and quarry site managers needing temporary toilet waste removal
Rural development agencies implementing sanitation infrastructure projects
Government procurement agencies equipping new sanitation fleets
International aid organizations supplying sanitation vehicles to partner nations

Operating Problems

Problems It Solves

Manual pit emptying with buckets and ropes that exposes workers to hazardous pathogens
Small capacity trucks that require multiple trips and increase fuel and labour costs
Inadequate suction power that fails to extract sludge from deep or clogged tanks
Lack of vacuum systems that allow safe and hygienic handling of human waste
Poor tank durability leading to leaks and frequent repairs in harsh operating conditions
Limited access to spare parts and technical support after vehicle purchase

Where It Works

Application Scenarios

Municipal sanitation departments in Malawi and other African countries managing pit latrine emptying in low-income urban areas
Rural water and sanitation contractors serving villages without sewer connections
Waste contractors operating in remote mining or construction camps with temporary toilet facilities
Emergency response teams clearing blocked septic systems after floods or natural disasters
Contractors maintaining public toilets and sanitation hubs in markets and transport hubs
Municipalities upgrading from manual emptying to mechanical vacuum systems for hygiene and safety

Engineering

Technical Features

Double vacuum pump with 68 L/s flux and 800–1000 r/min rating for rapid suction
Maximum vacuum degree of 15 Kpa enables deep pit access and solid debris transport
Suction time ≤ 5 minutes for full tank extraction, sewage efficiency ≤ 4 minutes per row
Horizontal suction range of 40–60 metres and vertical up to 8 metres
Cylindrical welded tank with internal baffles to reduce liquid surge during braking
Dual control system with electric and manual operation from cab or front of tank
5 metre suction pipe with quick connect fittings and oil-water separator
Inspect window, discharge valve, cleaning apparatus, overflow valve, and dump angle ≥ 45 degrees
Aluminium alloy fuel tank with 400 litre capacity for auxiliary fuel storage

Specifications

Technical Data


Chassis	SINOTRUK HOWO 4x2
Engine	WD615.62, 266 HP, 196 kW, 6870 ml displacement
Gearbox	HW13710, 10-speed manual
Overall Size	8600 x 2500 x 3200 mm
GVW	15500 kg
Curb Weight	7300 kg
Tank Capacity	12000 L / 10 cbm
Tank Material	6mm high quality carbon steel
Tank Structure	Welded, cylindrical, vacuum tank
Pump Type	Double vacuum pump
Pump Flux	68 L/s
Pump Speed	800–1000 r/min
Pump Shaft Power	5 kW
Suction Depth	Up to 8 m vertical
Suction Distance	40–60 m horizontal
Suction Time	≤ 5 min for full tank
Dump Angle	≥ 45 degrees
Cab	HW76, one and a half row, with A/C
Wheelbase	4600 mm
Tire Specification	295/80R22.5
Tire Quantity	6+1 units
Brake System	Air brake
Front Axle	HF7T
Rear Axle	ST16T
Fuel Tank	Aluminium alloy, 400 L
Control Method	Electric + manual
Operating Position	Cab + front of tank
Production Time	20 days
Lead Time	20 days after advance payment
Shipping Port	China main port

Build Materials

Materials

6mm thick high quality carbon steel tank with internal welded baffles
Aluminium alloy fuel tank for corrosion resistance and reduced weight
Stainless steel tank available on request
Internal anti-rust coating applied to tank interior
295/80R22.5 tyres with high load capacity for rough terrain
Aluminium embossed sheet for side panels and access doors

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against tank drawing
Tank shell is cut, rolled, and welded with internal clapboards to control surge
Tank is pressure tested and leak tested before leaving welding shop
Double vacuum pump and pipework are installed and aligned with driveline
Suction pipe, discharge valve, oil-water separator, and cleaning apparatus are fitted
Cab and body are assembled with dual control system and front access panel
Vehicle is shot blasted, primed, and painted in customer colour with logo
Final test includes full suction cycle, pump performance, and dump angle check

Testing

Quality Control

Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent before balance payment
Tank pressure and leak tests conducted in-house with documented results
Pump performance tested under full load and suction depth conditions
All electrical and control systems verified for safe operation
Complies with GB39.5 general specification for special purpose vehicles

Build to Order

Customization Options

Tank capacity from 3000 L to 30000 L available to match operational needs
Tank material can be changed from carbon steel to stainless steel
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Optional: Italian or Spanish vacuum pumps, anti-rust coating, sprinkler function
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 septic truck with 8000 L tank	Higher payload and longer route coverage but requires more fuel and space for turning
Used septic truck from Europe	Lower upfront cost but higher long-term maintenance and parts availability risk
Small vacuum truck with single pump	Lower suction power and longer extraction time, less suitable for deep or clogged tanks

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Use only the manhole or pump inlet for filling; keep air breather valve clear
Prime the pump before suction and expect full extraction within 5 minutes
Operate from cab or front of tank using dual control system for better visibility
Drain and flush the tank after use to prevent clogging and odour build-up
Free technical training and manuals provided before shipment

Buyer Questions About This Truck

What is the lead time for this septic truck?

Production time is 20 days after advance payment. Delivery time depends on shipping mode chosen.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard tank is 6mm carbon steel. Stainless steel is available on request.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before balance payment.

Do you supply right hand drive?

Yes. The chassis is ordered as left or right hand drive to match your local traffic regulations. Confirm at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts are guaranteed for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the vacuum pump be upgraded to Italian or Spanish models?

Yes. The standard pump is made by Hangzhou WEILONG. Italian or Spanish pumps are available as optional upgrades.
