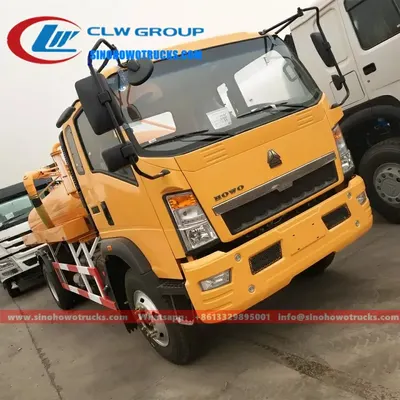

Side view of the HOWO septic truck showing the cylindrical tank and front-mounted control panel

Front view of the HOWO fecal suction truck with power-assisted steering and tropical climate radiator

Sinotruk Howo 6000liters manure suction truck Kenya

Name: Sinotruk Howo 6000liters manure suction truck Kenya
Brand: Sinotruk HOWO

The Sinotruk HOWO 6000 litre manure suction truck is a 4x2 chassis-based septic pump truck designed for municipal sanitation departments and waste contractors in regions with limited sewer infrastructure. It collects and transports liquid waste, sludge, and small solid debris from pit latrines, septic tanks, and blocked drains. The truck operates in tropical climates and is built for frequent use in rural and peri-urban areas where access roads are unpaved and water sources are scarce. It features a 6 mm thick carbon steel tank, hydraulic rear door, and a suction system capable of drawing material from depths exceeding 6 metres.

Request A Quote Email Specification

Key Benefits

6000 litre capacity with 8000 litre tank volume allows for fewer trips per route
Suction depth of more than 6 metres handles deep septic tanks and blocked drains
Single full pump cycle completed in under 5 minutes reduces downtime
Hydraulic rear door opens and closes quickly for safe and efficient discharge
190 HP YUCHAI turbo-charged diesel engine delivers reliable performance in tropical conditions
6 mm thick carbon steel tank resists wear from abrasive sludge and solid debris
Left or right hand drive chassis matches local traffic regulations
15 years of spare parts and technical support ensure long-term operability

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in East Africa and Sub-Saharan Africa
Private waste collection and disposal contractors operating in rural and semi-urban areas
Government agencies managing public health and sanitation in low infrastructure zones
Construction and mining site operators requiring temporary waste management
Humanitarian aid organizations deploying mobile sanitation units
Water and sanitation NGOs running community toilet maintenance programs

Operating Problems

Problems It Solves

Lack of sewer infrastructure forces reliance on manual or inefficient waste removal
Shallow suction pumps fail to reach deep septic tanks or blocked drains
Frequent breakdowns due to poor engine performance in high ambient temperatures
Short supply of spare parts and technical support after purchase
Inadequate tank durability leading to corrosion and leaks from abrasive waste
Long delivery times delay project start-up and fleet expansion

Where It Works

Application Scenarios

Municipal sanitation teams in Kenya and East Africa servicing rural communities without sewer systems
Waste contractors operating in peri-urban areas with poorly maintained or blocked septic tanks
Emergency response teams clearing blocked pit latrines after heavy rains or flooding
Remote construction sites and camps where temporary sanitation facilities require regular emptying
Water and sanitation projects in developing regions where infrastructure is underdeveloped
Contractors supporting humanitarian or disaster relief operations with mobile waste collection

Engineering

Technical Features

6 mm thick carbon steel tank resists abrasion from sludge and small solids
Suction depth exceeds 6 metres for deep tank access and blocked drain clearing
Single full pump cycle completes in under 5 minutes for high operational efficiency
Hydraulic rear door opens and closes with cylinder actuation for safe discharge
6-speed manual gearbox with 1 reverse provides reliable gear control on rough terrain
Power-assisted left hand drive steering improves handling in tight spaces
Air brake system ensures safe stopping under full load on steep or unpaved roads
Radiator designed for tropical climates prevents engine overheating in high ambient temperatures
Electric and manual control options allow operation from cab or front of tank
Tank tipping angle exceeds 45 degrees for complete and fast discharge

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2
Engine	YUCHAI YC6J190-46, 190 HP, turbo-charged, inter-cooled
Fuel Type	Diesel
Gearbox	6 speed forward, 1 reverse, manual
Tank Volume	8000 L
Tank Material	6 mm thick carbon steel
Suction Depth	More than 6 m
Suction Horizontal Range	40-60 m
Suction Vertical Range	≤8 m
Pump Cycle Time	Single full pump ≤5 min
Discharge Time	After a single row ≤4 min
Tank Shape	Cylindrical
Tire Specification	10.00-20
Wheelbase	4500 mm
Overall Dimensions	8300 x 2490 x 3400 mm
Gross Vehicle Weight	16000 kg
Curb Weight	6805 kg
Front Axle Load	6000 kg
Rear Axle Load	10000 kg
Emission Standard	Euro II
Steering	Left hand drive, power-assisted
Brake	Air brake
Radiator	Tropical climate rated
Control Method	Electric + manual
Operating Position	Cab + front of tank
Tank Tipping Angle	More than 45°
Rear Door	Hydraulic cylinder operated
Lead Time	20 days after deposit
Shipping Port	China main port

Build Materials

Materials

6 mm thick carbon steel tank shell with welded internal reinforcement
Aluminium alloy components for pump housing and control panel casing
Hydraulic cylinders for rear door operation with corrosion-resistant seals
Tropical-rated radiator and cooling system for high ambient temperature operation
Power-assisted steering system with durable hydraulic lines
Air brake system with heavy-duty air tanks and valves

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against tank drawing
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge
Tank undergoes pressure and leak testing before leaving the welding shop
Pump, suction pipe, and hydraulic system are installed and aligned to the driveline
Rear door, hydraulic cylinders, and control panel are assembled onto the subframe
Body is shot blasted, primed, and finished in customer colour with logo applied
Full system test conducted on factory apron: suction depth, pump cycle, discharge time, and control functions
Photos and videos of the finished truck sent to buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure and leak tests conducted in-house to ensure integrity
Pump cycle and suction depth verified under full load conditions
Photos and videos of the finished truck sent before balance payment
Engine and gearbox performance checked under load before shipment
Control systems tested in both electric and manual modes

Build to Order

Customization Options

Tank volume can be adjusted from 3000 L to 30000 L based on customer needs
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Pump and suction system configured to specific waste types and terrain
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 septic truck with 10000 L tank	Higher capacity but harder to maneuver in narrow rural roads and tighter urban alleys
Used imported truck	Lower initial cost but limited spare parts and no local technical support after 5 years
Basic suction truck with no hydraulic door	Slower discharge and higher risk of spillage during unloading

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Use only the manhole or suction inlet for filling; keep air breather valve clear
Do not exceed 8 metres vertical suction depth to avoid pump damage
Prime the pump before first use and check for air leaks in suction lines
Operate the hydraulic rear door only when the truck is on level ground
Drain all lines and pump after use in cold weather to prevent freezing

Buyer Questions About This Truck

What is the lead time for this manure suction truck?

Production takes 20 days after the advance payment is received. Delivery time depends on shipping mode and port availability.

Can the tank be made of stainless steel?

Yes. The standard tank is 6 mm thick carbon steel. Stainless steel is available on request. Let us know the waste composition and storage duration for material confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your local traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts on some products are guaranteed for two years. We provide 15 years of spare parts and technical support, including remote guidance and on-site visits.

Can the pump and suction system be customized?

Yes. We can adjust the pump type, suction pipe length, and control method based on your waste type and operating environment. Send us your site conditions and we will configure the system.
