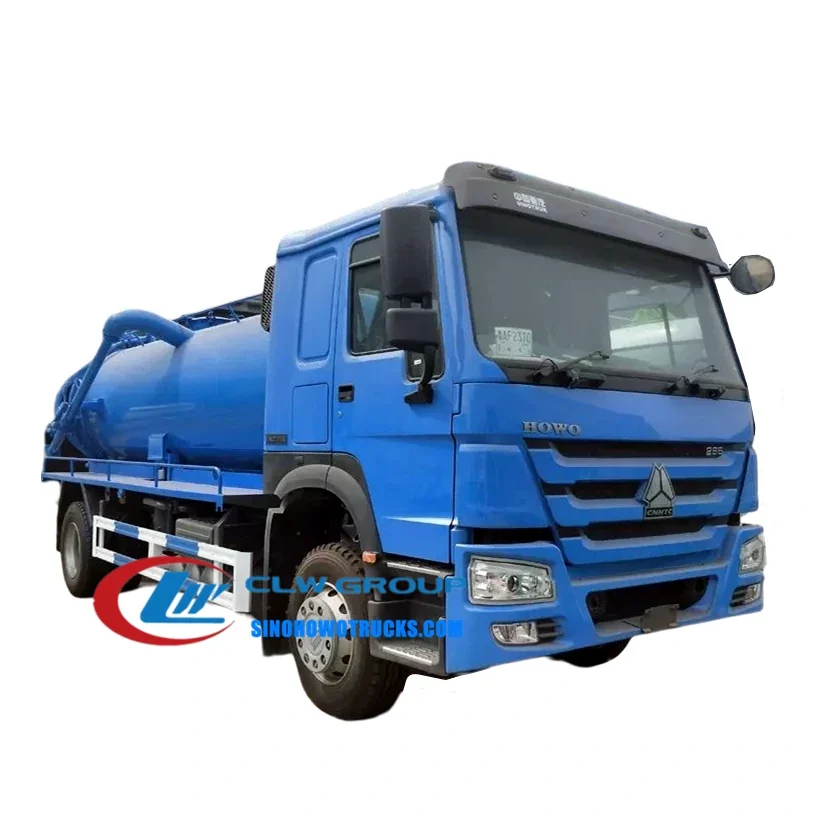

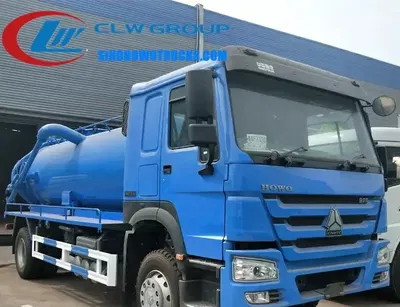

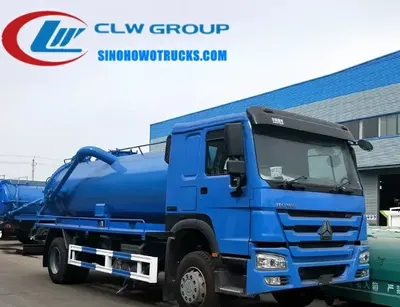

The Sinotruk HOWO 12000 litre sewer tanker is a vacuum suction truck built on a ZZ1250 chassis for municipal sanitation departments and waste contractors that need to extract sludge, sediment and solid waste from manholes, water wells and drainage systems. It is designed for frequent operation in urban and rural environments where access roads are unpaved and space is limited. The 16000 litre tank capacity allows for fewer trips per shift, and the 65QZ-40/45N vacuum pump achieves full suction in under 5 minutes with a maximum vacuum of 15 Kpa, making it suitable for deep well and clogged pipe extraction.
| Chassis Model | ZZ1250 |
|---|---|
| Fuel Type | Diesel |
| Emission Standard | Euro 2 |
| Cabin | HW16 |
| Overall Dimensions | 9500 x 2400 x 3300 mm |
| Wheelbase | Optional |
| Min Ground Clearance | 480 mm |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 1200 kg |
| Max Payload | 16000 kg |
| Max Speed | 95 km/h |
| Max Climb Slope | 30% |
| Engine Model | WD615 47 |
| Max Power | 336 HP |
| Cylinders | 6 |
| Displacement | 9.726 L |
| Gearbox Model | 9 |
| Gears | 9 forward, 1 reverse |
| Front Axle Capacity | 7 ton |
| Rear Axle Capacity | 18 ton |
| Steering Wheel | Left or Right Hand Drive |
| Brake System | Air braking |
| Rated Voltage | 24V |
| Tyres | 10.00-20 x 6+1 |
| Tank Capacity | 16000 L |
| Tank Material | Q345 carbon steel |
| Tank Thickness | 6 mm |
| Vacuum Pump Model | 65QZ-40/45N |
| Pump Flow | 65 L/s |
| Pump Speed | 500 r/min |
| Pump Shaft Power | 4 kW |
| Suction Time | ≤ 5 minutes |
| Effective Suction Range | ≥ 8 meters |
| Max Vacuum Degree | ≤ 15 Kpa |
| Dump Angle | ≥ 45 degrees |
| Production Time | 20 days |
| Lead Time | 30 days after advance payment |
| Shipping Port | China main port |
| 8000 litre sewer tanker | Carries less waste per trip but has better turning radius in narrow city streets |
|---|---|
| Suction truck with a fixed pump and no vacuum system | Cannot draw from deep or clogged pipes but simpler to maintain |
| Used imported sewer tanker | Higher upfront cost but lacks local spare parts and technical support after purchase |
Generally 30 days after the advance payment is received. Production starts in 20 days, and the exact delivery date depends on chassis availability and shipping mode.
Yes. The standard tank is Q345 carbon steel. Stainless steel 304 is available on request. Specify the waste type and storage duration for material confirmation.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. The standard pipe is 65-100mm. We can adjust the size based on your flow and waste type requirements.
Send us your destination port and we will quote price, lead time and freight.
