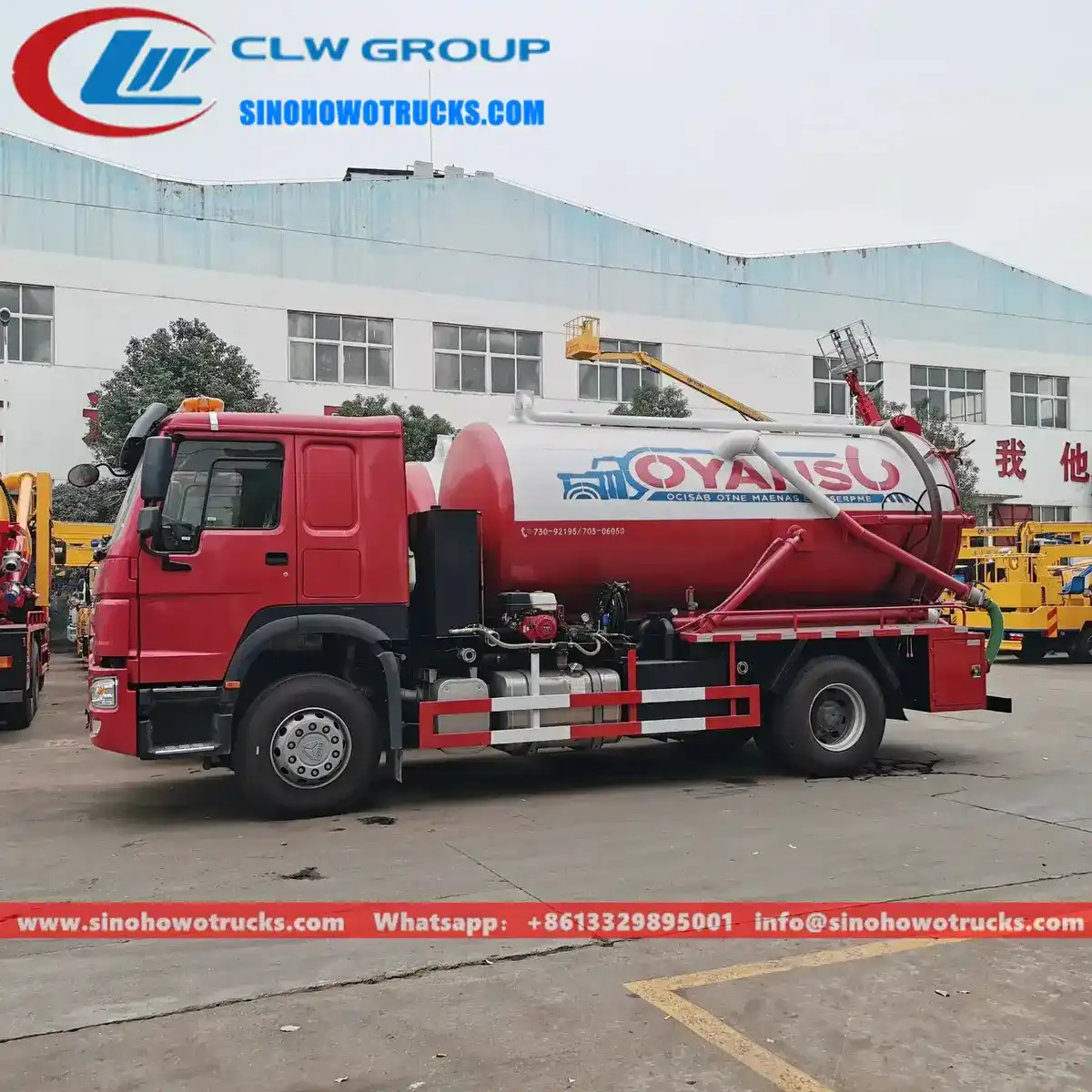

Sinotruk HOWO 6x4 3000 gallon sewage truck in urban service with 9 metre swivel suction tube extended

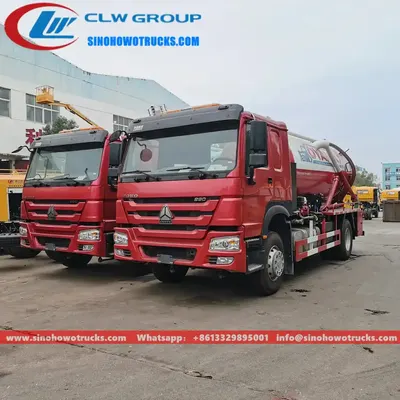

Rear view of the HOWO sewage truck showing the 6 inch disc valve and tank discharge outlet

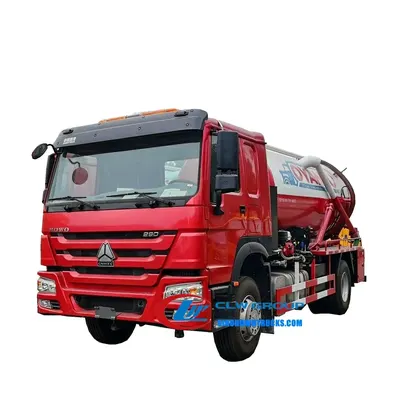

Side view of the HOWO sewage truck with hydraulic cab tilt and 360 degree swivel suction tube

Sinotruk Howo 3000gallons sewage truck for sale Thailand

Name: Sinotruk Howo 3000gallons sewage truck for sale Thailand
Brand: Sinotruk HOWO

The Sinotruk HOWO 3000 gallon sewage truck is a 3000 litre vacuum suction vehicle built on a 6x4 HOWO chassis with a 266 HP diesel engine and 10 forward, 2 reverse gearbox. It is designed for municipal sanitation departments and waste contractors that need to collect sludge, mud, and debris from manholes, water wells, and sediment traps in urban and rural areas without access to centralized pumping infrastructure. The truck uses a dual-stage vacuum pump system to fill the tank in under 10 minutes and features a 9 metre swivel suction tube with a 360 degree rotating head for access to tight or obstructed entry points.

Request A Quote Email Specification

Key Benefits

3000 litre carbon steel or stainless steel tank holds a full load of sludge and prevents overflow with a 6 inch disc valve outlet
Hangzhou Weilong 68/7000 double vacuum pump system achieves full tank fill in 10 minutes
9 metre 360 degree swivel suction tube with anti-overflow valve accesses manholes in confined spaces
Left hand drive chassis and 55 degree hydraulic cab tilt allow safe operation in narrow streets and tight sites
Dual circuit compressed air brakes and engine exhaust brake improve control on uneven terrain and steep grades
Tank with four internal baffles and turtle head design reduces liquid surge during transport and braking

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in Thailand and Southeast Asia
Private waste and sewage contractors serving urban and rural clients
Construction and quarry operators managing on-site sludge and mud disposal
Water utility companies maintaining underground wells and drainage systems
Industrial park operators with internal waste collection fleets
Contractors supplying turnkey sanitation services to government or private clients

Operating Problems

Problems It Solves

Manholes and wells that are too deep or narrow for manual cleaning or standard vacuum trucks
Long refill cycles caused by trucks with smaller tank capacity or slow suction systems
Lack of reliable vacuum pumps that fail under continuous operation in high dust or moisture environments
Inadequate tank design that causes liquid surge and instability during transport
Limited access to spare parts and technical support after purchase in remote markets
Trucks that cannot operate in tight urban spaces due to large turning radius or poor visibility

Where It Works

Application Scenarios

Municipal sanitation crews servicing remote or low-density residential areas with no sewer connection
Construction sites and quarries that generate sludge and need temporary waste removal
Rural water well maintenance teams clearing sediment from deep boreholes
Industrial parks with on-site septic systems requiring regular vacuum cleaning
Emergency response teams clearing blocked storm drains after heavy rainfall
Waste contractors operating in Thailand and Southeast Asia with limited access to fixed pumping stations

Engineering

Technical Features

Hangzhou Weilong 68/7000 double vacuum pump with oil and gas separator and moisture separator
9 metre swivel suction tube with 360 degree rotation and anti-overflow valve
Four internal baffles and turtle head tank design to reduce liquid surge
6 inch disc valve at rear for controlled discharge of sludge
Dual circuit compressed air service brake and spring energy parking brake on rear wheels
Engine exhaust brake for improved downhill control and reduced brake wear
55 degree hydraulic cab tilt for full access to engine and pump components
VDO electrical control system with integrated vacuum pressure gauge and warning lights

Specifications

Technical Data


Model	ZZ1167M4611
Engine	WD615.92, 266 HP, diesel, Euro II
Transmission	HW19710, 10 forwards and 2 reverse
Tank Capacity	3000 L
Tank Material	Q345 carbon steel or 304 stainless steel
Suction Tube	9 metre, 360 degree swivel, anti-overflow valve
Vacuum Pump	Hangzhou Weilong 68/7000 double stage
Suction Speed	Full tank in 10 minutes
Cab Type	HW70, no sleeper, air conditioner, all-steel forward control
Brake System	Dual circuit compressed air, spring energy parking, engine exhaust brake
Tire Size	295/80R22.5, 7 units
Overall Size	8600 x 2500 x 3000 mm
Gross Vehicle Weight	16000 kg
Maximum Speed	90 km/h
Fuel Tank Capacity	400 L, aluminum alloy
Production Time	20 days
Lead Time	7 to 30 days after advance payment
Shipping Mode	Ro-ro, bulk ship, or container from China main port
Payment	T/T 30 percent deposit, 70 percent before delivery

Build Materials

Materials

Q345 carbon steel tank with welded internal baffles and turtle head ends
304 stainless steel tank available on request for corrosive or food-grade applications
Aluminum alloy fuel tank with anti-corrosion coating
Steel frame and subframe with galvanized finish for long-term durability
Aluminum alloy suction tube housing and swivel joints with sealed bearings

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank drawing
Tank shell is cut, rolled, and welded with four internal baffles and turtle head ends
Tank is pressure tested and leak tested before internal components are installed
Vacuum pump, transmission shaft, hydraulic system, and pipe network are assembled and aligned
Suction tube, swivel joint, and anti-overflow valve are fitted and tested for full rotation
Cab is installed and all electrical systems including VDO controls and gauges are wired
Final assembly includes fuel tank, brakes, tires, and exterior finish in customer colour
100 percent test run is performed on the factory apron including suction, discharge, and brake checks

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure and leak tests performed in-house with documented results
Vacuum system tested for suction speed and full tank fill time under load
Photos and videos of the finished truck sent to buyer before balance payment
All components meet GB standards for sewage and waste transport vehicles
Engine and gearbox tested for performance and durability before final assembly

Build to Order

Customization Options

Tank capacity from 3000 L to 30,000 L available based on customer needs
Tank material can be changed from carbon steel to stainless steel 304
Left or right hand drive chassis to match local traffic regulations
Custom tank shape and internal baffle layout to suit site access constraints
Suction tube length and swivel range adjusted for specific site conditions
Tank colour and logo applied free of charge to match municipal or company livery

Comparison

How It Compares With the Alternatives

3000 L vacuum truck with single pump	Slower fill time and less reliable under continuous use, but lower initial cost
10,000 L sewage truck with 8x4 chassis	Higher capacity and better off-road performance but harder to maneuver in narrow urban streets
Used sewage truck from Europe	Lower upfront cost but limited spare parts and no local technical support after 5 years

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the tank only through the manhole or suction inlet and keep the air breather valve clear
Do not exceed 10 minutes suction time per cycle to avoid pump overheating
Engage the engine exhaust brake when descending slopes to reduce brake wear
Drain the tank and flush the suction tube after each use to prevent clogging
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this sewage truck?

Production time is 20 days. Delivery time varies from 7 to 30 days depending on shipping mode and chassis availability.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard tank is Q345 carbon steel. Stainless steel 304 is available on request for corrosive or hygiene-sensitive applications.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro, bulk ship, or container from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support, including overseas engineer visits.

Can the suction tube be longer than 9 metres?

Yes. The standard is 9 metres with 360 degree swivel. Longer tubes are available upon request for specific site access needs.
