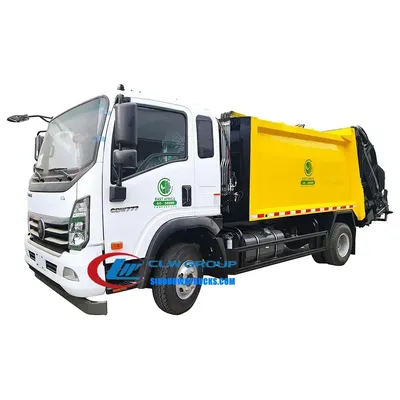

Side view of the HOWO compactor truck showing high-strength T420 steel body and hydraulic cylinders

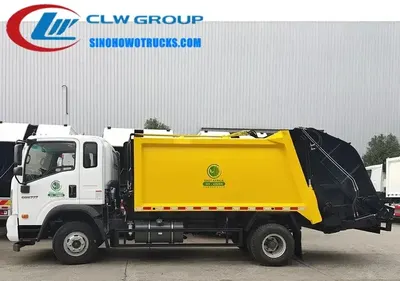

Rear view of the HOWO compactor truck with hydraulic lift arms and control panel at the rear

HOWO 10cbm trash compactor truck Ghana

Name: HOWO 10cbm trash compactor truck Ghana
Brand: Sinotruk HOWO

The Sinotruk HOWO 10cbm trash compactor truck is a 4x2 rear-loading waste collection vehicle built on a 140HP diesel chassis, designed for daily refuse transport in urban residential areas, industrial zones, ports, airports, and high-density facilities. It handles mixed municipal solid waste with a compacted 8 cubic meter body and a 1.5 cubic meter filler, reducing the number of trips required and preventing spillage and odour during transit. The truck meets Euro 3 emission standards and is equipped with a high-strength T420 steel compaction body and a Siemens PLC-controlled hydraulic system for reliable operation in harsh environments.

Request A Quote Email Specification

Key Benefits

8 cubic meter compacted waste capacity reduces transport frequency and fuel use
1.5 cubic meter filler allows rapid loading without stopping the compaction cycle
High-strength T420 steel body resists deformation and wear from abrasive waste
18 MPa hydraulic system ensures fast compaction and consistent pressure
35 second dumping time and 25 second recycling time improve daily operational efficiency
PLC and manual controls at three locations allow safe operation from cab or rear
Euro 3 compliant engine reduces emissions and supports urban environmental regulations
Front and rear drain tanks (200L and 500L) manage leachate and prevent overflow

Buyer Profile

Who It Is for

Municipal sanitation departments managing daily waste collection in cities and towns
Airport and port authorities requiring odour-free, high-capacity waste transport
Industrial and mining enterprises with on-site waste generation and limited disposal access
Contractors bidding on public sector waste collection tenders with strict environmental requirements
Military and large residential complexes with internal waste management fleets

Operating Problems

Problems It Solves

Frequent trips due to low compaction capacity and small body volume
Odour and spillage during transport caused by unsealed or poorly designed bodies
High maintenance costs from weak body materials that dent or corrode quickly
Slow compaction cycles that delay loading and reduce daily route capacity
Lack of remote control options leading to unsafe operator positioning
Inadequate drainage systems causing leachate buildup and environmental risk

Where It Works

Application Scenarios

Municipal waste collection in densely populated urban neighborhoods with narrow streets
Airport and port terminal waste transport where hygiene and odour control are critical
Industrial parks and mining sites generating large volumes of mixed solid waste
Military bases and large residential compounds with centralized waste management systems
Remote or low-infrastructure areas where waste must be compacted to minimize transport trips
Contractor fleets operating under public tenders requiring reliable, low-maintenance vehicles

Engineering

Technical Features

4x2 Sinotruk HOWO chassis with 140HP diesel engine and 6 forward / 1 reverse gearbox
YC4D130-33 engine with 4200ml displacement and Euro 3 emission standard
High-strength T420 special steel compactor body with 4mm side and 5mm bottom thickness
18 MPa rated hydraulic system with 1 dozer, 2 scraper, 2 skateboard, 2 rear flip, and 2 lifting cylinders
Hefei Wanye hydraulic oil pump and Yangzhou Zhongmei multi-way valve for stable pressure
Siemens PLC electric control system with manual override and three control points
150L hydraulic oil tank with long source large flow 32-80 pump (optional double pump and valve)
Front 200L and rear 500L drain tanks for leachate collection and controlled discharge
8.25R20 tires with 6 standard and 1 spare, suitable for mixed road and unpaved terrain
Overall dimensions of 8360 x 2400 x 3150 mm with tare weight of 4500 kg and GVW of 9200 kg

Specifications

Technical Data


Chassis	4x2 Sinotruk HOWO
Engine	YC4D130-33, 140 HP, 4200 ml
Emission Standard	Euro 3
Gearbox	6 forwards, 1 reverse
Overall Size	8360 x 2400 x 3150 mm
Tare Weight	4500 kg
Gross Vehicle Weight	9200 kg
Wheelbase	3800 mm
Body Capacity	8 cbm compacted
Filler Volume	1.5 cbm
Body Material	High-strength T420 special steel
Side Thickness	4 mm
Bottom Thickness	5 mm
Front Drain Tank	200 L
Rear Drain Tank	500 L
Hydraulic System Pressure	18 MPa
Recycling Time	≤25 s
Dumping Time	≤35 s
Hydraulic Pump	Long source large flow 32-80, optional double pump
Control System	Siemens PLC with manual override
Control Points	1 in cabin, 1 left rear, 1 right rear
Tires	8.25R20, 6 pcs with 1 spare
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength T420 special steel plate for compactor body with 4mm side and 5mm bottom thickness
Carbon steel for structural frame and support beams
Aluminium alloy for hydraulic cylinder rods and external fittings
Stainless steel for drain tank internal surfaces and fittings
Rubber sealing strips on doors and joints to prevent leakage
Polyurethane-coated hydraulic hoses and fittings for abrasion resistance

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the compactor body drawing
Body shell is cut from T420 steel plates and welded with precision to maintain structural integrity
Internal support beams and compaction components are installed and aligned
Hydraulic system components are assembled and pressure tested before integration
PLC control system is installed and linked to all operating buttons and sensors
Body is shot blasted, primed, and finished in standard grey or custom colour with logo
Full system test includes compaction cycle, dumping sequence, and hydraulic pressure check
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Hydraulic system tested under full load and pressure for 15 minutes
Compaction cycle timed and verified to meet ≤25 second recycling and ≤35 second dumping
Body sealed and pressure tested to prevent leaks during operation
Emission compliance verified against Euro 3 standards
All electrical connections and control panels inspected for safety and durability
Photos and videos of the final vehicle sent to the buyer before balance payment

Build to Order

Customization Options

Body capacity can be adjusted from 3 to 20 cubic meters based on customer needs
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis available to match local traffic rules
Tank colour and logo applied free of charge
Refuse container lifter types can be selected from available options
Control system can be upgraded to include remote monitoring or data logging

Comparison

How It Compares With the Alternatives

4x2 compactor with 5 cbm body	Lower capacity requires more trips but is easier to maneuver in tight urban areas
Front loader compactor	Better for container loading but less effective on loose or bulky waste
Standard dump truck with compactor add-on	Cheaper but lacks integrated hydraulic system and fails to meet compaction efficiency standards

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill only through the designated filler opening and avoid overloading beyond 8 cbm
Use the rear control panel only when the truck is stationary and the engine is running
Drain front and rear tanks regularly to prevent overflow and corrosion
Inspect hydraulic hoses and seals weekly for wear or leaks
Perform routine maintenance on the engine and hydraulic pump every 500 hours

Buyer Questions About This Truck

What is the lead time for this compactor truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the body be made from stainless steel?

Yes. The standard body is high-strength T420 steel and stainless steel is available. Let us know your waste type and storage duration for material confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the control system be upgraded?

Yes. The standard system is Siemens PLC with manual override. Remote monitoring and data logging can be added as an option.
