SEWING MACHINE LED LIGHT AOM-6A-2
The AOM-6A-2 is a U-shaped sewing machine light with two heads and 12 LED bulbs, drawing 1.0W. Its input range of 85V-265V means the same lamp works on 110V in North America and 230V in Europe, so a factory or importer needs only one part number for multiple markets. The dual-head design spreads light across a wider area than a single head, which is useful on machines with wide needle plates or where the operator needs to see both the needle and the fabric edge. The 12 LED bulbs provide steady illumination without glare, and the strong magnet holds the lamp securely in place during operation. It is intended for general-purpose sewing lines where consistent, low-power lighting is needed.
Send us this model number and your quantity. We reply within one working day.
Technical Data
| Model | AOM-6A-2 |
|---|---|
| Product | Sewing machine LED light |
| Input Voltage | 85V-265V |
| Power | 1.0W |
| LED Quantity | 12 LED bulbs (2 heads) |
| Mounting Method | Strong magnet |
| Brightness Adjustable | No |
Why Buyers Choose This Model
Key Benefits
- 85V-265V input means one model covers both 110V and 220V supply systems
- Dual-head design spreads light across a wider area than single-head lamps
- 12 LED bulbs deliver steady, even illumination without hot spots
- 1.0W power draw keeps energy cost negligible across large machine fleets
- Strong magnet holds the lamp securely on metal machine heads
- U-shape design fits around the machine arm and avoids interference with hand movement
Problems It Solves
- Older incandescent lamps draw too much power and generate excess heat
- Single-head lights leave parts of the needle plate in shadow on wide machines
- Weak magnets cause lamps to fall off during operation or when the machine is moved
- Different voltage models require separate inventory for different export regions
- High-wattage lights increase energy costs across hundreds of machines
Who It Is For
- Garment factory maintenance managers replacing lamps across a mixed-voltage floor
- Sewing machine dealers fitting lights as part of installation or service
- Importers sourcing a single universal lamp for global distribution
- Sewing machine manufacturers specifying a low-power, reliable light for OEM fitment
Where It Is Used
- General-purpose sewing lines in garment factories using mixed voltage supplies
- Machine heads with wide needle plates where a single head does not cover the full area
- Factories replacing older incandescent lamps with low-power LED alternatives
- Sewing machine dealers installing lights during machine setup or repair
- Importers stocking one lamp model for multiple export markets with different voltages
Technical Features
- U-shaped lamp body with two heads
- 12 LED bulbs (2 heads)
- Input voltage range of 85V-265V
- 1.0W power draw
- Strong magnet for secure mounting
- No dimming control (fixed brightness)
Materials
- SMD LED array on a heat-spreading board
- Moulded plastic housing for the lamp heads
- Strong neodymium magnet for mounting
- Flexible cable with strain relief
Quality Control
- Every lamp receives a 2-hour high-voltage test before it leaves the facility
- LED chips are sourced from world-known brands rather than unbranded stock
- Magnet strength is verified during assembly
- Visual check of the lamp body, cable, and mounting surface before packing
Customisation Options
- OEM logo on the lamp housing or magnet base
- Cable length and plug type to suit the destination market
- Own-brand retail or bulk packaging
- Alternative mounting methods if required for specific machine models
How To Use It
- Attach the magnet to the metal surface of the machine head or arm
- Position the U-shape so both heads cover the needle plate and fabric area
- Ensure the lamp does not interfere with the handwheel, thread path, or presser foot
- Check that the supply voltage is within the 85V-265V range before use
- Wipe the lens with a dry cloth to maintain brightness; lint reduces output
How It Is Made
LED board assembly and soldering
Magnet and housing assembly
Cable and connector fitting
Ageing and high-voltage testing
Packing
How It Compares
| AOM-6A-1 Single Head LED Light | The AOM-6A-2 has two heads and 12 LEDs, providing wider coverage than the single-head AOM-6A-1, which has 6 LEDs. The AOM-6A-2 is better for wide needle plates or where both sides of the fabric need lighting. |
|---|---|
| AOM-6A-3 with Dimming | The AOM-6A-2 has fixed brightness; the AOM-6A-3 includes a touch dimmer. Choose the AOM-6A-2 when consistent, low-maintenance lighting is needed without adjustment. |
| Overhead factory lighting | A machine-mounted U-shaped lamp puts light directly on the needle plate, where overhead lighting cannot reach. It uses less power and is more targeted. |
Questions About This Product
Can the AOM-6A-2 run on both 110V and 220V
Yes. The input range is 85V-265V, so the same lamp works on both 110V and 220V systems without a switch or adapter.
How many LEDs does the AOM-6A-2 have
12 LED bulbs, arranged in two heads.
Is the brightness adjustable
No. The AOM-6A-2 has fixed brightness. It is designed for consistent, low-maintenance operation.
What is the power draw
1.0W.
Can we have the lamp with our own logo and packaging
Yes. We offer OEM versions with your logo on the lamp housing or magnet base and your own packaging.
What certification does the lamp carry
Please ask us for the current certification documents for your market and we will send what applies to this model.
Related Products
SEWING MACHINE LED LAMP AOM-6A

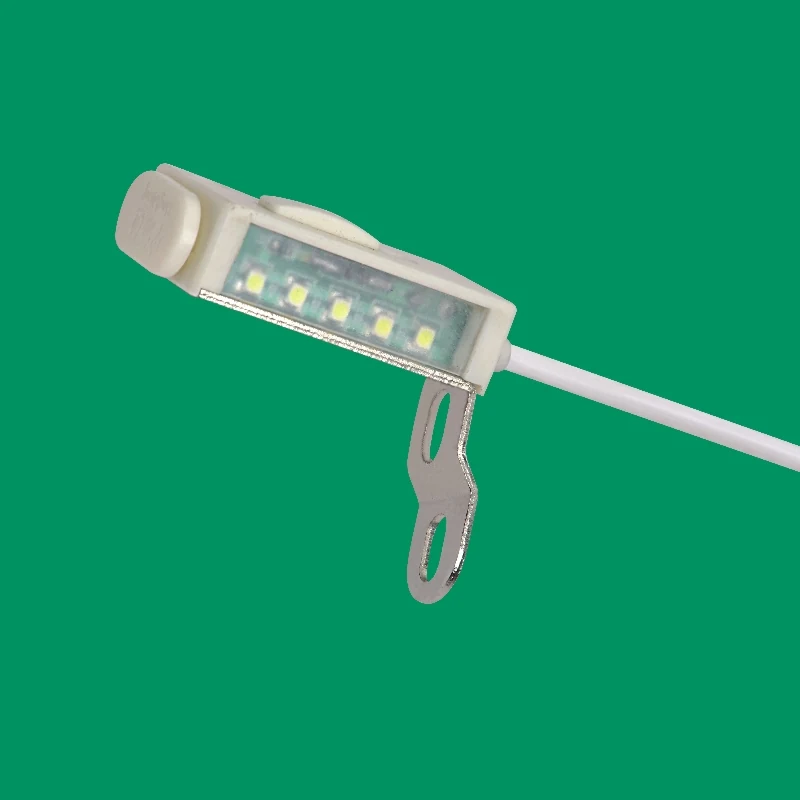

BACK SEAM LED LIGHT FOR SEWING MACHINE AOM-3A
