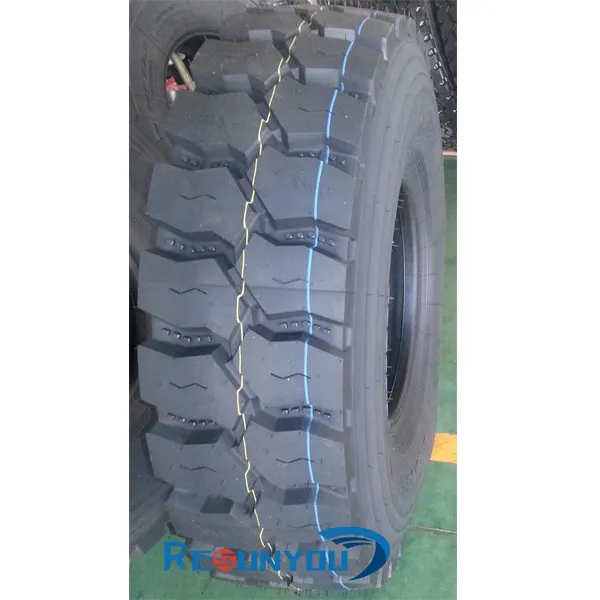

RDM990
The wide crown and deep tread provide enhanced durability and extended casing life under harsh conditions. Large lateral blocks deliver strong driving forces, maintaining reliable grip on bo
Overview
The wide crown and deep tread provide enhanced durability and extended casing life under harsh conditions. Large lateral blocks deliver strong driving forces, maintaining reliable grip on both dry and wet surfaces. It is available in 12.00R20 20PR, mounted on an 8.50 rim, with a load capacity of 4000 kg single and 3650 kg dual at 900 kPa.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What RDM990 Gives the Operator
Wide crown and deep tread design increases casing life in abrasive off road environments
Large lateral blocks generate high driving forces for traction on steep and loose terrain
Optimized block geometry maintains grip on wet and dry surfaces in mining and mountain roads
20 ply rating casing supports heavy loads and high stress during continuous off road operation
Radial construction improves heat dissipation and reduces rolling resistance under heavy load
Application Scenarios
- Mining operations on rough, unpaved haul roads with frequent heavy loading
- Mountainous terrain transport with steep gradients and uneven surfaces
- Construction site access and material transfer where tyres face sharp rocks and debris
- Long haul trucking on unpaved or gravelled routes with high wear and impact exposure
- Fleet operations in remote areas where tyre replacement is infrequent and durability is critical
Who It Is For
- Importers sourcing drive tyres for mining and construction fleets in off road conditions
- Distributors serving markets with heavy-duty truck operations on unpaved roads
- Fleet operators running trucks in mining, quarrying or mountainous regions
- Wholesalers looking to offer a durable off road drive tyre in a single container size
What It Is Meant To Fix
Tyres that wear out quickly on rocky and uneven terrain due to insufficient tread depth and weak casing
Loss of traction on wet or muddy off road surfaces leading to wheel spin and reduced control
Casing failure from impact and heat build-up in high stress off road environments
Short casing life requiring frequent replacements and increasing total cost per kilometre
Inadequate load support on steep gradients due to low ply rating or weak structure
Published Data For RDM990
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
| Size | PR | Standard Rim | Load Index and Speed | Overall Dia mm | Section Width mm | Max Load kg Single/Dual | Max Pressure kPa |
|---|---|---|---|---|---|---|---|
| 12.00R20 | 20 | 8.50 | 156/153K | 1122 | 313 | 4000/3650 | 900 |
Technical Features
- Special mine pattern with large lateral blocks for high driving force and grip
- Deep tread depth and wide crown to extend casing life under abrasive conditions
- 20 ply rating radial casing designed for high load and impact resistance
- Optimized block arrangement for water evacuation and grip on wet off road surfaces
- 12.00R20 size with 8.50 rim compatibility for standard mining and heavy truck fitment
Customisation
- Container loading can include multiple TBR patterns and sizes in one shipment
- Sidewall marking and labelling can be adapted to match destination market requirements
Quality Control
- X-ray inspection of the finished casing to detect internal defects before packing
- Dynamic balance check on the production line to ensure smooth operation
- Production carried out under ISO9001 and ISO/TS16949 quality management systems
How It Compares
- Compared with A lighter ply rating casing in the same size20PR rating provides better load support and casing life in harsh conditions, but may have higher initial cost
Getting the Most Out Of It
- Fit only to the drive axle position where maximum traction and durability are required
- Maintain cold pressure at the load actually carried, not the maximum sidewall rating
- Inspect tyres regularly for cuts, bulges, and tread wear, especially after off road use
- Avoid prolonged operation on hard, abrasive surfaces without proper pressure and load management
RDM990 Questions
What is the load index and ply rating
The load index is 156/153K, and the ply rating is 20PR, suitable for heavy duty off road applications
Can the casing be retreaded
The casing is built for retreading, but acceptance depends on the retreader and operating conditions. Confirm with your retreading partner
Which approvals apply to RDM990
Our products are approved under ISO9001, ISO/TS16949, CCC, E-mark, DOT, GSO/GCC, SONCAP, INMETRO and NOM. Which marking your shipment needs depends on the destination market, so confirm it before the order is placed.
Can RDM990 be shipped with other patterns in one container
Yes. Truck tyres, car tyres, off the road tyres and wheels are routinely loaded into the same container. Send the sizes and quantities per size and we will plan the load.
How do I get a price for RDM990
Email [email protected] with the sizes and quantity you need. The email button on this page pre fills RDM990 in the subject line so the enquiry reaches the right desk.
How are the goods packed and inspected before shipment
Goods are checked and packed for container transport before loading. Specific packing and marking requirements are agreed per order.
Get Pricing For RDM990
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
