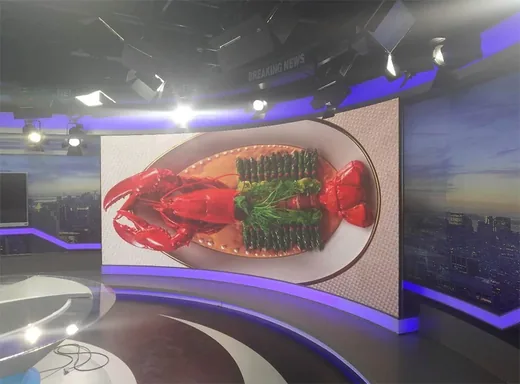

25sqm Fine Pitch HD LED Screen for a News Centre in China

25sqm · Model MSR-HD-1.2 · China · Delivered June 2019

Product Model	MSR-HD-1.2
Screen Size	25sqm
Location	China
Venue	News Centre
Delivered	June 2019
Product Supplied	Indoor Fixed With 16:9 Ratio
Sector	Broadcast and TV Studios

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 25sqm indoor fixed LED wall supplied on MSR-HD-1.2 cabinets for a news centre in China, delivered in June 2019. A wall of this size with a 16:9 aspect ratio is bought by a broadcast or media operations team rather than by a venue.

Challenge

The Project Challenge

Install a 25sqm indoor fixed LED wall with a 16:9 aspect ratio that matches broadcast source content without bezel gaps, while fitting into a space with limited rear access and requiring minimal on-site labour for maintenance.

Pain Points

Customer Pain Points

A 25sqm wall must be built with cabinets that align precisely to avoid visible seams
Front maintenance is required because the screen is mounted against a wall with no rear access
The wall must match a 16:9 source resolution instead of being limited by an arbitrary panel count
The screen must deliver high definition for broadcast use with a minimum pixel pitch of 0.9mm
Cabinets must be lightweight and slim to reduce structural load and installation effort

Solution

Our Solution

The wall was supplied on MSR-HD-1.2 indoor fixed cabinets with a 16:9 aspect ratio, 0.9mm minimum pixel pitch, front maintenance design, 58mm ultra-thin aluminium cabinet, and a cableless, structural hard link system. Fast lock with high precision positioning allows tool-free installation and alignment. The cabinets are designed to be replaced in groups of four to match traditional 55-inch LCD displays, enabling bezel-free 2K, 4K, and 8K output.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment and structural hard link integration
Screen installation test with cabinets built up as a wall in the factory
Screen ageing test to verify brightness and colour consistency across cabinets before shipment

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to ensure field spares were available from the first installation, eliminating the need for a second shipment.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and tested as a full wall in the factory, including a screen installation test and a screen ageing test to ensure brightness and colour uniformity across all cabinets.

Result

Final Result

Documented delivery: 25sqm of MSR-HD-1.2 indoor fixed LED screen with 16:9 aspect ratio, supplied for a news centre in China in June 2019.

Benefit

Customer Benefit

Front maintenance and lightweight cabinets reduce on-site labour and space requirements. The cableless, structural hard link system enables fast, tool-free installation with high precision. The 16:9 panel format and 0.9mm pixel pitch allow seamless 2K, 4K, and 8K broadcast output without bezel gaps.
