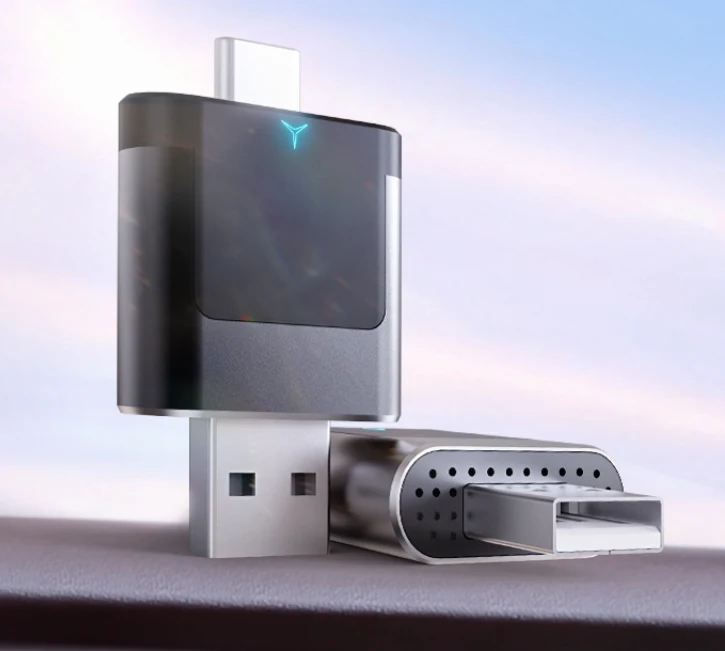

B22P Dual Plug Wireless CarPlay Adapter With Dual Band Wi-Fi
USB-A and Type-C on the same body, dual band 5.8 GHz plus 2.4 GHz, Bluetooth 5.4.
The B22P is the adapter we recommend to buyers who cannot control which car it ends up in. It carries both a USB-A and a Type-C connector, runs a V851S or AX1800 CPU, and pairs over Wi-Fi 6 and Bluetooth 5.4 on a dual band 5.8 GHz plus 2.4 GHz link. At 25 g it is the heaviest adapter in the 2 in 1 line, and the connector hardware is where that mass goes.
| CPU | V851S / AX1800 |
|---|---|
| Shell material | ABS |
| Connection | Wi-Fi 6 + Bluetooth 5.4 |
| Power input | 5V 1A-2.1A |
| Powered interface | USB-A + Type-C |
| Net weight | 25 g |
| Usage | Plug and play |
| Phone OS | iOS 10+, Android 12.0+ |
| Dual-band Wi-Fi | 5.8 GHz + 2.4 GHz |
| Applicable vehicle | Original car supporting wired CarPlay and compatible with the CarPlay protocol |
Why Buyers Specify This Model
One SKU For Two Port Types
USB-A and Type-C on the same unit, so a mixed vehicle fleet or a mixed shelf needs one product code instead of two.
Dual Band Where Traffic Is Dense
5.8 GHz plus 2.4 GHz gives the link somewhere to go when the 5 GHz band is congested, which is the usual cause of stutter in city driving.
Bluetooth 5.4
The current pairing generation, shared with the TAB06, TAB0E and TAB01-3.
Original Controls Preserved
Factory microphone, buttons and touch screen keep working through the adapter.
Problems It Solves
You Guessed The Wrong Connector
A dual plug body removes the guess and the exchange that follows it.
The Link Stutters In City Traffic
Dual band gives the adapter a second channel when 5.8 GHz is saturated.
Two Variants Double Your Stockholding
One dual plug SKU covers both, which halves the shelf space and the forecasting error.
Who It Is For
- Fleet and rental buyers
- Retailers consolidating SKUs
- Distributors in large cities
Application Scenarios
- Mixed-age vehicle fleets with both port types
- Rental and pool cars
- Retail shelves that cannot stock two connector variants
- Dense urban driving where the 5 GHz band is crowded
Technical Features
- Wireless CarPlay and wireless Android Auto in one device
- USB-A and Type-C dual plug
- Dual band Wi-Fi 5.8 GHz + 2.4 GHz
- Wi-Fi 6 with Bluetooth 5.4
- V851S or AX1800 CPU
- Compatible with original car microphone, buttons and touch screen
Customization Options
- User interface logo
- Bluetooth broadcast name
- Silkscreen artwork
- Colour box
- Instruction manual
Low MOQ OEM and ODM accepted. Our own mould workshop handles size, material and function changes.
Comparison With Other Models
The B22P, TAB06 and Q1T are the three dual plug models. The B22P is the heaviest at 25 g and shares Bluetooth 5.4 and dual band Wi-Fi with the TAB06, while the Q1T runs Bluetooth 5.0 and single band. Against the single-plug metal models such as the Q1A and Q1AS, the B22P trades finish for connector coverage.
Use Guide
- Check whether the car USB port is USB-A or Type-C and use the matching connector
- Plug the adapter in and wait for it to power up
- Pair over Bluetooth then Wi-Fi on first use
- CarPlay or Android Auto launches according to the phone connected
- Later journeys reconnect automatically
- If the link stutters, the dual band radio will switch channels on its own
Quality Control And Warranty
Every unit passes three inspection gates: IQC on incoming material, IPQC on the line and FQC before packing. The model ships with CE, RoHS and FCC documentation, carries a twelve month warranty against manufacturing defects, and any quality issue receives a proposed solution within 48 hours.
Download the certificates and test reports before you place an order.
Related Guides
Services That Apply
Other Models Worth Comparing
2 In 1 Adapter TAB06 Dual Plug
The dual plug specification of the B22P at ten grams less.
View Specifications
2 In 1 Adapter Q1T Dual Plug
Both connector types at 16 g, on the proven V851S and Bluetooth 5.0 combination.
View Specifications
1 To 2 Adapter TAB01-3
One box that works out for itself whether the phone is an iPhone or an Android and converts the car accordingly.
View SpecificationsQuestions About The 2 In 1 Adapter B22P Dual Plug
Can both connectors be used at once
No. Use whichever connector matches the car port. The point of the dual plug is that one product fits both vehicles.
Why is it 25 g when other adapters are 6 g
The second connector and its shielding are physical hardware. The dual plug models are all heavier than the single plug ones.
What does dual band actually change
It gives the adapter both 5.8 GHz and 2.4 GHz. In congested areas the link has an alternative channel, which is what keeps audio and navigation from stuttering.
Which CPU will my batch have
The specification covers V851S and AX1800. Tell us if your programme needs one fixed across the order and we will confirm at quotation.
Quote The 2 In 1 Adapter B22P Dual Plug
Send the quantity, the destination market and any branding you need. We will confirm price, lead time and the certification position for your country.
