Wireless Digital 4CH Rear View Camera System
- 7 Inch Digital Panel A+
- Resolution: 420 TV line
- 4 way Wireless Rear View System
- 2.4G wireless transmitter: The distance can reach 100M in the open area
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Screen Ratio | 16：9 |
|---|---|
| Back Light Luminance | LED, 300cd/㎡ |
| Resolution | 800xRGBx480 |
| Anti-knock level | 4G |
| Power Supply | DC12-24V |
| Power Consumption | 5W |
| Size | 180 x121 x 24mm |
| Image sensor | CMOS |
| Resolution | 420 TV line |
| Mini illumination | 0.1 Lux, infrared night vision |
| Image View angle | 150° |
| System | PAL& NTSC |
| 2.4G wireless transmitter | The distance can reach 100M in the open area |
| Power supply | 12V-24V |
| Waterproof level | IP 68 |
| Power Consumption | 3W |
| Size | 86.5 x 77 x75mm |

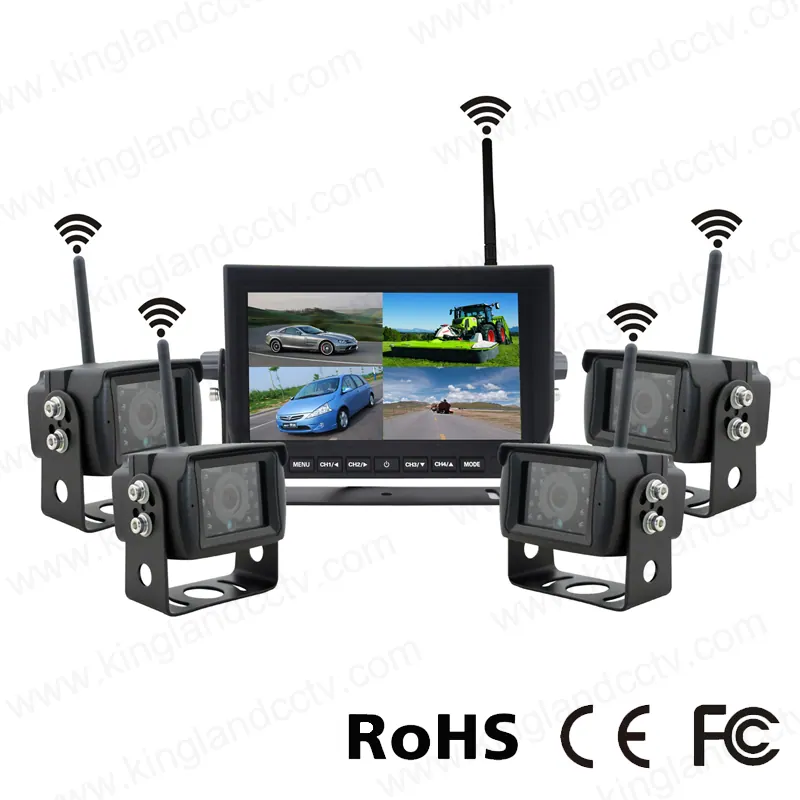

Wireless Digital 4CH Rear View Camera System (1 monitor+4 camera）

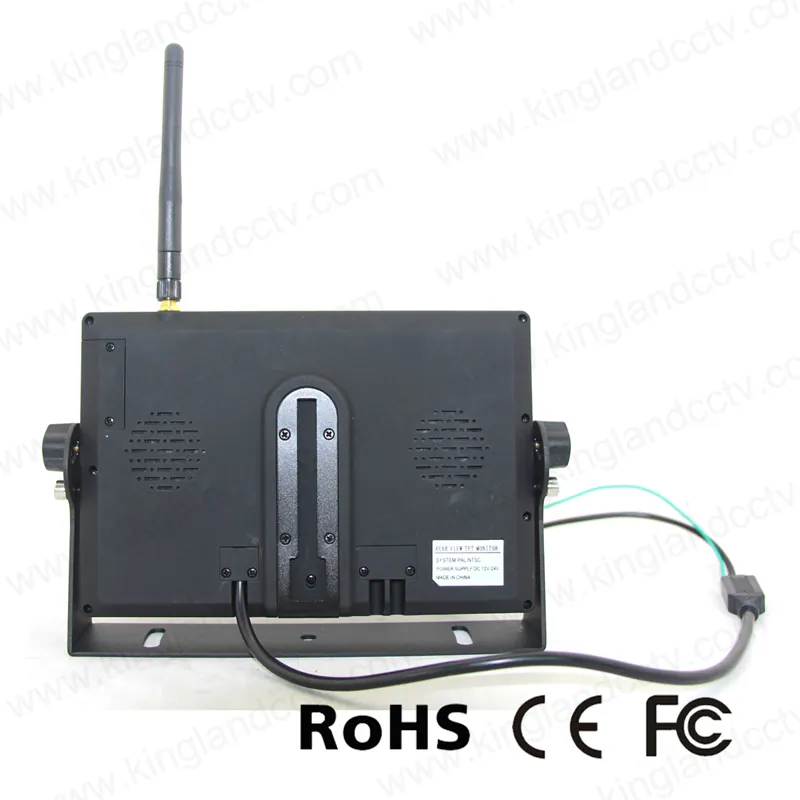

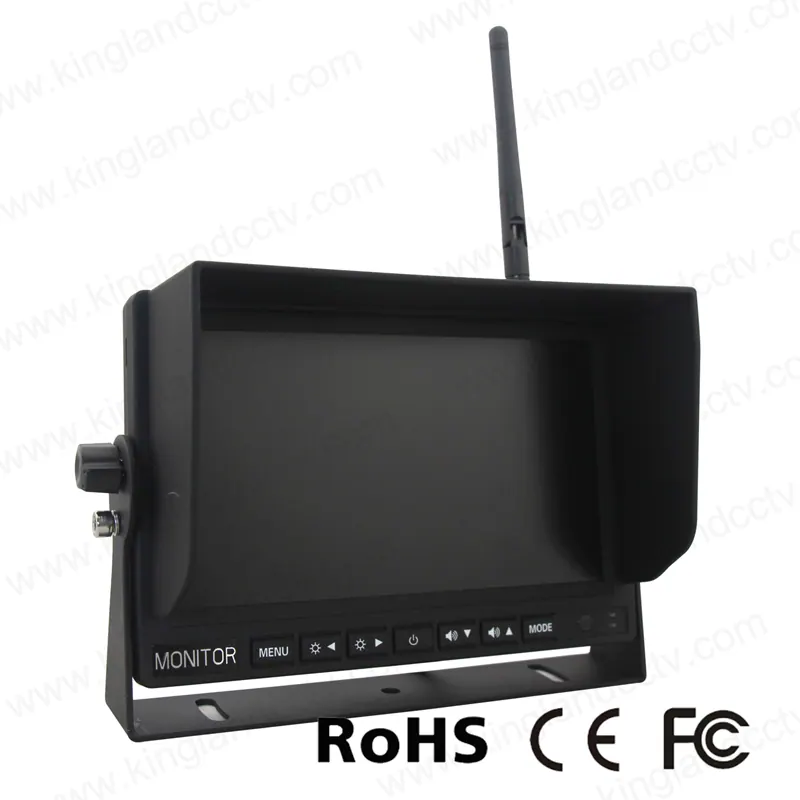

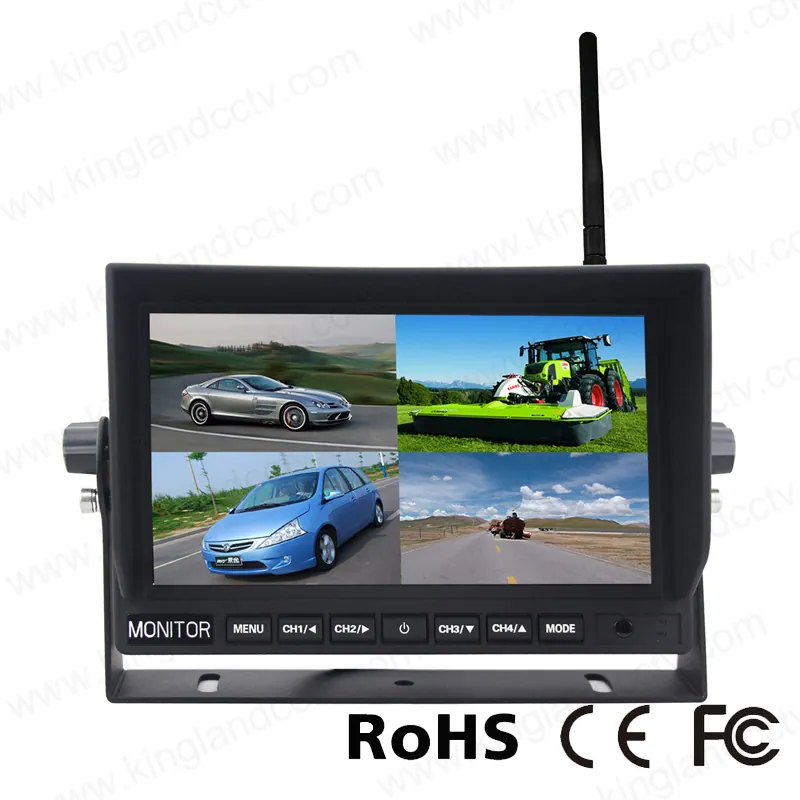

Monitor Technical specifications
7 Inch Digital Panel A+
1 way 2.4G wireless video signal input
PAL/NTSC automatically
Adopt digital wireless encryption technology to code connection
Have strong anti-interference capacity
2.4G open distance can reach 100M

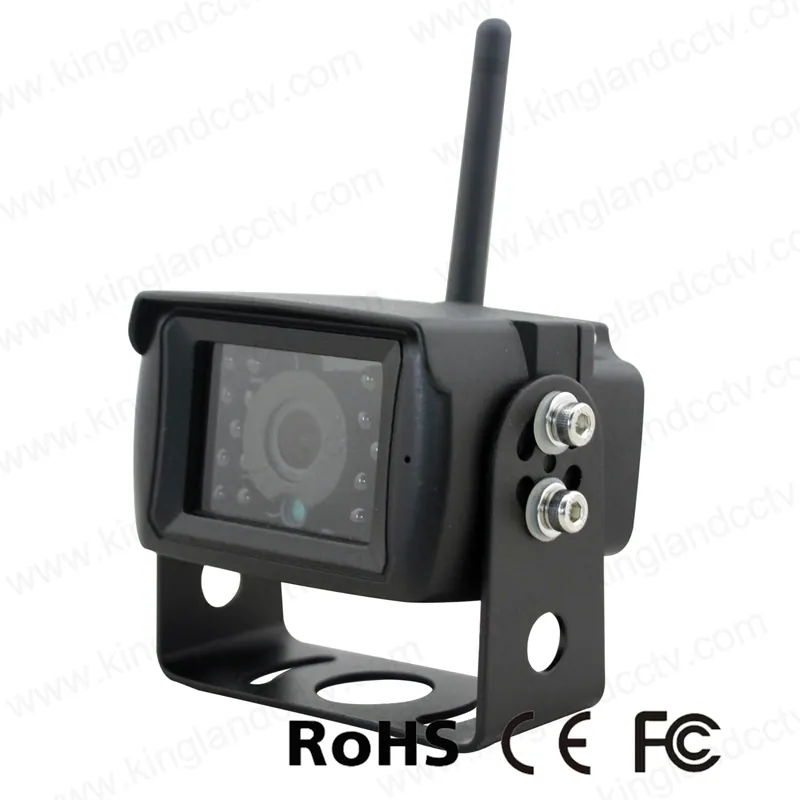

Wireless Camera Specification
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
Related Guides
Send An EnquiryView All Wireless Rear View System
Frequently Asked Questions
Can this be supplied under our own brand?
Yes. Kingland provides OEM and ODM service with its own software and hardware engineers. Send the model, the changes you need and the quantity and we will tell you what is possible.
What should we send with an enquiry?
The model or the specification, the quantity, the vehicle or site it is for, and the destination market. A photograph of the installation position often answers more questions than a paragraph of text.
Who do we contact?
The sales contact for your region: America, Europe and Africa, Oceania and the Middle East, or Asia. Spanish speaking customers can contact our office in Chile directly.
Enquire About Wireless Digital 4CH Rear View Camera System
Email the sales contact for your region with the quantity and the destination market.
