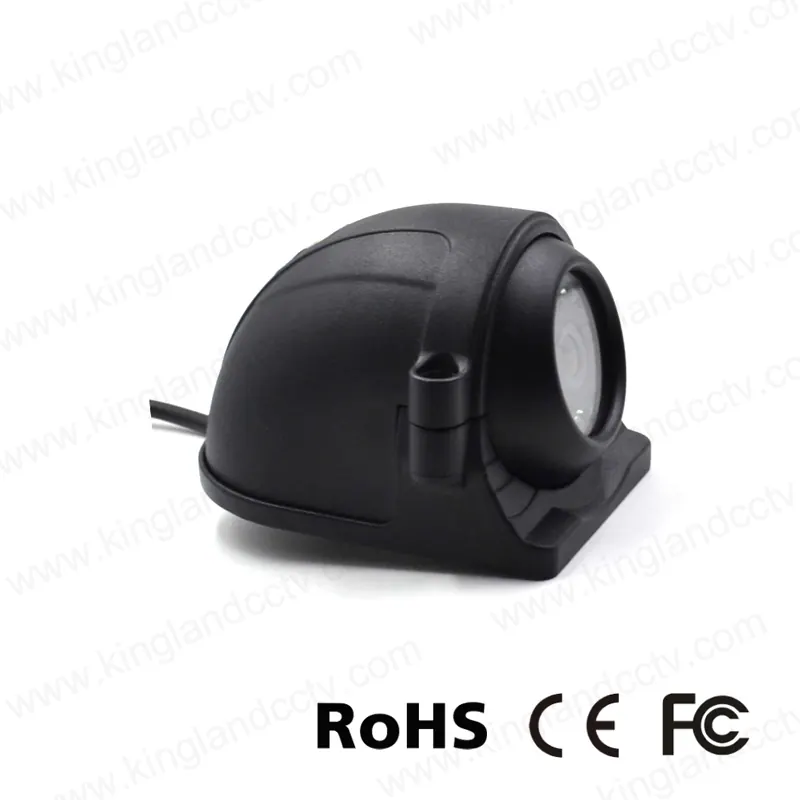

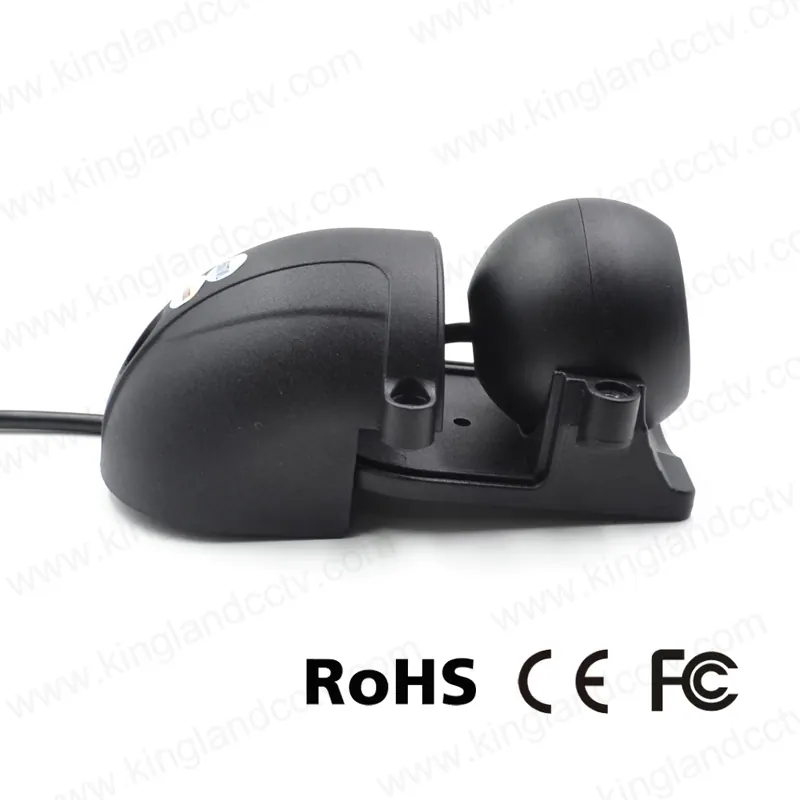

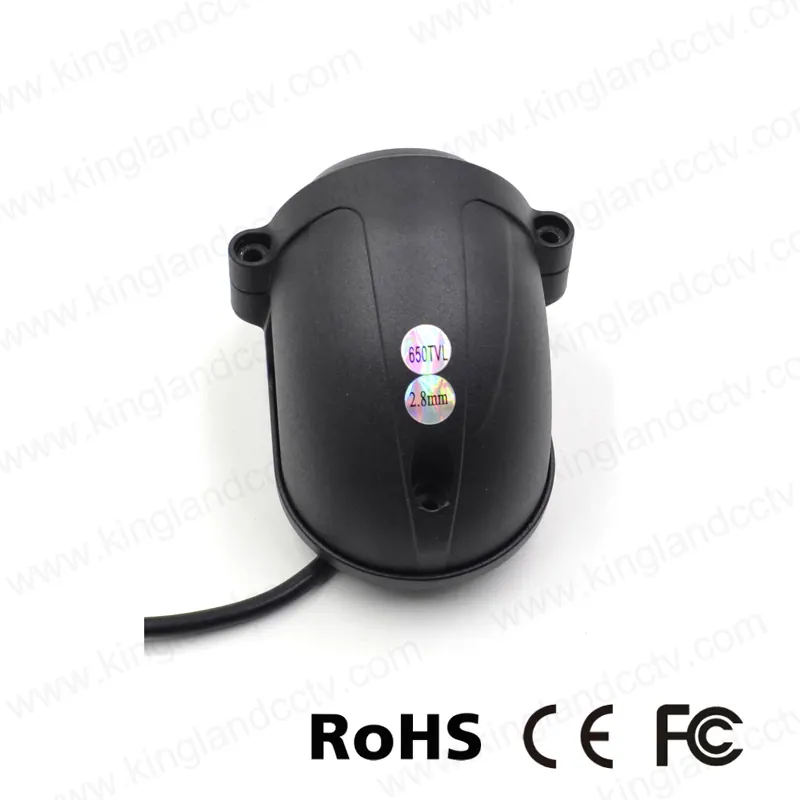

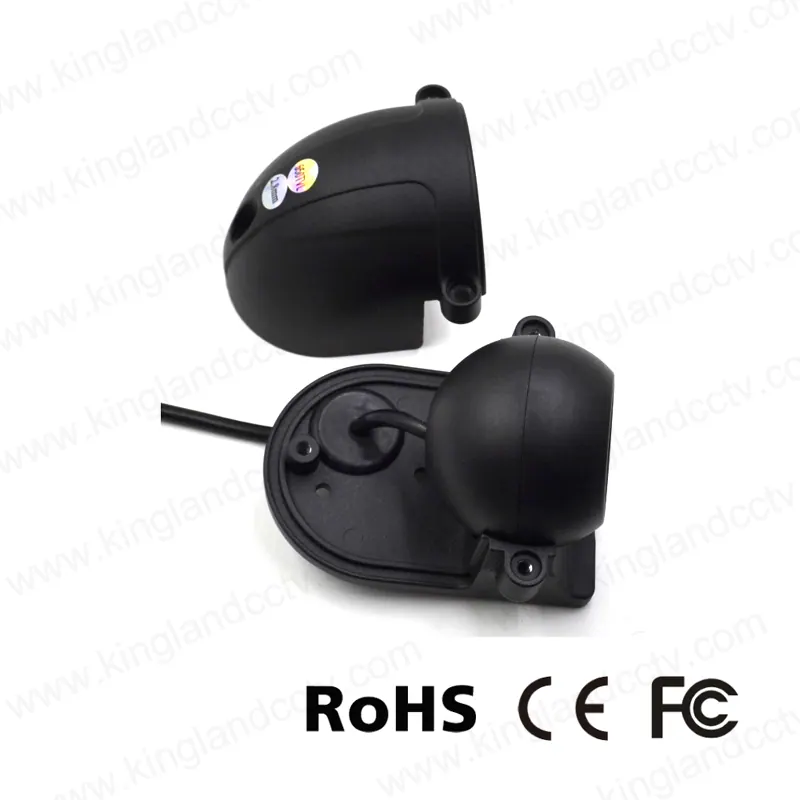

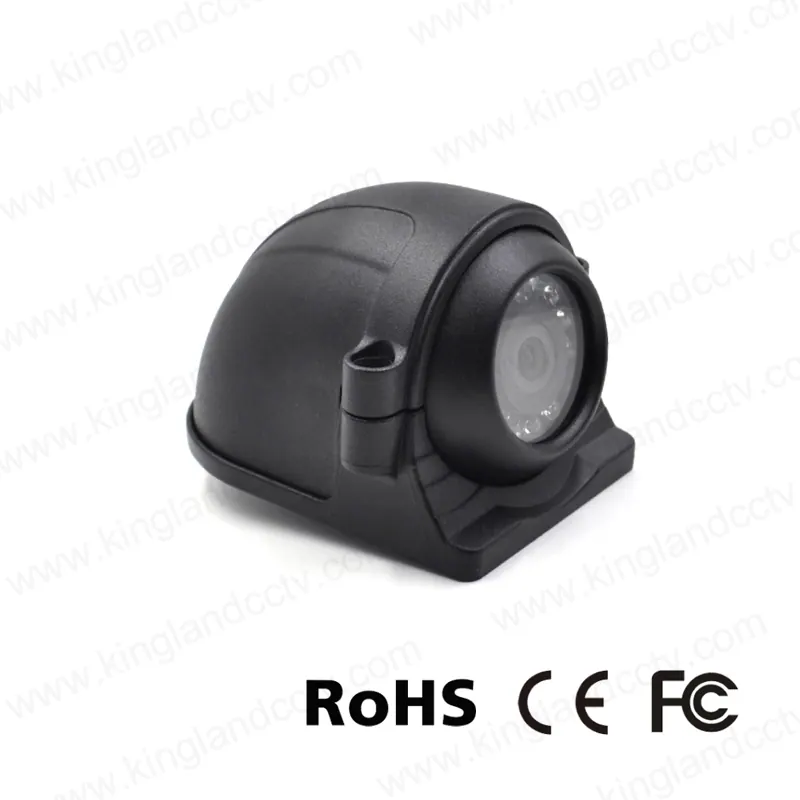

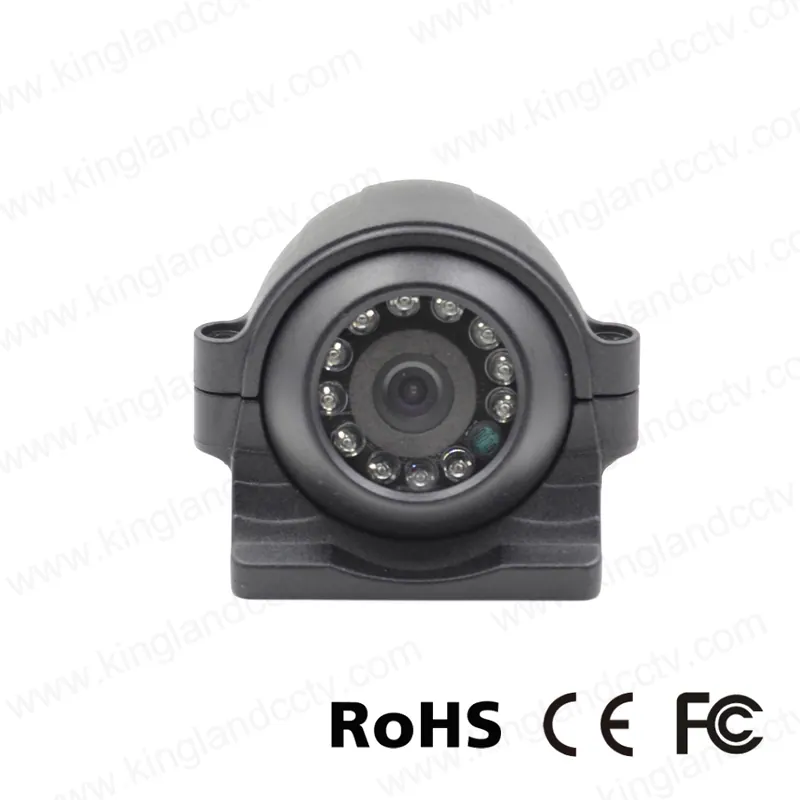

Vehicle Side View Camera (KL-C368)
- AHD car camera/hanging type
- Effective pixels: 1280X720
- Horizontal resolutions: 1000 TV lines
- Wide-angle: 170 Degree ,horizontal angle:120 Degree
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Main Features | AHD car camera/hanging type Image sensor: Micron 0130 TV system: PAL/NTSC optional Effective pixels: 1280X720 Horizontal resolutions: 1000 TV lines Wide-angle: 170 Degree ,horizontal angle:120 Degree Sensing area: 3.8 mm *2.9 mm Shutter speed: 1-1/12000 Gamma no.:0.45 Minimum illumination:0.01 Lux/F=1.2(0 Lux with IR on) Video output: RCA connector ,Other connector optional,VBS 1.0 VP-P,75 OHM Power consumption: 130mA Power supply: DC12V Operating temperature: -20ºC - 75ºC,RH 95% MAX Storage temperature: -40°C- 80°C RH95%MAX Waterproof rate:IP67 Night vision Color camera |
|---|
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
Related Guides
Send An EnquiryView All Car Camera
Frequently Asked Questions
Can this be supplied under our own brand?
Yes. Kingland provides OEM and ODM service with its own software and hardware engineers. Send the model, the changes you need and the quantity and we will tell you what is possible.
What should we send with an enquiry?
The model or the specification, the quantity, the vehicle or site it is for, and the destination market. A photograph of the installation position often answers more questions than a paragraph of text.
Who do we contact?
The sales contact for your region: America, Europe and Africa, Oceania and the Middle East, or Asia. Spanish speaking customers can contact our office in Chile directly.
Enquire About Vehicle Side View Camera (KL-C368)
Email the sales contact for your region with the quantity and the destination market.
