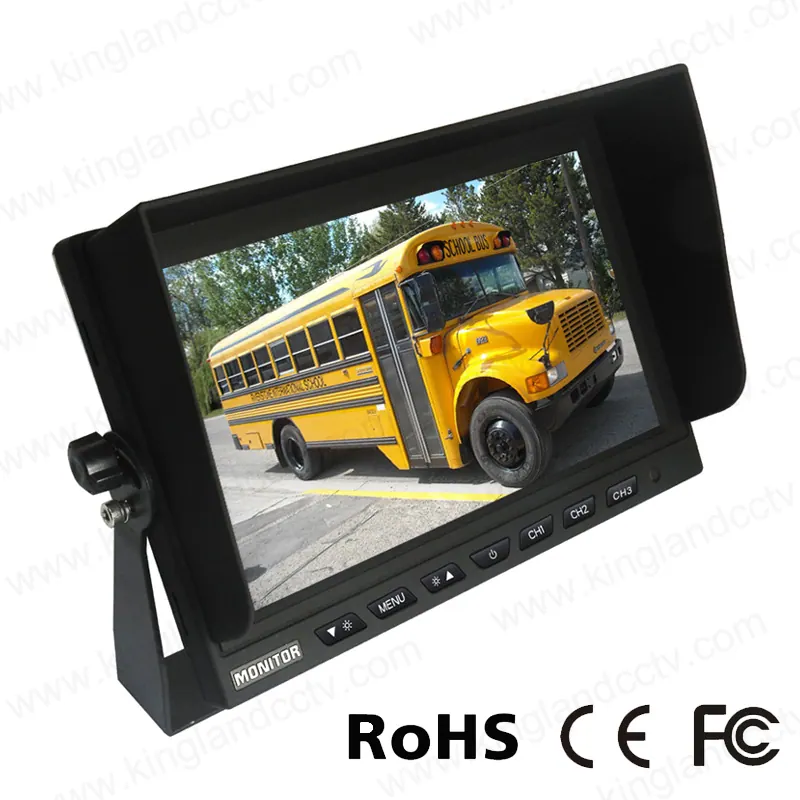

9 inch AHD Car Rear View Monitor
- Screen: 9 inch digital panel
- Resolution: 1024*R.G.B*600
- Trigger: 3 triggers control
- AV input: 3 AHD video input; single image display, Supported formats: 720P@25/30; 720P@50/60; 1080P@25/30
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Screen | 9 inch digital panel |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Back light luminance | LED, luminance 300 cd/m2 |
| Contrast ratio | 300:1 |
| Viewing angle | UP-50 degree; DOWN-70 degree; LEFT-70 degree; RIGHT-70 degree |
| OSD control | luminance; contrast; saturation; volume; language(English; simplified Chinese) |
| System | PAL & NTSC automatically |
| AV input | 3 AHD video input; single image display, Supported formats: 720P@25/30; 720P@50/60; 1080P@25/30 |
| Trigger | 3 triggers control |
| Power supply | DC12-24V |
| Power consumption | ＜5W |
| Maximum current | ＜500mA |
| Working temperature | -10 ℃ to 60 ℃ |
| Storage temperature | -20 ℃ to 70 ℃ |
| Packing list | Power cable; remote control; bracket; hexagon wrench; user manual. |
9 Inch Car Rearview Ahd Monitor
Specifications:
Removable sunshade design
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
