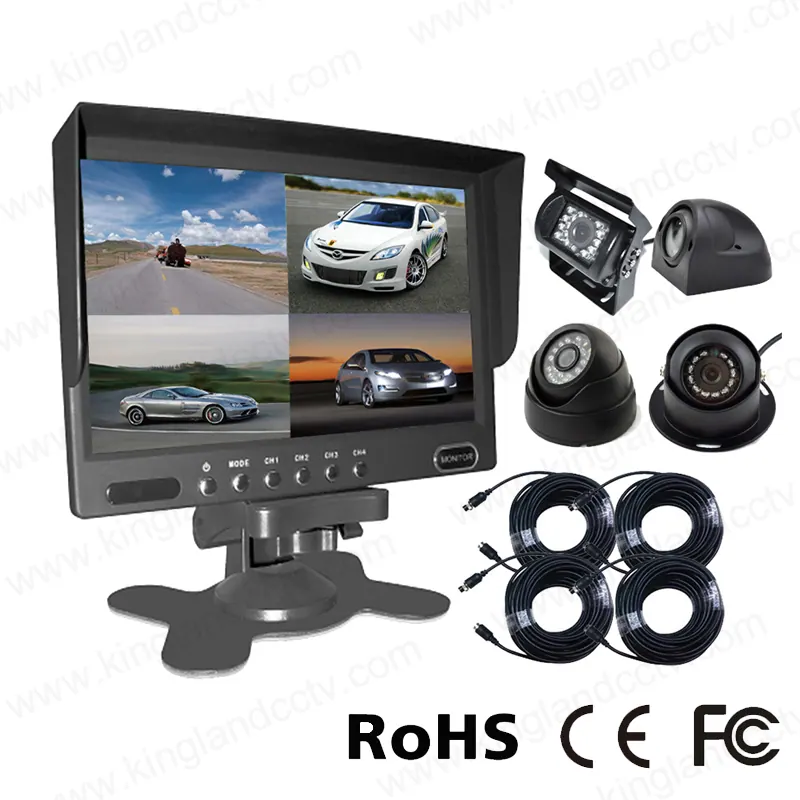

4CH 7 inch Car Rear View System with Quad Monitor(KL-S7114)
- 7 Inch Quad Monitor System
- RCA or 4 PIN Connector Optional

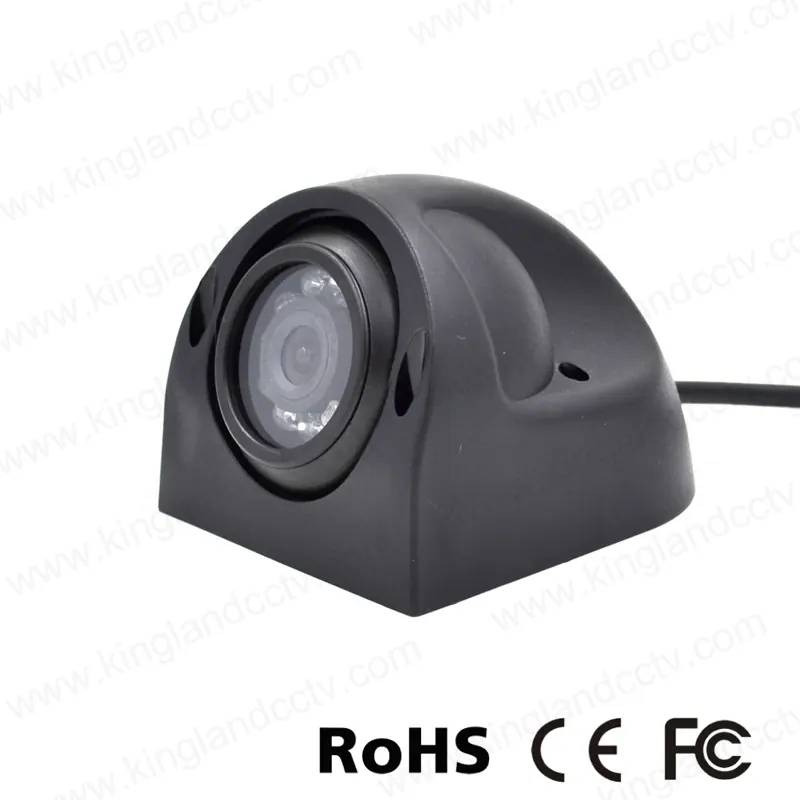

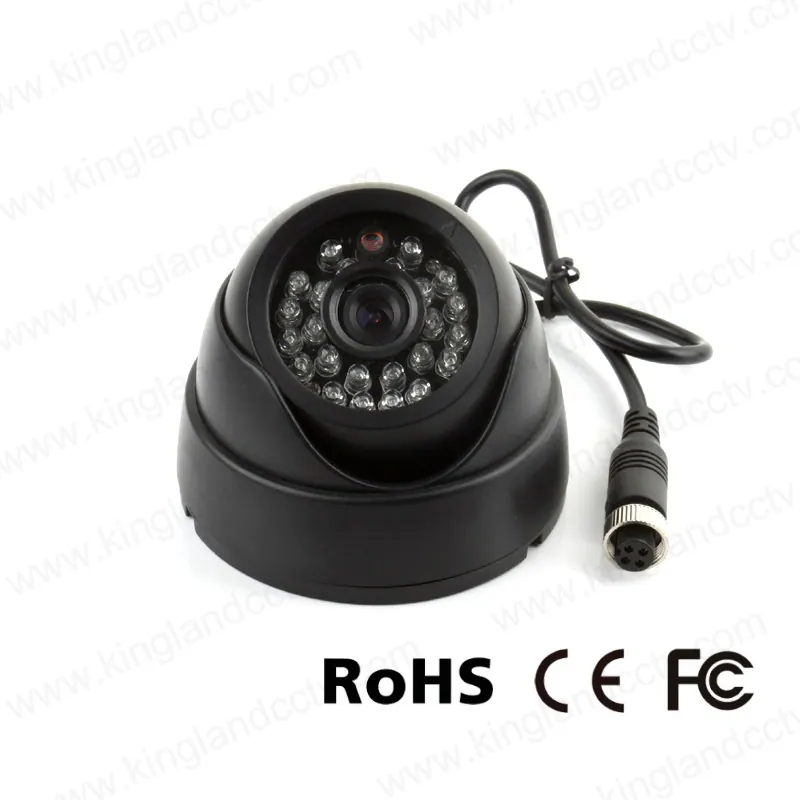

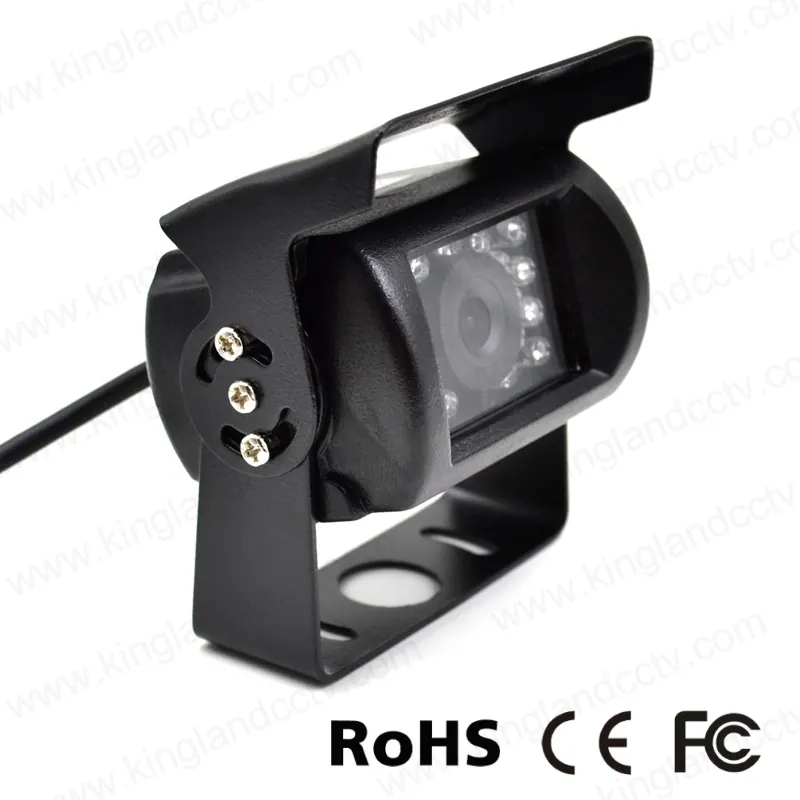

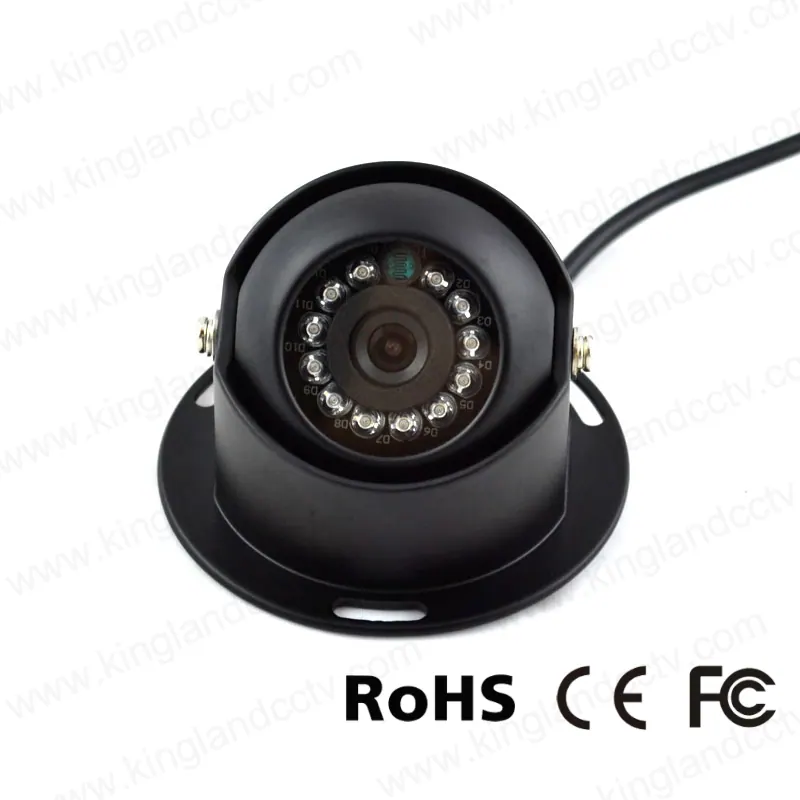

- 4PCS High Quality Camera

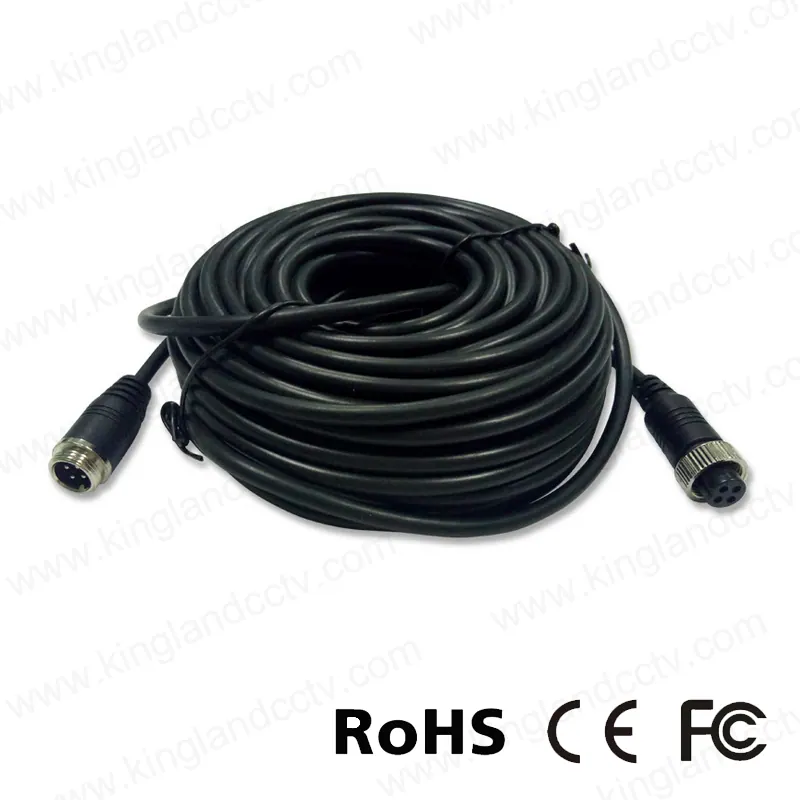

- 5/10/15/20/25 Meter Extension Cable optional
OEM and ODM available on this model: branding, firmware, cable length and housing changes are handled by our own engineers.
Specifications
| Image Device | 1/3 or 1/4 Sharp or Sony CCD |
|---|---|
| TV System | PAL/NTSC Effective Pixels:500x582 pixels/510x492 pixels Sensing Area:5.961mmx4.276mm Scanning System:2:1 Interlace Sync. System:Internal Resolution:420TV lines Minimum Illumination:0 Lux (18 PCS IR LEDS ON) Video Output:1.0vp-p, 75Ohm Gamma Consumption:0.45 AGC:Auto S/N Ratio:≥48dB White Balance:Auto Electronic Shutter:1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC) BLC:Auto Current Consumption:Max.50 mA Power Supply:DC12V Operating Temperature:-20°c~+70°c |
| Max Storage Temperature | -40°c~+80°c Lens:2.8 or 2.5 mm lens Lens Angle:120°(N),120°(P) |
4CH 7 inch Car Rear View System with Quad Monitor (1 quad monitor + 4 cameras)
Features:
1) 7 Inch Quad Monitor System 2) RCA or 4 PIN Connector Optional 3) 4PCS High Quality Camera 4) 5/10/15/20/25 Meter Extension Cable optional

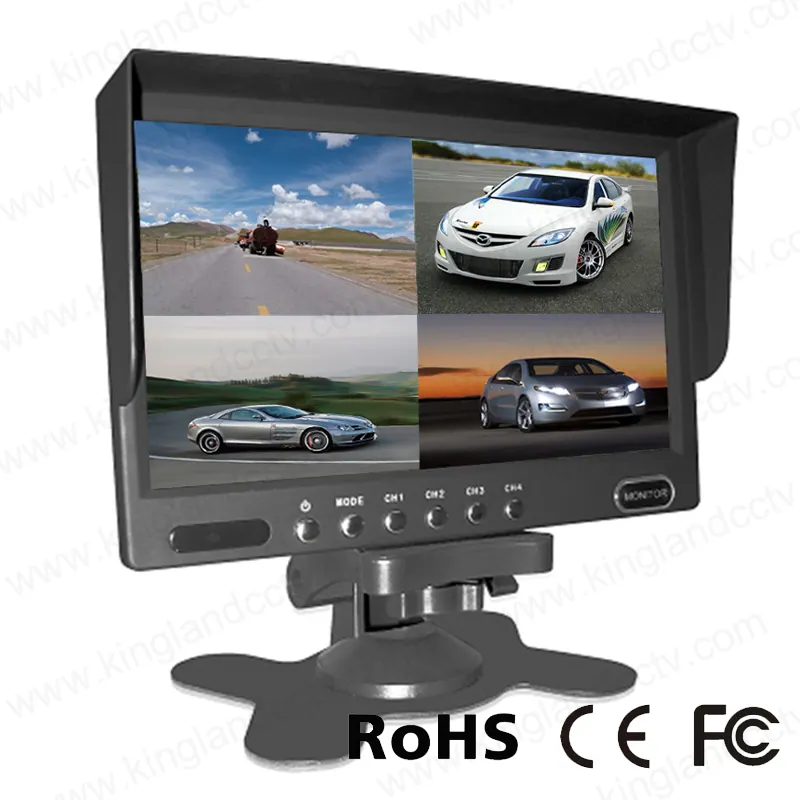

Specification of LCD Monitor:
Screen Ratio
16:9
Back Light Luminance
LED, 300cd/㎡
Resolution
1024xRGBx600
Compatible system
NTSC & PAL (automatically)
OSD control
Color, Brightness, Contrast, Volume, Language
Where It Is Used
Send this model name with your enquiry together with the quantity and the destination market, and we will confirm availability and OEM options.
