Water-Cooled Condensing Unit
Water-cooled condensing unit with shell-and-tube condenser. Compact indoor footprint, efficient in high-ambient climates.
- Indoor · 20-300HP
What The Water-Cooled Condensing Unit Does
Water-cooled condensing units use a shell-and-tube condenser fed by an external cooling tower or chilled water loop, eliminating the need for outdoor air-cooled condensers. Ideal for: rooftop space-constrained installations, high-ambient tropical climates (>40°C summer), industrial sites with existing cooling water supply, and any application demanding maximum year-round efficiency.
Howcool's water-cooled units use Bitzer or Frascold semi-hermetic compressors, stainless-steel shell-and-tube condensers (316L), and high-quality cupro-nickel heat exchanger tubes rated for seawater service if required. Standard configurations 20-300HP single compressor, plus parallel-rack configurations for >300HP duties.
Water-cooled condensing units 20-300HP with shell-and-tube stainless steel condenser. Ideal for tropical climates, space-constrained installations, and facilities with existing cooling water. Bitzer/Frascold compressors.
Why Buyers Choose This Model
Compact Indoor Footprint
No outdoor condenser required — entire unit fits in machine room. Connect to existing cooling tower or building chilled water.
Stable High-Ambient Performance
Cooling tower water typically 5-10°C cooler than air. Maintains rated capacity even in 45°C tropical summer climates.
Seawater Service Option
Cupro-nickel 90/10 or 70/30 tubes available for coastal and marine installations. Marine-grade enclosure.
Heat Recovery Ready
Reject heat returns to cooling water at 35-45°C — recoverable for facility heating, hot water, or process use.
Refrigeration Unit Failure Modes
Capacity that collapses in summer
High-ambient compressor selection with condenser heat rejection oversized for the site climate, not for a 35 degree lab rating.
Unplanned downtime
N+1 standby staging on parallel racks and multi-compressor packs keeps the room cold while a compressor is serviced.
Energy bills nobody budgeted
Multi-compressor and screw racks stage capacity to the real load instead of running one large machine at part load.
Technical Data
Values below are the manufacturer's standard range. Anything not listed is confirmed against your heat load calculation before order.
| Power Rating | 20HP – 300HP single, parallel-rack option to 1000HP |
|---|---|
| Compressor | Bitzer / Frascold semi-hermetic |
| Condenser | Stainless steel 316L shell-and-tube, cupro-nickel option |
| Cooling Water | Cooling tower or building chilled water loop |
| Water Inlet/Outlet | 30°C / 35°C standard (configurable) |
| Refrigerants | R404A / R407F / R448A / R449A / R134a |
| Min Evaporating Temp | -35°C |
| Heat Recovery | Available — 35-45°C return water |
|---|---|
| Production Lead Time | 30-45 days after deposit |
| Warranty | 5 years on compressor and condenser |
| Packing | Wooden case for export, ship-ready |
| Certification | ISO 9001, CE, PED 2014/68/EU |
| Origin | Beijing, China |

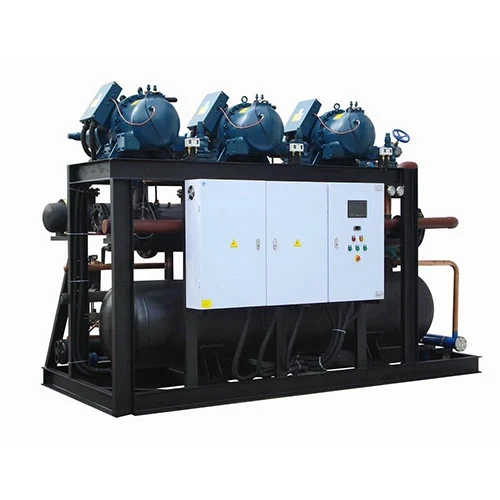

Water-Cooled Condensing Unit In Production And On Site
Sectors Using This Equipment
Food Processing
Processing lines do not wait. When freezing capacity falls behind the kill floor or the packing line, product queues at ambient...
Fruit and Vegetable
Fruit keeps respiring after harvest. Temperature slows it down; controlled atmosphere nearly stops it. The difference between the...
Cold Chain Logistics
A distribution cold store is judged on pallet movements, not on storage volume. Dock design, door speed and racking layout decide...
Water-Cooled Condensing Unit Questions
What capacity range does the Water-Cooled Condensing Unit cover?
The standard range is Indoor · 20-300HP. All models are customised to the calculated heat load of your room or line, so send volume, temperature and product type for exact selection.
What is the production lead time?
30-45 days after deposit. Equipment is packed in wooden case for export, ship-ready.
What warranty applies?
5 years on compressor and condenser, backed by 24/7 remote support. On-site service is available for export projects.
Is the equipment certified?
ISO 9001, CE, PED 2014/68/EU. Howcool's quality management system is certified to ISO 9001:2015 by CFL Certification Center.
