Single row 10W led light bar
The Single row 10W led light bar is a 30W LED lamp from the Dantech LED Light Bars range, supplied with a flood and spot beam and rated IP68.
- 30W
- IP68
- 12-48V DC
- E-Mark
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 12-48V DC and is listed with E-Mark, CE, RoHS.
Single row, dual row and four row bars from short mounts up to full-width roof runs.
Key Benefits
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 12-48V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with E-Mark, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a flood and spot beam, matched to the working distance rather than to a wattage figure
- Rated at 50,000 hours lifespan, which cuts the number of replacement visits over the life of the machine

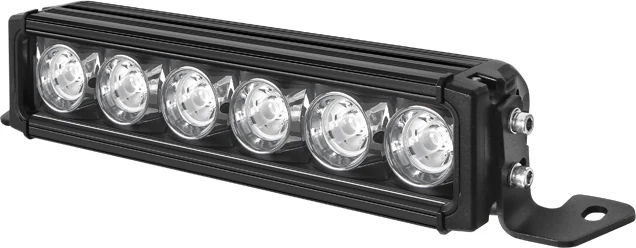

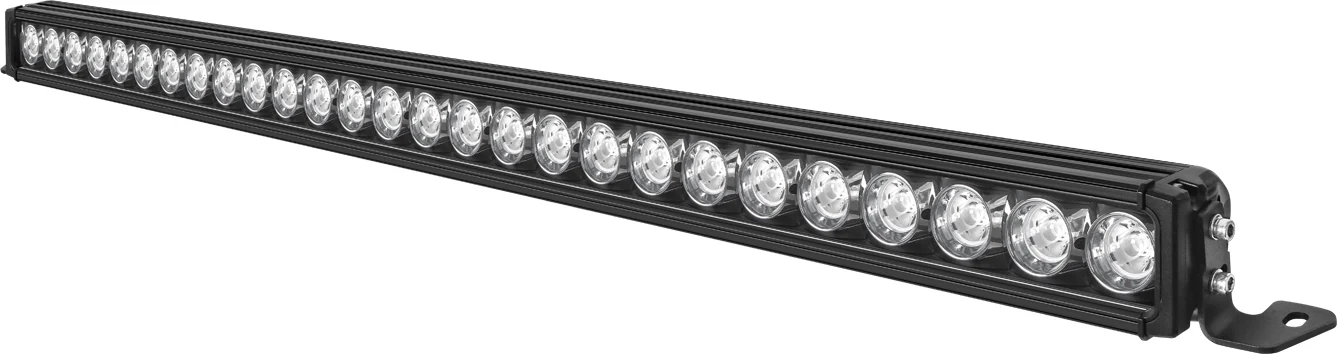

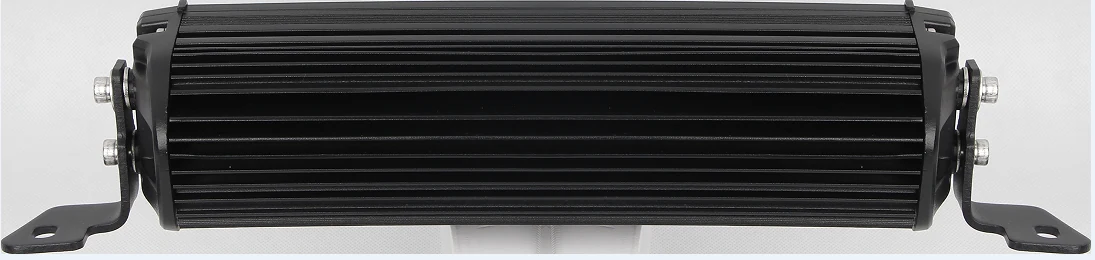

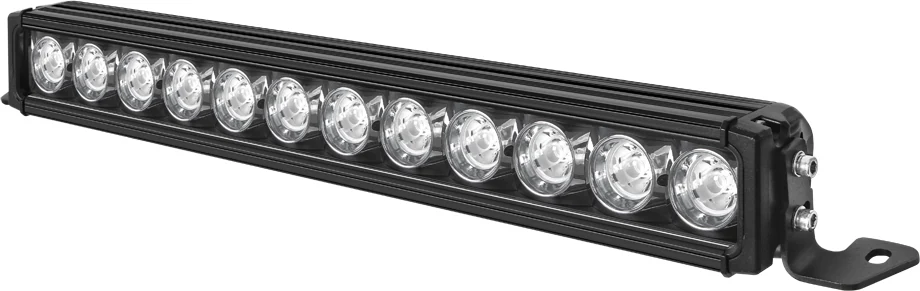

Photography of the Single row 10W led light bar supplied by the factory.
Application Scenarios
- Roof and bull bar mounting on 4x4 and pickup vehicles
- Front rail mounting on site and mining vehicles
- Roof runs on recovery trucks and service bodies
- Grille level mounting on utility vehicles
Who It Is For
- 4x4 and off-road accessory brands
- Distributors building a private label bar range
- Recovery and utility vehicle upfitters
- Mining and site vehicle fleets
Why Buyers Replace the Lamp That Is Already Fitted
Buyers need one bar family that scales in length and output without changing mount pattern, wiring or lens finish across the range.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 30W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Power | 30W/60W/90W/120W/150W/180W/210W/240W/270W |
|---|---|
| Operating Voltage | 12 - 48V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | flood beam/spot beam |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | Emark, CE,ROHS |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with E-Mark, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 30W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries E-Mark, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Light Bars Range
dual rows led light bar
18W · IP68
View specification →
Single row led light bar
9W · IP68
View specification →
4 rows led light bar
72W · IP68
View specification →
10 Inch Emark LED Light Bar with Position Light
72W · 3,000 lm · IP68
View specification →Sectors That Use This Lamp
Off Road and 4x4 Vehicles
Driving lights and light bars for pickups, UTVs, buggies and support vehicles.
Read the application notes →Mining Equipment
Lighting for haul trucks, light vehicles and underground machines where dust never settles.
Read the application notes →Trucks and Trailers
Work, scene and signal lighting for tippers, box bodies, trailers and service vehicles.
Read the application notes →Guides Worth Reading Before You Order
Raw Lumens and Effective Lumens on a Work Lamp Spec Sheet
Two lumen figures on the same lamp are not a marketing trick. They describe different things and only one of them reaches your work area.
Read the guide →Flood Spot and Combination Beam Patterns Compared
Choosing the beam pattern before the wattage saves more complaints than any other decision in a lighting order.
Read the guide →How to Brief a Vehicle Lighting Supplier and Get a Useful Quote
Most slow quotations are slow because the enquiry did not contain enough to quote against.
Read the guide →Questions About This Model
What supply voltage does the Single row 10W led light bar need?
Which approvals does this model carry?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Which beam pattern should I choose for this position?
Request Pricing on the Single row 10W led light bar
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
