10 Inch Emark LED Light Bar with Position Light
The 10 Inch Emark LED Light Bar with Position Light is a 10 inch 72W LED lamp from the Dantech LED Light Bars range and rated IP68.
- 72W
- 3,000 lm
- IP68
- 12-48V DC
- ECE R10
- ECE R112
- ECE R7
What This Lamp Is Built to Do
It runs on 12-48V DC, produces 3,000 lm of effective output and is listed with ECE R10, ECE R112, ECE R7.
Single row, dual row and four row bars from short mounts up to full-width roof runs.
Key Benefits
- 3,000 lm of effective output from a 72W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 12-48V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, ECE R112, ECE R7, so the paperwork is ready when the shipment is inspected
- Rated at 50,000 hours lifespan, which cuts the number of replacement visits over the life of the machine

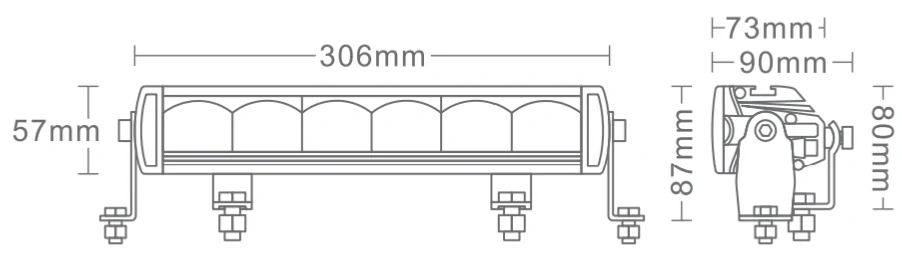

Photography of the 10 Inch Emark LED Light Bar with Position Light supplied by the factory.
Application Scenarios
- Roof and bull bar mounting on 4x4 and pickup vehicles
- Front rail mounting on site and mining vehicles
- Roof runs on recovery trucks and service bodies
- Grille level mounting on utility vehicles
Who It Is For
- 4x4 and off-road accessory brands
- Distributors building a private label bar range
- Recovery and utility vehicle upfitters
- Mining and site vehicle fleets
Why Buyers Replace the Lamp That Is Already Fitted
Buyers need one bar family that scales in length and output without changing mount pattern, wiring or lens finish across the range.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10, ECE R112, ECE R7.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 72W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-1072 |
|---|---|
| Power | 72W |
| Effective Lumens | 3,000LM |
| Operating Voltage | 12 - 48V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | driving beam+position light |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10, R112,R7 |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, ECE R112, ECE R7.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 72W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, ECE R112, ECE R7, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
