9inch Led Driving Light Led Off Road Light
The 9inch Led Driving Light Led Off Road Light is a 9 inch 150W LED lamp from the Dantech LED Driving Lights range and rated IP68.
- 150W
- 12,000 lm
- IP68
- 9-32V DC
- ECE R10
- ECE R148
- ECE R149
What This Lamp Is Built to Do
It runs on 9-32V DC, produces 12,000 lm of effective output and is listed with ECE R10, ECE R148, ECE R149.
High output spot lamps that put usable light well beyond the headlamp cut-off.
Key Benefits
- 12,000 lm of effective output from a 150W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 9-32V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, ECE R148, ECE R149, so the paperwork is ready when the shipment is inspected
- Rated at 50,000 hours lifespan, which cuts the number of replacement visits over the life of the machine

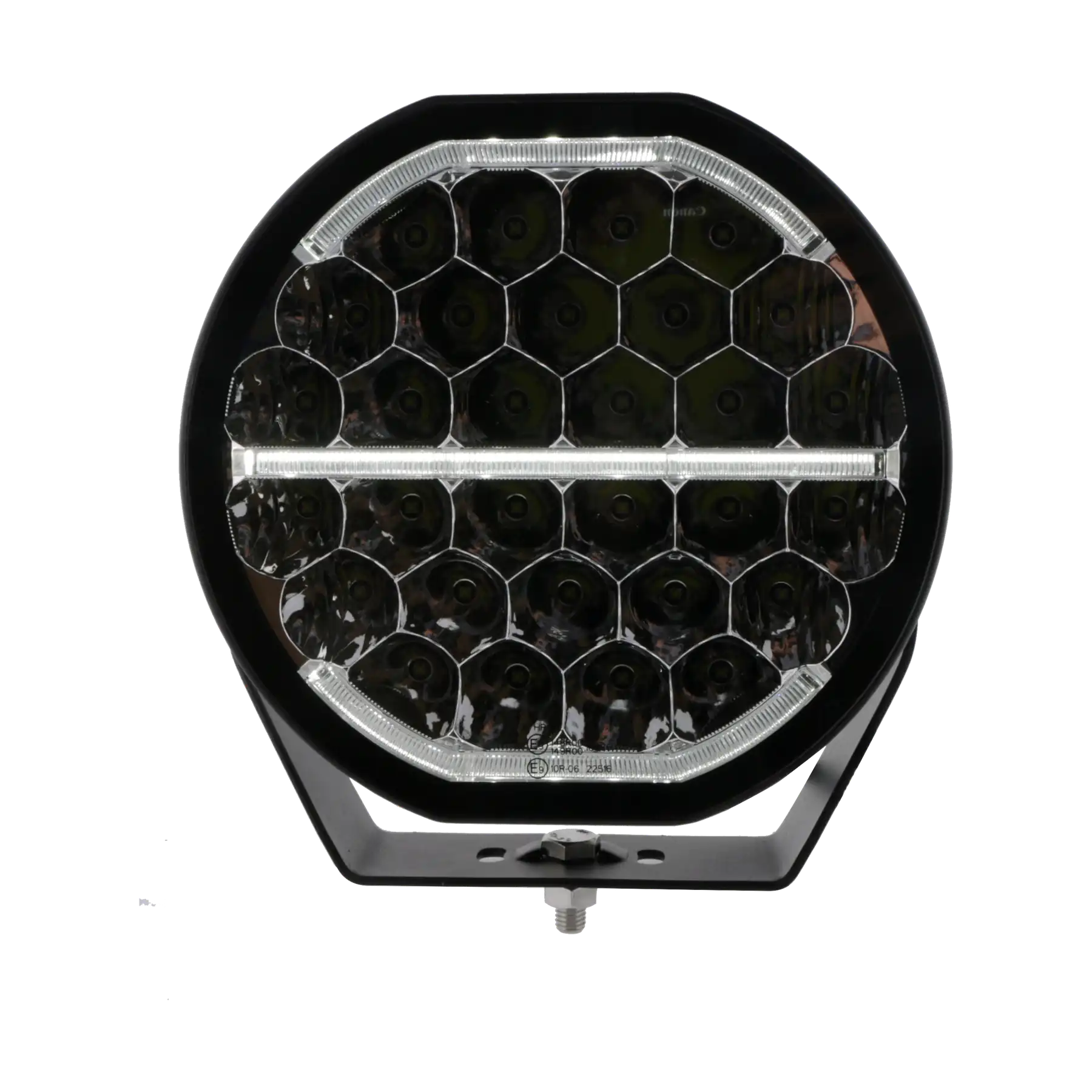

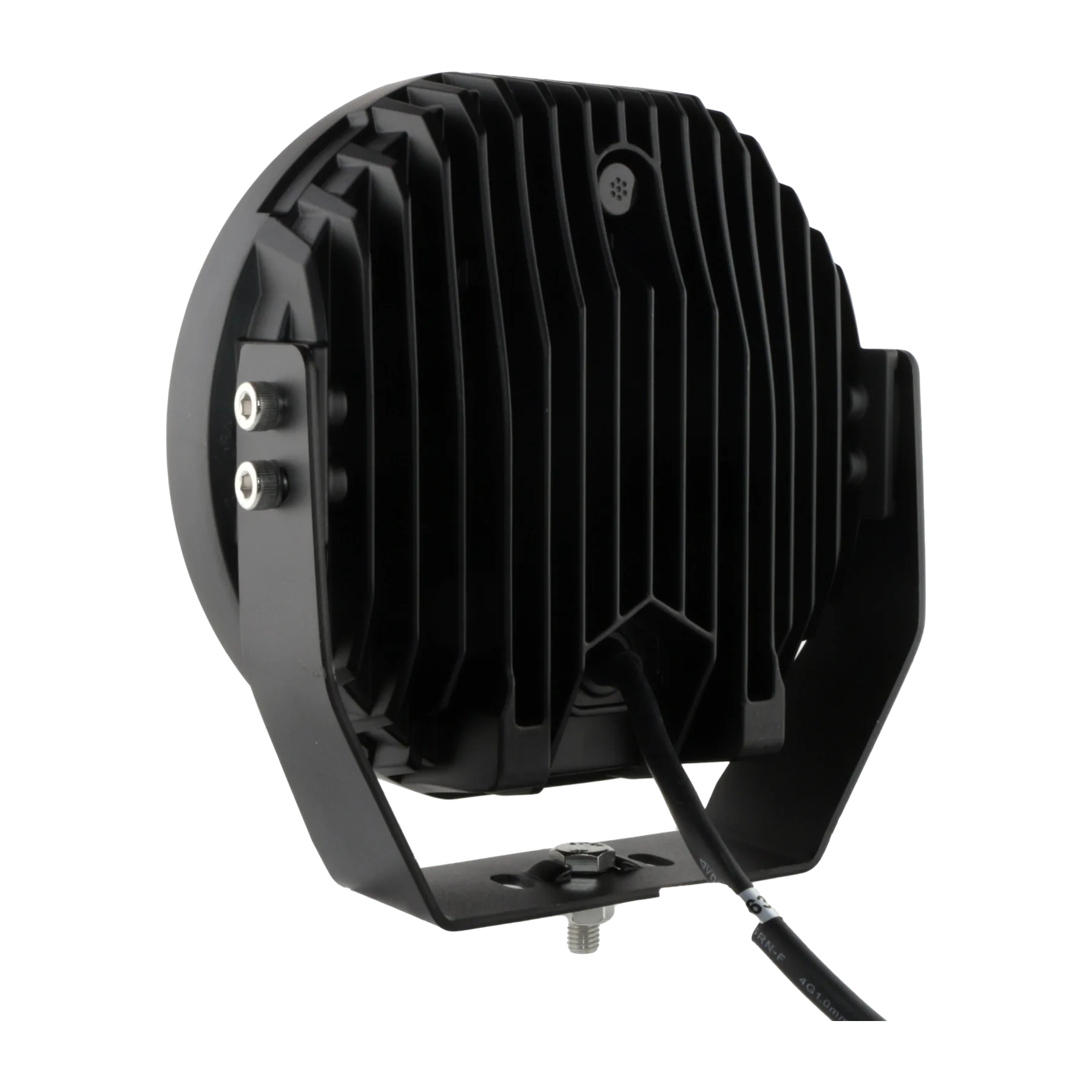

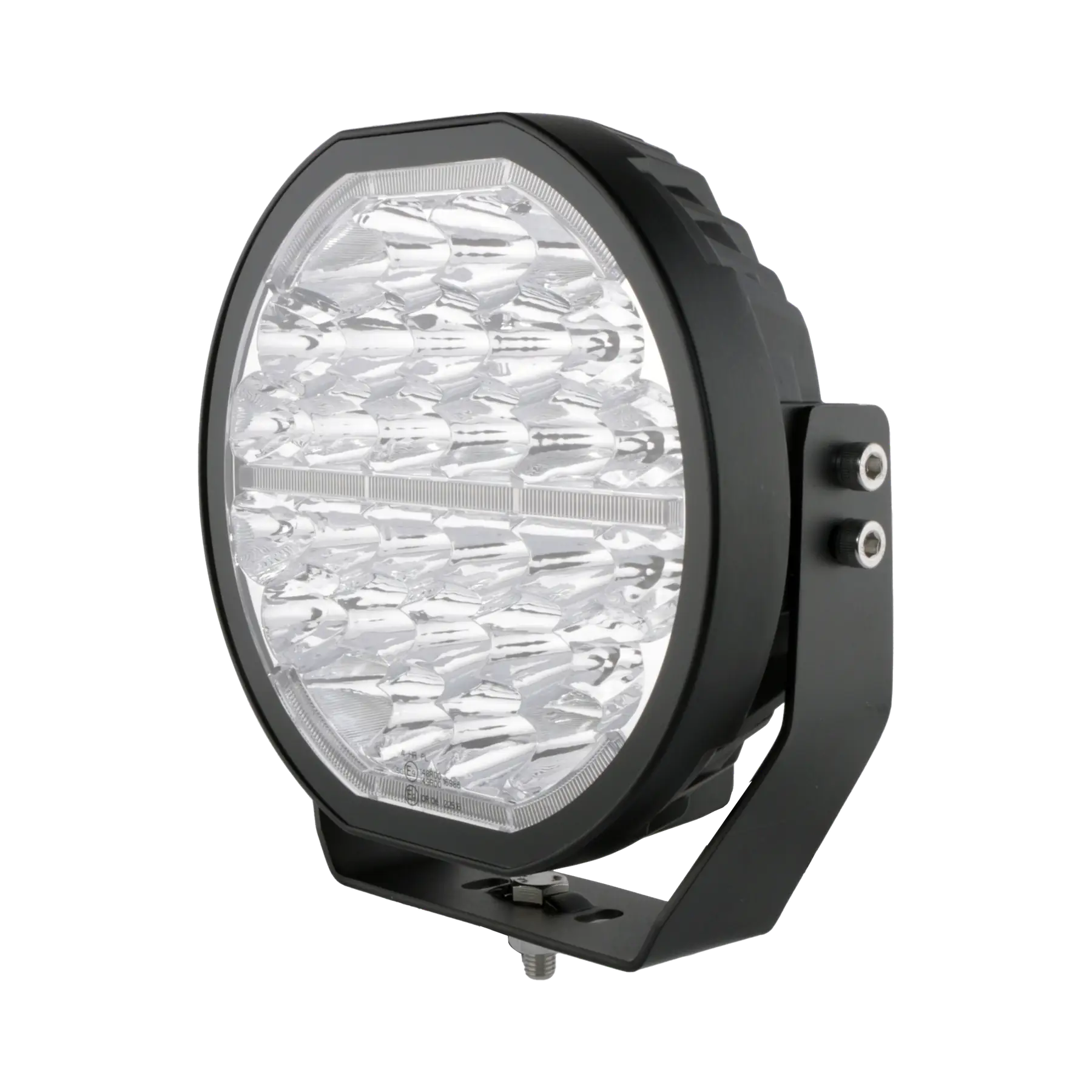

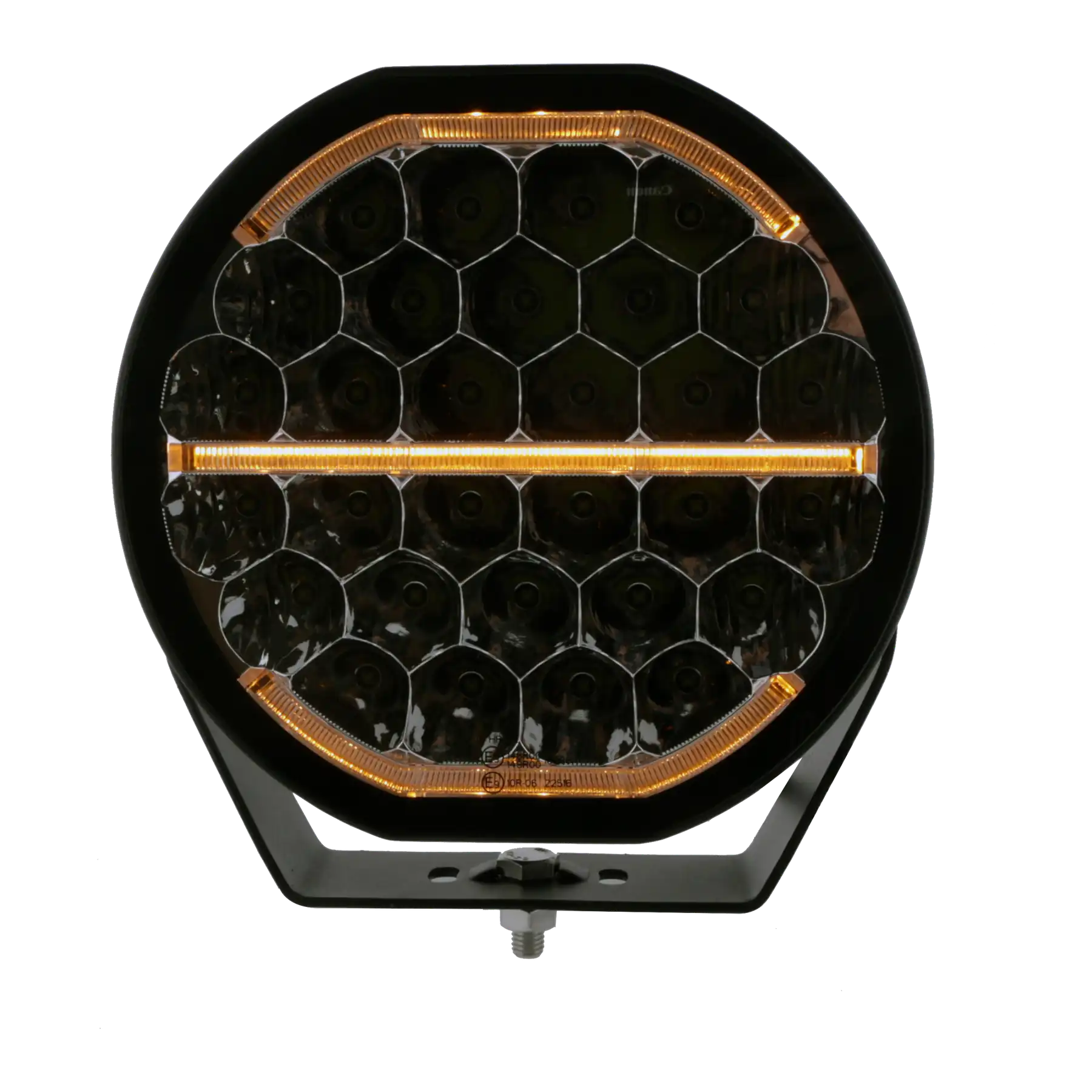

Photography of the 9inch Led Driving Light Led Off Road Light supplied by the factory.
Application Scenarios
- Bull bar mounting on 4x4 and pickup vehicles
- Roof mounting for long unlit haul routes
- Front rail mounting on mining light vehicles
- Auxiliary lighting on rally and support vehicles
Who It Is For
- Off-road accessory brands
- Mining and exploration fleet buyers
- 4x4 outfitters and workshops
- Distributors covering the auxiliary driving lamp segment
Why Buyers Replace the Lamp That Is Already Fitted
Standard headlamps stop being useful at speed on unlit tracks, and the cheap answer is a lamp that throws a bright centre with nothing either side of it.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10, ECE R148, ECE R149.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 150W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-9001-150 |
|---|---|
| Power | 150W |
| Effective Lumens | 12,000 LM |
| Operating Voltage | 9 - 32V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | driving beam |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10,R148,R149 |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, ECE R148, ECE R149.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 150W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, ECE R148, ECE R149, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Driving Lights Range
Sectors That Use This Lamp
Guides Worth Reading Before You Order
ECE R10 Explained for Vehicle Lighting Buyers
R10 is the regulation buyers see most often on auxiliary lamps, and it is also the one most often misread as a road approval.
Read the guide →Flood Spot and Combination Beam Patterns Compared
Choosing the beam pattern before the wattage saves more complaints than any other decision in a lighting order.
Read the guide →Questions About This Model
What supply voltage does the 9inch Led Driving Light Led Off Road Light need?
Is the lumen figure raw or effective output?
Which approvals does this model carry?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Request Pricing on the 9inch Led Driving Light Led Off Road Light
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
