Dump Trucks

China 6x4 Dump Truck Philippines for Sale

A 6x4 dump truck, model SX3256DV384C, with a MAN F3000 single-bed cab and air conditioning. It has a total length of 8329mm, a width of 2500mm, and a height of 3450mm, with a Gross Vehicle Weight (GVW) of up to 50000kg and a kerb mass of 14500kg. The truck features a Cum-mins ISM11E4 420 engine, a 12-speed manual gearbox, and a 400L fuel tank. It is designed for construction and mining applications requiring a robust and reliable hauling solution.

Condition New
Horsepower 251-350hp
Engine Euro3-Euro6
Model SX3256DV384C
Drive Wheel 6x4

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10025

White 6x4 dump truck parked on a yard, side view

Key Benefits

What This Unit Does Well

Cum-mins ISM11E4 420 engine provides a balance of power and fuel efficiency for demanding jobs
MAN F3000 cab offers driver comfort with a single bed and air conditioning
6x4 drive configuration delivers optimal traction and stability on challenging terrain
400L fuel tank capacity reduces refuelling stops and downtime on long hauls
5.262 axle ratio is suited to both on-road and off-road operation
12-speed gearbox provides a wide range of ratios for various load and gradient conditions

Application Scenarios

Where It Is Used

Hauling aggregates from a quarry to a construction site
Transporting mining ore and overburden in open-pit mines
Moving earth and materials on large-scale infrastructure projects
Delivering building materials to remote construction locations
Disposing of construction and demolition waste
Road construction and maintenance projects

Fit

Who It Is For

Construction companies needing a reliable dump truck for site work
Mining operations requiring a heavy-duty vehicle for ore transport
Infrastructure contractors involved in road building and civil engineering
Quarry operators looking for a robust truck for aggregate hauling
Logistics companies specialising in bulk material transport
Government agencies responsible for public works projects

Buyer Pain

Problems It Solves

Downtime caused by unreliable or underpowered dump trucks
High fuel consumption and operating costs
Difficulty manoeuvring in tight spaces and on rough terrain
Driver fatigue and discomfort on long hauls
Lack of spare parts availability and long lead times
Inability to meet demanding payload requirements

Engineering

Technical Features

SX3256DV384C chassis with a 6x4 drive configuration
MAN F3000 single-bed cab with air conditioning
Cum-mins ISM11E4 420 diesel engine with E-IV emission standard
12-speed manual gearbox FA-ST 12JSD200T-B
9.5T MAN front axle with drum braking system
16T MAN double speed reduction drive axle
5.262 axle ratio
φ180 hydraulic front lifting cylinder

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of China 6x4 Dump Truck Philippines for Sale
Condition	New
Horsepower	251-350hp
Engine	Euro3-Euro6
Model	SX3256DV384C
Drive Wheel	6x4
Dimensions (Lx W xH)	8329x2500x3450mm
GVW	≤50000kg
Kerb mass	14500kg
Engine Brand	Cum-mins
Engine Model	ISM11E4 420
Emission Standard	E-IV
Displacement	10.8L
Gearbox	FA-ST 12JSD200T-B, 12 Forward&2 Reverse
Front Axle	9.5T MAN
Rear Axle	16T MAN
Axle Ratio	5.262
Fuel Tank Capacity	400L
Tyre	12.00R20, 10+1pc
Cargo box size	5600x2300x1300mm
Lifting style	φ180 hydraulic front lifting cylinder
Capacity (Load)	41 - 50t
Transmission Type	Manual
Fuel Type	Diesel
Engine Capacity	6 - 8L
Gross Vehicle Weight	30000
L X W X H) (mm)	8170/8430 x 2496 x 3450

Materials

Materials and Build

High-strength steel chassis for durability and load capacity
MAN F3000 cab constructed with steel and composite materials
Cast steel axles for robust performance
Steel cargo box with 8mm bottom and 4mm sides
Radial tyres for improved traction and wear resistance

Process

How an Order Is Handled

You provide your intended application, payload, and terrain conditions
We match a chassis configuration and axle ratio to your requirements
You confirm the final specification sheet including colour and any optional extras
Unit is inspected and photographed before loading
We arrange RoRo or container shipment and provide all necessary export documents

Quality Control

Checks Before Loading

Chassis and engine serial numbers are verified against the specification sheet
Engine start, gearbox operation, and hydraulic systems are tested before loading
Paint finish and cab interior are inspected for damage
Loading and lashing are documented with photographs before departure

Customisation

What Can Be Changed

Cab colour to match your fleet branding
Cargo box dimensions and material thickness
Tyre brand and tread pattern
Addition of a toolbox or spare wheel carrier
Selection of different axle ratios for specific applications

Honest Comparison

How It Compares With the Alternatives

4x2 dump truck	6x4 provides superior traction and stability for heavier loads and rough terrain
Smaller capacity dump truck	Larger cargo box allows for fewer trips and increased efficiency
Euro 6 emission standard	Euro 3-6 allows flexibility to meet different regional regulations

Use Guide

Using It Well

Follow the recommended maintenance schedule for Cum-mins ISM11E4 engines
Inspect the hydraulic system regularly for leaks and wear
Lubricate all moving parts according to the manufacturer's instructions
Use genuine spare parts to ensure optimal performance and reliability

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Close-up of the dump truck's cab and front grille

Rear view of the dump truck with the cargo box raised

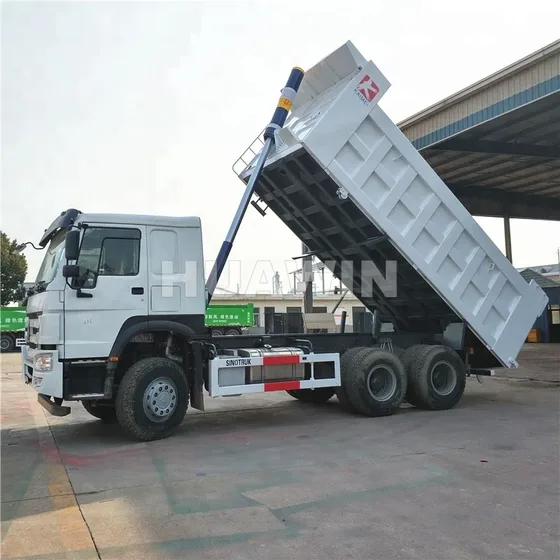

Side view of the dump truck showing the chassis and wheels

Interior of the dump truck's cab with a single bed

Engine compartment of the dump truck with the Cum-mins engine visible

Close-up of the dump truck's tyres and wheels

Front view of the dump truck with the headlights and bumper

China 6x4 Dump Truck Philippines for Sale - photo 9

Source Specification

Manufacturer Text We Hold for This Listing

China 6x4 dump truck philippines for sale Detailed parameters Model SX3256DV384C Cab MAN F3000 Cab,Single bed,Air conditioner Dimension(Lx W xH)(mm) 8329x2500x3450mm GVW (kg) ≤50000kg Kerb mass(kg) 14500kg Approach / departure angel 28/30 Front/rear suspension(mm) 1525/1730 Max. gradeability (%) 28 Engine brand Cum-mins Engine Engine model ISM11E4 420,420hp Rated output power 309kw Rated speed(rpm) 1900rpm Emission Standard E-IV Displacement(L) 10.8L Driving type 6x4 Axle number 3 Wheel base(mm) 3775+1400mm Clutch φ430 diaphragm spring Gearbox FA-ST 12JSD200T-B,12 Forward&2 Reverse,Manual PTO QH50 Front axle 9.5T MAN,with drum braking system Rear axle 16T MAN double speed reduction drive axle Ratio 5.262 Steering ZF technology Left-hand drive(LHD) Type 12.00R20,10+1pc Suspension Both front and rear are high strengthen mechanical leaf spring+4 U bolts Tank capacity(L) 400L Max. speed (km/

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
