Dump Trucks

China Small Mini Garbage Light Truck

A 4x2 light garbage compactor truck built on the ZZ1168GLJ3 chassis, powered by a 6500ml diesel engine meeting Euro 4 emission standards. The cab seats two or three, and the unit is designed for urban and municipal waste collection where space and access are limited.

Condition New
Truck Model CLW5123ZBSZZ
Drive Wheel 4x2
Gross Vehicle Weight 16000 kg
Curb Weight 10200 kg

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10077

White HOWO light garbage truck with sealed compactor tank, front three-quarter view

Key Benefits

What This Unit Does Well

Sealed tank and slop system prevent secondary pollution during waste transport
Hydraulic compaction increases payload capacity to twice that of non-compacting trucks of similar weight
Computer-controlled automation allows single-driver operation for loading and unloading
Euro 4 engine avoids the need for AdBlue or urea systems, reducing maintenance complexity
6-wheel configuration improves stability on uneven city roads and unpaved access routes
Multiple tire size options allow local fitment and spare parts availability

Application Scenarios

Where It Is Used

Daily waste collection in narrow urban streets with limited turning radius
Municipal solid waste transport in towns without dedicated waste transfer stations
Temporary deployment during city clean-up campaigns or seasonal events
Garbage collection in areas with poor road conditions and frequent stops

Fit

Who It Is For

Municipal waste departments needing compact, automated trucks for tight urban routes
Contractors managing short-haul waste transport for construction or industrial sites
Private waste haulers operating in markets where fuel efficiency and low emissions are prioritized
Procurement teams sourcing reliable, low-maintenance compactor trucks with local spare parts

Buyer Pain

Problems It Solves

Waste leakage and odour during transport due to open or poorly sealed bins
Low payload efficiency from non-compacting trucks requiring more trips per day
High labour cost from manual loading and unloading in dense urban zones
Downtime caused by missing or incompatible parts for older or non-standard compactor models
Difficulty in meeting environmental regulations due to uncontrolled wastewater discharge

Engineering

Technical Features

ZZ1168GLJ3 chassis with 4x2 drive layout and 4700mm wheelbase
6500ml diesel engine with Euro 4 emission standard
Hydraulic compaction system with automatic pressure control
Sealed waste tank with integrated slop tank for wastewater collection
Computer-controlled automation system with manual override for safety
10.00-20, 10.00R20, 9.00R20, 10R22.5, or 275/80R22.5 16PR tires as standard options
Cab with 2 or 3 seating positions, air conditioning available on request
Manual transmission with 6-speed gearbox
Maximum speed of 90 km/h for urban and intercity travel

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of China Small Mini Garbage Light Truck
Condition	New
Truck Model	CLW5123ZBSZZ
Drive Wheel	4x2
Gross Vehicle Weight	16000 kg
Curb Weight	10200 kg
Cab Seats	2, 3
Number of Axles	2
Overall Dimension L x W x H	8800 x 2480 x 3250 mm
Wheelbase	4700 mm
Max Speed	90 km/h
Chassis Model	ZZ1168GLJ3
Engine Capacity	6500 ml
Emission Standard	Euro 4
Fuel Type	Diesel
Tire Specification	10.00-20 16PR, 10.00R20 16PR, 9.00R20 16PR, 10R22.5 16PR, 275/80R22.5 16PR
Transmission Type	Manual
Compaction Type	Hydraulic, automatic
Slop Tank	Integrated, sealed
Control System	Computer-controlled, semi-automated and fully automated options
Dumping Gear	Garbage can or refuse hopper, selectable
Place of Origin	Shandong, China (Mainland)

Materials

Materials and Build

Welded steel chassis frame in ZZ1168GLJ3 series
Sealed steel waste tank with corrosion-resistant coating
Hydraulic cylinders and valves from imported suppliers
Steel cab shell with factory paint finish, white or custom colour
16PR radial tires on steel rims, with multiple size options
PVC or rubber seals on tank doors and access panels

Process

How an Order Is Handled

You provide the route, waste type, and frequency of collection
We confirm the available chassis, tank size, and tire fitment based on current stock
You choose the dumping gear (can or hopper), cab configuration, and colour
We issue a proforma invoice with photos and a specification sheet for approval
The truck is assembled, tested, and photographed before loading
We book RoRo or container shipment and provide all export documents

Quality Control

Checks Before Loading

Chassis, engine, and transmission numbers are photographed and matched to the approved spec sheet
Hydraulic system pressure and sealing are tested before loading
Tank and door seals are inspected for leaks under pressure
Cab interior, glass, and trim are checked for damage before shipment

Customisation

What Can Be Changed

Cab colour other than standard white
2-seater or 3-seater cab configuration
Garbage can or refuse hopper as fixed dumping gear
Tire size and brand selection from available options
Additional tool box or side-mounted equipment bracket

Honest Comparison

How It Compares With the Alternatives

Non-compacting light truck	This model carries twice the payload in the same weight class, reducing total trips and fuel use
Electric compactor truck	Diesel version has longer range and faster refuelling, but higher operating cost and emissions

Use Guide

Using It Well

Replace hydraulic oil and filters at intervals recommended for 6500ml diesel engines
Use manual mode when operating in extreme temperatures or low battery conditions
Keep the slop tank drained regularly to prevent overflow and contamination

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

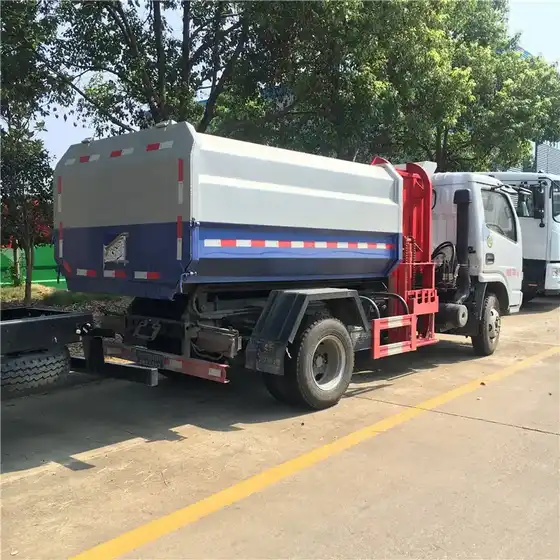

Side view of the 4x2 compactor truck showing 4700mm wheelbase and 10.00R20 tyres

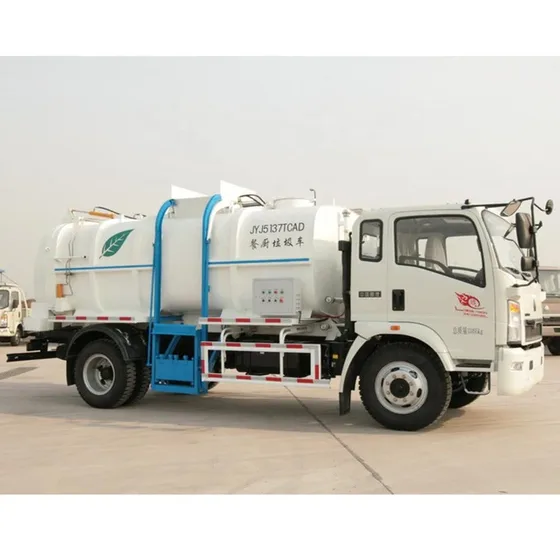

Rear view with hydraulic dump system and refuse hopper attachment

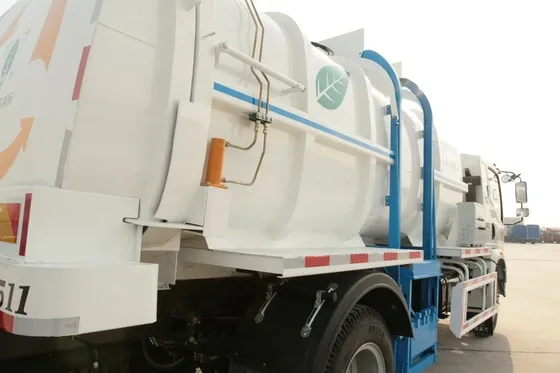

Cab interior with 3-seater layout and computer control panel

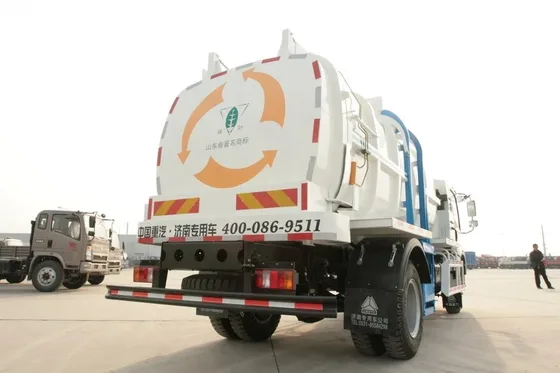

Hydraulic compaction system and sealed waste tank in the chassis

Source Specification

Manufacturer Text We Hold for This Listing

china small mini garbage light truck main parameters Brand Chinese Product model CLW5123ZBSZZ Gross weight (Kg) 16000 Curb weight (Kg) 10200 Cab seats 2,3 Number of axles 2 Overall dimension(mm) 8800*2480*3250 Wheel base(mm) 4700 Max speed (Km/h) 90 Chassis parameters Chassis model ZZ1168GLJ3 Brand Chinese Dimentions 8450x2480x2970 Fuel diesel Number of wheels (mm) 6 Tire specification 10.00-20 16PR,10.00R20 16PR,9.00R20 16PR,10R22.5 16PR,275/80R22.5 16PR Engine capacity (ml) 6500 Emission standard Euro III Equipment Equipped with hermetic dustbin, hydraulic system and operating system. Automatic compress and uninstall, sewage can be collected by the dump tank.Pressure is large, leakproofness is good, operation is convenient and security is dependable. 1. The whole truck tank is sealed and the waste water come from the compression process will flow into the slop tank. At this point, our

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
