China 50 Ton Underground Mining Dump Truck

A 6x4 CMT4525E2 underground mining dump truck built around the WD12G375E211 turbocharged inline-six diesel engine, rated 375HP and paired with the 7DS200 manual gearbox. It uses 14.00-25 tyres and has a heaped dump body volume of 25m3. Designed for confined underground tunnels, it operates at a maximum speed of 41km/h and is built to Euro 2 emission standards. This configuration is used in deep-level hard rock mines where high payload and low emissions are required without AdBlue infrastructure.

Condition New
Horsepower 251-350hp
Truck Model CMT4525E2
Drive Wheel 6x4
Dimensions L x W x H unloaded 8530 x 3200 x 3700 mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10057

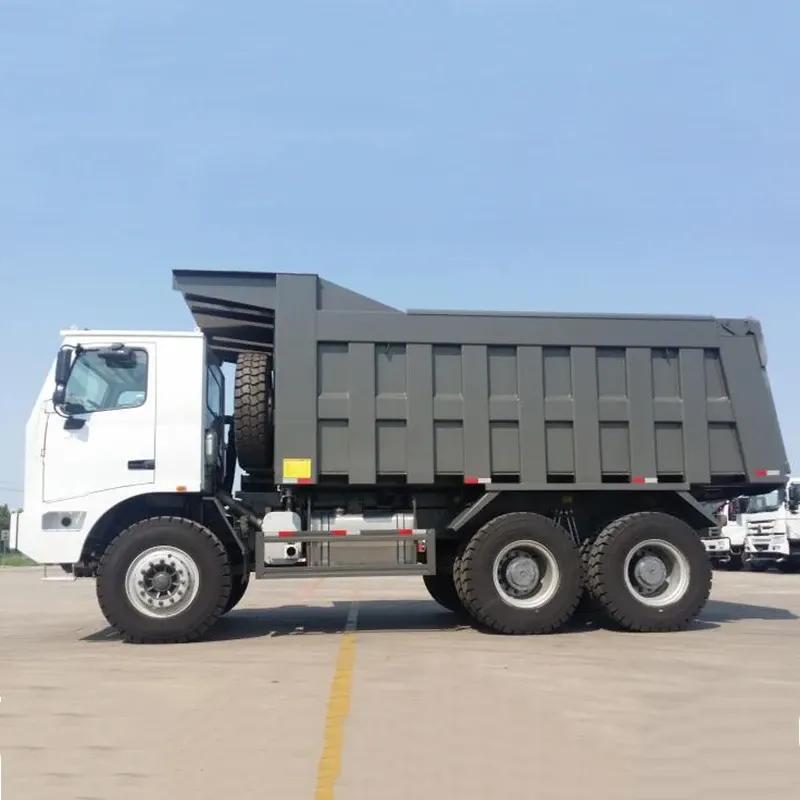

White HOWO 50-ton underground mining dump truck parked on a yard, front three-quarter view

Key Benefits

What This Unit Does Well

WD12G375E211 engine is the most common 375HP powerplant in Sinotruk's mining range, so filters, injectors and oil are widely available in export markets
7DS200 manual gearbox provides reliable gear engagement in low-speed, high-torque mining conditions
18T front axle and 25T rear axles distribute weight evenly across narrow underground tunnels
14.00-25 tyres are standard in underground mining fleets and can be replaced locally in most African and Central Asian markets
25m3 heaped dump body volume matches the capacity of most 45-ton underground haul trucks in use
Max speed of 41km/h is sufficient for underground haulage and avoids excessive wear on brakes and tyres

Application Scenarios

Where It Is Used

Underground haulage of ore from a deep-level hard rock mine to a central loading point
Transport of crushed rock in confined tunnel sections with limited clearance and tight turning radii
Long shifts in continuous mining operations where engine reliability and part availability are critical
Operations in mines without access to AdBlue or urea supply, where Euro 2 compliance avoids sensor faults

Fit

Who It Is For

Mining contractors operating in Africa, Central Asia and South America with underground tunnels
Fleet managers replacing older dump trucks and needing a model with consistent spare parts availability
Engineering procurement teams sourcing equipment for long-term mine contracts with limited maintenance support
Contractors who need a 50-ton capacity truck that can operate in low-clearance, high-dust environments

Buyer Pain

Problems It Solves

Downtime caused by parts that take weeks to arrive from Europe or North America
Trucks that exceed tunnel clearance due to oversized cab or body dimensions
Inconsistent payload capacity due to mismatched axle ratings and chassis design
Lack of local availability for filters, injectors and clutch components in remote mining sites

Engineering

Technical Features

WD12G375E211 water-cooled, four-stroke, inline-six diesel engine with turbocharging and intercooling
Direct injection fuel system rated to EURO 2 emission standard
7DS200 manual transmission with six forward gears and one reverse
Front axle rated at 18T, rear axles rated at 25T each in 6x4 drive layout
14.00-25 radial tyres on steel rims with a 25m3 heaped dump body
Single cab with factory air conditioning and roll-over protection structure
Tailgate type: hydraulic lift with mechanical lock
Maximum speed of 41km/h for safe underground operation

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of China 50 Ton Underground Mining Dump Truck
Condition	New
Horsepower	251-350hp
Truck Model	CMT4525E2
Drive Wheel	6x4
Dimensions L x W x H unloaded	8530 x 3200 x 3700 mm
Curb Weight	26000 kg
Payload	45 t
Engine Model	WD12G375E211
Emission	EURO 2
Fuel Type	Diesel
Transmission	7DS200, 6 forward / 1 reverse
Front Axle	18T
Rear Axles	25T + 25T
Tyre	14.00-25
Dump Body Volume Heaped	25 m3
Tailgate Type	Hydraulic lift with mechanical lock
Max Speed	41 km/h
Gross Vehicle Weight	51 - 60 t
Engine Capacity	> 8 L
Place of Origin	Shandong, China (Mainland)
Transmission Type	Manual
Capacity (Load)	51 - 60t
Emission Standard	Euro 2
L X W X H) (mm)	7500x3000x3205

Materials

Materials and Build

Welded steel chassis frame with reinforced cross members for underground vibration
Steel cab shell with factory paint finish, white by default
Cast steel front and rear axle housings with sealed bearings
14.00-25 radial tyres on steel rims with high-tread compound for low dust and high grip

Process

How an Order Is Handled

You send the mine access dimensions, tunnel clearance, and haul distance for the truck
We match the chassis code and axle load to what is available in stock or from the plant
You confirm the final specification sheet including cab colour, tyre brand and tailgate type before deposit
Unit is prepared, photographed and video recorded before loading
We book RoRo or container shipment and issue the export documents your customs needs

Quality Control

Checks Before Loading

Chassis, engine and gearbox numbers are photographed and matched to the specification sheet you approved
Engine start, gear engagement and hydraulic tailgate operation are recorded on video before loading
Paint, glass and cab trim are checked for transport damage at the loading port
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Cab colour other than the default white
Tyre brand and spare wheel count
Additional tool box or onboard air compressor
Tailgate type change to mechanical lift if required
Fifth wheel height adjustment for trailer coupling

Honest Comparison

How It Compares With the Alternatives

4x2 underground dump truck	The 6x4 provides better traction and axle load distribution in soft or uneven tunnel floors, but has higher fuel consumption on empty runs

Use Guide

Using It Well

Replace fuel and oil filters on the interval set for WD12G375 engines, not on a generic schedule
Keep the hydraulic tailgate system checked weekly for leaks in high-dust environments
Order the clutch plate and injector set with the truck so the first service does not wait on shipping

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view of the HOWO CMT4525E2 showing the 14.00-25 tyres and 6x4 drive layout

Rear view of the dump truck with hydraulic tailgate and mud flaps

Cab interior with dashboard controls and air conditioning unit

WD12G375E211 six-cylinder diesel engine in the chassis

Source Specification

Manufacturer Text We Hold for This Listing

China 50 ton underground mining dump truck Model CMT4525E2 Curb Weight(kg) 26000 Payload(t) 45 Engine WD12G375E211 Gearbox 7DS200 Axle Load 18T+25T+25T Tyre 14.00-25 Max. Speed(km/h) 41 Rock Dump Body Volume-heaped(m3) 25 Tailgate Type Dump Body Volume-heaped(m3) 25 Overall Dimension(LxWxH mm) 8530x3200x3700

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
