Dump Trucks

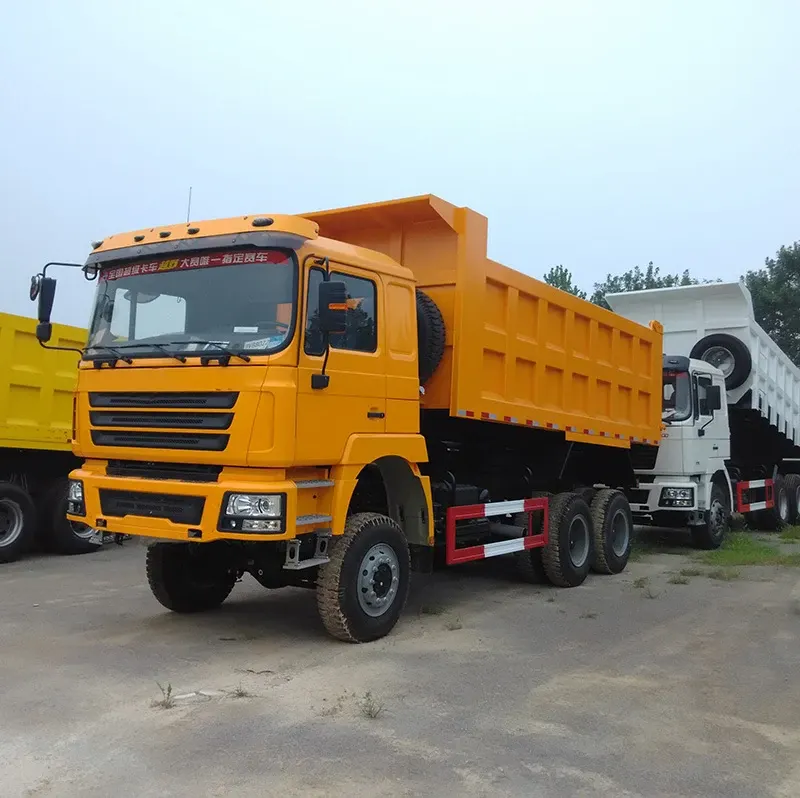

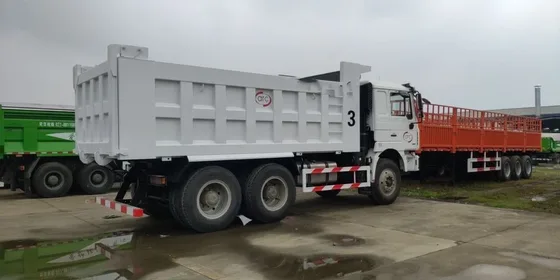

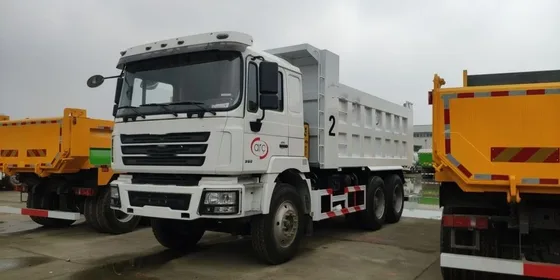

15 M3 Dump Truck Diesel Sale in Ghana
A 6x4 Sinotruk 15 m3 dump truck with a WD615.47 turbocharged six-cylinder diesel engine, rated 251-350HP and paired with the HW19710 ten-speed manual transmission. The unit features a ZF8118 hydraulic steering system with power assistance, a 76cabin one-sleeper cab with air conditioning, and 12.00R20 tyres. It has a 3625+1350mm wheelbase, a 300-litre fuel tank, and a gross vehicle weight of 8000kg, designed for heavy-duty off-road and quarry operations in African and emerging markets where parts availability and rugged reliability are critical.
- Condition New
- Steering ZF8118
- Transmission HW19710
- Color Customer'sRequest
- Tire 12.00R20
Stock number held for this listing: 10127
Key Benefits
What This Unit Does Well
- WD615.47 engine is widely used across Sinotruk fleets, so filters, injectors and oil are readily available in Africa and Southeast Asia
- HW19710 ten-speed gearbox offers strong low-end torque for loaded climbs and efficient cruising on return runs
- ZF8118 hydraulic steering with power assist reduces driver fatigue on long hauls over rough terrain
- 300-litre fuel tank supports extended operation between refuelling points in remote mining or construction zones
- 3625+1350mm wheelbase improves stability when dumping on uneven ground and reduces axle stress
- One-sleeper cab with air conditioning enables driver comfort on multi-day hauls in hot climates
Application Scenarios
Where It Is Used
- Quarry or mine haulage where the truck carries 21-30 tonnes of aggregate over ungraded access roads
- Bulk material transport between a port and an inland construction site with poor road surfaces
- Road maintenance or earthmoving projects in Ghana and West Africa where local parts support is essential
- Long-distance hauls where fuel stops are more than 300km apart and reliable service is needed
Fit
Who It Is For
- Fleet owners in Ghana and West Africa replacing older dump trucks with a model that shares parts with other Sinotruk units
- Contractors needing a reliable 6x4 dump truck with proven axle and engine compatibility across their existing fleet
- Machinery dealers stocking 15m3 dump trucks for resale in markets where Euro 2 emission compliance is accepted
- Government or engineering teams procuring vehicles for infrastructure projects with strict delivery timelines
Buyer Pain
Problems It Solves
- Downtime caused by hard-to-source injectors or filters due to mismatched engine models across different fleets
- Steering fatigue on long hauls due to non-assisted or outdated steering systems
- Inconsistent axle performance when hauling heavy loads on uneven terrain
- Lack of local support for imported trucks with European or North American parts systems
- Uncertainty over exact chassis and axle codes when applying for import permits or customs clearance
Engineering
Technical Features
- WD615.47 water-cooled four-stroke six-cylinder in-line diesel engine with turbocharging and intercooling
- Direct injection fuel system rated to EURO 2 emission standard
- HW19710 manual transmission with ten forward gears and two reverse gears
- ZF8118 hydraulic steering system with power assistance
- 6x4 drive layout with front axle MAN 9.5T and rear axle MAN 13T
- One-sleeper cab with factory air conditioning and standard white paint finish
- 12.00R20 radial tyres on steel rims
- 300-litre fuel tank with fuel gauge and filler cap
- Hydraulic dump system with dual-acting cylinders and safety locks
- ABS braking system with anti-lock function tested before shipment
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Condition | New |
|---|---|
| Steering | ZF8118 |
| Transmission | HW19710 |
| Color | Customer'sRequest |
| Tire | 12.00R20 |
| Cabin | 76cabinonesleepwithaircondition |
| Horsepower | 251-350hp |
| Engine | WD615.47 |
| Truck Model | Sinotruk 15 m3 Dump Truck |
| Drive Wheel | 6x4 |
| Wheelbase | 3625+1350 mm |
| Curb Weight | 8000 kg |
| Engine Model | WD615.47 |
| Emission | EURO 2 |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 300 L |
| Steering System | ZF8118, hydraulic with power assist |
| Front Axle | MAN 9.5T |
| Rear Axle | MAN 13T |
| Tyre | 12.00R20 |
| Cab | 76 cabin, one sleeper with air conditioner |
| Gross Vehicle Weight | 8000 kg |
| Loading Capacity | 21-30 TON |
| Place of Origin | Shandong, China (Mainland) |
| Capacity (Load) | 21 - 30t |
| Transmission Type | Manual |
Materials
Materials and Build
- Welded steel ladder frame chassis in the Sinotruk 6x4 series
- Steel cab shell with factory paint finish, white by default
- Cast steel MAN 9.5T front and 13T rear axle housings
- 12.00R20 radial tyres on steel rims
- Hydraulic cylinder assembly with steel mounting brackets
- ABS braking system with steel brake lines and sensors
Process
How an Order Is Handled
- You send the site location, terrain type and typical load weight you will haul
- We match the chassis code, axle ratio and dump system against current stock or plant availability
- You confirm the final specification sheet including colour, cab, tyre and fuel tank before deposit
- Unit is prepared, photographed and video recorded before loading
- We book RoRo or bulk cargo shipment and issue export documents your customs needs
Quality Control
Checks Before Loading
- Chassis, engine and gearbox numbers are photographed and matched to the specification sheet you approved
- Engine start, gear engagement, steering response and ABS function are recorded on video before loading
- Paint, glass and cab trim are checked for transport damage at the loading port
- Loading and lashing photos are sent before the vessel departs
Customisation
What Can Be Changed
- Cab colour other than the default white
- Sleeper layout, single or double bunk
- Left hand or right hand drive as your registration requires
- Tyre brand and spare wheel count
- Additional fuel tank, tool box or dump system height adjustment
Honest Comparison
How It Compares With the Alternatives
| 4x2 dump truck | The 6x4 carries more on the drive axles for loaded gradients but costs more fuel when running empty on paved roads |
|---|---|
| Higher horsepower 380HP WP10 engine | 251-350HP WD615.47 is cheaper to buy and to service, but a 380HP unit holds speed better on sustained climbs |
| EURO 4 emission trucks | EURO 2 avoids AdBlue supply and sensor faults in markets without reliable urea, but cannot be registered where EURO 4 is mandatory |
Use Guide
Using It Well
- Keep the air dryer cartridge stocked, humid coastal routes shorten its life
- Order the clutch plate and injector set with the truck so the first service does not wait on shipping
Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
15 m3 dump truck diesel sale in Ghana Product Description 15 m3 dump truck diesel sale in Ghana Trucks type Dump truck/Tractor truck/Fuel truck/Water truck/Mixer truck Engine model WP10.340E22/WP10.380E22/WP12.430E201 Drive wheel 4X2 4X4 6X4 8X4 Horse power 340HP 380HP 385HP 430HP Engine capacity 10L 12L Emission standard euro2 euro4 euro5 Fuel type diesel Condition brand new or used Transmission FAST 8JSD 10JSD 12JSD Transmission type Manual Steering ZF8098/ZF8198 hydraulic steering with power assistance Capacity(load) 20-40ton Tire 12.00R20 12.00R24 12R22.5 13R22.5 Front axle MAN 9.5T Rear axle MAN 13T 16T Fuel Tank 300L 400L Color Customer's request Detail information Packaging&delivery Sinotruk 15 m3 dump truck diesel sale in Ghana 1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation); Delivery: 35 working days after received deposit Sales market 15 m
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
