Flat Bed Trailers

Low Price High Quality 40ft Skeleton Container Semi Trailer for Sale

A 40ft skeleton semi-trailer with a 12500 x 2500 x 1550mm deck, built for container transportation using a 13-ton Fuwa-brand axle on leaf spring suspension. It features ABS braking, 1200R20 or 12R22.5 tyres, and is constructed from Q345B steel. The unit is designed for high payload capacity and durability in long-haul freight operations across Africa, the Middle East and Southeast Asia.

Use TruckTrailer
Size 12500*2500*1550mm
Color Option
Suspension LeafSpringSuspension
Dimensions 12500*2500*1550mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10325

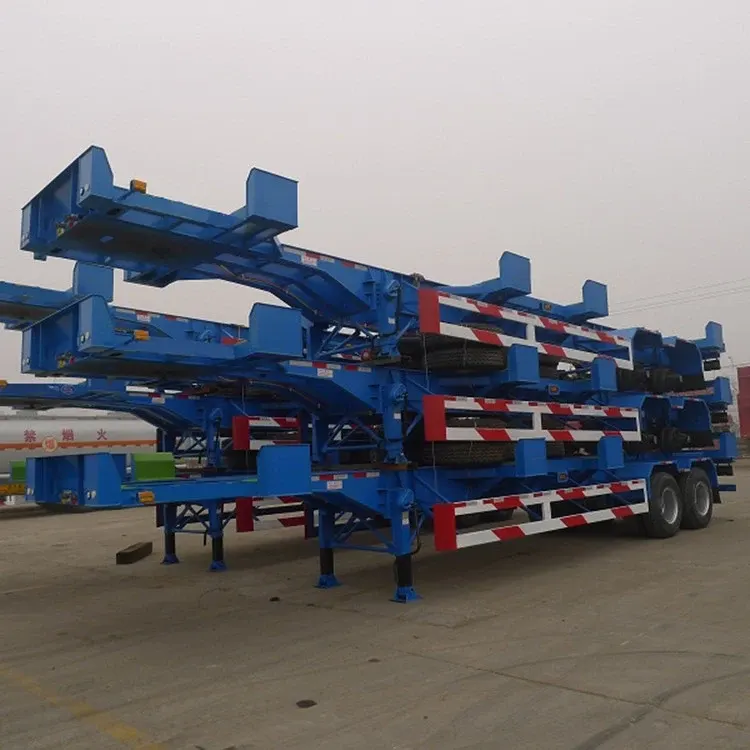

Side view of a 40ft skeleton semi trailer with two axles and 1200R20 tyres

Key Benefits

What This Unit Does Well

13-ton Fuwa-brand axles are widely available in regional markets, reducing spare parts lead time
Leaf spring suspension handles rough terrain and heavy loads without frequent maintenance
ABS braking system improves safety on wet or uneven surfaces common in emerging markets
12500mm length matches standard 40ft container dimensions, enabling direct loading
Q345B steel frame provides high strength and resistance to deformation under 60-ton loads
ISO CCC certification supports customs clearance in markets requiring Chinese manufacturing compliance

Application Scenarios

Where It Is Used

Container transport between inland depots and seaports on unpaved or poorly maintained roads
Long-distance haulage of construction materials where axle load limits are tight
Freight operations in regions with limited access to repair shops and spare parts
Fleet expansion where standardised trailer types reduce training and maintenance complexity

Fit

Who It Is For

Fleet owners importing trailers for container transport in Africa and Southeast Asia
Contractors needing reliable, low-maintenance trailers for bulk material haulage
Logistics operators standardising on one trailer model to simplify spare parts inventory
Dealers stocking trailers for resale in markets with high demand for skeleton designs

Buyer Pain

Problems It Solves

Trailer models with mismatched axle or tyre sizes that cause instability or overloading
Lack of local availability for replacement axles, brakes or suspension components
Trailers that fail under 60-ton loads due to weak frame materials or poor welding
Customs delays caused by missing or invalid certification documents for Chinese-made trailers

Engineering

Technical Features

Semi-trailer type with 12500 x 2500 x 1550mm overall dimensions
Q345B steel chassis with welded frame construction
13-ton Fuwa-brand axle with leaf spring suspension system
ABS braking system for improved stopping performance
Two or three axle configuration depending on load distribution
1200R20 or 12R22.5 tyres suitable for mixed road and off-road use
Skeleton design for direct container loading without additional securing

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Low Price High Quality 40ft Skeleton Container Semi Trailer for Sale
Use	TruckTrailer
Size	1250025001550mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	1250025001550mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	ContainerTransportation
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Length	12500 mm
Width	2500 mm
Height	1550 mm
Axle Number	2 or 3
Brake System	ABS
Tyre Size	1200R20 or 12R22.5
Max Loading Capacity	60 Tons
Place of Origin	Shandong, China (Mainland)
Max Payload	60
Tons Place of Origin	Shandong, China (Mainland)
Brand Name	Shengxing
Product Name	Skeleton
Semi Trailer Axle	13
Ton Fuwa Brand Function	Container

Materials

Materials and Build

Q345B steel for the main frame and deck structure
Cast steel for the 13-ton Fuwa-brand axle housings
Leaf spring assemblies with galvanised steel components
1200R20 or 12R22.5 radial tyres with steel rims
Welded steel joints with full penetration seams

Process

How an Order Is Handled

You confirm the axle count (2 or 3), tyre size, and colour preference
We source the trailer from stock or schedule production based on your order
We send photos of the frame, axles, and suspension before production starts
The trailer is built with inspected OEM parts and tested for structural integrity
We arrange bulk shipment or container loading and provide export documentation

Quality Control

Checks Before Loading

Axle and suspension components are inspected upon receipt from the supplier
Welding joints are checked for full penetration and uniformity using visual and non-destructive methods
Final trailer is tested for alignment, brake function, and suspension movement
Photos and video of the finished unit are sent before loading

Customisation

What Can Be Changed

Choice of 1200R20 or 12R22.5 tyres
Selection between two- or three-axle configuration
Paint colour other than standard grey or white
Optional additional lighting or reflector setup
Custom marking or branding on the side panels

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Leaf spring is more durable in dusty and rough conditions but offers less ride comfort on paved roads
Trailer with no ABS	ABS improves braking safety on wet or loose surfaces, but adds cost and complexity to maintenance

Use Guide

Using It Well

Keep the axle grease seals clean to prevent contamination in dusty environments
Use only approved tyre sizes and pressures to avoid frame stress or axle failure
Avoid overloading beyond 60 tons to maintain structural integrity and warranty

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view showing the fifth wheel coupling and leaf spring suspension

Rear view with ABS brake lines and reflectors on the trailer frame

Top-down view of the 12500mm deck with container loading edge detail

Trailer parked on a yard with optional colour paint and side markings

Source Specification

Manufacturer Text We Hold for This Listing

Low Price High Quality 40ft Skeleton Container Semi Trailer For Sale Low Price High Quality 40ft Skeleton Container Semi Trailer For Sale Product Information Product Name Low Price High Quality 40ft Skeleton Container Semi Trailer For Sale Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 12500*2500*1550mm Max Loading Capacity 60 Tons Brand Sea Lion Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 2/3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testin

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
