Flat Bed Trailers

3 Axles 40 Tons Stake Semi Trailer Fence Semi Trailer

A 3-axle stake semi trailer with a 40-ton payload capacity, built on a 13000*2550*1800mm steel frame using Q345B material. It features three 13-ton Fuwa-brand axles, leaf spring suspension, ABS braking, and tyre options of 1200R20 or 12R22.5. Designed for heavy cargo transport on rough terrain and long hauls, it is certified under ISO CCC and manufactured in Shandong, China. This configuration is commonly used in construction, mining, and logistics fleets across Africa, the Middle East, and Southeast Asia.

Use TruckTrailer
Size 13000*2550*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 13000*2550*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10457

3-axle stake semi trailer parked on a factory yard, front three-quarter view showing side stakes and front axle

Key Benefits

What This Unit Does Well

Three 13-ton Fuwa axles distribute weight evenly across the chassis, reducing axle overload risk on uneven roads
Leaf spring suspension provides reliable performance on unpaved and rough terrain without frequent maintenance
ABS braking system improves control during heavy load stops, reducing skid and jackknife incidents
1200R20 or 12R22.5 tyre options allow local fitment in markets where these sizes are stocked
ISO CCC certification supports customs clearance in regulated markets like Russia and the Middle East
13000mm length maximises cargo volume for bulk materials like aggregates, timber, and construction supplies

Application Scenarios

Where It Is Used

Transport of construction aggregates and sand from quarry to road-building sites on unpaved access roads
Long-distance haulage of steel beams and prefabricated panels across African and Central Asian routes
Bulk transport of timber and logs from forest zones to processing yards with limited road infrastructure
Moving heavy machinery and equipment between mining sites and maintenance hubs on rough terrain

Fit

Who It Is For

Fleet owners managing construction or mining logistics with multiple trailers needing consistent parts
Contractors sourcing trailers for bulk material transport in regions with poor road conditions
Machinery dealers stocking semi trailers for resale in markets where 1200R20 and 12R22.5 tyres are standard
Government procurement teams requiring ISO CCC-certified trailers for public infrastructure projects

Buyer Pain

Problems It Solves

Inconsistent axle ratings across trailers causing uneven wear and premature failure on heavy loads
Lack of local spare parts for trailer axles and suspension systems leading to extended downtime
ABS system absence in trailers causing braking instability during heavy or downhill runs
Trailer dimensions that don't match port or customs clearance requirements due to non-standard sizing
Uncertainty over certification status when importing trailers into markets requiring CCC or ISO compliance

Engineering

Technical Features

Three 13-ton Fuwa-brand axles in a 3-axle configuration with 13000mm overall length
Leaf spring suspension system for durability on rough and unpaved roads
ABS anti-lock braking system on all axles for improved stopping performance
Steel Q345B chassis material with welded frame construction for high load-bearing strength
13000*2550*1800mm external dimensions for maximum cargo volume and stability
Stake semi trailer design with vertical side stakes for securing loose or bulk cargo

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axles 40 Tons Stake Semi Trailer Fence Semi Trailer
Use	TruckTrailer
Size	1300025501800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	1300025501800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	StakeSemiTrailer
Type	Semi-Trailer
Trailer Model	3 Axles 40 Tons Stake Semi Trailer
Axle Number	3
Axle Capacity	13 Ton each
Axle Brand	Fuwa
Brake System	ABS
Tyre Size	1200R20 or 12R22.5
Dimensions L x W x H	13000 x 2550 x 1800 mm
Max Loading Capacity	40 Tons
Place of Origin	Shandong, China
Gross Vehicle Weight	40 Tons
Frame Type	Welded Steel
Trailer Type	Semi-Trailer
Max Payload	40
Tons Place of Origin	Shandong, China (Mainland)
Product Name	3 Axles 40 Tons Stake Semi Trailer

Materials

Materials and Build

Q345B steel for the main chassis frame and side stakes
Leaf spring assemblies made from high-tensile steel
Fuwa-brand axle housings and spindle components
1200R20 or 12R22.5 radial tyres with steel rims
Galvanised steel for bolted connections and reinforcement brackets

Process

How an Order Is Handled

You provide the cargo type, route conditions, and required dimensions
We confirm the trailer configuration matches your load and road access needs
You choose the colour and confirm the final spec sheet including axle and tyre options
We prepare the trailer, photograph it, and record the assembly process before loading
We book bulk shipment or container transport and issue export documents for customs

Quality Control

Checks Before Loading

Axle, suspension, and tyre components are inspected before assembly using in-house testing machines
Weld joints are checked for consistency and strength using non-destructive testing methods
ABS system is tested under load simulation before final delivery
Trailer dimensions and weight distribution are verified against the specification sheet

Customisation

What Can Be Changed

Custom colour for the trailer body and side stakes
Adjustment of stake height or number for different cargo types
Choice between 1200R20 or 12R22.5 tyres based on local availability
Addition of side rails, tie-down points, or cargo netting for specific loads
Optional fifth wheel plate or coupling adapter for different tractor heads

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Leaf springs are more durable and cheaper to maintain in dusty or off-road environments, but offer less ride comfort
Non-ABS trailer	ABS improves braking safety on loaded runs, but increases cost and requires more frequent maintenance in high-humidity areas

Use Guide

Using It Well

Check ABS sensor clearance and clean the wheel hub regularly in dusty or wet conditions
Use 1200R20 or 12R22.5 tyres only as specified - mixing sizes causes handling imbalance
Keep the trailer frame clean and dry to prevent rust on Q345B steel in coastal or humid zones
Schedule annual inspection of the axle bearings and suspension components to avoid sudden failure

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

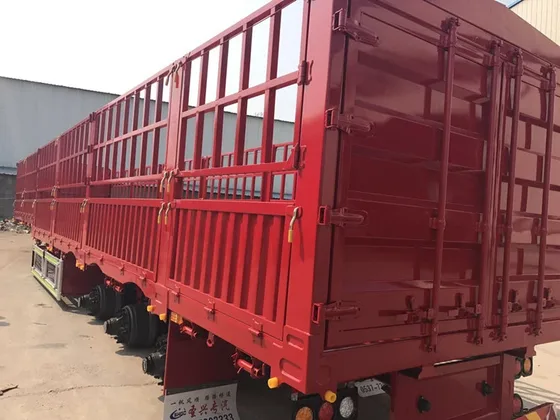

Side view of the trailer highlighting the 13000mm length, leaf spring suspension, and 1200R20 tyres

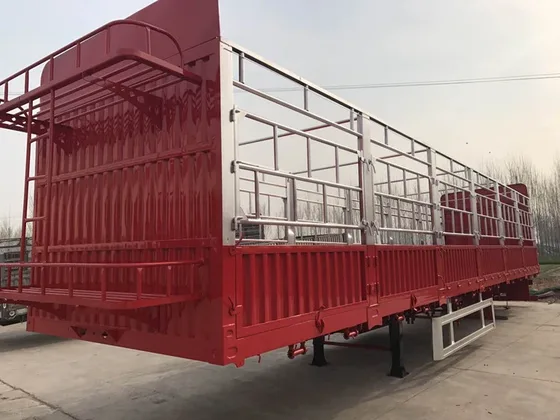

Rear view showing the third axle, ABS brake lines, and rear tie-down points

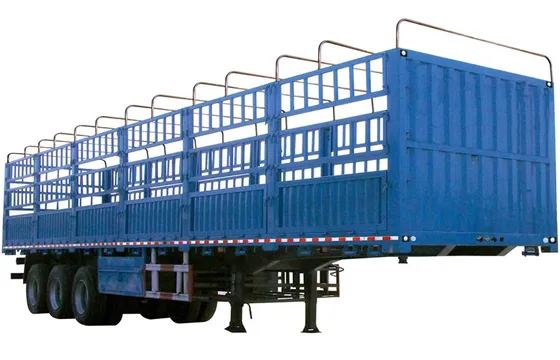

Detail of the stake side panel with vertical supports and tie-down rings

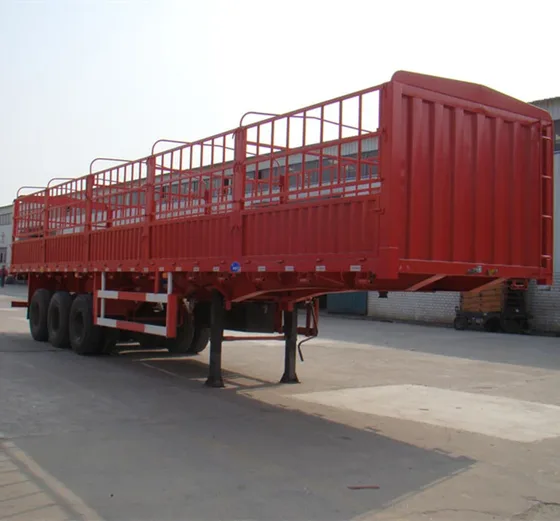

Undercarriage view showing the three Fuwa axles, leaf springs, and frame structure

Source Specification

Manufacturer Text We Hold for This Listing

3 Axles 40 Tons Stake Semi Trailer Fence Semi Trailer 3 Axles 40 Tons Stake Semi Trailer Fence Semi Trailer Product Information Product Name 3 Axles 40 Tons Stake Semi Trailer Fence Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*2550*1800mm Max Loading Capacity 40 Tons Brand Shengxing Function Stake Semi Trailer Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing t

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
