Low Price 3 Axle 40 Tons Stake Fence Semi Trailer for Sale

A 3-axle stake fence semi-trailer with a 40-ton payload capacity, built on a steel Q345 B frame, measuring 13000 x 2500 x 1800mm. It features three 13-ton Fuwa-brand axles, leaf spring suspension, and dual-line braking with ABS. Designed for cargo and animal transport, it uses 1200R20 or 12R22.5 tyres and is certified to ISO CCC. This configuration is commonly used in African and Southeast Asian markets for bulk material and livestock transport where road conditions are variable and parts must be locally available.

Use TruckTrailer
Size 13000*2550*1800mm
Color Option
Suspension LeafSpringSuspension
Dimensions 13000*2500*1800mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10460

3-axle stake fence semi-trailer parked on a yard, front three-quarter view showing the stake fence and front axle

Key Benefits

What This Unit Does Well

Three 13-ton Fuwa axles provide stable load distribution across rough and uneven terrain
Leaf spring suspension is durable and widely supported in markets with limited access to modern air suspension parts
ABS braking system improves stopping performance on wet or gravel surfaces
1200R20 or 12R22.5 tyre options allow flexibility based on local tyre availability and road conditions
ISO CCC certification meets import requirements in many developing markets
40-ton payload capacity supports high-volume bulk cargo or livestock transport without exceeding legal limits

Application Scenarios

Where It Is Used

Transport of bulk agricultural goods such as grain, sugar, or cotton across rural roads in Africa
Livestock transport on unpaved routes where suspension durability and braking reliability are critical
Bulk material haulage between mining sites and processing yards with poor road infrastructure
Long-distance freight between inland depots and coastal ports where trailer uptime is essential

Fit

Who It Is For

Fleet owners in Africa and Southeast Asia needing low-cost, high-capacity trailers for bulk cargo
Contractors transporting construction materials on unpaved access roads
Livestock exporters requiring reliable trailers with proven braking and suspension
Machinery dealers stocking trailers for resale in markets with limited access to spare parts

Buyer Pain

Problems It Solves

Frequent trailer breakdowns due to under-rated axles or weak suspension on rough roads
Lack of local availability for ABS components or axle replacements in remote regions
Inconsistent trailer performance when using mismatched tyre sizes or incompatible suspension
Delays caused by non-compliant trailers failing customs inspection due to missing certification
High maintenance costs from using trailers with non-standard or unverified parts

Engineering

Technical Features

Steel Q345 B frame construction for high strength and load-bearing capacity
Three 13-ton Fuwa-brand axles with dual-line braking system and ABS
Leaf spring suspension system for long-term durability on poor road surfaces
1200R20 or 12R22.5 tyres with standard rim compatibility for easy replacement
13000 x 2500 x 1800mm dimensions suitable for standard container and RoRo shipping
ISO CCC certification for compliance with import regulations in key markets

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Low Price 3 Axle 40 Tons Stake Fence Semi Trailer for Sale
Use	TruckTrailer
Size	1300025501800mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	1300025001800mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	CargoTransportation
Type	Semi-Trailer
Trailer Model	3 Axle Stake Fence Semi Trailer
Axle Number	3
Axle Capacity	13 Ton Each
Axle Brand	Fuwa
Brake System	Dual Line Braking with ABS
Tyre Size	1200R20 or 12R22.5
Dimensions L x W x H	13000 x 2500 x 1800 mm
Max Payload	40 Tons
Place of Origin	Shandong, China
Trailer Type	Semi-Trailer
Tons Place of Origin	Shandong, China (Mainland)
Product Name	2 Axles
Stake Semi Trailer Axle	13
Ton Fuwa Brand Function	Cargo
Transportation Suspension	Leaf Spring

Materials

Materials and Build

Steel Q345 B frame with welded joints for high tensile strength
Leaf spring assemblies made from high-carbon steel for long service life
13-ton Fuwa-brand axles with forged steel components
1200R20 or 12R22.5 radial tyres with steel belted casing
Stake fence side panels made from galvanised steel for corrosion resistance

Process

How an Order Is Handled

You provide the intended route, load type, and preferred tyre size
We confirm availability of the 3-axle stake trailer with Fuwa axles and leaf springs
You select colour, logo, and tyre option before placing the order
We prepare the trailer, photograph and video record the frame, axles, and brakes
We book RoRo or container shipment and issue export documents including COO and packing list

Quality Control

Checks Before Loading

Axle serial numbers and suspension components are photographed and matched to the order
Brake system and ABS function are tested before loading
Weld joints and frame alignment are inspected for structural integrity
Tyres are checked for wear, pressure, and correct size before shipment

Customisation

What Can Be Changed

Custom paint colour beyond the standard option
Custom logo or branding on the trailer sides
Choice between 1200R20 or 12R22.5 tyres
Adjustment of stake fence height or spacing for specific cargo types
Optional additional lighting or reflector strips for night operation

Honest Comparison

How It Compares With the Alternatives

2-axle stake trailer	The 3-axle unit carries more weight safely and handles uneven terrain better, but has higher shipping and maintenance costs
Air suspension trailer	Leaf spring suspension is more reliable in dusty or off-road environments and easier to repair locally
Non-ABS trailer	ABS reduces stopping distance on wet or loose surfaces, but adds cost and complexity not always needed in low-speed transport

Use Guide

Using It Well

Use only 1200R20 or 12R22.5 tyres to maintain axle and suspension compatibility
Keep the stake fence structure clean and inspect welds for stress cracks after heavy loads
Store the trailer with tyres slightly inflated to prevent flat spots during long idle periods

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

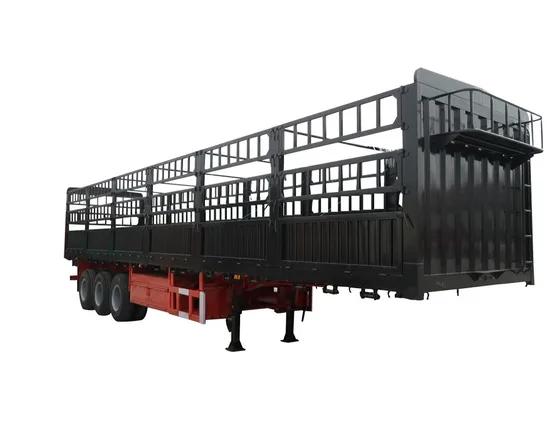

Side view of the trailer highlighting the 13000mm length, leaf spring suspension, and 1200R20 tyres

Rear view of the trailer with the fifth wheel coupling, brake lines, and rear lighting assembly

Source Specification

Manufacturer Text We Hold for This Listing

Low Price 3 Axle 40 Tons Stake Fence Semi Trailer for Sale High Quality 3 Axles Stake Semi Trailer Product Information Product Name 3 Axles Fence Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*2500*1800mm Max Loading Capacity 40 Tons Brand Shengxing Function Cargo or Animal Transportation Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us FAQ 1. How do you transport the semi trailers We will transport the trailers by bulk or container,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee. 2. Can you satisfy my spacial requirement? Sure! We are direct manufacturer with rich experience and we have strong producing capacity and R&D capacity. 3. How can y

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
