Concrete Pump Trucks

2010 Year Putzmeister 42 Meter 5rz Isuzu Chassis Used Truck Mounted Concrete Pump for Sale

A 2008 year Putzmeister SG5350THB42 truck mounted concrete pump with a 42-meter 5-section RZ boom, built on an ISUZU chassis, rated at 287kW and equipped with a diesel engine. It delivers up to 140m3/h of concrete and features a remote control system with HBC 735 brand controller.

Condition Used
Warranty OneMonth
Dimension(L*W*H) 12110*2490*3920
Hydr.Press.Max 360bar
Weight 34600KG

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11522

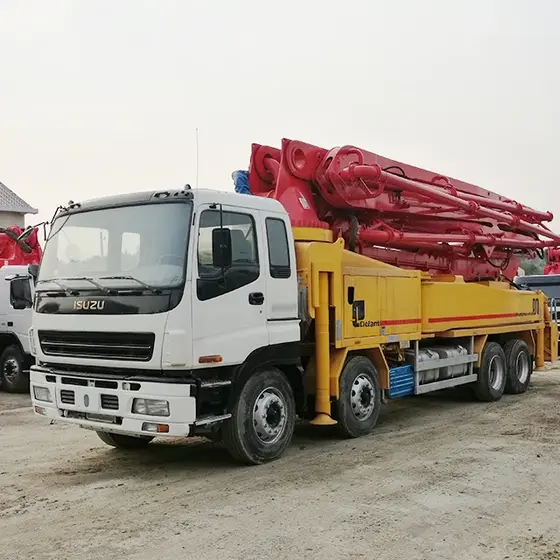

Front view of a used Putzmeister 42-meter concrete pump truck on a yard, showing the ISUZU chassis and boom

Key Benefits

What This Unit Does Well

42-meter RZ boom with five sections allows access to high and tight construction zones
287kW ISUZU diesel engine provides reliable power for continuous pumping at 140m3/h
360bar hydraulic pressure supports high-strength concrete delivery in demanding applications
Remote control system with HBC 735 brand controller enables safe operation from distance

Application Scenarios

Where It Is Used

High-rise building construction where vertical reach of 42 meters is required
Road and bridge projects with limited access and need for precise concrete placement
Industrial plant construction with tight site constraints and multiple pours
Urban infrastructure projects where boom reach must exceed adjacent structures

Fit

Who It Is For

Construction contractors needing a reliable, low-hour pump for short-term project use
Equipment rental companies stocking used concrete pumps for regional markets
Project managers sourcing a ready-to-use pump with minimal downtime risk
Engineering teams replacing older pumps with a proven 42-meter boom model

Buyer Pain

Problems It Solves

Risk of pump failure during critical pours due to high hours or neglected maintenance
Delays caused by waiting for spare parts when the pump is not in stock
Inadequate boom reach for high-rise or confined site work with older models
Lack of remote control functionality leading to unsafe or inefficient operation
Uncertainty over actual pump hours and maintenance history when buying used

Engineering

Technical Features

Putzmeister SG5350THB42 truck mounted concrete pump with 42-meter 5-section RZ boom
ISUZU chassis with 4-axle configuration and diesel engine
287kW engine power with diesel fuel type and 70bar concrete pressure
Max hydraulic pressure of 360bar for high-strength concrete delivery
Remote control system with HBC 735 brand controller for safe operation
Boom seals and hydraulic system components recently replaced

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 2010 Year Putzmeister 42 Meter 5rz Isuzu Chassis Used Truck Mounted Concrete Pump for Sale
Condition	Used
Warranty	OneMonth
Dimension(LWH)	1211024903920
Hydr.Press.Max	360bar
Weight	34600KG
Certification	ISO90001.SAE
Power(W)	287KW
Year	2008
VIN	JALY9F5Y187****98
Model	SG5350THB42
Brand	Putzmeister
Boom Length	42 Meter
Boom Sections	5 RZ
Chassis Model	ISUZU
Axle Config	4 Axle
Engine Make	ISUZU
Engine Type	Diesel
Engine Power	287 kW
Max Concrete Output	140 m3/h
Max Hydraulic Pressure	360 bar
Truck Hours	Not specified
Vertical Reach	42 Meter
Horizontal Reach	40 Meter
Transmission	ISUZU
Remote Control Brand	HBC 735
Remote Control Type	Radio Remote

Materials

Materials and Build

Steel boom structure with RZ folding mechanism
ISUZU chassis frame in welded steel construction
Hydraulic system components including cylinders, valves and hoses
Diesel engine block and cylinder head in cast iron
Remote control unit with HBC 735 brand electronics
Steel cab shell with factory paint finish

Process

How an Order Is Handled

You confirm the pump model, boom length, and condition preference
We provide the VIN, pump hours, maintenance log, and photos before payment
You pay deposit and we prepare the unit for export, including inspection
Unit is tested under load and video recorded before loading
We book RoRo shipment and issue export documents including COO and commercial invoice

Quality Control

Checks Before Loading

Pump hours and engine hours are verified against the maintenance log
Hydraulic system pressure tested at 360bar before loading
Boom movement and remote control function tested in full range
All seals, filters, and oil levels checked and documented
Loading and lashing photos sent before vessel departure

Customisation

What Can Be Changed

Remote control brand or model change if compatible with existing system
Cab interior upgrade or additional safety equipment
Tyre brand or spare wheel count adjustment
Additional tool kit or maintenance manual in local language

Honest Comparison

How It Compares With the Alternatives

40-meter boom pump	The 42-meter boom offers better reach for high-rise or tight-site work, but may require more space for setup
2013 model with higher pump hours	This 2008 unit has lower hours and recent maintenance, reducing failure risk despite older year
Volvo chassis pump	ISUZU chassis offers lower fuel consumption and easier parts access in markets without Volvo dealers

Use Guide

Using It Well

Inspect boom seals and joints after each shift, especially in dusty or wet conditions
Use only recommended concrete mix to avoid blockages in the 600L barrel
Keep remote control battery charged and test signal range before each use

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

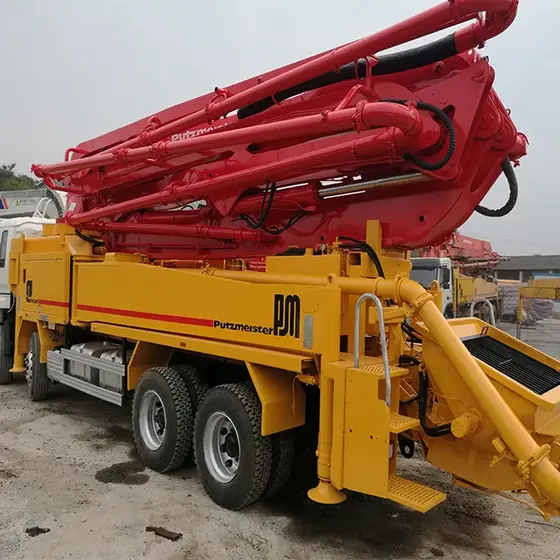

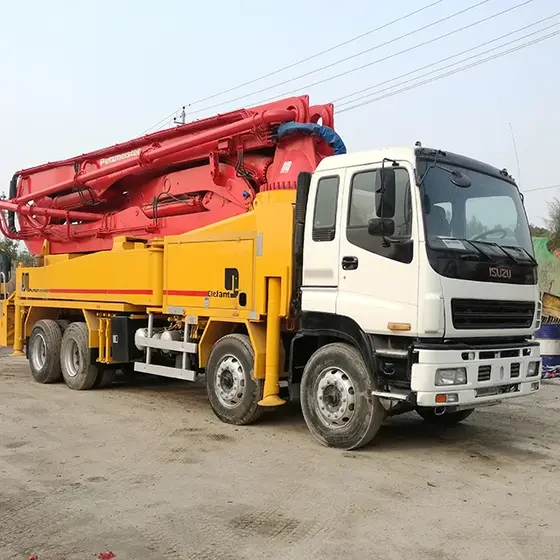

Side view of the pump truck with the 42-meter boom extended and five sections visible

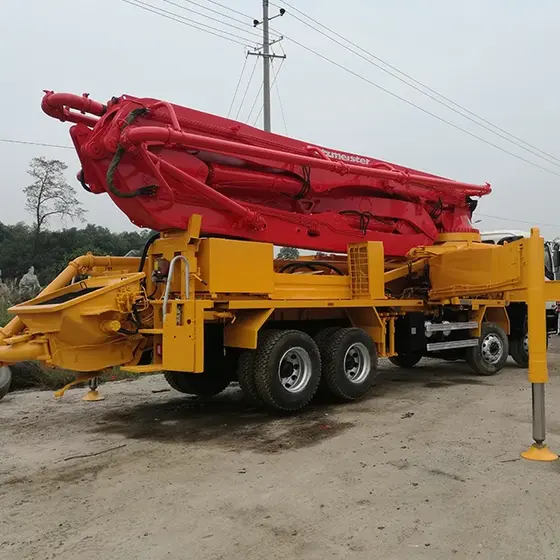

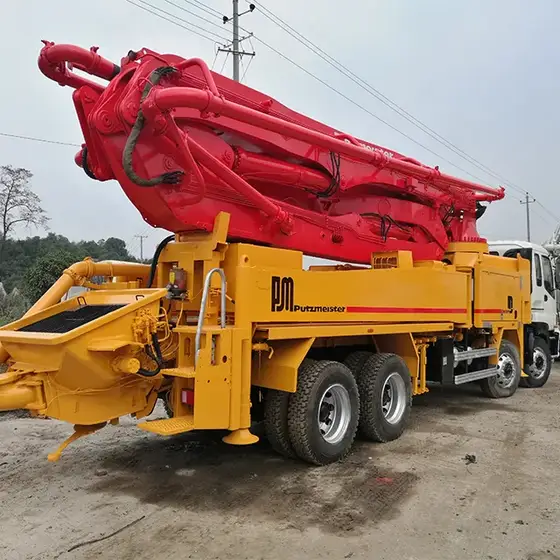

Rear view of the truck showing the 4-axle chassis, cab, and hydraulic system components

Boom section detail showing the RZ folding mechanism and steel joints

Cab interior with driver seat and control panel for the pump system

Close-up of the ISUZU chassis and engine area with maintenance access panels open

Source Specification

Manufacturer Text We Hold for This Listing

2010 year Putzmeister 42 Meter 5RZ ISUZU Chassis Used Truck Mounted Concrete Pump for Sale We have 10 units stock used concrete pump truck with ISUZU Chassis and Volvo Chassis,produced in 2006-2013. Product Description Product Description Of Putzmeister Used Concrete Pump Truck Concrete Pump Information Truck information of Concrete Pump Type BOOM CONCRETE PUMPS Truck Brand ISUZU Brand Name Putzmeister Truck Model ISUZU Pump Model SG5350THB42 Truck Year 2008 year Pump Year 2008year VIN. JALY9F5Y187****98 Boom Length 42 METER Axle Config 4 Axle Pump Hours 4000 hours Mileage Boom Section 5 SECTIONS RZ FOLD Truck Hours Vertical Reach 42 METER Engine Make ISUZU Horizontal Reach 40 METER Engine Type Diesel Max Concrete Output 140 m3/h Engine Model Conrete Press. 70 Bar Max.Engine Power 287 kw Barrel Size 600 L Max.EngineTorque Radio Remote conctrol concrete pump remote controller Transmission

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
