Flat Bed Trailers

20FT Double Axles Container Skeleton Semi Trailer

A 20-foot double-axle container skeleton semi trailer with a 30-ton payload capacity, built on a steel Q345B frame and fitted with two 13-ton Fuwa-brand axles. It uses leaf spring suspension, dual-line braking with ABS, and can be equipped with either 1200R20 or 12R22.5 tyres. The trailer measures 7000 x 2500 x 1550 mm and is designed for direct container transport with minimal structural weight. It is supplied with ISO CCC certification and is suitable for bulk export via RoRo or container shipment.

Use TruckTrailer
Size 7000*2550*1550mm
Color Option
Suspension LeafSpringSuspension
Dimensions 7000*2500*1550mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10334

Side view of a 20-foot double-axle container skeleton semi trailer on a yard, showing leaf spring suspension and 1200R20 tyres

Key Benefits

What This Unit Does Well

30-ton payload capacity supports full 20-foot container loads without overloading the axles
13-ton Fuwa-brand axles are widely available in export markets, reducing spare parts lead time
Leaf spring suspension provides reliable performance on rough roads and unpaved yards
Dual-line braking with ABS improves safety during loaded stops and downhill runs
1200R20 or 12R22.5 tyre options allow flexibility for regional road conditions and tyre availability
ISO CCC certification meets import requirements in many African, Middle Eastern and Southeast Asian markets

Application Scenarios

Where It Is Used

Transport of 20-foot containers between inland depots and coastal ports on mixed asphalt and gravel roads
Flatbed hauling of construction materials and machinery where trailer frame strength is critical
Long-haul container movement across regions with limited access to heavy-duty maintenance facilities
Fleet expansion for logistics operators who need a low-maintenance, high-capacity trailer for standard container work

Fit

Who It Is For

Fleet owners adding container transport capacity with a low-risk, proven trailer design
Contractors needing a trailer that matches standard 20-foot container dimensions and corner castings
Machinery dealers stocking semi trailers for resale in markets where ISO CCC is required
Logistics operators importing trailers for use in oil and gas, mining or construction projects

Buyer Pain

Problems It Solves

Trailer frame failure due to under-rated axles or weak steel in low-cost models
Lack of spare parts for axles and brakes in remote regions where European or OEM parts are unavailable
Braking failure on loaded descents due to single-line brake systems or missing ABS
Mismatched trailer dimensions that prevent secure container locking or cause alignment issues
Import delays caused by missing or invalid certification documents for the trailer

Engineering

Technical Features

Steel Q345B welded frame with double-axle skeleton design for container transport
Two 13-ton Fuwa-brand axles with leaf spring suspension system
Dual-line braking system with ABS for improved stopping safety
1200R20 or 12R22.5 tyre fitment as standard, with option to specify
Dimensions: 7000 x 2500 x 1550 mm (L x W x H) unloaded
Container transport function with standard corner casting alignment
ISO CCC certification issued by the Chinese authorities

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 20FT Double Axles Container Skeleton Semi Trailer
Use	TruckTrailer
Size	700025501550mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	700025001550mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	ContainerTransportation
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Length	7000 mm
Width	2500 mm
Height	1550 mm
Payload Capacity	30 Tons
Axle Type	13 Ton Fuwa Brand
Number of Axles	2
Brake System	Dual Line Braking with ABS
Tyre Size	1200R20 or 12R22.5
Origin	Shandong, China (Mainland)
Max Payload	30
Tons Place of Origin	Shandong, China (Mainland)
Product Name	2 Axles Container Skeleton
Semi Trailer Axle	13
Ton Fuwa Brand Function	Container

Materials

Materials and Build

Steel Q345B frame and structural components
Cast steel 13-ton Fuwa-brand axles
Leaf spring suspension with steel springs and bushings
1200R20 or 12R22.5 radial tyres on steel rims
Welded steel corner castings for container locking

Process

How an Order Is Handled

You confirm the trailer dimensions, axle type, tyre size and colour preference
We source the trailer from the manufacturer in Shandong and confirm the build schedule
You receive a specification sheet with axle number, frame number and photos before payment
Trailer is assembled, tested for brake function and inspected for weld integrity
We arrange RoRo or container shipment and provide export documents including COO and packing list

Quality Control

Checks Before Loading

Axle, suspension and brake components are inspected upon receipt from supplier
Welding joints are checked using visual and non-destructive methods before final assembly
Brake system is tested under load to confirm ABS activation and dual-line balance
Final trailer is photographed and video recorded with all key components visible

Customisation

What Can Be Changed

Trailer colour other than standard grey or white
Tyre size: 1200R20 or 12R22.5 as specified
Corner casting alignment for specific container types or locking systems
Additional lighting or reflector mounting points
Optional fifth wheel plate or coupling height adjustment

Honest Comparison

How It Compares With the Alternatives

Single-axle container trailer	The double-axle version carries 30 tons safely and avoids axle overload on uneven roads, but has higher purchase and maintenance cost
Hydraulic suspension trailer	Leaf spring suspension is simpler, cheaper to maintain, and more reliable in dusty or high-temperature environments
Trailer with no ABS	ABS prevents wheel lockup during braking, which is critical for loaded trailers on wet or gravel surfaces

Use Guide

Using It Well

Use the correct tyre pressure for 1200R20 or 12R22.5 depending on load and terrain
Ensure corner castings are clean and free of debris before locking a container
Store the trailer with tyres off the ground if not in use for more than 30 days

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

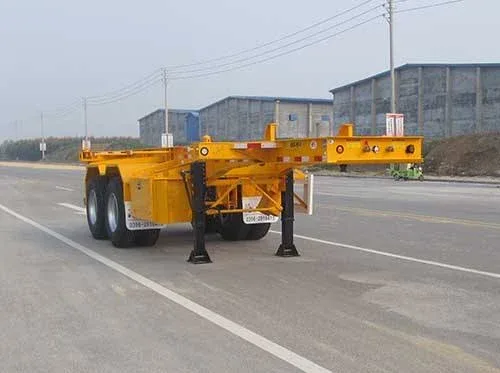

Front view of the trailer with corner castings and fifth wheel plate, highlighting the steel frame

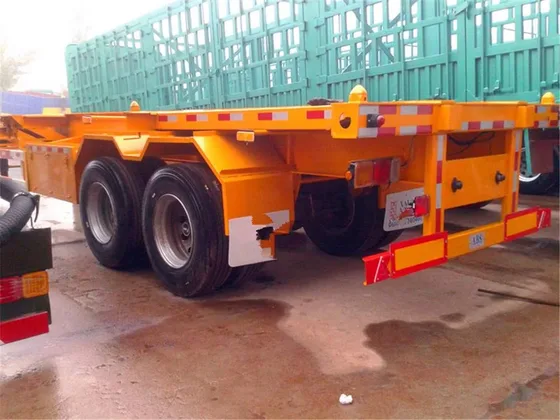

Rear view of the trailer with dual-line brake system and ABS warning light

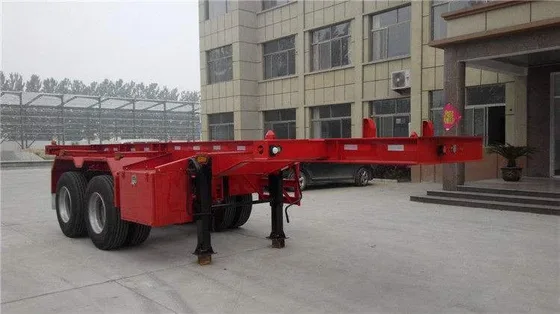

Top-down view of the trailer frame with container corner casting alignment

Source Specification

Manufacturer Text We Hold for This Listing

20FT Double Axles Container Skeleton Semi Trailer High Quality 2 Axles Container Skeleton Semi Trailer Product Information Product Name 2 Axles Container Skeleton Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 7000*2500*1550mm Max Loading Capacity 30 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
