Flat Bed Trailers

Besting Selling 2 Axles Skeleton Container Semi Trailer

A 2-axle skeleton semi-trailer designed for transporting 20ft and 40ft containers, with a 7000 x 2480 x 1560 mm external dimension and a 30-ton payload capacity. Built with a steel frame and equipped with two 13-ton Fuwa-brand axles and 12R22.5 tyres, it features leaf spring suspension and a twist lock system with 12 locking points. The trailer is certified under CCC and ISO standards and is intended for use with standard truck tractors in logistics and port operations.

Use TruckTrailer
Size 7000*2480*1560
Color Option
Suspension LeafSpringSuspension
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10330

Side view of a 2-axle skeleton container semi-trailer with 12R22.5 tyres and twist locks

Key Benefits

What This Unit Does Well

Double 13-ton Fuwa axles provide stable load distribution for 30-ton container payloads
12R22.5 tyres are standard in most container haulage markets, ensuring easy replacement
Leaf spring suspension offers durability on rough roads and low maintenance
Twist lock system with 12 points ensures secure container attachment during transit
Steel frame construction resists deformation under repeated loading cycles
CCC and ISO certification support compliance with import regulations in multiple markets

Application Scenarios

Where It Is Used

Container transport between a port and an inland distribution centre on mixed asphalt and gravel roads
Short-haul movement of 20ft and 40ft containers within a warehouse or industrial yard
Intermodal transfer at a terminal where trailers are loaded and unloaded frequently
Long-distance haulage where trailer durability and low downtime are critical for fleet efficiency

Fit

Who It Is For

Fleet operators managing container transport routes with frequent loading and unloading
Logistics companies needing reliable trailers for port-to-depot or depot-to-depot operations
Contractors moving containers between construction sites without paved access
Trucking companies standardising on a single trailer type for easier spare parts and maintenance

Buyer Pain

Problems It Solves

Inconsistent trailer axle strength leading to premature failure under 30-ton loads
Lack of twist lock compatibility causing container shift during transit
Trailer frame deformation from repeated heavy loading without proper structural design
Difficulty sourcing replacement parts due to non-standard or unbranded components
Import delays caused by missing CCC or ISO documentation for customs clearance

Engineering

Technical Features

Steel welded frame with skeleton structure for reduced weight and high rigidity
Double 13-ton Fuwa-brand axles with 12R22.5 tyres in leaf spring suspension
Twist lock system with 12 locking points for secure container attachment
ABS brake system for improved stopping performance under load
External dimensions: 7000 x 2480 x 1560 mm (L x W x H)
Max payload capacity of 30 tons, suitable for 20ft and 40ft containers

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Besting Selling 2 Axles Skeleton Container Semi Trailer
Use	TruckTrailer
Size	700024801560
Color	Option
Suspension	LeafSpringSuspension
Material	Steel
Certification	CCCISO
Axle	13TonFuwaBrand
Tire	12R22.5
Function	Transport20ft40ftContainer
Type	Semi-Trailer
Trailer Model	Skeleton Semi Trailer
Axle Number	Double
Axle Type	13 Ton Fuwa Brand
Tire Size	12R22.5
Twist Lock	12 Pieces
Max Payload	30 Tons
Dimensions L x W x H	7000 x 2480 x 1560 mm
Brake System	ABS
Place of Origin	Shandong, China (Mainland)
Brand Name	Shengxing
OEM No.	91370211
Trailer Type	Semi-Trailer
Tons Place of Origin	Shandong, China (Mainland)
Product Name	Skeleton
Semi Trailer Axle	13 Ton
Fuwa Brand Axle Number	Double

Materials

Materials and Build

Steel frame with welded skeleton construction
13-ton Fuwa-brand axles with steel housing and alloy components
12R22.5 radial tyres with steel belts
Leaf spring suspension with galvanised steel components
ABS brake system with standard calipers and drums

Process

How an Order Is Handled

You provide the container size, route conditions, and delivery location
We confirm availability of the 2-axle skeleton trailer with your preferred axle and tyre configuration
You approve the final spec sheet, including colour and logo if custom
Trailer is built, inspected, and photographed before shipment
We arrange bulk or container shipping with a partner agency and provide export documents

Quality Control

Checks Before Loading

Axle, suspension, and tyre components are inspected before assembly
Welding joints are checked using non-destructive testing methods
Final trailer is tested for twist lock engagement and brake function
Photos and video of the trailer are sent before loading

Customisation

What Can Be Changed

Custom paint colour beyond the standard option
Custom logo or branding on the trailer sides
Adjustment of twist lock position or number if required
Change in tyre brand or load rating if needed
Addition of side rails or protective skirting

Honest Comparison

How It Compares With the Alternatives

3-axle container trailer	The 2-axle version is lighter and cheaper to operate, but may exceed axle load limits on some roads
Tandem axle trailer with air suspension	Leaf spring is more robust in dusty or off-road environments but offers less ride comfort
Non-braked trailer	This model has ABS brakes, which improves safety and compliance in markets requiring braking systems

Use Guide

Using It Well

Inspect twist locks and locking pins before each container attachment
Test brake function and ABS warning light after every long haul
Clean the trailer frame and twist locks after exposure to salt or corrosive environments

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

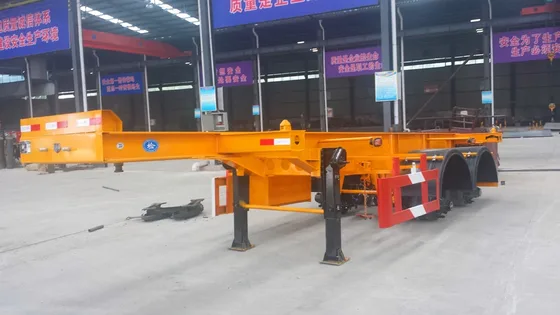

Front view of the trailer showing the 13-ton Fuwa axles and leaf spring suspension

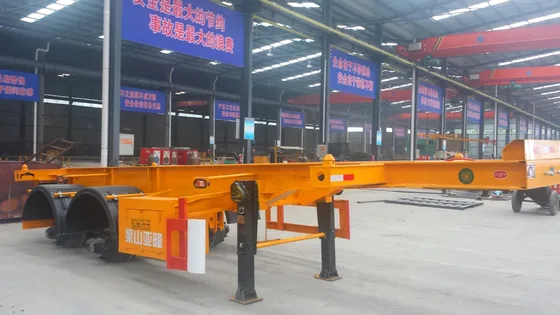

Rear view with the twist lock system and ABS brake components visible

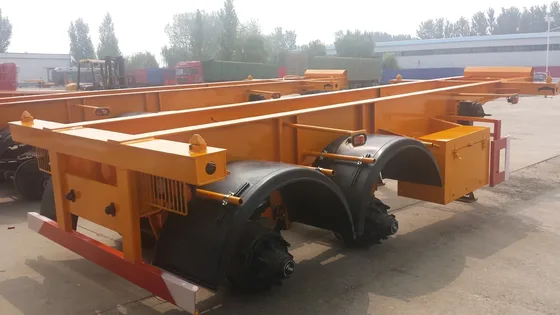

Top-down view of the trailer frame with 12 twist lock points and steel structure

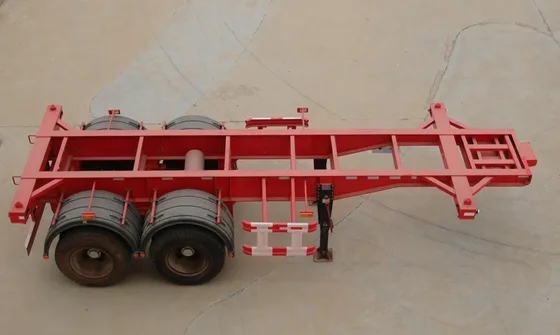

Close-up of the trailer's steel frame and welded joints at the axle mounting points

Source Specification

Manufacturer Text We Hold for This Listing

2 Axles Skeleton Container Semi Trailer Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, the company is a large-scale enterprise integrating R&D, production, sales and service. Our company has passed the ISO quality management certification system, and we have standard management system. Our products have obtained CCC certification, with good performance and reliable quality. Our semi trailer products have 8 products series including container trailer, flatbed trailer, low-bed trailer, dump trailer, cargo trailer, tank trail

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
