Truck trailer machinery and parts exporter since 2008
SEA LION International Trade Request A Quote
Flat Bed Trailers

40FT Tri-Axle Flatbed/Platform/Container Truck Semi Trailer

A 40-foot tri-axle flatbed semi-trailer with a 12500mm x 2500mm x 1500mm platform, built on a high-strength steel space frame chassis using 16Mn welded beams and cross members. It features three axles from FUWA, BPW, HJ, L1, FUHE or YORK, mechanical or air suspension, 11.00R22.5 to 1200R20 tyres, a 2" or 3.5" king pin, and a dual-circuit air brake system with optional ABS. Designed for heavy cargo transport across rough terrain and long hauls where payload and structural rigidity are critical.

  • Use TruckTrailer
  • Size 12500mm*2500mm*1500mm
  • Color green,yellow,whiteorpe
  • Suspension MechanicalSuspension/A
  • Material Steel
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10487

40ft tri-axle flatbed semi trailer in green paint, front three-quarter view with 3 axles visible
40ft tri-axle flatbed semi trailer in green paint, front three-quarter view with 3 axles visible
Key Benefits

What This Unit Does Well

  • 16Mn steel space frame chassis provides high bending and deformation resistance for heavy payloads
  • Three axles allow even weight distribution across the trailer, reducing axle overload risk
  • Mechanical or air suspension options suit both rough terrain and smooth highway operations
  • 12500mm platform length fits standard 40ft containers and large industrial equipment
  • Dual-circuit air brakes with quick release valves improve stopping safety on loaded and empty runs
  • Pre-treated chassis with shot blasting and anti-corrosive primer ensures paint adhesion and long-term rust resistance
Application Scenarios

Where It Is Used

  • Transport of heavy machinery and industrial equipment across unpaved construction sites in Africa and Southeast Asia
  • Flatbed hauling of prefabricated steel structures or mining equipment on long-distance routes with poor road surfaces
  • Container transport on routes where port access roads are ungraded and require high ground clearance
  • Bulk material movement in oil and gas fields where trailers must carry 40+ tonnes over uneven terrain
Fit

Who It Is For

  • Fleet operators managing heavy hauls in emerging markets with limited road infrastructure
  • Contractors transporting large industrial components where trailer strength and payload are critical
  • Machinery dealers stocking semi-trailers for resale in regions with high demand for rugged flatbeds
  • Government procurement teams sourcing durable trailers for engineering and infrastructure projects
Buyer Pain

Problems It Solves

  • Trailer frame failure under heavy loads due to weak or undersized chassis construction
  • Excessive axle wear and suspension failure on rough roads due to low-impact resistance design
  • Inconsistent payload capacity across trailers due to non-standard axle and beam configurations
  • Delayed operations caused by brake system failure on long hauls without reliable service access
  • Corrosion damage during sea transport due to poor surface preparation and paint adhesion
Engineering

Technical Features

  • High-strength 16Mn steel space frame chassis with automatic submerged arc welding
  • Longitudinal beams and cross members welded from hot-rolled structural steel
  • Three axles from FUWA, BPW, HJ, L1, FUHE or YORK, rated for 13T each
  • Mechanical suspension or air bag suspension with patented rod connecting design
  • Dual-circuit air brake system with quick release valve and KTL valve
  • Optional ABS system with WEBCO brake components
  • 2" (50mm) or 3.5" (90mm) king pin for compatibility with various tractor heads
  • LED lighting system with 24V voltage and 7-way receptacle
  • Waterproof detachable tool box with large storage capacity
  • Chassis treated with sand blasting, one coat of anti-corrosive primer, two coats of final paint
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size12500mm*2500mm*1500mm
Colorgreen,yellow,whiteorperyourrequest
SuspensionMechanicalSuspension/Airsuspension
MaterialSteel
CertificationCCC,ISO,BV,SGS
AxleFUWA/BPW/HJ/L1/FUHE/YORK
Tire11.00R22.512.00R20,12R22.5,1200R20,385/65R22.5
TypeSemi-Trailer
Trailer ModelLHY9403
Length12500 mm
Width2500 mm
Height1500 mm
Axle Configuration3 Axle
Max Payload50 T
Chassis Material16Mn Steel
Suspension TypeMechanical / Air Suspension
Axle BrandsFUWA, BPW, HJ, L1, FUHE, YORK
Tyre Quantity13 pieces (including one spare)
King Pin Size2" (50mm) or 3.5" (90mm)
Braking SystemDual Circuit with KTL Valve, WEBCO Optional
ABSOptional
Electrical System24V, 7-way Receptacle, LED Lights
Paint FinishSand blasted, primer, two coats final paint
Landing GearJOST Brand, Two-speed
Tool BoxWaterproof, detachable, large capacity
Materials

Materials and Build

  • 16Mn hot-rolled structural steel for longitudinal beams and cross members
  • High-strength steel for chassis frame and platform structure
  • Steel disc rims (8.25) for 13 wheels
  • 11.00R22.5 to 1200R20 tyres from Triangle brand
  • Galvanized steel for brake lines and mounting brackets
  • Powder-coated steel for tool box and side panels
Process

How an Order Is Handled

  • You provide the route, cargo type, and payload requirement
  • We confirm axle brand, suspension type, and tyre size availability from current stock
  • You approve the final spec sheet including colour, king pin size, and brake system
  • Trailer is assembled, tested for brake function and suspension integrity
  • We photograph and video record the trailer before loading, including chassis numbers
  • We book RoRo or container shipment and issue export documents for customs clearance
Quality Control

Checks Before Loading

  • Chassis numbers and axle brands are photographed and matched to the approved spec sheet
  • Brake system pressure and air leak test are recorded on video before loading
  • Paint finish, weld quality, and tool box function are inspected at the yard
  • Third-party inspection by SGS, BV or your appointed agent is available upon request
  • Loading and lashing photos are sent before vessel departure
Customisation

What Can Be Changed

  • Custom colour: green, yellow, white, or as per your request
  • King pin size: 2" (50mm) or 3.5" (90mm)
  • Axle brand: FUWA, BPW, HJ, L1, FUHE, YORK
  • Suspension type: mechanical or air bag
  • ABS system: optional with WEBCO components
  • Tool box: detachable, waterproof, custom size available
Honest Comparison

How It Compares With the Alternatives

2-axle flatbed trailerThe 3-axle design supports higher payloads and better weight distribution but increases purchase cost and fuel consumption
Air suspension onlyMechanical suspension is lower cost and easier to maintain in remote areas without repair facilities
Use Guide

Using It Well

  • Check brake air pressure and line integrity before every long haul
  • Keep the tool box dry and secure to prevent loss during transport
  • Use only approved brake fluid and follow the manufacturer's maintenance schedule
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

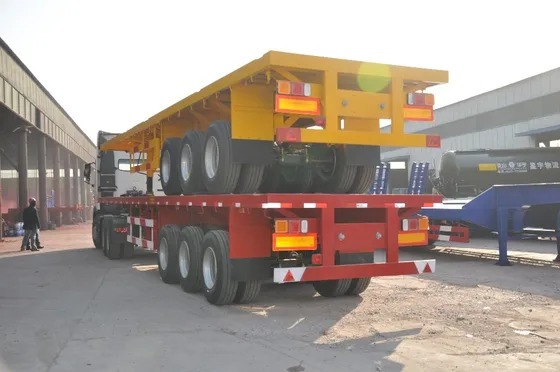

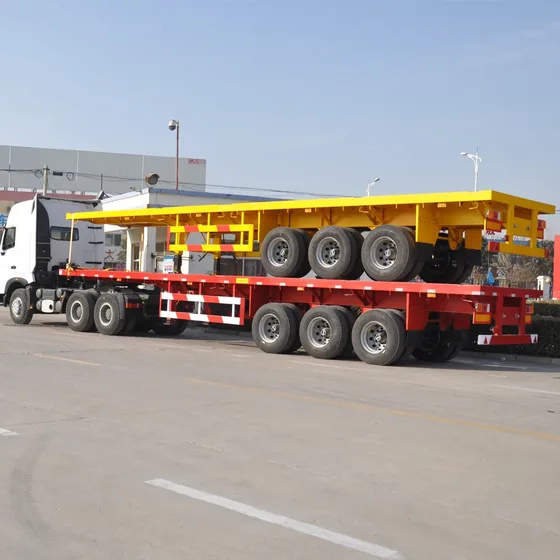

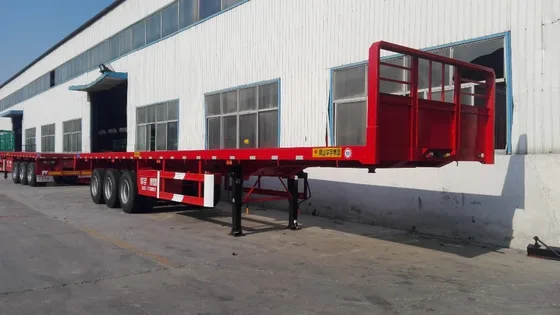

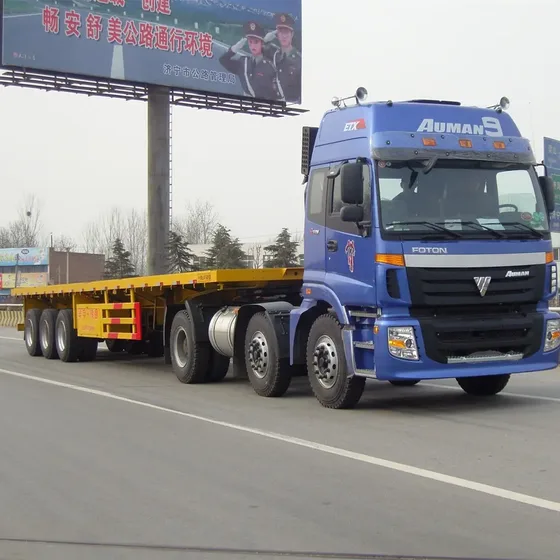

Side view of the trailer showing 12500mm length, 2500mm width, and 1500mm heightRear view with landing gear, king pin, and 7-way electrical connectorFlatbed platform with corrugated steel and stake pockets, showing cargo securing pointsChassis underside with 16Mn steel beams, welded joints, and suspension components
Source Specification

Manufacturer Text We Hold for This Listing

40FT Tri-Axle Flatbed/Platform/Container Truck Semi Trailer Product Description 3axle flatbed semi trailers for sale Name 3axle flat bed semi trailer/ flatbed transportation trailers/ 40ft low bwed truck body/trailer Trademark Sea Lion Overall Dimension 1 2500 mm*2500mm*1550mm Payload 40 t 3axle Container 3axle flat bed semi trailer Beam upper wing plate 1 4 mm, lower wing plate 1 6 mm, web 8 mm Traction Pin 2"or 3.5" traction pin Landing dear linkage Suspension Mechanical / Air bag Axle FUWA 13T axle, 3 pcs Rim 8.25 steel disc wheel, 13 pcs.Made in china Tire 11.00 R2 0 12PR,12R22.5 12PR, 13 pcs. (including one spare tire), Triangle brand. ABS Optional Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Product Features 1.Advanced technology: Major parts and components

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Flat Bed Trailers Buyers Compare With This

All 61 Flat Bed Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All trailers are new. We supply only units built to order or from current stock, with full documentation and factory inspection records.

What is the lead time

Trailer preparation and shipment depend on axle and suspension availability. We confirm a lead time in writing with the proforma invoice.

Can you supply spare parts later

Yes. We supply axle components, brake parts, tyres, and suspension kits separately. These can be consolidated with your trailer order or shipped later.

Do you ship by container or RoRo

RoRo is standard for flatbed trailers. Container shipment is possible but requires lowering the cab and may affect loading access.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and any pre-shipment inspection certificate your country requires.

Can I inspect the trailer before paying the balance

Yes. You can appoint SGS, BV or your own agent to inspect the trailer at the yard before loading. We will arrange access upon your request.
