Super Sale Tri-axle 40ft Chassis Trailer Container Skeleton Semi Trailer for Philippines

It uses two 13-ton Fuwa-brand axles with leaf spring suspension, 1200R20 or 12R22.5 tyres, dual line braking with ABS, and is constructed from Q345B steel. It is designed for direct container handling in high-turnover environments where chassis durability and consistent fitment are required.

  • Use TruckTrailer
  • Size 13000*2500*1710mm
  • Color Optional
  • Suspension LeafSpringSuspension
  • Dimensions 13000*2500*1710mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10335

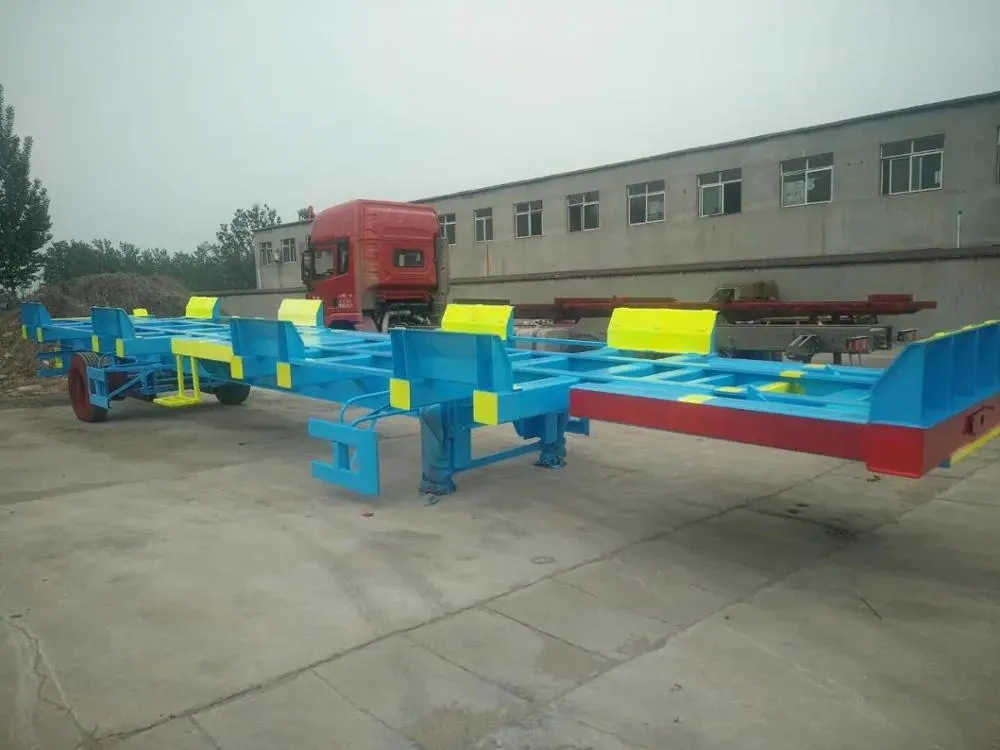

Side view of a 40ft tri-axle container semi trailer with two 13-ton Fuwa axles and 1200R20 tyres
Side view of a 40ft tri-axle container semi trailer with two 13-ton Fuwa axles and 1200R20 tyres
Key Benefits

What This Unit Does Well

  • 13-ton Fuwa axles are rated for 40-ton payloads, matching the trailer's maximum load without overloading
  • Leaf spring suspension handles frequent starts, stops and uneven yard surfaces common in port terminals
  • 1200R20 or 12R22.5 tyre options allow matching to local tyre availability and load distribution
  • Dual line braking with ABS improves safety during heavy braking in tight yard maneuvers
  • Q345B steel frame provides strength for repeated container loading and unloading
  • ISO CCC certification supports customs clearance in markets requiring Chinese manufacturing compliance
Application Scenarios

Where It Is Used

  • Container handling in a busy port yard with frequent positioning and repositioning of 40ft containers
  • Terminal operations where trailers are stacked and moved by reach stackers or yard cranes
  • Short-haul transport between a port terminal and an inland depot on mixed asphalt and gravel roads
  • High-frequency container transfer in a logistics hub where trailer uptime is critical
Fit

Who It Is For

  • Port operators managing container yard fleets and needing consistent chassis availability
  • Logistics contractors running short-haul container moves between terminals and depots
  • Fleet managers replacing worn trailers with a standardised chassis that matches existing container locks
  • Dealers stocking semi trailers for resale in Southeast Asia and the Pacific where 40ft container use is dominant
Buyer Pain

Problems It Solves

  • Inconsistent chassis dimensions that cause container misalignment during loading
  • Trailer suspension failure due to repeated low-speed impacts in tight yard spaces
  • Lack of local spare parts for axles and brakes when using non-standard or unbranded trailers
  • Uncertainty over export documentation when importing trailers from China without certification
  • Mismatched tyre sizes that prevent use on local transport networks or require costly changes
Engineering

Technical Features

  • Tri-axle configuration with two 13-ton Fuwa-brand axles
  • Q345B steel frame with welded construction for load-bearing strength
  • Leaf spring suspension system for durability under repeated loading
  • Dual line braking system with ABS for improved stopping control
  • 1200R20 or 12R22.5 tyres as standard, with option to specify
  • Container transport function with standard ISO corner castings
  • 13-ton axle capacity per axle, supporting up to 40-ton gross load
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size13000*2500*1710mm
ColorOptional
SuspensionLeafSpringSuspension
Dimensions13000*2500*1710mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionContainerTransport
TypeSemi-Trailer
Trailer Model40FT Port Yard Container Terminal Semi Trailer
Dimensions L x W x H13000 x 2500 x 1710 mm
Max Payload40 Tons
Axle Number2 Axles
Axle Capacity13 Ton per Axle
Axle BrandFuwa
Brake SystemDual Line Braking with ABS
Tyre Size1200R20 or 12R22.5
Place of OriginShandong, China (Mainland)
Trailer TypeSemi-Trailer
Tons Place of OriginShandong, China (Mainland)
Product NameTerminal
Semi Trailer Axle13
Ton Fuwa Brand FunctionContainer
Transport SuspensionLeaf Spring
Materials

Materials and Build

  • Q345B steel frame with welded construction for load-bearing strength
  • Leaf spring suspension components made from high-tensile steel
  • 13-ton Fuwa-brand axles with forged steel housing and sealed bearings
  • 1200R20 or 12R22.5 radial tyres with steel rims
  • Galvanised steel corner castings for ISO container lock compatibility
Process

How an Order Is Handled

  • You confirm the required tyre size, colour and any custom markings
  • We check current stock or production schedule for the 40ft tri-axle trailer
  • You receive a specification sheet with axle numbers, frame dimensions and photos before deposit
  • Unit is prepared, inspected and photographed with all components visible
  • We book bulk shipment or container load and provide export documents for your customs
Quality Control

Checks Before Loading

  • Axle and suspension components are inspected for correct fitment and torque before assembly
  • Weld joints are checked visually and with non-destructive testing methods
  • Brake system is tested under load to confirm dual-line operation and ABS response
  • Tyre pressure and tread depth are verified before shipment
  • Final photos and video of the trailer are sent before loading, including frame and axle numbers
Customisation

What Can Be Changed

  • Custom colour finish other than standard white or grey
  • Choice between 1200R20 and 12R22.5 tyres at order time
  • Optional additional corner casting reinforcement for heavy container use
  • Marking or branding on the frame for fleet identification
Honest Comparison

How It Compares With the Alternatives

2-axle 40ft trailerThe tri-axle design spreads load better on uneven yard surfaces and supports heavier payloads without exceeding axle limits
Air suspension trailerLeaf spring suspension is more durable in high-frequency yard operations and requires less maintenance
Non-branded axle trailerFuwa-brand axles are traceable and supported by a known supplier, reducing risk of part unavailability
Use Guide

Using It Well

  • Use only the tyre size specified in the order to maintain load distribution and ground clearance
  • Keep the ABS sensor clean and free from debris, especially in dusty or wet port environments
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

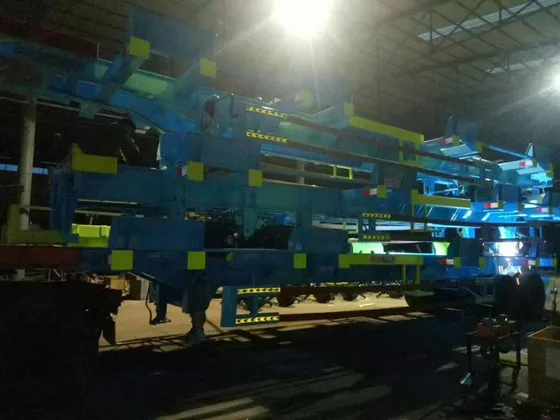

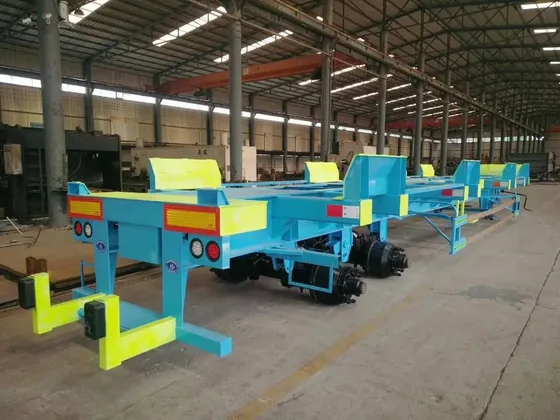

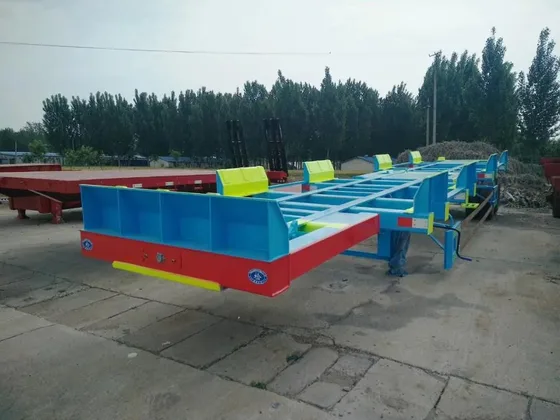

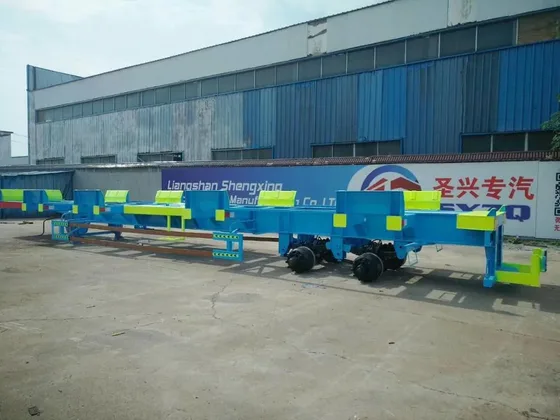

Front view of the trailer showing the frame, corner castings, and leaf spring suspensionRear view of the trailer with dual line brake lines and ABS sensor near the axleTop-down view of the trailer frame with ISO container corner castings and frame markingsClose-up of the 12R22.5 tyre and wheel hub on the Fuwa axleTrailer parked in a yard with container in position, showing load height and frame alignment
Source Specification

Manufacturer Text We Hold for This Listing

Super Sale Tri-axle 40ft Chassis Trailer Container Skeleton Semi Trailer For Philippines Product Description 40FT Port Yard Container Terminal Semi Trailer Product Information Product Name 40FT Port Yard Container Terminal Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*2500*1710mm Max Loading Capacity 40 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 2 Axles Brake System Dual Line Braking System with ABS Tire 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Flat Bed Trailers Buyers Compare With This

All 61 Flat Bed Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All units are new. We supply from current stock or production, and you receive a specification sheet with frame and axle numbers before payment.

What is the lead time

Delivery is 15 workdays after we receive your order and deposit. Stock units may be available sooner.

Can you supply spare parts for this trailer later

Yes. Fuwa axles, leaf springs, brake components and tyres are available for purchase separately and can be shipped with future orders.

Do you ship by container or bulk

We ship by bulk for standard trailers. Container shipment is possible but requires lowering the frame; we quote both options for landed cost comparison.
