Flat Bed Trailers

40ft Container Transport Semi Trailer Skeleton 3 Axles Container Semi Trailer

A 40ft container transport semi trailer skeleton with a 3-axle layout, built on a 12500*2500*1550mm steel frame using Q345B material, designed for flatbed container hauling. It features two or three 13-ton Fuwa brand axles, leaf spring suspension, ABS braking, and tyre options of 1200R20 or 12R22.5. Certified under ISO CCC, it is intended for direct export and local assembly in markets with limited trailer infrastructure.

  • Use TruckTrailer
  • Size 12500*2500*1550mm
  • Color Option
  • Suspension LeafSpringSuspension
  • Dimensions 12500*2500*1550mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10320

Side view of a 40ft container transport semi trailer with three 13-ton Fuwa axles and leaf spring suspension
Side view of a 40ft container transport semi trailer with three 13-ton Fuwa axles and leaf spring suspension
Key Benefits

What This Unit Does Well

  • 3-axle layout supports 40-ton payload with even weight distribution across the axles
  • Leaf spring suspension is robust for rough terrain and low maintenance in remote areas
  • ABS brake system improves stopping safety on wet or uneven roads
  • 1200R20 or 12R22.5 tyre options allow local fitment in markets with standard tyre supply
  • ISO CCC certification meets import requirements in many emerging markets
  • Steel Q345B frame provides high strength and resistance to deformation under heavy loads
Application Scenarios

Where It Is Used

  • Container transport between inland depots and coastal ports on unpaved or poorly maintained roads
  • Long-haul freight in regions with limited trailer repair facilities and spare parts availability
  • Bulk cargo movement where the trailer must carry full 40-ton loads over extended distances
  • Fleet expansion in African, Middle Eastern or Southeast Asian markets requiring immediate delivery
Fit

Who It Is For

  • Fleet owners expanding container transport capacity with low maintenance requirements
  • Contractors needing trailers that can handle 40-ton loads on rough or unsealed access roads
  • Machinery dealers stocking semi trailers for resale in markets with limited local manufacturing
  • Logistics operators importing trailers for local assembly where full truck chassis are not available
Buyer Pain

Problems It Solves

  • Trailer frame failure due to under-rated axles or weak steel in high-load applications
  • Lack of local spare parts for trailer axles, brakes or suspension components
  • Import delays caused by missing or non-compliant certification documents
  • Inconsistent trailer dimensions that prevent proper container locking and stability
  • High freight cost from shipping full trailers in containers due to poor space utilisation
Engineering

Technical Features

  • Steel Q345B welded frame with 12500*2500*1550mm external dimensions
  • 3-axle configuration with two or three 13-ton Fuwa brand axles
  • Leaf spring suspension system for durability on rough terrain
  • ABS anti-lock braking system on all axles
  • Tyre options: 1200R20 or 12R22.5, compatible with standard container trailer fitment
  • ISO CCC certification for compliance with Chinese export standards
  • Flatbed skeleton design for container mounting without side walls or decking
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size12500*2500*1550mm
ColorOption
SuspensionLeafSpringSuspension
Dimensions12500*2500*1550mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionContainerTransportation
TypeSemi-Trailer
Trailer Model40ft Container Transport Semi Trailer
Dimensions L x W x H12500 x 2500 x 1550 mm
Axle Number2 or 3
Axle Capacity13 Ton
Axle BrandFuwa
Brake SystemABS
Tyre Size1200R20 or 12R22.5
Max Payload40 Tons
Place of OriginShandong, China
Loading Capacity40 Tons
OEM No.91370211
Trailer TypeSemi-Trailer
Tons Place of OriginShandong, China (Mainland)
Semi Trailer Axle13
Ton Fuwa Brand FunctionContainer
Materials

Materials and Build

  • Q345B steel frame with welded construction for high tensile strength
  • Leaf spring suspension made from high-strength alloy steel
  • ABS brake system with standard hydraulic lines and sensors
  • 13-ton Fuwa brand axles with forged steel housing and sealed bearings
  • 1200R20 or 12R22.5 radial tyres with steel belts and reinforced sidewalls
Process

How an Order Is Handled

  • You provide the container size, load weight and route conditions you expect
  • We confirm the trailer configuration (2 or 3 axles) and tyre size based on your payload and road conditions
  • You approve the final specification sheet including colour, axle count and suspension type
  • The trailer is built to order and photographed at each stage before shipment
  • We arrange bulk or container shipping with a partner agency and issue export documents
Quality Control

Checks Before Loading

  • All raw materials and OEM parts (axles, suspension, tyres) are sourced centrally and inspected before use
  • Welding joints are checked with non-destructive testing equipment during production
  • Final trailer is tested for brake function, axle alignment and suspension movement
  • Photos and video of the trailer are sent before loading for your review
Customisation

What Can Be Changed

  • Custom trailer colour other than standard grey or white
  • Choice between 2-axle or 3-axle configuration based on load and road conditions
  • Tyre size selection: 1200R20 or 12R22.5 depending on local supply and load rating
  • Optional fifth wheel plate height adjustment for compatibility with specific tractor heads
  • Add-on features such as side rails, tie-down points or lighting system
Honest Comparison

How It Compares With the Alternatives

2-axle container trailerThe 3-axle version supports higher payload and better weight distribution on weak roads but has higher purchase and maintenance cost
Hydraulic suspension trailerLeaf spring suspension is simpler, cheaper to maintain, and more reliable in dusty or high-temperature environments
Use Guide

Using It Well

  • Use only approved tyre pressure for 1200R20 or 12R22.5 tyres to avoid blowouts
  • Keep the fifth wheel plate clean and lubricated to prevent wear on the mating surface
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

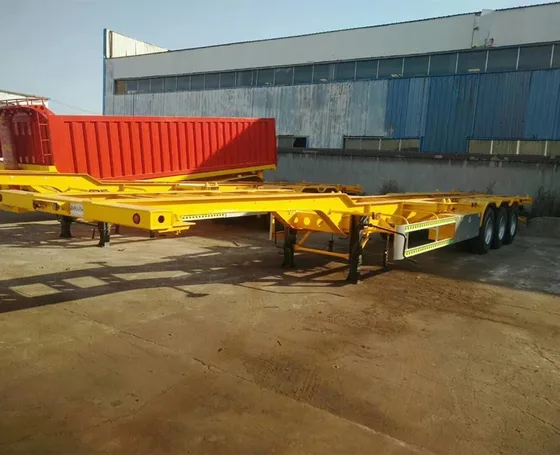

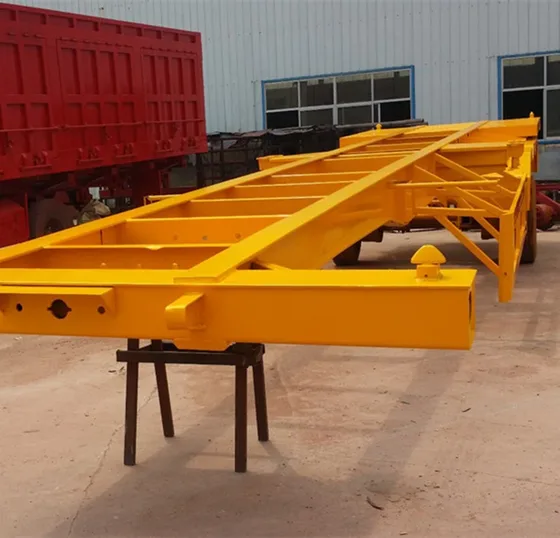

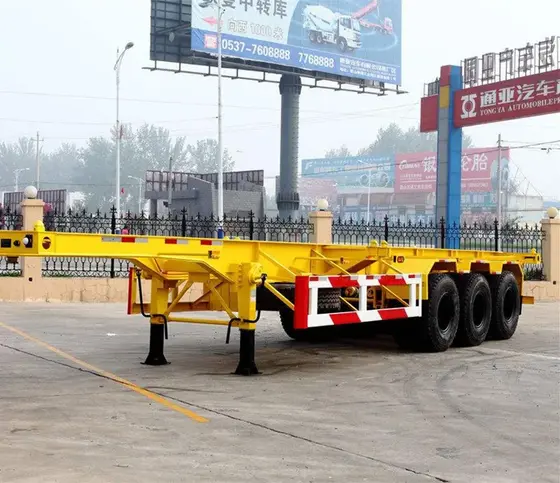

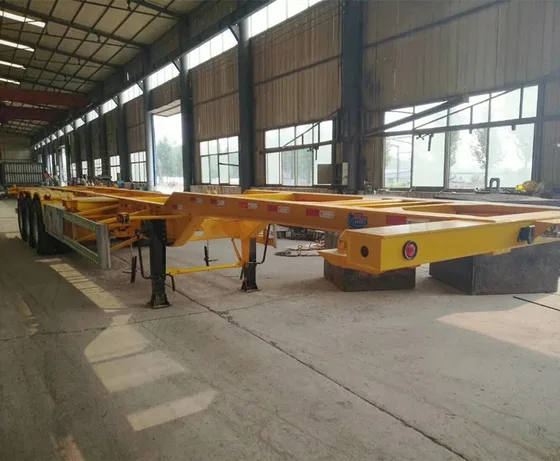

Front view of the semi trailer with fifth wheel coupling and 1200R20 tyresRear view showing the ABS brake system and 12R22.5 tyre fitmentFlatbed skeleton frame with welded Q345B steel structure and tie-down pointsUndercarriage view showing the 3-axle layout, leaf springs, and brake linesTrailer parked on a yard with a 40ft container mounted on the deck
Source Specification

Manufacturer Text We Hold for This Listing

40ft Container Transport Semi Trailer Skeleton 3 Axles Container Semi Trailer Product Information Product Name 40ft Container Transport Semi Trailer Skeleton 3 Axles Container Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 12500*2500*1550mm Max Loading Capacity 40 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 2/3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanc

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Flat Bed Trailers Buyers Compare With This

All 61 Flat Bed Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All trailers are new, built to order with fresh materials and components. We provide photos and inspection reports before shipment.

What is the lead time

15 workdays after prepayment. This includes production, inspection, and preparation for shipping.

Can you supply spare parts for this trailer later

Yes. Fuwa axles, leaf springs, ABS components, and tyres are available for separate order and can be shipped with future loads.

Do you ship by container or bulk

We ship by bulk for trailers with standard dimensions. Container shipping is possible but requires lowering the frame and may increase cost.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and ISO CCC certification are included. Additional inspection certificates are available on request.
