40Ft 3Axle Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo

A 40ft 3-axle side wall/side board/side drop semi-trailer designed for container and cargo transport. Tare weight is 7500kg with a payload capacity of 40-50 tons. The trailer features a heavy-duty I-beam main frame constructed from Q345 steel, welded using automatic submerged-arc processes, and offers options for mechanical or airbag suspension. It is configured for compatibility with standard container handling and general freight.

Use OtherTrailers
Size 13000*2600*2700mm
Suspension MechanicalSuspensionor
Material Steel
Axle Fuwa/BPW/YORK/SAFBrand

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10537

Side view of a 40ft 3-axle side wall semi-trailer

Key Benefits

What This Unit Does Well

Heavy-duty I-beam frame constructed from Q345 steel provides durability for demanding loads
Fuwa/BPW/YORK/SAF axle options allow matching to existing fleet standards and budgets
Multiple tyre size options (1100r20, 1200r20, 12r22.5, 385/65r22.5, 425/65r22.5) adapt to road conditions and load requirements
BV, CCC, ISO9001:2008 and SGS certifications demonstrate adherence to recognised quality standards
Optional mechanical or airbag suspension provides ride quality and load protection choices
28T two-speed landing gear ensures stable loading and unloading operations

Application Scenarios

Where It Is Used

Transporting 20ft or 40ft containers between ports, rail yards and distribution centres
Hauling palletised cargo, steel coils, machinery and construction materials
Moving bulk goods such as grain, coal or aggregates in side-board configuration
Supporting general freight operations requiring a versatile and robust trailer platform
Regional freight transport where payload capacity is a priority

Fit

Who It Is For

Logistics companies needing a versatile trailer for container and general cargo
Construction firms transporting materials and equipment to project sites
Agricultural businesses moving bulk commodities and harvested crops
Fleet operators seeking a durable and cost-effective trailer solution
Rental companies supplying trailers to a diverse range of customers

Buyer Pain

Problems It Solves

Damage to cargo caused by inadequate trailer strength or securing points
High maintenance costs associated with poorly constructed trailer frames
Compatibility issues with existing tractor units and loading equipment
Delays due to unreliable trailer components and frequent breakdowns
Difficulty meeting regulatory requirements for trailer safety and compliance

Engineering

Technical Features

Heavy-duty I-beam main frame constructed from Q345 steel
Mechanical suspension or airbag suspension options
Fuwa/BPW/YORK/SAF brand axles
12R22.5, 385/65R22.5 or 425/65R22.5 tyres
3mm checkered plate flooring
600mm high side walls
28T two-speed landing gear
RE6 relay valve braking system
Optional JOST kingpin

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 40Ft 3Axle Side Wall/Side Board/Side Drop Semi Trailer for Container and Cargo
Use	OtherTrailers
Size	1300026002700mm
Suspension	MechanicalSuspensionorairbag
Material	Steel
Axle	Fuwa/BPW/YORK/SAFBrand
Tire	1100r20;1200r20;12r22.5;385/65r22.5;425/65r22.5
Type	platformSemiTrailer
Certificate	BV.CCC.ISO9001:2008.SGS
Trailer Type	platform Semi Trailer
Overall Size	12700mm2700mm2700mm
Inside Size	12500*2500mm
Tare Weight	7500 kg
Payload	40-50Ton
Main Beam	Q345 Steel
Floor	3mm checkered plate
Side Wall Height	600mm
Tyre	1100r20;1200r20;12r22.5;385/65r22.5;425/65r22.5
Brake System	RE6 relay valve
Kingpin	2′′/3.5" bolt-in
Landing Gear	28T two-speed, manual operating
Certifications	BV.CCC.ISO9001:2008.SGS
Max Payload	50T
Place of Origin	Shandong, China (Mainland)
Model Number	LHY9401
Product Name	40FT Semi Trailer For
Container and Cargo Type	platform

Materials

Materials and Build

High tensile steel Q345 for the main frame construction
Steel checkered plate for the trailer floor
Steel for side walls and cross members
Fuwa/BPW/YORK/SAF steel axles
Rubber for tyre options (1100r20, 1200r20, 12r22.5, 385/65r22.5, 425/65r22.5)

Process

How an Order Is Handled

You specify the cargo type, route and tractor unit coupling height
We confirm axle configuration, suspension type and tyre selection
You approve the final specification sheet including paint colour and options
The trailer is assembled, inspected and photographs are sent for approval
We arrange shipment by flat rack or 40HQ container

Quality Control

Checks Before Loading

Main frame weld quality is inspected using ultrasonic testing
Axle alignment and brake system functionality are verified
Tyre pressure and wheel nut torque are checked before dispatch
Paint finish is inspected for defects and corrosion resistance
Third-party inspection by SGS or BV is available upon request

Customisation

What Can Be Changed

Side wall height adjustment to suit specific cargo dimensions
Floor material options including hardwood or composite panels
Addition of twist locks for secure container loading
Custom paint schemes and branding options
Installation of auxiliary lighting and safety equipment

Honest Comparison

How It Compares With the Alternatives

Fixed side wall trailer	Side board/drop trailers offer greater cargo versatility for over-height or irregularly shaped loads
Two-axle trailer	Three axles provide higher payload capacity and improved weight distribution
Airbag suspension	Mechanical suspension is lower cost and simpler to maintain, but airbag offers a smoother ride

Use Guide

Using It Well

Inspect tyre pressure and wheel nut torque after the first 500km of operation
Lubricate all moving parts regularly to prevent corrosion and wear
Check brake system functionality before each journey
Ensure cargo is properly secured to prevent shifting during transport
Adhere to local regulations regarding trailer weight limits and dimensions

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Close-up of the trailer's chassis and suspension system

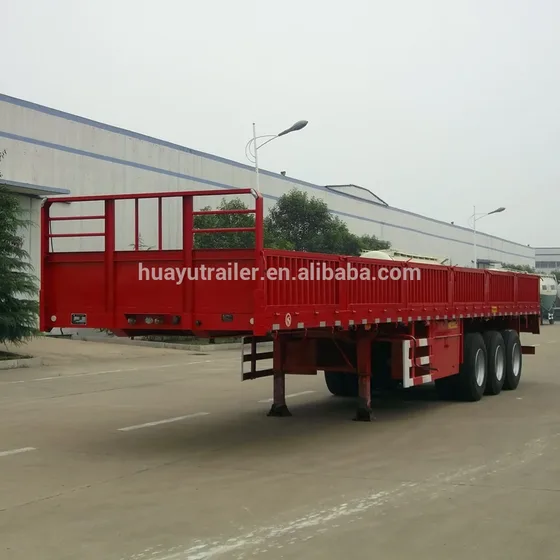

View of the trailer's side board configuration

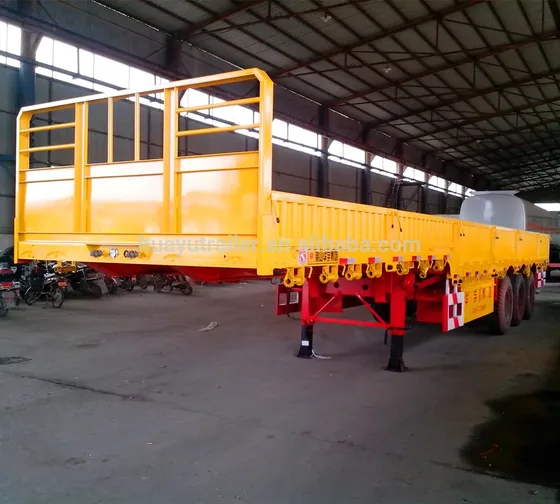

Rear view of the trailer showing the axles and tyres

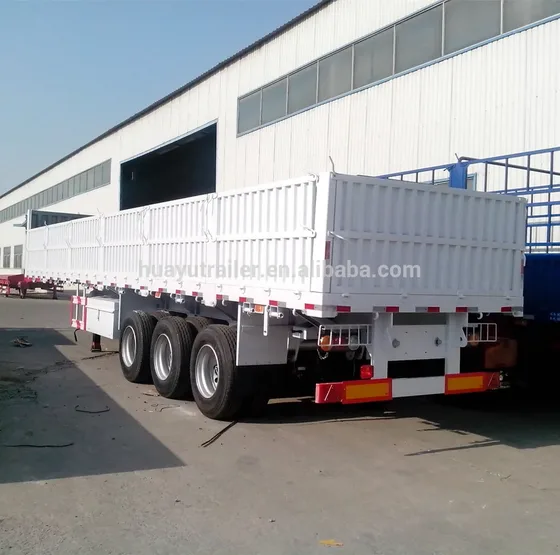

The trailer's landing gear in the lowered position

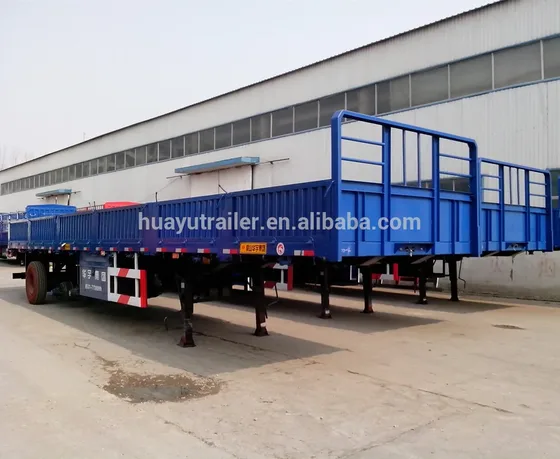

Close-up of the trailer's steel frame construction

Source Specification

Manufacturer Text We Hold for This Listing

40Ft 3Axle Side Wall/Side Board/Side Drop Semi Trailer For Container and Cargo Product Description \ 3 AXLE SIDE WALL SEMI TRAILER PARAMETERS Tare weight 7500kg Payload 40-50Ton Overall Size 12700mm*2700mm*2700mm Inside Size 12500*2500 Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Upper flange 14mm;Bottom flange 16mm;Middle Flange 8 mm, Height 500mm; Side beam 16# channel steel(U-steel) Cross member 10# channel steel(U-steel) Floor 3mm checkered plate Side wall Height 600mm thickness 1.2mm Front board Manufacture Standard Height 1200mm Axle FUWA brand 13T *3 axles Suspension Mechanical suspension American type Leaf spring Leaf spring 10pcs*90mm*13mm Tyre 12R22.5 *12units Wheel rim 9.0-22.5 *12pcs Kingpin 2′′/3.5" bolt-in king pin Optional upon choice Landing gear 28T two-speed, manual operating,

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
