Flat Bed Trailers

40FT 3 Axles Container Skeleton Semi Trailer

A 40FT three-axle skeleton semi-trailer with a 12400 x 2500 x 1550mm frame, built for transporting 20ft and 40ft containers. It uses a leaf spring suspension system with standard 13-ton axles and 12R22.5 or 12.00R20 tyres. The trailer is constructed from steel and carries a 40-ton payload. It is designed for long-haul container transport where low maintenance and consistent fitment are required.

Use TruckTrailer
Size 12400*2500*1550mm
Color Option
Suspension LeafSpringSuspension
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10332

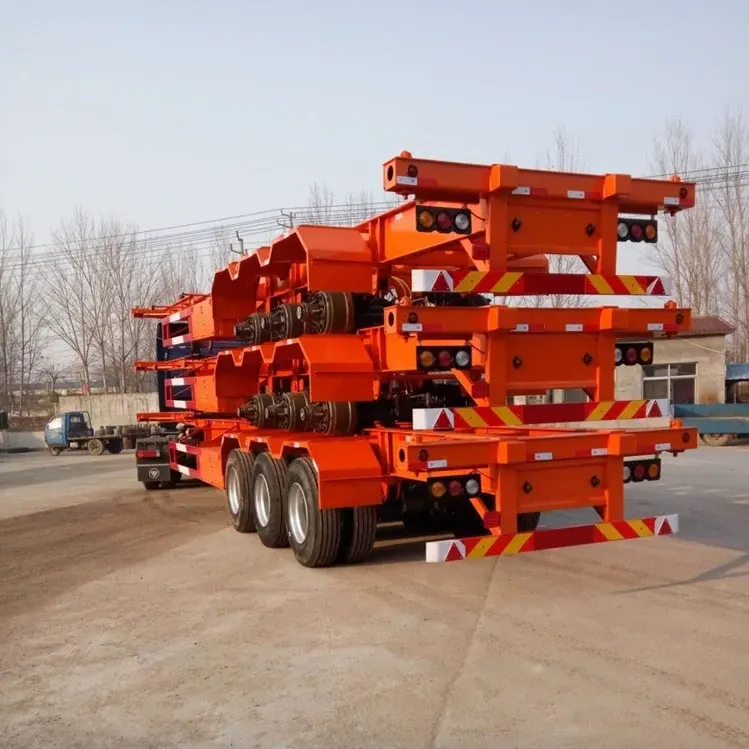

Side view of a 40FT three-axle container skeleton semi-trailer with 12R22.5 tyres and leaf spring suspension

Key Benefits

What This Unit Does Well

Three 13-ton axles provide stable load distribution across container weight and road conditions
Leaf spring suspension is durable and easy to maintain in remote or low-service environments
12R22.5 or 12.00R20 tyres are widely available in Africa, the Middle East and Southeast Asia
12 twist locks allow secure container attachment with standard ISO fittings
40-ton payload rating matches the maximum legal load for most international container routes
Steel frame construction ensures long-term structural integrity under repeated loading

Application Scenarios

Where It Is Used

Container transport between inland depots and seaports on roads with moderate to poor surface quality
Long-haul movement of 40ft containers across countries where trailer maintenance facilities are limited
Intermodal transfer at rail terminals where trailers must be loaded and unloaded frequently
Fleet expansion for logistics operators needing consistent trailer specs across multiple units

Fit

Who It Is For

Fleet owners standardising on one trailer type for container transport across multiple routes
Contractors managing containerised cargo in regions with limited access to spare parts
Logistics operators importing trailers to set up regional distribution hubs
Dealers stocking semi-trailers for resale in markets with high demand for container transport

Buyer Pain

Problems It Solves

Inconsistent trailer dimensions and axle ratings that cause loading delays at ports
Trailer frames that fail under repeated container loading due to weak steel or poor welding
Lack of spare parts for suspension or axles in remote regions where repair is delayed
Inability to match trailer specs with container twist lock systems due to mismatched design
High downtime from trailers that cannot handle full container loads without structural stress

Engineering

Technical Features

Three 13-ton axles in a 3-axle layout with 12 twist locks for ISO container securing
Leaf spring suspension system for reliable performance on uneven roads
Steel frame with 12400 x 2500 x 1550mm external dimensions
12R22.5 or 12.00R20 tyres as standard, with options for both sizes
ABS braking system for improved stopping performance under load
Supporting legs rated at 28 tons to stabilise the trailer when uncoupled

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 40FT 3 Axles Container Skeleton Semi Trailer
Use	TruckTrailer
Size	1240025001550mm
Color	Option
Suspension	LeafSpringSuspension
Material	Steel
Certification	CCC,ISO9001
Axle	Standard13Ton
Tire	12R22.5or12.00R20
Function	Transport20ft40ftContainer
Type	Semi-Trailer
Capacity	40T
Trailer Model	Tri-axle Skeleton Semi Trailer
Dimensions L x W x H	12400 x 2500 x 1550 mm
Axle Type	Standard 13 Ton
Tyre Size	12R22.5 or 12.00R20
Max Payload	40 T
Twist Locks	12 Pieces
Supporting Legs	28T Rated
Brake System	ABS
Certifications	CCC, ISO9001
Place of Origin	Shandong, China (Mainland)
Trailer Type	Semi-Trailer
Brand Name	Shengxing
Product Name	Tri-axle Skeleton
Semi Trailer Color	Option
Spring Suspension Axle	Standard 13

Materials

Materials and Build

Steel frame with welded joints for structural rigidity
Leaf spring suspension with steel springs and dampers
13-ton axles with steel housing and sealed bearings
12R22.5 or 12.00R20 tyres with steel rims
ABS braking system with electronic control unit and sensors
Twist locks made from forged steel with anti-corrosion coating

Process

How an Order Is Handled

You provide the container size, route conditions and loading frequency
We confirm the trailer spec, including tyre size and twist lock count, based on your needs
You approve the final configuration and colour before payment
We prepare the trailer, photograph and video record the frame, axles and suspension
We book bulk shipment or container transport and issue export documents

Quality Control

Checks Before Loading

All axles, suspension and tyres are inspected before assembly
Welding joints are checked using visual and non-destructive testing methods
Final trailer is tested for twist lock function and brake response
Photos and video of the trailer are sent before loading

Customisation

What Can Be Changed

Custom paint colour beyond the standard option
Custom logo or branding on the trailer sides
Choice between 12R22.5 or 12.00R20 tyres
Adjustment of supporting leg height for uneven ground
Addition of extra lighting or reflectors for night operation

Honest Comparison

How It Compares With the Alternatives

2-axle container trailer	The 3-axle unit handles heavier loads and distributes weight better on poor roads, but has higher purchase and maintenance cost
Air suspension trailer	Leaf spring is more reliable in dusty or high-temperature regions and requires less maintenance, but offers less ride comfort
Low-bed trailer	This skeleton trailer has a higher deck for container clearance, but is less suitable for heavy or oversized cargo that needs lower loading height

Use Guide

Using It Well

Check tyre pressure and twist lock condition before each trip
Lubricate twist lock mechanisms monthly in dusty or humid environments
Verify brake system function before long hauls, especially after long storage
Use supporting legs when uncoupled to prevent frame sagging on soft ground

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer showing the 12 twist locks and supporting legs

Rear view of the trailer with fifth wheel coupling and ABS brake lines

Top-down view of the steel frame with 12400 x 2500 mm dimensions and axle positions

Close-up of the twist lock mechanism and steel frame welds on the trailer deck

Source Specification

Manufacturer Text We Hold for This Listing

40FT 3 Axles Container Skeleton Semi Trailer Product Description 40FT 3 Axles Container Skeleton Semi Trailer Packaging & Shipping Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical force and advanced manufacturing technology, the company is a large-scale enterprise integrating R&D, production, sales and service. Our company has passed the ISO quality management certification system, and we have standard management system. Our products have obtained CCC certification, with good performance and reliable quality. Our semi trailer products have 8 products series including c

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
