Flat Bed Trailers

4 Axle 40FT Container/Cargo Transport Flatbed/High Bed/Platform Semi Trailer

A 4-axle, 40ft platform semi-trailer with a 60T payload capacity and dimensions of 12400mm x 2480mm x 1550mm. Constructed with a Q345B steel main beam and Q235 side and cross members, it is designed for the transport of 20ft and 40ft containers. Mechanical suspension and FUWA, HJ or BPW axles are available. It addresses the need for reliable, heavy-duty cargo transport where container compatibility is essential.

Use OtherTrailers
Size 12400*2480*1550mm,Cust
Suspension MechanicalSuspension
Material Steel
Paint Polyurethanepaint

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10501

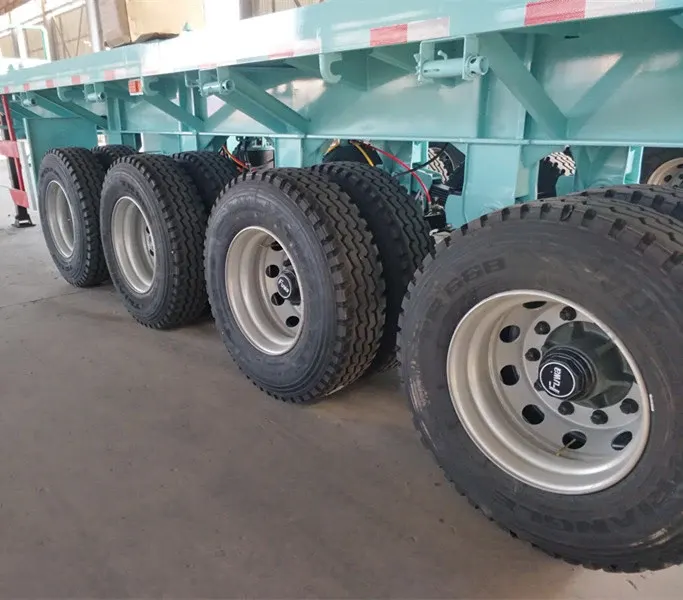

Side view of a 4-axle flatbed semi-trailer

Key Benefits

What This Unit Does Well

60T payload capacity maximizes cargo density and reduces the number of trips
FUWA, BPW or HJ axle options provide flexibility to match budget and operating conditions
Mechanical suspension offers a balance of durability and cost-effectiveness
3mm checkered steel floor provides a durable and slip-resistant surface
12R22.5 or 11.00R20 tire options offer compatibility with regional availability
Optional ABS braking system enhances safety and meets regulatory requirements

Application Scenarios

Where It Is Used

Transporting 20ft and 40ft shipping containers between ports and inland depots
Hauling heavy machinery and construction equipment on flatbed configurations
Moving prefabricated building sections and oversized cargo
Supporting logistics operations requiring high payload capacity and durability
General cargo transport where container compatibility is beneficial

Fit

Who It Is For

Logistics companies specializing in container transport
Construction firms needing to move heavy equipment
Machinery dealers shipping large items
Fleet owners requiring versatile and high-capacity trailers
Rental companies offering flatbed trailer solutions

Buyer Pain

Problems It Solves

Damage to cargo during transport due to inadequate floor surface
Excessive trips due to trailers with insufficient payload capacity
High maintenance costs associated with low-quality trailer components
Compatibility issues when loading different container sizes
Safety concerns related to braking performance and stability

Engineering

Technical Features

Q345B steel main beam with 14mm top flange and 16mm bottom flange
Q235 steel side and cross members for structural support
3mm checkered steel floor for durability and slip resistance
FUWA, HJ or BPW axles with 13/16T capacity
Mechanical suspension system for reliable performance
WABCO RE6 relay valve and T30/30 spring brake chamber

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 4 Axle 40FT Container/Cargo Transport Flatbed/High Bed/Platform Semi Trailer
Use	OtherTrailers
Size	1240024801550mm,Customized
Suspension	MechanicalSuspension
Material	Steel
Paint	Polyurethanepaint
Axle	FUWA/BPW/HJoptional
Tire	12r22.511.00r20
Function	carry20ft40ftcontainer
Certificate	CCCISO9001:2008BVSGS
Trailer Type	Flatbed Semi-Trailer
Axle Count	4
Dimensions (L x W x H)	12400 x 2480 x 1550 mm
Payload Capacity	60 T
Main Beam	Q345B Steel
Side Beam	Q235 Steel
Floor	3mm Checkered Plate
Axle Brand	FUWA/BPW/HJ optional
Tire Size	12R22.5 / 11.00R20
King Pin	2" or 3.5"
Braking System	WABCO RE6
Lights	LED
Certifications	CCC ISO9001:2008 BV SGS
Max Payload	60T
Place of Origin	Shandong, China (Mainland)
Brand Name	HYD
Color and Making	comply with customer's requirement

Materials

Materials and Build

Q345B steel for the main beam, providing high tensile strength
Q235 steel for side and cross members, offering structural integrity
3mm checkered plate steel for the floor, ensuring durability and slip resistance
FUWA, BPW or HJ axles, selected based on budget and performance needs
Polyurethane paint for corrosion protection and a durable finish

Process

How an Order Is Handled

You specify the required axle configuration, tire size and any optional features
We confirm the availability of components and provide a detailed quotation
You approve the final specification sheet and submit a 30% deposit
The trailer is assembled, inspected and prepared for shipment
We arrange for RoRo or container shipping and provide all necessary export documents

Quality Control

Checks Before Loading

Steel plate thickness and weld quality are inspected before assembly
Axle alignment and brake system functionality are tested before shipment
Paint finish is checked for defects and corrosion resistance
Third-party inspection by BV or SGS is available upon request
Photographs and videos are taken during assembly and inspection for your records

Customisation

What Can Be Changed

Axle brand (FUWA, BPW, HJ) to match your budget and performance needs
Tire size (12R22.5 or 11.00R20) based on regional availability
King pin size (2" or 3.5") to suit your tractor unit
Optional ABS braking system for enhanced safety
Custom paint colour to match your fleet branding

Honest Comparison

How It Compares With the Alternatives

2-axle flatbed trailer	A 4-axle trailer supports heavier loads and distributes weight better, reducing stress on the tractor unit
Air suspension trailer	Mechanical suspension is more cost-effective and requires less maintenance, but provides a firmer ride
Trailer without checkered floor	A checkered floor improves grip and reduces the risk of cargo shifting during transport

Use Guide

Using It Well

Inspect tire pressure and wheel nut torque regularly
Lubricate axle bearings and suspension components as per the maintenance schedule
Check brake system functionality before each trip
Ensure cargo is properly secured and evenly distributed
Avoid overloading the trailer beyond its 60T payload capacity

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Close-up of the trailer's chassis and axles

Top view of the flatbed trailer's checkered steel floor

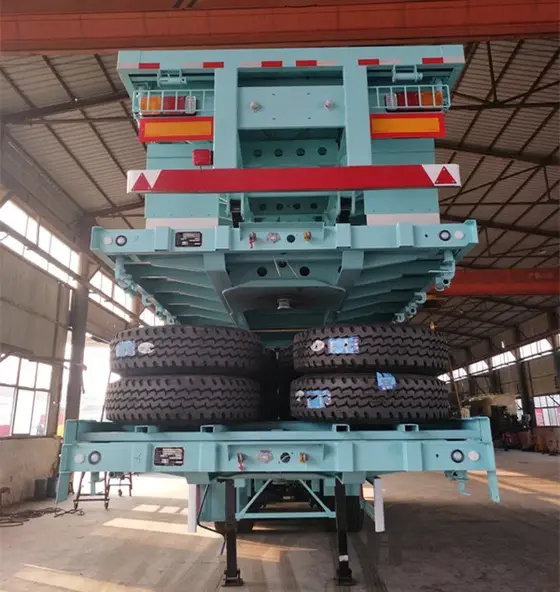

Rear view of the trailer with landing gear

Front view of the trailer with the kingpin

Source Specification

Manufacturer Text We Hold for This Listing

4 Axle 40FT Container/Cargo Transport Flatbed/High Bed/Platform Semi Trailer Product Description FLATBED SEMI TRAILER Tare weight 7 000kg Size 1 30 00mm*2500mm* 15 00mm P ayload 60 T Main beam Top flange 14mm, width140mm; Middle Flange 8mm; height 500mm; bottom flange16mm, width 140mm; Material is Q345B Steel S ide beam 16# channel steel(Q235) C ross member 10# channel steel(Q235) F loor 3mm checkered plate Axle 3 /4 A xle FUWA /HJ/BPW brand 13 /16 T Suspension Mechanical suspension American type local brand or Air suspension L eaf spring 10pcs *90(W)mm*13(Thickness)mm or 12*100*12mm Tire 12R22.5 D ouble star /Triangle brand 12pcs Wheel rim 9.0-22.5 better brand 12pcs Kingpin JOST brand 2" /3.5 '' bolt-in king pin or welding type Landing gear JOST brand two-speed, manual operating,heavy duty landing gear 2 8 T T wist lock 4/8/ 12pcs Lifting type or Twist Screw Type optional Braking syste

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
