Flat Bed Trailers

3 Axles 40ton 20ft Low Price Flat Bed Container 40ft Flatbed Semi Trailer

A 3-axle 40-ton capacity flatbed semi-trailer designed for 40ft container transport, measuring 13000 x 3000 x 1250mm with a steel Q345B frame, 13-ton Fuwa-brand axles, leaf spring suspension, and ABS braking. It is built for low-cost, high-volume container haulage in markets where payload capacity and chassis durability are prioritized over premium ride quality or advanced suspension systems.

Use TruckTrailer
Size 13000*3000*1250mm
Color Option
Suspension LeafSpringSuspension
Dimensions 13000*3000*1250mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10275

3-axle flatbed semi trailer in white, front three-quarter view with 13000mm length and 1250mm deck height

Key Benefits

What This Unit Does Well

3 axles at 13-ton each distribute load evenly across the chassis, reducing axle stress on rough roads
Leaf spring suspension is low maintenance and widely supported in African, Middle Eastern and Southeast Asian repair networks
ABS braking system meets basic safety requirements for international transport without requiring electronic control units
1200R20 or 12R22.5 tyre options allow local sourcing in markets where these sizes are standard
Steel Q345B frame provides high strength and resistance to deformation under heavy container loads
13000mm length matches the standard 40ft container footprint, minimizing overhang and load shift risk

Application Scenarios

Where It Is Used

Container transport between inland depots and seaports on unpaved or poorly maintained access roads
Long-haul freight across Central Asia and Eastern Europe where axle load limits are strict
Fleet expansion for logistics operators needing low-cost, high-capacity trailers with common parts

Fit

Who It Is For

Fleet owners replacing older trailers with a high payload-to-cost ratio unit
Contractors operating in regions with poor road infrastructure and limited access to advanced suspension repair
Trucking companies sourcing trailers for use in markets where ISO CCC certification is required
Importers buying in bulk for resale in African and Middle Eastern markets with high demand for 40ft container trailers

Buyer Pain

Problems It Solves

High maintenance costs from overloading single or dual axles on rough terrain
Lack of spare axle or brake parts in remote locations due to non-standard or proprietary components
Delays caused by trailers that cannot meet local axle load regulations
Uncertainty over whether a trailer will fit a 40ft container due to incorrect length or deck height

Engineering

Technical Features

Steel Q345B chassis frame with welded construction for high load-bearing strength
Three 13-ton Fuwa-brand axles with leaf spring suspension system
ABS braking system with standard dual-line hydraulic setup
Deck height of 1250mm from ground to deck surface, suitable for 40ft container loading
13000mm length and 3000mm width matching ISO 40ft container dimensions
1200R20 or 12R22.5 tyre size options for compatibility with local tyre suppliers

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axles 40ton 20ft Low Price Flat Bed Container 40ft Flatbed Semi Trailer
Use	TruckTrailer
Size	1300030001250mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	1300030001250mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	ContainerFlatbedTransportation
Type	Semi-Trailer
Trailer Type	Semi-Trailer
Axle Number	3
Axle Capacity	13 Ton Each
Brand of Axle	Fuwa
Suspension Type	Leaf Spring
Brake System	ABS
Deck Dimensions L x W	13000 x 3000 mm
Deck Height	1250 mm
Max Loading Capacity	50 Tons
Tyre Size	1200R20 or 12R22.5
Origin	Shandong, China (Mainland)
Brand Name	Shengxing
OEM No.	2018121203
Max Payload	50
Tons Place of Origin	Shandong, China (Mainland)

Materials

Materials and Build

Steel Q345B for the main chassis frame and deck structure
Cast steel axle housings for the 13-ton Fuwa-brand axles
Leaf spring sets with galvanized steel components for corrosion resistance
1200R20 or 12R22.5 radial tyres with steel rims
ABS brake calipers and hydraulic lines with standard fittings

Process

How an Order Is Handled

You confirm the trailer length, axle count, tyre size and colour preference
We source the unit from stock or confirm build availability with the supplier
You receive photos of the trailer, axle numbers and certificate before deposit
Unit is prepared with final inspection and photographed in the yard
We book bulk shipment or container loading and provide export documents for customs

Quality Control

Checks Before Loading

Axle numbers and chassis numbers are cross-checked against the specification sheet
Suspension and brake systems are tested for proper function before loading
Weld joints are inspected visually and with non-destructive methods for defects
Tyres are checked for wear, pressure and correct size before shipment
Photos of the trailer, axles and certificate are sent before departure

Customisation

What Can Be Changed

Colour of the trailer body (standard white, other options available)
Tyre brand and size (1200R20 or 12R22.5)
Optional fifth wheel plate or mounting bracket for specific tractor heads
Additional lighting or reflector configuration
Deck surface treatment (e.g. anti-slip coating)

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Leaf spring is cheaper and easier to repair in remote areas, but offers less ride comfort on long hauls
4-axle 50-ton trailer	The 3-axle version is lighter and more cost-effective for standard container loads, but cannot carry full 50-ton payloads on all routes

Use Guide

Using It Well

Check axle load distribution before first use; ensure no single axle exceeds 13 tons
Use a load spreader or dolly when loading containers to avoid deck deformation

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

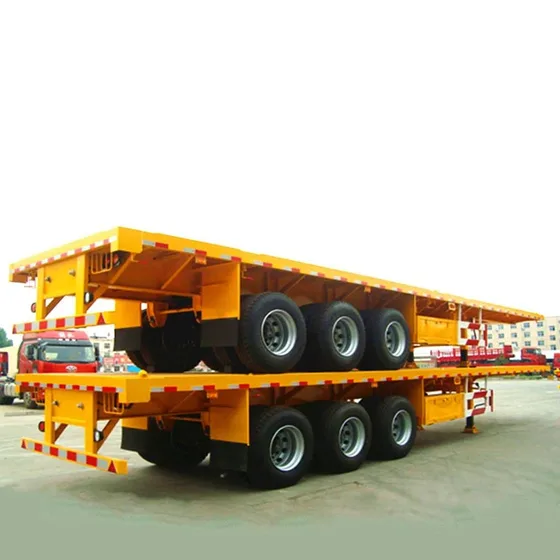

Side view of the trailer showing leaf spring suspension and 1200R20 tyres

Rear view with ABS brake lines, fifth wheel plate, and mud flaps

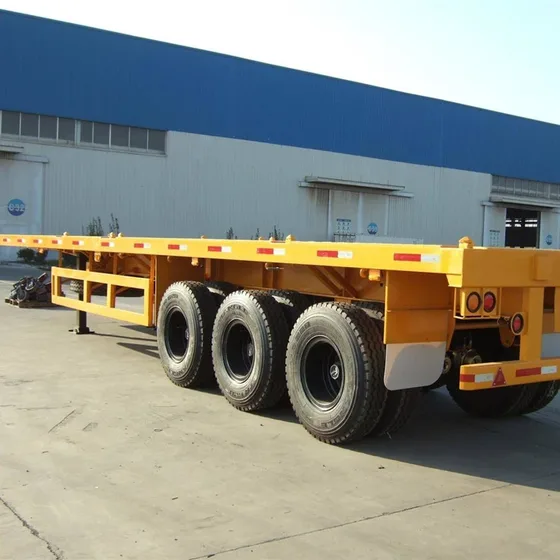

Deck surface with 13000mm length and 3000mm width, ready for 40ft container loading

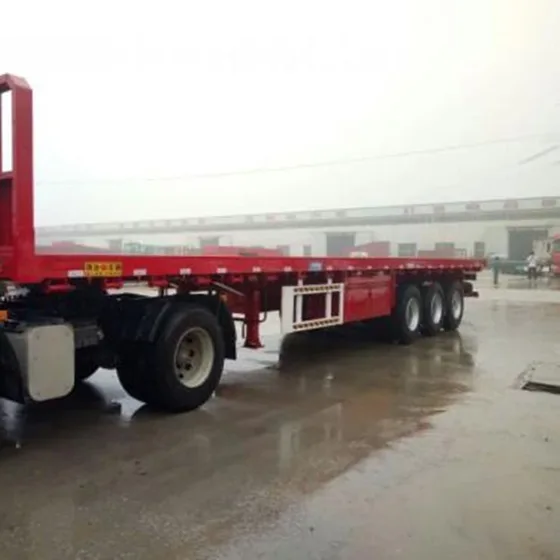

Trailer deck with anti-slip coating and edge protection

Source Specification

Manufacturer Text We Hold for This Listing

3 Axles 40ton 20ft Low Price Flat Bed Container 40ft Flatbed Semi Trailer 3 Axles 40ton 20ft Low Price Flat Bed Container 40ft Flatbed Semi Trailer Product Information Product Name 3 Axles 40ton 20ft Low Price Flat Bed Container 40ft Flatbed Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*3000*1250mm Max Loading Capacity 60 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
