Flat Bed Trailers

3 Axle Multi-purpose Semi Trailer with Twist Lock and Side Board

A 3-axle multi-purpose semi-trailer with twist lock and side boards, built for cargo transport with a 12500 x 2500 x 2700mm deck, steel construction, and mechanical steel suspension. It features 12 x 12R22.5 triangle brand tyres, manual landing gear, and a 2" or 3.5" king pin. Designed for use with heavy-duty trucks, it is supplied in yellow with SGS, TUV, BV, and ISO9001 certification, and is ready for export from Shandong, China.

Use TruckTrailer
Size 12500*2500*2700mm
Color Yellow
Suspension Mechanicalsteelsuspens
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10538

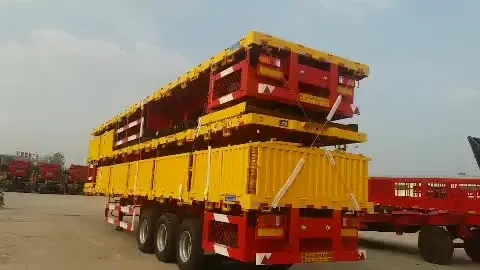

Yellow 3-axle semi-trailer with side boards and twist lock system, front three-quarter view

Key Benefits

What This Unit Does Well

3-axle layout supports up to 60T payload with even weight distribution across axles
Mechanical steel suspension is durable and requires no air system maintenance
Twist lock system allows secure connection to tractor heads with standard twist locks
Side boards at 600/800/1000mm height offer flexibility for bulk and stackable cargo
12R22.5 tyres are widely available in African, Middle Eastern and Southeast Asian markets
Yellow colour improves visibility in low-light conditions and on dusty sites

Application Scenarios

Where It Is Used

Transport of construction materials such as steel beams, pipes, and concrete blocks across unpaved roads
Flatbed hauling of machinery and industrial equipment between ports and inland yards
Bulk transport of agricultural or mining equipment where side protection is needed
Long-haul cargo movement where trailer must be loaded and unloaded at remote sites without cranes

Fit

Who It Is For

Fleet owners managing mixed cargo types and needing one trailer for multiple loads
Contractors operating in regions with poor road infrastructure and frequent off-road access
Machinery dealers who need to deliver large equipment to customers without additional handling
Logistics operators importing trailers to Africa, the Middle East or Southeast Asia with local parts availability

Buyer Pain

Problems It Solves

Multiple trailer types with different coupling systems causing delays in loading and unloading
Trailer damage from corrosion during sea transport due to lack of protective coating
Inconsistent axle fitment when replacing trailers from different brands or models
Lack of side protection for loose or irregular cargo during transit on rough roads
Uncertainty over export readiness and documentation when importing from China

Engineering

Technical Features

3-axle configuration with BPW, Fuwa, Yuek or HJ axle options
Mechanical steel suspension with no air bags or complex components
12 x 12R22.5 triangle brand tyres with steel rims
Manual landing gear with 2" (50mm) or 3.5" (90mm) king pin
Side boards available in 600mm, 800mm or 1000mm heights
Twist lock system compatible with standard 2" or 3.5" tractor heads
Steel deck and frame construction with factory yellow paint finish
SGS, TUV, BV and ISO9001 certification documented by supplier

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle Multi-purpose Semi Trailer with Twist Lock and Side Board
Use	TruckTrailer
Size	1250025002700mm
Color	Yellow
Suspension	Mechanicalsteelsuspension
Material	Steel
Certification	SGS;TUV;BV;ISO9001
Axle	BPW/fuwa/yuek/HJ
Tire	12R22.5trianglebrand12pcs
Function	cargotransport
Type	Semi-Trailer
Trailer Model	HYD9404B
Dimensions L x W x H	12500 x 2500 x 2700 mm
Deck Length	12500 mm
Deck Width	2500 mm
Deck Height	2700 mm
Axle Count	3
Axle Brands	BPW / Fuwa / Yuek / HJ
Tyre Size	12R22.5
Tyre Quantity	12 pcs
Tyre Brand	Triangle brand
Side Board Height	600 / 800 / 1000 mm
King Pin Size	2" (50mm) or 3.5" (90mm)
Landing Gear	Manual operation
Twist Lock	Standard
Max Payload	60 T
Colour	Yellow

Materials

Materials and Build

Welded steel frame and deck structure
Steel side boards with bolted mounting
Mechanical steel suspension with leaf springs
12R22.5 steel-rimmed tyres with triangle brand tread
Yellow factory paint with wax coating applied before shipping

Process

How an Order Is Handled

You confirm the required side board height, axle brand, and king pin size
We check stock availability or confirm build schedule with the supplier
You approve the final specification and pay 30% deposit
Trailer is prepared, waxed, and photographed before packaging
We arrange container or bulk shipment and issue export documents

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the specification sheet
Twist lock and king pin are tested for smooth operation before packing
Wax coating is inspected for full coverage on all steel surfaces
Tyres are checked for wear, pressure and correct brand before loading
Photos of loading and lashing with steel wire are sent before shipment

Customisation

What Can Be Changed

Side board height: 600mm, 800mm or 1000mm
Axle brand: BPW, Fuwa, Yuek or HJ
King pin size: 2" (50mm) or 3.5" (90mm)
Colour: Yellow standard, other colours available on request
Tyre brand: Triangle brand standard, other brands available if in stock

Honest Comparison

How It Compares With the Alternatives

2-axle semi-trailer	The 3-axle model handles heavier loads and distributes weight better on soft or uneven ground, but costs more to transport and has higher maintenance
Air suspension trailer	Mechanical steel suspension is simpler, cheaper to maintain, and does not require air compressors or hoses, but offers less ride comfort on long hauls
Flatbed trailer without side boards	Side boards protect cargo from shifting and weather, but add weight and reduce deck space for wide loads

Use Guide

Using It Well

Inspect all twist locks and king pin before connecting to tractor head
Check tyre pressure and side board bolts before each trip, especially on rough terrain
Use wax-coated surface to prevent rust during long storage or transport
Keep spare tyres and bolts on hand for roadside repairs in remote areas
Avoid overloading beyond 60T to prevent axle or suspension damage

Source Specification

Manufacturer Text We Hold for This Listing

3 axle multi-purpose semi trailer with twist lock and side board Product Description Packaging & Shipping Perfect Package Sulotion: Wax: Do wax spray process to against the trailer body suffer seawater corrosion during shipping Package: can be 3pcs one package;container package;bulk package Stable fixting with steel wire,to protect the trailer during shipping naked packing 15workdays after receive 30%of contract payment Packaging & Delivery Our Services our other products big factory have strong technical force and professional team and development team.so we can supply many type of trailer.just tell me what you want!!! our parts warehouse Company Information our certificates our certificates (quality guarantee)

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
