Flat Bed Trailers

3 Axle Flatbed Side Wall Semi Truck Trailer and 6x4 Tractor Truck

A 3-axle flatbed side wall semi-trailer with a 12500mm x 2500mm x 1500mm deck, built on a heavy-duty steel chassis with FUWA/BPW 13T axles and mechanical suspension. It features a 2" or 3.5" king pin, 11.00R22.5 or 12R22.5 12PR tires including one spare, LED lighting, 24V electrical system, and optional ABS. Designed for long-haul freight transport where payload capacity and durability are critical, it is supplied with CCC and ISO certification and is available in green, yellow, or custom colours.

Use TruckTrailer
Size 12500mm*2500mm*1500mm
Color green,yelloworperyourr
Suspension MechanicalSuspension
Material Steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10484

3-axle flatbed side wall semi-trailer in green, front three-quarter view with king pin and landing gear visible

Key Benefits

What This Unit Does Well

13T FUWA/BPW axles support up to 60-ton payload with proven reliability in heavy-duty transport
Mechanical suspension reduces maintenance cost and avoids air system failures in remote areas
12500mm deck length accommodates standard 40ft containers and long cargo without overhang
11.00R22.5 or 12R22.5 tires with 12PR rating offer strong load capacity and longer tread life
Optional ABS improves braking safety on wet or uneven roads without increasing complexity
Pre-painted chassis with anti-corrosive primer resists rust in coastal and humid environments

Application Scenarios

Where It Is Used

Transport of heavy machinery and construction equipment across unpaved roads in Southeast Asia
Long-haul container haulage between inland depots and ports in Africa with limited maintenance access
Bulk material transport in the Middle East where high temperatures accelerate tyre and brake wear
Cargo movement in Russia during winter months where mechanical suspension performs better than air systems

Fit

Who It Is For

Fleet operators needing a durable, high-capacity trailer for regional freight with minimal downtime
Contractors transporting heavy equipment across rough terrain where air suspension is prone to failure
Logistics companies sourcing trailers with consistent axle and tire fitment across multiple units
Importers requiring a trailer with CCC and ISO certification for customs clearance in regulated markets

Buyer Pain

Problems It Solves

Frequent axle failure due to under-rated suspension systems in overloaded flatbeds
High maintenance cost from air suspension systems failing in dusty or cold climates
Lack of spare parts availability for foreign-branded trailers in remote regions
Inconsistent trailer dimensions causing container stacking issues or loading delays
Uncertainty over electrical and braking system compatibility during customs inspection

Engineering

Technical Features

3-axle configuration with FUWA/BPW 13T axles, 3 units total
Mechanical suspension system with steel leaf springs on all axles
King pin size: 2" (50mm) or 3.5" (90mm), compatible with standard tractor heads
12500mm x 2500mm x 1500mm deck dimensions with side walls for cargo containment
11.00R22.5 or 12R22.5 12PR tires, 13 total including one spare, Triangle brand
24V electrical system with 7-way receptacle and LED lighting
Dual-line braking system with KTL valve, optional WEBCO brake control
Chassis pre-treated with sandblasting, anti-corrosive primer, and two coats of final paint
Optional ABS system for improved stopping performance under load

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle Flatbed Side Wall Semi Truck Trailer and 6x4 Tractor Truck
Use	TruckTrailer
Size	12500mm2500mm1500mm
Color	green,yelloworperyourrequest
Suspension	MechanicalSuspension
Material	Steel
Certification	CCC,ISO
Axle	FUWA/BPW
Tire	11.00R22.512PR,12R22.512PR
Type	Semi-Trailer
Trailer Model	Flat Bed Semi Trailer
Axle Count	3
Axle Type	FUWA/BPW 13T
Deck Length	12500 mm
Deck Width	2500 mm
Deck Height	1500 mm
Overall Dimensions L x W x H	12500 x 2500 x 1800 mm
King Pin Size	2" or 3.5"
Tire Size	11.00R22.5 12PR, 12R22.5 12PR
Tire Count	13 (including one spare)
Braking System	Dual line with KTL valve, WEBCO optional
Electrical System	24V, 7-way receptacle, LED lights
Payload Capacity	60 T
Paint Finish	Sandblasted, primer, two coats final paint
Certifications	CCC, ISO
Landing Gear	JOST Brand, Two-speed
Twist Locks	12 units

Materials

Materials and Build

Steel side walls and deck structure with welded joints
FUWA/BPW 13T axles with cast steel housings
11.00R22.5 or 12R22.5 12PR radial tires with steel rims
JOST brand two-speed landing gear with steel construction
24V electrical harness with 7-way connector and LED lights

Process

How an Order Is Handled

You provide the cargo type, route profile, and required payload capacity
We confirm the trailer configuration, axle fitment, and tire size based on your needs
You approve the final specification sheet including colour, twist lock count, and ABS option
Unit is fabricated, painted, and tested for structural integrity before shipment
We arrange RoRo or container shipping and issue export documents for customs clearance

Quality Control

Checks Before Loading

Chassis and axle numbers are photographed and matched to the approved specification
Suspension and king pin alignment are checked before final assembly
Tire pressure and brake line integrity are tested before loading
Paint finish and weld quality are inspected for rust, cracks, and coating defects
Loading and lashing photos are sent before vessel departure for your records

Customisation

What Can Be Changed

Custom trailer colour beyond green or yellow
Adjustment of twist lock count or placement for container securing
Change of king pin size to 2" or 3.5" based on tractor head compatibility
Addition of optional ABS system
Modification of deck height or side wall height for specific cargo
Inclusion of additional lighting or electrical connectors

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Mechanical suspension is more reliable in dusty or cold environments and requires less maintenance
2-axle trailer	3-axle design spreads load better and supports higher payload without exceeding axle weight limits
Lightweight aluminum trailer	Steel construction offers better durability and lower replacement cost over time, despite higher initial weight

Use Guide

Using It Well

Inspect all twist locks and landing gear before each trip to ensure secure connection
Check tire pressure weekly and adjust for load and temperature changes
Verify brake line integrity and air pressure before hauling heavy loads
Use the 24V system with a compatible battery and avoid overloading electrical circuits

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Side view of the trailer showing 12500mm deck length, mechanical suspension, and 12R22.5 tires

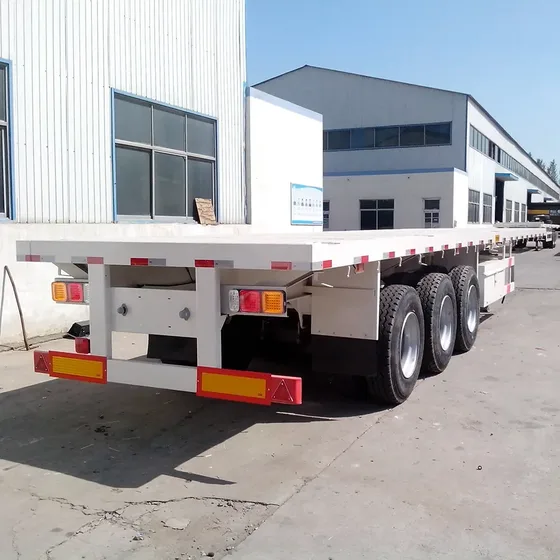

Rear view of the trailer with twist locks, 7-way electrical connector, and LED lights

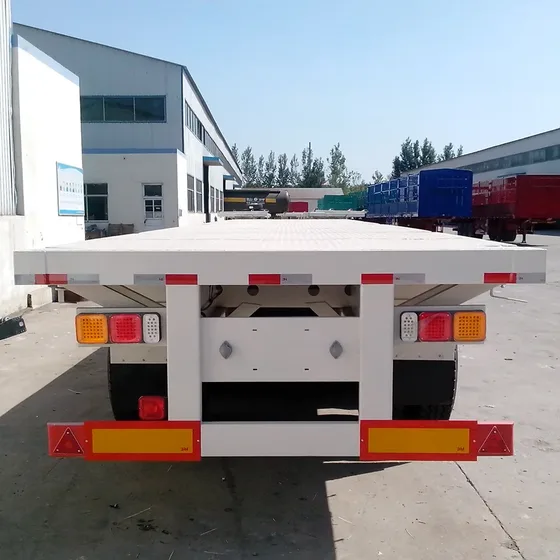

Trailer deck with side walls and twist lock points, showing cargo containment design

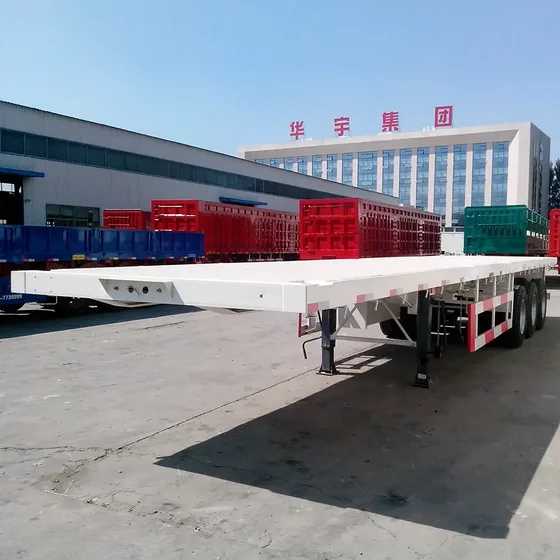

3 Axle Flatbed Side Wall Semi Truck Trailer and 6x4 Tractor Truck - photo 5

Source Specification

Manufacturer Text We Hold for This Listing

3 axle flatbed side wall semi truck trailer and 6x4 tractor truck Product Description 3axle Container Flat Bed Semi Trailer Name 3axle flat bed semi trailer/ flatbed transportation trailers/ 40ft low bwed truck body/trailer Trademark HYD Manufacturer Shandong HuaYu automobile manufacturing co. ltd. Overall Dimension 1 2500 mm*2500mm*1800mm Payload 40 t 3axle Container 3axle flat bed semi trailer Beam upper wing plate 1 4 mm, lower wing plate 1 6 mm, web 8 mm Traction Pin 2"or 3.5" traction pin Landing dear linkage Suspension Mechanical / Air / Bogie Axle FUWA 13T axle, 3 pcs Rim 8.25 steel disc wheel, 13 pcs.Made in china Tire 11.00 R2 0 12PR,12R22.5 12PR, 13 pcs. (including one spare tire), Triangle brand. ABS Optional Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final pain

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
