3 Axle 40ft Flatbed Container Semi Trailer for Transportation

A 3-axle 40ft flatbed semi-trailer designed for container and bulk cargo transport, built with Q345B steel chassis, 13-ton Fuwa-brand axles, leaf spring suspension, and ABS braking. It measures 13000 x 3000 x 1250mm with a 50-ton payload capacity, suitable for long-haul freight across Africa, the Middle East, and Southeast Asia where road conditions vary and spare parts must be locally available.

Use TruckTrailer
Size 13000*3000*1250mm
Color Option
Suspension LeafSpringSuspension
Dimensions 13000*3000*1250mm

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10278

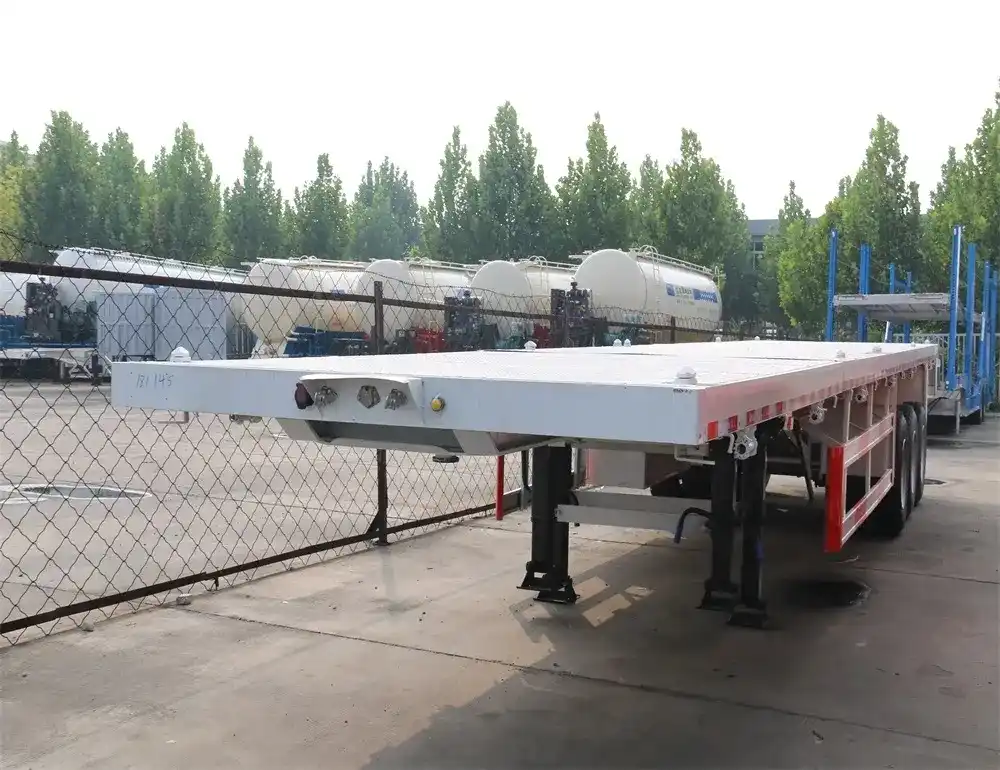

Side view of a 3-axle 40ft flatbed container semi-trailer with 1200R20 tyres and leaf spring suspension

Key Benefits

What This Unit Does Well

13-ton Fuwa axles are standard in Chinese export trailers, so replacement parts are widely stocked in key markets
Leaf spring suspension handles rough terrain and uneven loads without requiring frequent maintenance
ABS braking system improves stopping safety on wet or gravel surfaces common in developing regions
13000mm length matches the standard 40ft container, ensuring full load utilisation and no overhang
50-ton payload capacity supports heavy industrial and construction cargo without exceeding legal limits
ISO CCC certification ensures compliance with import regulations in many emerging markets

Application Scenarios

Where It Is Used

Transporting 40ft shipping containers between inland depots and seaports on unpaved access roads
Moving bulk construction materials like steel beams or aggregates across long distances with poor road surfaces
Hauling heavy machinery or industrial equipment where axle load distribution must be controlled
Operating in regions with limited access to specialist trailer repair services, where common parts are essential

Fit

Who It Is For

Fleet operators standardising on Chinese-built trailers with shared axle and suspension components
Contractors importing trailers for use in mining, oil and gas, or infrastructure projects in Africa and Southeast Asia
Logistics companies needing low-cost, high-capacity trailers for container and bulk cargo routes
Trailer dealers sourcing stock for resale in markets where European or North American units are too expensive

Buyer Pain

Problems It Solves

Trailer fleets with mismatched axles and suspension types that require different spare parts and maintenance procedures
Delays caused by waiting for custom-built trailers when a standard configuration is needed quickly
Lack of local availability for brake components, axles, or suspension parts in remote or high-risk regions
Overloading risks due to unclear or unverified payload ratings on imported trailers
Uncertainty over certification status when importing into countries requiring CCC or ISO compliance

Engineering

Technical Features

3-axle configuration with 13-ton Fuwa-brand axles for even load distribution
Leaf spring suspension system for durability on rough roads and heavy loads
ABS braking system for improved stopping performance in wet or low-traction conditions
Q345B steel chassis with welded construction for structural integrity
13000 x 3000 x 1250mm external dimensions matching standard 40ft container length
1200R20 or 12R22.5 tyres, depending on load and road condition preference
Flatbed design with no sides or roof for easy loading and unloading of bulky cargo

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle 40ft Flatbed Container Semi Trailer for Transportation
Use	TruckTrailer
Size	1300030001250mm
Color	Option
Suspension	LeafSpringSuspension
Dimensions	1300030001250mm
Material	Steel
Certification	ISOCCC
Axle	13TonFuwaBrand
Tyre	1200R20or12R22.5
Function	ContainerFlatbedTransportation
Type	Semi-Trailer
Trailer Model	3 Axle 40ft Flatbed Container Semi Trailer
Dimensions L x W x H	13000 x 3000 x 1250 mm
Max Payload	50 Tons
Axle Number	3 Axles
Axle Capacity	13 Ton Fuwa Brand
Brake System	ABS
Tyre Size	1200R20 or 12R22.5
Loading Capacity	50 Tons
Place of Origin	Shandong, China (Mainland)
Brand Name	Shengxing
Trailer Type	Semi-Trailer
Tons Place of Origin	Shandong, China (Mainland)
For Transportation Axle	13
Ton Fuwa Brand Function	Container Flatbed
Transportation Suspension	Leaf Spring

Materials

Materials and Build

Q345B steel chassis with welded frame structure
Steel cab and deck components with factory paint finish
Cast steel 13-ton Fuwa axles with sealed bearings
Leaf springs with rubber bushings for vibration damping
1200R20 or 12R22.5 radial tyres on steel rims

Process

How an Order Is Handled

You confirm the trailer dimensions, axle type, tyre size, and colour preference
We check current stock or production schedule to confirm lead time and availability
You approve the final specification sheet and pay the deposit to secure the order
Trailer is built, inspected, and photographed before shipment
We arrange bulk or container shipping with a partner agency and provide export documentation

Quality Control

Checks Before Loading

All axles, suspension components, and tyres are sourced centrally and inspected before assembly
Welding joints are checked using visual and non-destructive methods during production
Final trailer is tested for brake function, axle alignment, and suspension movement
Photos and video of the finished unit are sent before loading

Customisation

What Can Be Changed

Choice of trailer colour (default white or custom RAL code)
Tyre size: 1200R20 or 12R22.5 based on road conditions and load
Optional additional lighting or reflector strips for night operation
Custom mounting points for side rails or cargo securing systems
Optional fifth wheel plate or coupling adjustment for specific tractor heads

Honest Comparison

How It Compares With the Alternatives

2-axle 40ft flatbed trailer	The 3-axle version carries more weight safely and reduces axle load per axle, but costs more to maintain and has higher rolling resistance
Air suspension semi-trailer	Leaf spring suspension is cheaper and more reliable in dusty or off-road conditions, but offers less ride comfort on long hauls
European-built trailer	Chinese-built units have faster lead times and lower cost, but may lack long-term support in markets with strict certification rules

Use Guide

Using It Well

Check tyre pressure weekly, especially when operating on hot or rough terrain
Replace brake pads and linings according to wear indicators, not on a fixed schedule
Keep the ABS system clean and dry; inspect sensor wiring after off-road use
Use the same tyre size and brand across all axles to maintain balanced load distribution

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer with 13-ton Fuwa axles and ABS brake lines visible

Rear view showing the fifth wheel coupling and mud flaps on the trailer deck

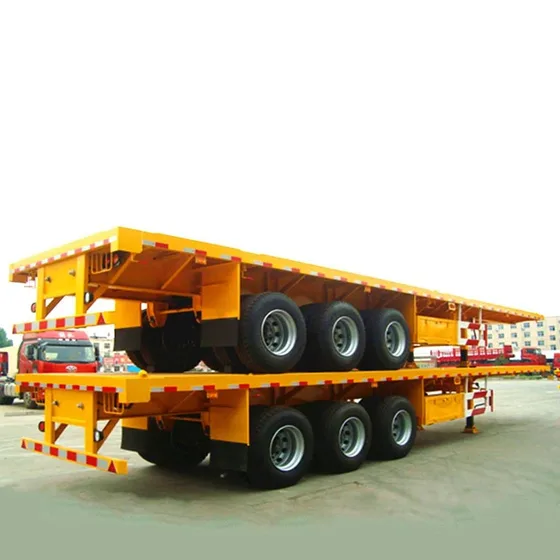

Flatbed deck with no sides, showing the Q345B steel structure and cargo securing points

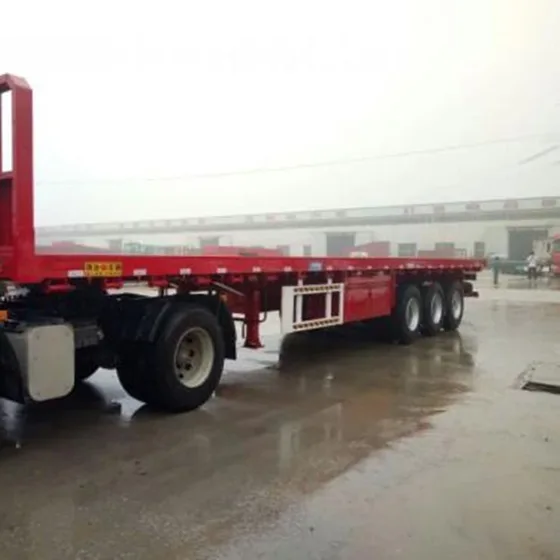

Trailer under construction with welding and assembly work visible in a factory yard

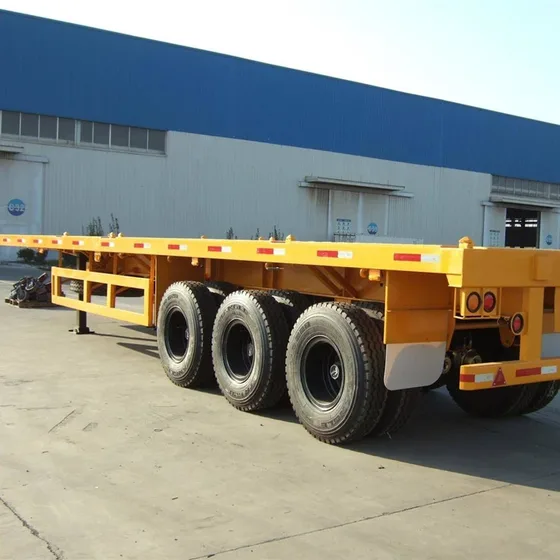

Trailer loaded with a 40ft container on a flatbed, showing full length and axle load distribution

Source Specification

Manufacturer Text We Hold for This Listing

3 Axle 40ft Flatbed Container Semi Trailer For Transportation 3 Axle 40ft Flatbed Container Semi Trailer For Transportation Product Information Product Name 3 Axle 40ft Flatbed Container Semi Trailer For Transportation Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 13000*3000*1250mm Max Loading Capacity 60 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Accessories Show More Choice Packing & Delivery About Us the factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong technical forc

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
