3 Axle 20/40FT Flatbed Container Truck Semi Trailer for Cargo Transportation

The main beam uses Q345 high tensile steel, welded by automatic submerged-arc processes. It features a mechanical suspension, FUWA/BPW/HJ optional axles and 12R22.5 or 11.00R20 tires. It is configured to carry 20ft and 40ft containers.

Use OtherTrailers,Trucktra
Size 14030*2480*1725mm,Cust
Suspension MechanicalSuspension
Material Steel
Axle FUWA/BPW/HJoptional

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10502

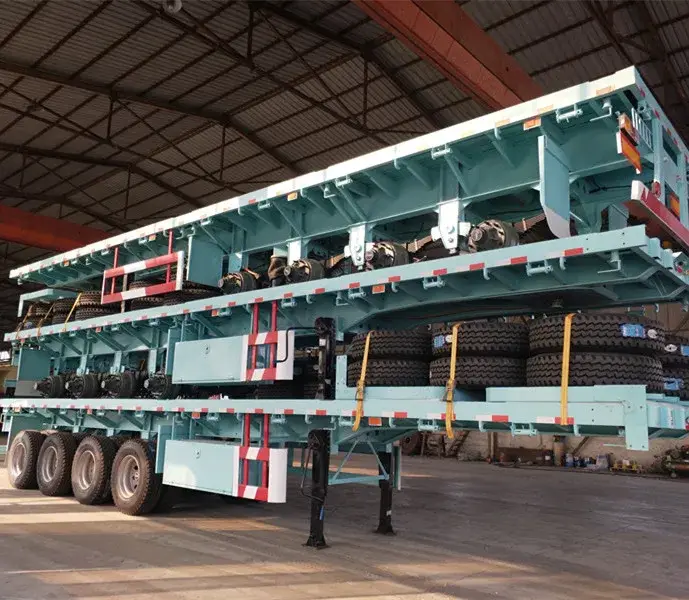

Side view of a three-axle flatbed semi-trailer

Key Benefits

What This Unit Does Well

Heavy-duty Q345 steel I-beam construction increases durability for repeated use
FUWA/BPW/HJ axle options allow matching to existing fleet standards
12R22.5 and 11.00R20 tire options provide flexibility for road conditions
Mechanical suspension is simpler to maintain than air ride in many regions
3mm checkered steel flooring resists damage from cargo loading
WABCO RE6 relay valve and spring brake chamber provide reliable braking

Application Scenarios

Where It Is Used

Transporting 20ft and 40ft containers between ports, rail yards and distribution centres
Hauling construction equipment and machinery to project sites
Moving steel coils, timber and other heavy materials
Supporting over-weight or over-length cargo with appropriate permits

Fit

Who It Is For

Logistics companies needing a versatile flatbed for container and general freight
Construction firms transporting equipment and materials
Machinery dealers moving heavy equipment
Rental companies supplying trailers to various industries
Fleet owners needing a durable trailer for demanding applications

Buyer Pain

Problems It Solves

Damage to cargo from inadequate flooring or tie-down points
High maintenance costs from trailers built with low-grade steel
Delays caused by axle failures or tyre blowouts
Braking system failures leading to accidents or cargo loss
Difficulty finding spare parts for non-standard trailer components

Engineering

Technical Features

Heavy-duty Q345 steel I-beam main frame
16# channel steel side beams
10# channel steel cross members
3mm checkered steel flooring
FUWA/BPW/HJ axles (optional)
Mechanical suspension
WABCO RE6 relay valve
T30/30 spring brake chamber
12R22.5 or 11.00R20 tyres

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 3 Axle 20/40FT Flatbed Container Truck Semi Trailer for Cargo Transportation
Use	OtherTrailers,Trucktrailer
Size	1403024801725mm,Customized
Suspension	MechanicalSuspension
Material	Steel
Axle	FUWA/BPW/HJoptional
Tire	12r22.511.00r20
Function	carry20ft40ftcontainer
Type	Semitrailer
Certificate	CCCISO9001:2008BVSGS
Trailer Type	Semi-trailer
Dimensions (L x W x H)	1403024801725mm
Payload	45T
Tires	12R22.5/11.00R20
King Pin	2" or 3.5′′
Braking System	WABCO RE6
Certification	CCC ISO9001:2008 BV SGS
Truck Trailer Max Payload	60T
Place of Origin	Shandong,
China (Mainland) Type	Semi trailer
BV SGS Suspension	Mechanical
Suspension Function	carry 20ft 40ft container
JOST Tire	12r 22.5 11.00r20

Materials

Materials and Build

Q345 high tensile steel for main beam construction
Q235 steel for side and cross members
3mm checkered steel for flooring
FUWA/BPW/HJ steel axles
Rubber tyres (12R22.5 or 11.00R20)
Steel wheel rims

Process

How an Order Is Handled

You specify container size, route and typical cargo weight
We confirm axle configuration, tyre type and suspension based on your needs
You approve the final specification sheet and colour before deposit
The trailer is built, inspected and photographed before loading
We arrange RoRo or container shipment and provide export documents

Quality Control

Checks Before Loading

Steel plate thickness and welding quality are inspected before assembly
Axle alignment and brake function are tested before shipment
Tyre pressure and wheel nut torque are checked before loading
Third-party inspection by SGS or BV is welcome at your cost
Loading photos are provided before the vessel departs

Customisation

What Can Be Changed

Axle brand (FUWA, BPW, HJ)
Tyre brand and tread pattern
Suspension type (mechanical or air)
King pin size (2" or 3.5′′)
Painting colour and company logo
Additional tie-down points or lashing rings

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Mechanical suspension is lower cost and simpler to maintain, but less comfortable
Trailer with lighter steel	Heavier gauge steel increases durability and payload capacity, but adds to tare weight
Trailer without ABS	ABS improves braking performance in emergency situations, but adds to cost and complexity

Use Guide

Using It Well

Check tyre pressure and wheel nut torque after the first 500km
Grease axle bearings and suspension components regularly
Inspect brake lines and air tanks for leaks
Avoid overloading the trailer beyond its 45T capacity
Replace worn tyres and brake pads promptly

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

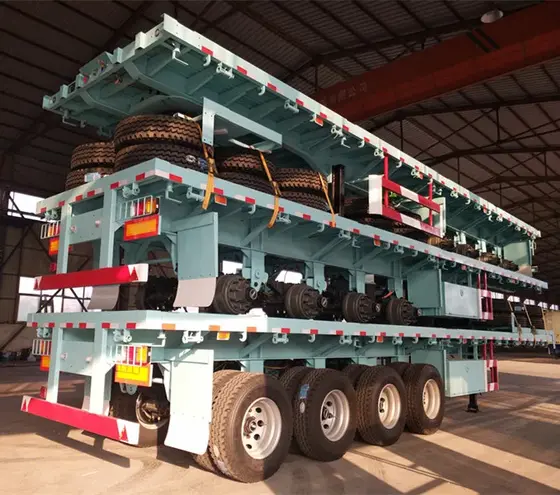

Close-up of the flatbed trailer's steel flooring

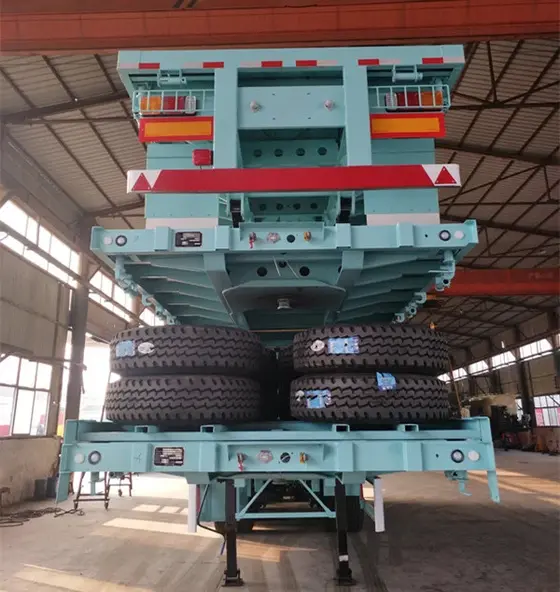

Underside view showing the mechanical suspension system

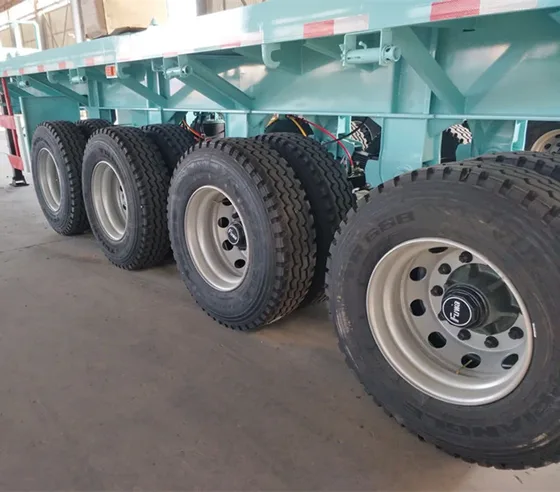

Rear view of the trailer with multiple axles and tires

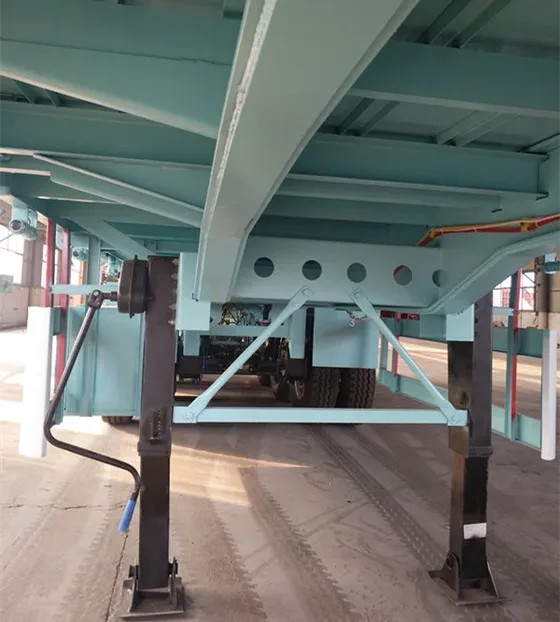

Detail of the trailer's kingpin connection

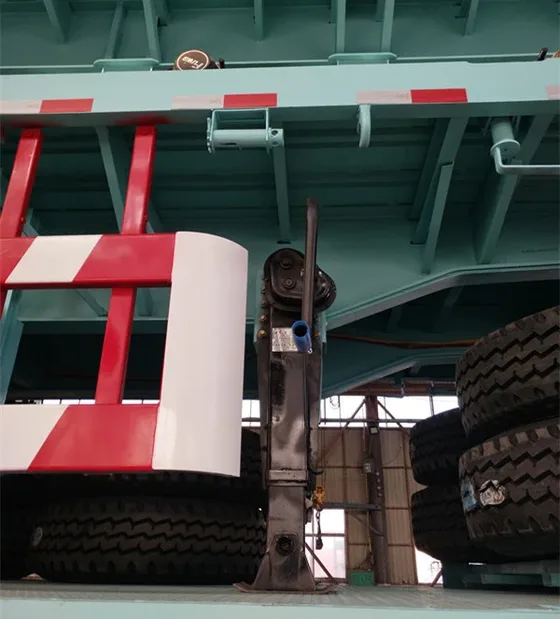

Side view showcasing the trailer's overall length

Source Specification

Manufacturer Text We Hold for This Listing

3 Axle 20/40FT Flatbed Container Truck Semi Trailer for Cargo Transportation Product Description Flatbed Semi Trailer Tare weight 6 000kg Size 1 25 00mm*2500mm* 15 00mm P ayload 45T Main beam H eavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm S ide beam 16# channel steel(Q235) C ross member 10# channel steel(Q235) F loor 3mm checkered plate Axle 3 /4 A xle FUWA /HJ/BPW brand 13T /16T Suspension Mechanical suspension American type local brand or Air suspension L eaf spring 10pcs *90*13mm Tire 12R22.5 D ouble star /Triangle brand 12pcs Wheel rim 9.0-22.5 better brand 12pcs Kingpin JOST brand 2" bolt-in king pin Landing gear JOST brand two-speed, manual operating,heavy duty landing gear 2 8 T T wist lock 12pcs Braking system

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
