Flat Bed Trailers

2 Axles 3 Axles 40ft Container Trailer Skeleton Semi Trailer

A 2 or 3 axle skeleton semi-trailer designed for 40ft container transport, built with a 12500*2500*1550mm steel frame using Q345B material, featuring 13-ton Fuwa brand axles, leaf spring suspension, ABS braking, and tyre options of 1200R20 or 12R22.5. It is rated for a maximum payload of 60 tons and is certified under ISO CCC. This configuration is used by logistics operators in Africa, the Middle East and Southeast Asia who need a robust, low-maintenance trailer for long-haul container movement.

  • Use TruckTrailer
  • Size 12500*2500*1550mm
  • Color Option
  • Suspension LeafSpringSuspension
  • Dimensions 12500*2500*1550mm
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10326

Side view of a 2-axle skeleton semi-trailer with 1200R20 tyres and leaf spring suspension
Side view of a 2-axle skeleton semi-trailer with 1200R20 tyres and leaf spring suspension
Key Benefits

What This Unit Does Well

  • 2 or 3 axle layout provides balanced load distribution across uneven or unpaved roads common in developing markets
  • Q345B steel frame offers high strength and durability under repeated loading cycles
  • 13-ton Fuwa brand axles are widely available in regional markets, reducing spare parts lead time
  • Leaf spring suspension is low maintenance and performs reliably in high-temperature and dusty environments
  • ABS braking system improves control during heavy braking on long downhill stretches
  • 1200R20 or 12R22.5 tyre options allow local fitment and replacement without special ordering
Application Scenarios

Where It Is Used

  • Container transport between inland depots and seaports on roads with poor surface quality and frequent potholes
  • Long-haul movement of 40ft containers across desert or mountainous terrain where spare parts availability is limited
  • Fleet expansion for logistics companies needing a standardised trailer model across multiple routes
  • Contractor operations requiring a trailer that can handle 60-ton payloads on construction site access roads
Fit

Who It Is For

  • Fleet owners importing trailers to standardise on a single axle and suspension type across their operations
  • Contractors needing a trailer that matches the load capacity and axle rating of their existing prime movers
  • Logistics operators in Africa and Southeast Asia who require a trailer with local spare parts availability
  • Trucking companies sourcing trailers for resale in markets where ISO CCC certification is required
Buyer Pain

Problems It Solves

  • Trailer frames that fail under repeated 60-ton loads due to low-grade steel or poor welding
  • Downtime caused by unavailable axle or brake parts in remote regions
  • Inconsistent trailer dimensions that prevent proper container locking and alignment
  • Lack of certification for import clearance in markets requiring ISO CCC or similar standards
  • High maintenance costs from suspension systems that degrade quickly in harsh climates
Engineering

Technical Features

  • Semi-trailer type with 2 or 3 axle configuration for 40ft container transport
  • Frame material: Q345B steel, welded construction with reinforced cross-members
  • 13-ton Fuwa brand axles with hub-mounted brake assemblies
  • Leaf spring suspension system with dual leaf springs per axle
  • ABS braking system with electronic control unit and sensor wiring
  • Tyre options: 1200R20 or 12R22.5, both standard sizes in regional markets
  • Overall dimensions: 12500 mm (L) x 2500 mm (W) x 1550 mm (H) unloaded
  • Maximum payload capacity: 60 tons
  • Frame height of 1550mm to match standard container floor height
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

UseTruckTrailer
Size12500*2500*1550mm
ColorOption
SuspensionLeafSpringSuspension
Dimensions12500*2500*1550mm
MaterialSteel
CertificationISOCCC
Axle13TonFuwaBrand
Tyre1200R20or12R22.5
FunctionContainerTransportation
TypeSemi-Trailer
Trailer TypeSemi-Trailer
Axle Configuration2 or 3 Axles
Dimensions L x W x H Unloaded12500 x 2500 x 1550 mm
Frame MaterialQ345B Steel
Max Payload Capacity60 Tons
Axle Rating13 Ton Fuwa Brand
Suspension TypeLeaf Spring Suspension
Brake SystemABS
Tyre Size1200R20 or 12R22.5
Brand NameShengxing
Place of OriginShandong, China (Mainland)
OEM Number2018092704
Loading Capacity40-60 Tons
Frame Height1550 mm
Max Payload60
Materials

Materials and Build

  • Q345B steel for the main frame and cross-members
  • 13-ton Fuwa brand axles with forged steel housing and hub
  • Leaf spring suspension with galvanised steel springs
  • ABS control unit and brake sensors with weather-resistant casing
  • 1200R20 or 12R22.5 radial tyres with reinforced sidewalls
  • Galvanised steel brackets and mounting hardware
Process

How an Order Is Handled

  • You confirm the axle count (2 or 3), tyre size, colour and delivery port
  • We source the trailer from the manufacturer in Shandong, China, using the approved specification
  • We verify the frame number, axle model and brake system against the order before production
  • The trailer is built, inspected and photographed with the chassis number visible
  • We arrange bulk or container shipping based on your port and volume, with a quote for freight and insurance
  • We issue the commercial invoice, packing list, bill of lading and certificate of origin
Quality Control

Checks Before Loading

  • All raw materials and OEM parts (axles, suspension, tyres) are purchased centrally and inspected before use
  • Welding joints are checked with visual and ultrasonic testing equipment during production
  • Axle alignment and brake system function are tested on a rolling road before final inspection
  • The trailer is loaded onto a test platform to verify frame rigidity and suspension response
  • Photos of the chassis number, axle model and brake components are sent before shipment
Customisation

What Can Be Changed

  • Choice of 2 or 3 axle configuration based on load and road conditions
  • Tyre size: 1200R20 or 12R22.5, both available with standard or reinforced sidewalls
  • Frame colour: white, grey or custom RAL code on request
  • Fifth wheel height adjustment to match your tractor head
  • Optional additional lighting or reflector kits for night operation
  • Custom marking or branding on the side panels
Honest Comparison

How It Compares With the Alternatives

4-axle trailerThe 2 or 3 axle version is lighter and cheaper to ship, but may not meet weight limits on some roads where axle load is restricted
Air suspension trailerLeaf spring suspension is more durable in dusty and off-road conditions, but offers less ride comfort on long hauls
Non-ABS trailerABS reduces stopping distance and prevents wheel lock-up on wet or loose surfaces, but adds cost and complexity
Use Guide

Using It Well

  • Use only the specified tyre size and pressure to avoid frame stress and uneven wear
  • Keep the fifth wheel plate clean and lubricated to prevent binding during coupling
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

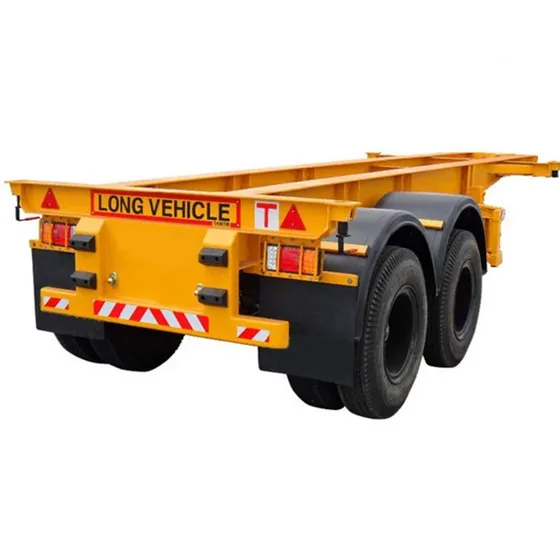

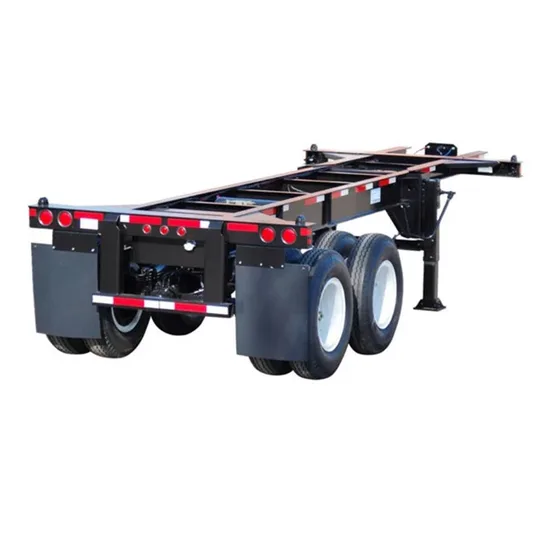

Front view of a 3-axle container trailer showing the fifth wheel and frame structureRear view of the trailer with ABS brake lines and 12R22.5 tyresClose-up of the Q345B steel frame and welded joints on the trailer chassisTrailer with 1200R20 tyres and a white painted frame, parked on a yardDetail of the 13-ton Fuwa brand axle and hub-mounted brake assembly
Source Specification

Manufacturer Text We Hold for This Listing

2 Axles 3 Axles 40ft Container Trailer Skeleton Semi Trailer 2 Axles 3 Axles 40ft Container Trailer Skeleton Semi Trailer Product Information Product Name 2 Axles 3 Axles 40ft Container Trailer Skeleton Semi Trailer Type Semi-Trailer Material Steel Q345 B Certificate ISO CCC Size 12500*2500*1550mm Max Loading Capacity 60 Tons Brand Shengxing Function Container Transportation Axle 13 Ton Fuwa Brand Axle Number 2/3 Axles Brake System ABS Tyre 1200R20 or 12R22.5 Origin Shandong, China Suspension Leaf Spring Suspension Product Display Accessories Show More Choice Packing & Delivery About Us The factory covers an area of 14,500 square meters, including the plant area of 11,300 square meters, the warehouse area of 900 square meters, and the supporting construction area of 1,200 square meters. We have 160 units advanced large scale equipment, and more than 50 units testing machines. With strong

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Flat Bed Trailers Buyers Compare With This

All 61 Flat Bed Trailers Full product index

Buyer Questions

Questions About This Unit

Is this trailer new or used

All trailers are new, built to order with full inspection and certification. We provide photos of the frame number and axle model before shipment.

What is the lead time

15 workdays after receipt of prepayment. This includes production, inspection and preparation for shipping.

Can you supply spare parts for this trailer later

Yes. Fuwa brand axles, leaf springs, ABS units and tyres are available through our supply network and can be shipped with your order or separately.

Do you ship by container or bulk

We ship by bulk for standard trailers. Container shipping is possible but requires lowering the cab or removing the frame. We quote both options for your cost comparison.
