Flat Bed Trailers

2 Axle Side Wall Semi Trailer with Container Twist Multi Purpose Semi Trailer

A two-axle side wall semi-trailer designed for container twist locks and multi-purpose cargo. It features a heavy-duty I-beam main structure made of Q345 steel, welded with automatic submerged-arc processes. This configuration suits general freight, container transport and bulk cargo where a balance of weight and capacity is needed.

Use TruckTrailer
Size Buyer'sRequest
Color Optional
Suspension MechanicalSuspension
Material Steel,steel

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10532

Silver two-axle side wall semi-trailer parked on a lot

Key Benefits

What This Unit Does Well

FUWA axles are widely available for parts and service in most regions
Mechanical suspension is simpler to maintain and cheaper to repair than air ride
The 12R22.5 Double Coin tyres are a common size, easing replacement sourcing
WABCO braking system provides reliable stopping power and is a known standard
3mm checkered steel floor offers durability for various cargo types
Side walls at 600mm height secure cargo and reduce the need for strapping

Application Scenarios

Where It Is Used

Transporting palletised goods and machinery between warehouses and distribution centres
Hauling shipping containers on short to medium-distance routes
Moving construction materials like steel beams and timber
Carrying bagged agricultural products or bulk raw materials
Local freight deliveries where a versatile trailer is required

Fit

Who It Is For

Logistics companies needing a general-purpose trailer for diverse cargo
Small to medium-sized transport operators looking for a cost-effective solution
Rental companies adding to their fleet of multi-purpose trailers
Businesses with fluctuating cargo needs and limited storage space
Contractors who need to move materials to and from construction sites

Buyer Pain

Problems It Solves

Damage to cargo during transit due to inadequate securing
High repair costs associated with complex suspension systems
Delays caused by sourcing uncommon tyre sizes
Difficulty in finding compatible spare parts for non-standard trailers
The need for multiple trailers to handle different types of cargo

Engineering

Technical Features

Heavy-duty I-beam main structure constructed from Q345 steel
16# channel steel side beams for added strength and stability
3mm checkered plate flooring for increased durability
FUWA axles for reliable performance and easy parts sourcing
Mechanical suspension system for simple maintenance
WABCO RE6 relay valve braking system for enhanced safety

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 2 Axle Side Wall Semi Trailer with Container Twist Multi Purpose Semi Trailer
Use	TruckTrailer
Size	Buyer'sRequest
Color	Optional
Suspension	MechanicalSuspension
Material	Steel,steel
Certification	CE
Axle	FUWABrand
Tire	DoubleCoin
Type	Semi-Trailer,semitrailer
Brake	WABCORelayEmergencyValve
Certificate	CCCISO9001BV
Trailer Type	Semi-Trailer
Payload	40T
Brake System	WABCO RE6 Relay Emergency Valve
Twist Locks	12pcs
King Pin	50# or 90#
Optional Max Payload	45 - 100
Tons Place of Origin	Shandong, China (Mainland)
Brand Name	HYG
Model Number	2 axle side wall semi trailer
Brand Tire	Double
Coin Certificate	CCC ISO9001
BV King Pin	50#or90#
Emergency Valve Color	Optional
Suspension Twist Lock	12pcs

Materials

Materials and Build

Q345 high tensile steel for the main beam construction
Q235 channel steel for side beams and cross members
3mm checkered plate steel for the floor
FUWA axles and components
Double Coin 12R22.5 radial tires
Steel for the chassis and frame

Process

How an Order Is Handled

You specify the required length, width and side wall height
We confirm availability of FUWA axles and Double Coin tyres
You approve the final specification sheet before production starts
The trailer is assembled, sandblasted, primed and painted
We arrange shipment via flat rack container or RoRo vessel

Quality Control

Checks Before Loading

Welds on the main beam are visually inspected for defects
Axle alignment is checked before tyre fitting
Brake lines and electrical connections are pressure and continuity tested
Paint thickness is measured to ensure corrosion protection
Loading is supervised to prevent damage during transport

Customisation

What Can Be Changed

Side wall height can be adjusted to suit specific cargo requirements
Optional addition of a roof or cover for weather protection
Choice of king pin size (50# or 90#) to match your tractor unit
Different tyre brands can be fitted upon request
Custom painting and branding options are available

Honest Comparison

How It Compares With the Alternatives

Air suspension trailer	Mechanical suspension is cheaper and simpler to maintain, but offers less ride comfort
Trailer with higher payload capacity	40T is a common rating, but heavier trailers require more powerful tractors
Trailer without twist locks	Twist locks allow for secure container transport, increasing versatility

Use Guide

Using It Well

Grease wheel bearings and suspension components regularly
Check tyre pressure before each journey
Inspect brake lines and connections for leaks
Secure cargo properly to prevent shifting during transit
Follow the manufacturer's recommendations for maintenance intervals

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

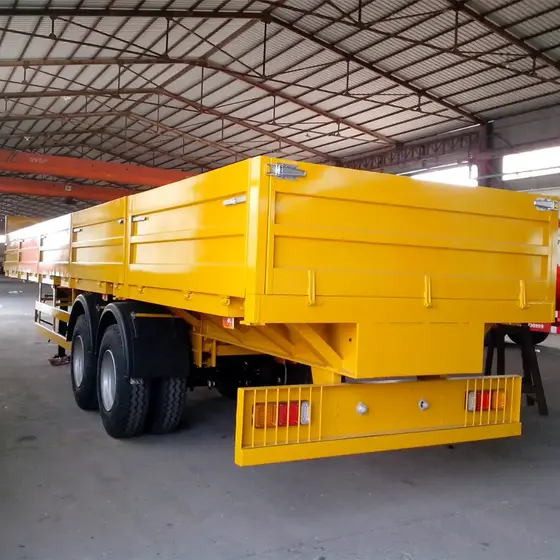

Side view of the semi-trailer showing the side walls and tyre details

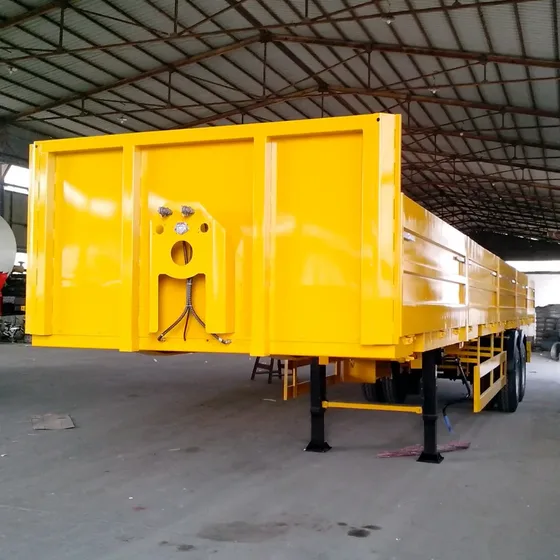

Close-up of the trailer's axles and suspension system

Source Specification

Manufacturer Text We Hold for This Listing

2 axle side wall semi trailer with container twist Multi purpose semi trailer Product Description 2 axle side wall semi trailer with container twist Multi purpose semi trailer DIMENSIONS Tare weight 7 000kg Size 12500mm *2500mm* 299 0mm Payload 40T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm Side beam 16# channel steel(Q235) Cross member 10# channel steel(Q235) Floor 3mm checkered plate Side wall Height 600mm thickness 1.5mm Front board Height 1.5m Axle 3 axle FUWA brand 13T Suspension Mechanical suspension American type local brand Leaf spring Leaf spring 10pcs*90*13mm Tire 12R22.5 double star brand 12pcs Wheel rim 9.0-22.5 better brand 12pcs Kingpin JOST brand 2" bolt-in king pin Landing gear JOST brand t

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
