2/3/4 Axle 40FT Container Flatbed Semi Trailer Chassis Flatbed Trailer for Sale

The chassis uses Q345B steel main beams and Q235 channel steel side beams, with a 10500*2480*1570mm overall size. It features mechanical suspension with 10 or 12 leaf springs, 12R22.5 tyres from Double Star, Triangle or Linglong, and a JOST 2" or 3.5" bolt-in kingpin. The trailer is built for heavy-duty transport and is available with optional ABS and lifting twist locks.

Use OtherTrailers
Size 10500*2480*1570mm
Suspension MechanicalSuspension
Material Steel
Paint Polyurethanepaint

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10505

Side view of a 4-axle 40FT container flatbed semi trailer with mechanical suspension and 12R22.5 tyres

Key Benefits

What This Unit Does Well

2/3/4 axle configuration provides stable load distribution across heavy container payloads up to 60T
Q345B steel main beams and Q235 side beams offer high strength and durability for long-term use
Mechanical suspension with 10 or 12 leaf springs reduces maintenance and is reliable in rough terrain
12R22.5 tyres from Double Star, Triangle or Linglong are widely available and easy to replace
JOST kingpin ensures secure coupling and compatibility with standard tractor heads
Polyurethane paint finish resists corrosion and maintains appearance in harsh environments

Application Scenarios

Where It Is Used

Transport of 40ft containers between inland depots and seaports on mixed asphalt and gravel roads
Flatbed hauling of heavy machinery and construction equipment across regions with poor road infrastructure
Long-haul container transport where axle load limits require a 3 or 4 axle configuration
Fleet expansion for logistics operators needing a low-maintenance trailer with consistent spare parts availability

Fit

Who It Is For

Fleet owners replacing older trailers with a higher payload and better axle load distribution
Contractors operating in regions with unpaved access roads and high container volume
Logistics companies sourcing trailers with consistent spare parts availability in Africa, the Middle East and Southeast Asia
Dealers stocking semi trailers for resale in markets where container transport is the primary use

Buyer Pain

Problems It Solves

Overloaded axles on 2-axle trailers that cause premature suspension and tyre wear
Lack of spare parts for foreign-branded trailers in remote or developing markets
Inconsistent trailer dimensions and axle configurations that complicate customs and port handling
Poor paint and corrosion resistance leading to early structural degradation in humid or salty environments

Engineering

Technical Features

2/3/4 axle configuration with FUWA, BPW or HJ brand axles rated at 13T or 16T each
Main beam made of Q345B steel with top flange 14mm, middle flange 8mm, height 500mm, bottom flange 16mm
Side beams made of 16# channel steel (Q235)
Cross members made of 10# channel steel (Q235)
Floor made of 3mm checkered plate
Mechanical suspension with 10pcs *90(W)*13(Thickness)mm or 12*100*12mm leaf springs
12R22.5 tyres from Double Star, Triangle or Linglong brand, 12 pieces
Wheel rims 9.0-22.5, better brand, 12 pieces
JOST brand 2" (50mm) or 3.5" (90mm) bolt-in kingpin or welding type
Twist lock options: lifting type or twist screw type, 4/8/12 pieces
Braking system with WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks
ABS optional
LED lighting: 8 side lights, 2 rear lights, 2 width lamps

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 2/3/4 Axle 40FT Container Flatbed Semi Trailer Chassis Flatbed Trailer for Sale
Use	OtherTrailers
Size	1050024801570mm
Suspension	MechanicalSuspension
Material	Steel
Paint	Polyurethanepaint
Axle	FUWA/BPW/HJoptional
Tire	12R22.5Doublestar/Triangle/Linglongbrand
Function	Transport20ft40ftcontainer
Type	Semitrailer
Certificate	CCCISO9001:2008BVSGS
Trailer Model	2/3/4 Axle 40FT Container Flatbed Semi Trailer
Axle Configuration	2/3/4 Axle
Dimensions L x W x H	10500 x 2480 x 1570 mm
Max Payload	60 T
Main Beam Material	Q345B Steel
Side Beam Material	Q235 Channel Steel
Floor Material	3mm Checkered Plate
Suspension Type	Mechanical Suspension
Leaf Spring Size	10pcs 90(W)13(Thickness)mm or 1210012mm
Tyre Size	12R22.5
Tyre Brand	Double Star / Triangle / Linglong
Kingpin Size	2" (50mm) or 3.5" (90mm)
Kingpin Type	JOST Bolt-in or Welding Type
Twist Lock Type	Lifting Type or Twist Screw Type
Twist Lock Quantity	4 / 8 / 12 pcs
Braking System	WABCO RE6 Relay Valve, T30/30 Spring Brake Chamber, 40L Air Tanks

Materials

Materials and Build

Q345B steel for main beams
Q235 channel steel for side beams and cross members
3mm checkered steel plate for floor
12R22.5 radial tyres from Double Star, Triangle or Linglong
JOST brand kingpin and landing gear
Polyurethane paint for corrosion protection

Process

How an Order Is Handled

You confirm the axle count (2/3/4), tyre brand, twist lock type and ABS requirement
We provide a specification sheet with exact material grades, dimensions and component brands
You approve the final drawing and component list before deposit
We prepare the trailer, photograph and video record the frame, suspension and paint
We book RoRo or container shipment and issue export documents including commercial invoice and bill of lading

Quality Control

Checks Before Loading

All steel grades and thicknesses are verified against the material certificate before fabrication
Welding joints are inspected for continuity and strength using visual and ultrasonic methods
Suspension and kingpin components are checked for correct fit and torque before final assembly
Paint layers are tested for adhesion and thickness after sandblasting and priming
Final inspection includes a full brake system test and twist lock operation check

Customisation

What Can Be Changed

Axle brand: FUWA, BPW or HJ
Tyre brand: Double Star, Triangle or Linglong
Twist lock type: lifting or twist screw
Twist lock quantity: 4, 8 or 12 pieces
ABS: optional installation
Paint colour: customizable beyond standard white

Honest Comparison

How It Compares With the Alternatives

2-axle flatbed trailer	The 3/4-axle version handles heavier payloads and reduces axle load per axle, but costs more in initial purchase and maintenance
Air suspension trailer	Mechanical suspension is simpler, cheaper to maintain, and more reliable in dusty or high-temperature environments
ABS not fitted	Without ABS, the trailer is cheaper and easier to service, but lacks anti-lock braking in emergency stops on wet or slippery surfaces

Use Guide

Using It Well

Test the braking system monthly and replace brake chamber seals if air leakage is detected
Keep the twist lock mechanism clean and lubricated to prevent jamming during loading

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Front view of the trailer showing the JOST kingpin and landing gear

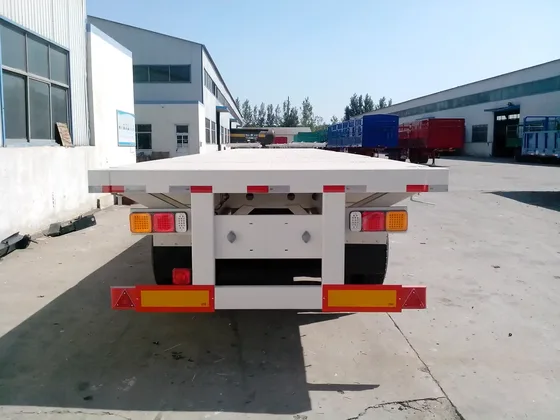

Rear view of the trailer with twist locks and LED lighting

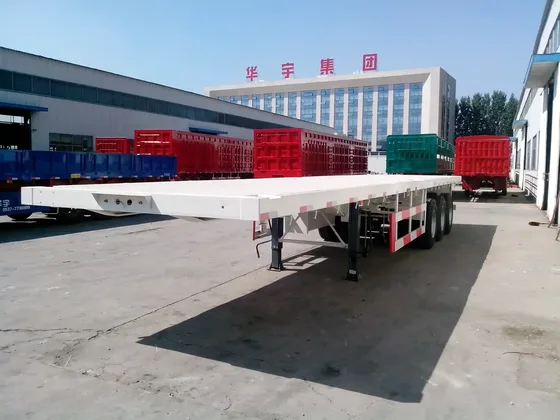

Undercarriage view showing the 3/4 axle setup and leaf springs

Close-up of the 12R22.5 tyre and wheel rim on the trailer

Detail of the polyurethane paint finish on the trailer chassis

Source Specification

Manufacturer Text We Hold for This Listing

2/3/4 Axle 40FT Container Flatbed Semi Trailer Chassis Flatbed Trailer For Sale Product Description FLATBED SEMI TRAILER Tare weight 7 000kg Size 1 30 00mm*2500mm* 15 00mm P ayload 60 T Main beam Top flange 14mm, width140mm; Middle Flange 8mm; height 500mm; bottom flange16mm, width 140mm; Material is Q345B Steel S ide beam 16# channel steel(Q235) C ross member 10# channel steel(Q235) F loor 3mm checkered plate Axle 3 /4 A xle FUWA /HJ/BPW brand 13 /16 T Suspension Mechanical suspension American type local brand or Air suspension L eaf spring 10pcs *90(W)mm*13(Thickness)mm or 12*100*12mm Tire 12R22.5 D ouble star /Triangle brand 12pcs Wheel rim 9.0-22.5 better brand 12pcs Kingpin JOST brand 2" /3.5 '' bolt-in king pin or welding type Landing gear JOST brand two-speed, manual operating,heavy duty landing gear 2 8 T T wist lock 4/8/ 12pcs Lifting type or Twist Screw Type optional Braking sy

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
