12V LED Strip Light

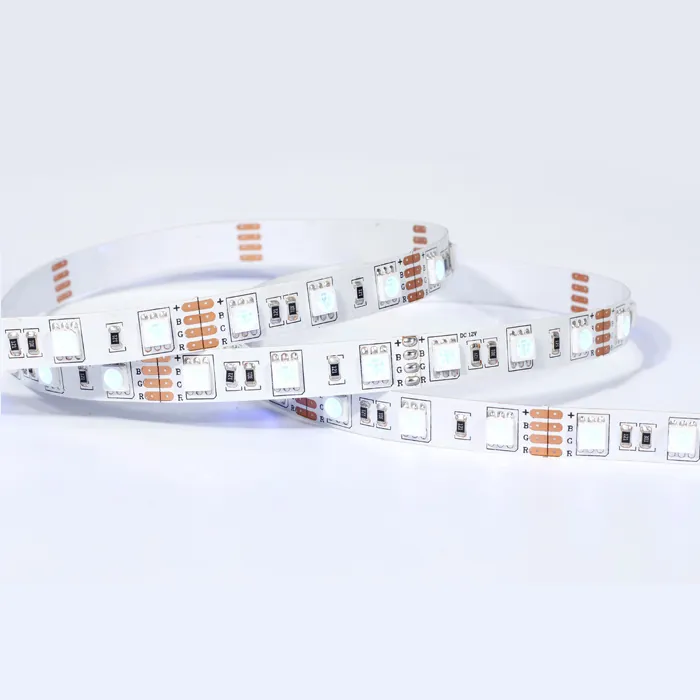

12V 5050SMD 60P RGB LED Strip light
12V 5050SMD 60P RGB LED Strip light is part of our 12V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on 12V / 24V DC, rated IP20, supplied with ETL / CE /RoHs documentation.
- Model
- BL-SMD-5050-60P
- Input Voltage
- 12V / 24V DC
- LED Type
- Epistar
- Output
- 80-90LM/W
- Protection
- 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterpro…
- Warranty
- 1 to 3 years
Product Overview
12V 5050SMD 60P RGB LED Strip light is part of our 12V LED Strip Light range, produced on our own lines in Jiangmen, Guangdong. It runs on 12V / 24V DC, rated IP20, supplied with ETL / CE /RoHs documentation.
Key Benefits
Why Buyers Specify The 12V 5050SMD 60P RGB LED Strip light
Color Changing
This RGB Led strip lights kit can change colors and speed automatically and periodically. It has not only RGB(Red, Green, Blue), 16 multicolored options, but also has DIY selection to create your great led mood lighting.
Premium LED Strips
Led strip lighting has 300 premium 5050 SMD RGB Leds in 5M/16.4ft. Can be dimming with dimmer and brightness controls. Can be indoor and outdoor service.
Superior & Safe Material
Using double layer copper on PCB board to keep the mixed colors more even. Low Voltage working, More safe.
Easy Installation and Use
Led tape lights is cuttable between every 3 leds. You can cut off extra strips to adjust to a proper length. 3M self-adhesive tape can be fit on any dry and flat surface. Flexible to install anywhere you want.
Worry-Free Warranty
BEAUTY STC led strip lights support 60 Days 100% Satisfaction Guarantee and 2 Year Warrany. Our friendly customer service is always stand behind our product and reply all email within 24 hours.
Specifications
Full published specification for 12V 5050SMD 60P RGB LED Strip light. Ask us on WhatsApp if you need a value confirmed against a specific production batch.
| Input Voltage | 12V / 24V DC |
|---|---|
| LED power | 0.24W each |
| Power factory | >0.9 |
| Power per meter | 14.4W Per meter |
| LED Brand | Epistar |
|---|---|
| LED Type | 5050SMD |
| LED QTY | 60pcs LED per meter |
| LM / LED | 18-20LM each LED |
| LM/W | 80-90LM/W |
| Lumen per meter | 1000-1400LM/meter |
| Color Available | RGB |
| Lens angle | 120° |
| PCB Width | Double side, white color 8MM PCB |
|---|---|
| Size | 10*5000MM |
| Cutting | Every 3pcs LED chip can be cutted |
| Lifespan | >50,000 hours |
|---|---|
| Waterproof rate |
|
| Operating temperature | -15℃ to +40℃ |
| Model number | BL-SMD-5050-60P |
|---|---|
| Packing | 5 meters per roll |
| Warranty | 1 to 3 years |
| Certificates | ETL / CE /RoHs |
Product Detail Images
Photographs of the actual product as supplied from our Jiangmen factory.
Use Guide
Installation details that come straight from this model's own specification.
Cutting
Every 3pcs LED chip can be cutted
Waterproof Construction
- 1. Non-waterproof Bare plate IP20 with 3M adhesive paper
- 2. Waterproof Drop Glue IP65 with 3M adhesive paper
- 3. Waterproof Silicon tube IP66 with 3M adhesive paper
- 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper
Operating Temperature
-15℃ to +40℃
Packing
5 meters per roll
Compare With Other Models In This Range
Every value below is taken from the published datasheet of each model, so you can line up the differences before you ask for a quotation.
| 12V 5050SMD 60P RGB LED Strip light This product | 12/24V COB 480P LED Strip light | 12/24V COB 320P LED Strip light | 12/24V COB 252P LED Strip light | |
|---|---|---|---|---|
| Input Voltage | 12V / 24V DC | 12/24V DC | 12/24V DC | 12/24V DC |
| LED Type | 5050SMD | SMD | SMD | SMD |
| LED Density | 60pcs LED per meter | 480pcs LED per meter | 320pcs LED per meter | 252pcs LED per meter |
| Power | 0.24W each | 0.1W each | 0.1W each | 0.1W each |
| Lumen | 1000-1400LM/meter | 1200-1300LM/meter | 1200-1300LM/meter | 1100-1200LM/meter |
| Protection | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper | 1. Non-waterproof Bare plate IP20 with 3M adhesive paper | 2. Waterproof Drop Glue IP65 with 3M adhesive paper | 3. Waterproof Silicon tube IP66 with 3M adhesive paper | 4. Waterproof Irrigation Glue IP68 without 3M adhesive paper |
| Size | 10*5000MM | 10*5000MM | 10*5000MM | 10*5000MM |
Manufacturing And Quality
How This Product Is Built And Checked
-
01
Material Inspection
Incoming material is carefully inspected and selected before it reaches the line.
-
02
Assembly
Our QC team follows every unit along the assembly line on our 6 production lines in Jiangmen.
-
03
Aging Test
Aging test of more than 24.5 hours is run before shipping.
-
04
Final Inspection
Load test, high-voltage test, grounding conduction test and install test on the finished light.
Customization Options
Beauty STC Lighting has concentrated on commercial LED light manufacturing for over 15 years and offers professional R&D, patented design and manufacturing experience for customised products.
- OEM and ODM production with your brand, packaging and carton artwork.
- Patented design and manufacturing experience from our own R&D team.
- Colour options: RGB.
- Packing and length: 5 meters per roll. Other lengths can be produced to order.
- Certification documents issued against your model number where the construction allows.
Certifications For This Range
This model is supplied with ETL / CE /RoHs documentation.
View All CertificatesFAQ
12V 5050SMD 60P RGB LED Strip light FAQ
Can a third-party inspection be arranged before delivery?
Why your product comes with a high cost performance?
Do you accept customize design?
Are the products safe enough?
Do you sell to individual customers directly?
How can I get the sample from you?
How can I make the order?
Are you a truly factory
More 12V LED Strip Light
See The Full Range
12V Strip Light
12/24V COB 480P LED Strip light
View Details12V Strip Light
12/24V COB 320P LED Strip light
View Details12V Strip Light
12/24V COB 252P LED Strip light
View Details
12V Strip Light
12V 5 in one 60P RGBWWW LED Strip light
View Details
12V Strip Light
12V 4 in one 60P RGBW or RGBWW LED Strip light
View Details
12V Strip Light
12V 5050SMD 30P RGB LED Strip light
View Details
12V Strip Light
12V 5050SMD 60P LED Strip light
View Details
12V Strip Light
12V 5050SMD 30P LED Strip light
View DetailsWhere This Product Is Used
Related Guides
Buying Guide
How to Choose Between 12V 24V and 110V 230V LED Strip Light
A buyer guide to picking mains-voltage or low-voltage LED strip light, based on run length, cutting unit and where the driver sits.
Product Guide
RGB RGBW and RGBWW LED Strip Light Explained
The difference between 3-in-one, 4-in-one and 5-in-one colour-mixing strip light and when each configuration is worth the extra cost.
Comparison
COB Versus SMD LED Strip Light
How COB strip light differs from 2835, 3014, 5050 and 5730 SMD strip light in dot visibility, density and cutting unit.
Request A Price For 12V 5050SMD 60P RGB LED Strip light
Send us the length, colour temperature, protection rating and quantity you need and our engineer will come back with a specification and a price.
No forms. Talk to an engineer on WhatsApp 0086-13902885704 or email [email protected].
